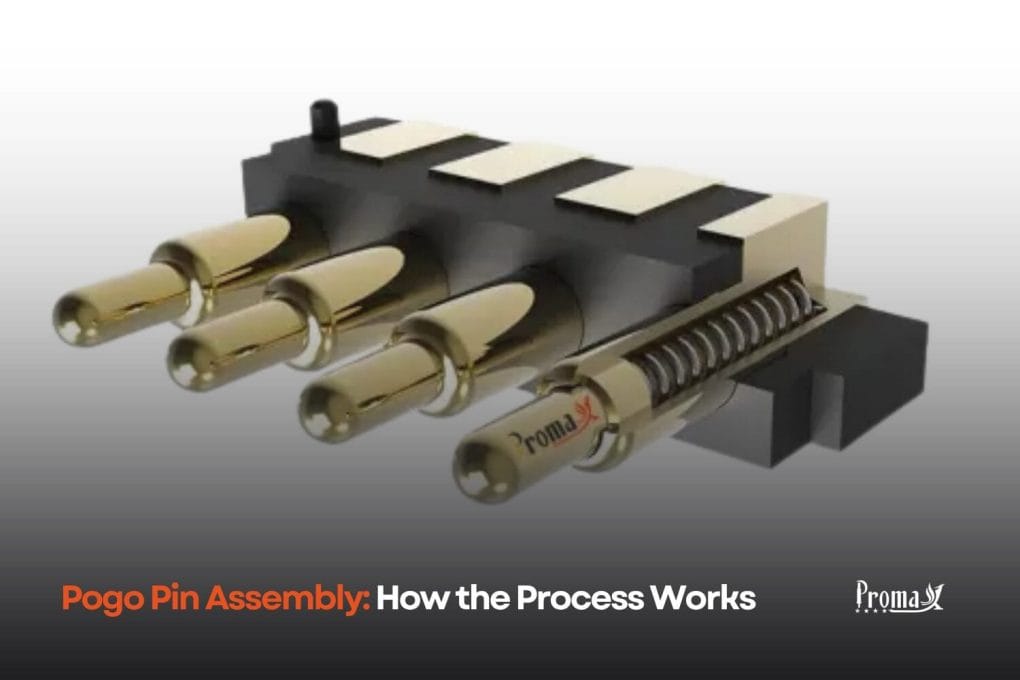

Pogo Pin Assembly: How the Process Works

Pogo pin assembly is where a spring-loaded connector design gets tested by manufacturing reality. A pin can be engineered correctly on paper with the right spring rate, correct plating spec and tight dimensional tolerances. However, if assembly introduces misalignment or inconsistent crimping, the finished pin will fail in the field.

These nuances explain why quality varies so widely between manufacturers. This guide covers the full pogo pin assembly process: the components, each stage of the assembly line, quality control, and where failures originate.

What does Pogo Pin Assembly Involve?

Pogo pin assemblies join three precision-machined components: a plunger, a barrel, and a spring. They all work as a single functional unit. Each component is produced separately, typically by CNC turning, then joined in sequence.

The finished pin must deliver consistent electrical contact through repeated compression and release cycles. It can be rated anywhere between 10,000 to 100,000+ mating cycles, depending on the design. Long mating cycles require the spring to seat correctly, the plunger to travel smoothly, and the crimp holding everything together to maintain retention force over the full rated lifecycle.

What makes pogo pin assembly demanding is the scale of tolerance involved. Barrel diameters often run below 2 mm. Wall thickness on small pins can be as thin as 0.1–0.15 mm. At that scale, minor variations in component dimensions or assembly force produce measurable degradation in contact resistance or spring behavior.

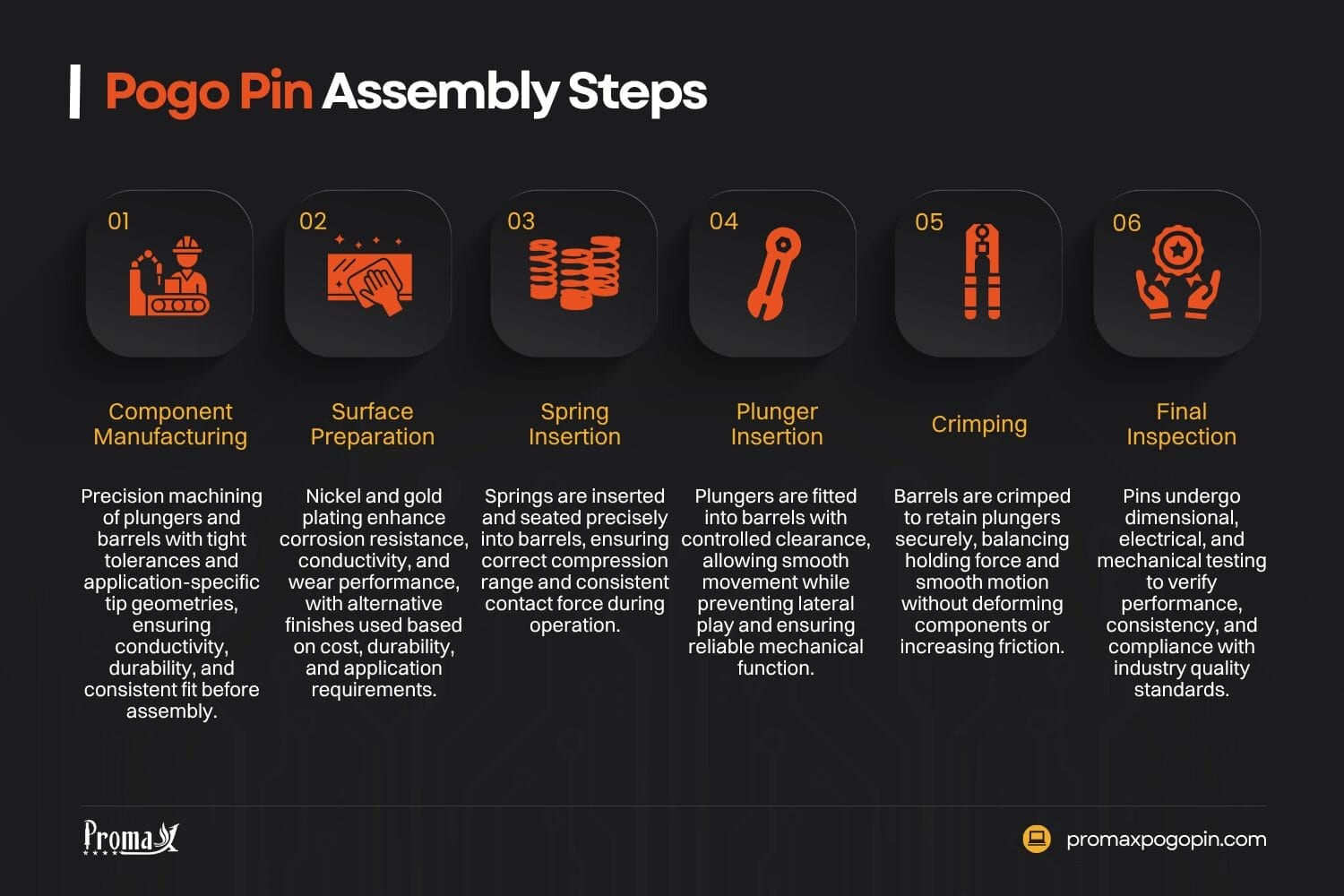

Step-by-Step: How Pogo Pins are Assembled

Step 1: Component manufacturing

Before assembly starts, each part is produced and inspected independently.

Plungers and barrels are turned from brass, phosphor bronze, or stainless steel on CNC lathes. Brass is the most common barrel material because it machines cleanly, conducts well, and holds tight dimensional tolerances. Plunger tip geometry varies by application: flat tips for pad contact, crown tips for high-current applications, and pointed tips for test probes. Dimensional tolerances on critical fits are typically held to ±0.01 mm or tighter.

Springs are coil-wound to a specified free length, wire diameter, and spring rate. Spring rate controls the contact force that the pin delivers at working height. For signal pins, spring force ‌falls between 0.5–2.0 N at working compression. High-current pogo pins may require significantly higher spring forces to maintain stable contact resistance under load.

All components are measured and sorted before assembly. Catching out-of-tolerance parts at this stage is far less costly than finding them in the finished pin.

Step 2: Surface preparation and plating

Most pogo pin components are plated before or after assembly, depending on the design. Standard plating sequences include:

• Nickel undercoat: typically 1–5 µm, improves adhesion and acts as a corrosion barrier.
• Gold finish: typically 0.05–0.5 µm, maintains low contact resistance and resists oxidation.
• Alternative finishes: tin or palladium-nickel for lower-cost applications where gold isn’t required.

The plating sequence is key. Gold over nickel over brass is the standard stack for low-resistance signal pins. Thicker gold (0.3–0.5 µm) suits long-lifecycle or harsh-environment applications. Palladium-nickel over gold is sometimes specified where the plunger tip sees high wear, because palladium is harder and resists fretting more effectively.

Plating is typically done in batches before assembly for barrel exteriors. Plunger tip plating may happen post-assembly on some configurations.

Step 3: Spring insertion

The spring loads into the open end of the barrel. Manual assembly uses precision tweezers or fixture tooling. An automated pogo pin assembly line uses vibration bowl feeders to orient the springs and barrels, then a press or pick-and-place mechanism seats them consistently.

Correct spring seating matters the most here. If the spring doesn’t fully seat at the bottom of the barrel, the working compression range shifts. The pin may deliver incorrect contact force at the specified working height, or the plunger may bottom out sooner than designed.

Asymmetric spring geometries must enter the barrel in the correct orientation. Automated feeders handle this reliably; manual assembly requires visual verification at each pin.

Step 4: Plunger insertion

Once the spring seats, the plunger inserts into the barrel from the open end and compresses the spring. The fit between the plunger shaft and the barrel bore is a close sliding fit, with a typical clearance of 0.02–0.05 mm. This is tight enough to prevent lateral play, and loose enough to allow smooth plunger travel throughout the stroke.

At this point, the pin is mechanically complete. However, it’s not yet retained, and the plunger can still be withdrawn.

Step 5: Crimping or swaging

The barrel is crimped just above the plunger flange to lock it in. This is the most dimensionally sensitive step in pogo pin assembly. The crimp must apply enough force to retain the plunger at maximum extension. However, it must not deform the barrel bore in a way that increases plunger friction, nor damage the spring or shift its seating position.

Over-crimping is a common failure mode on poorly controlled lines. This is where the barrel walls deform inward enough to increase plunger drag. It shows up as elevated actuation force and inconsistent contact behavior. On high-volume pogo pin assembly lines, a dedicated crimping press with hardened tooling matched to the barrel diameter handles this step. This ensures consistent retention force without deforming the barrel bore.

Some barrel designs use a pre-formed internal shoulder rather than a post-assembly crimp. The plunger snaps past the shoulder during insertion, which eliminates the crimping step and reduces the risk of barrel deformation.

Step 6: Final inspection and testing

Finished pins are inspected before leaving the assembly line. Standard checks include:

• Dimensional verification: overall length, plunger stroke, plunger protrusion at rest, and barrel outer diameter are verified.
• Contact resistance: typically below 30 mΩ for standard signal pins and below 10 mΩ for high-frequency or high-current designs.
• Spring force: measured at defined compression depths using a force gauge or spring tester.
• Plunger travel: checked for smooth, consistent motion without binding or side play.
• Visual inspection: visual checks for plating uniformity, crimp quality, and an absence of contamination or burrs.

For mass production, checks run on a sampling basis following AQL plans. Visual and quality criteria follow IPC-A-610, the industry standard for electronic assembly acceptability. Other critical electrical parameters may receive 100% inspection in high-reliability applications.

What Equipment does a Pogo Pin Assembly Line Use?

An automated pogo pin assembly line links the individual steps above into a continuous process. Core equipment includes:

• Vibration bowl feeders: These orient and feed the barrels, plungers, and springs at high speed.
• Transfer mechanisms: These move components between stations without losing orientation.
• Vision systems: These verify component orientation and detect missing or misaligned parts before each step.
• Crimping and swaging stations: This is the point where the operator applies controlled retention force to each pin.
• Force and resistance testing stations: This is where the operator measures spring force and contact resistance in-line.

On a well-configured automated line, output rates of several thousand pins per hour are achievable for standard sizes. Pins below 0.5 mm in diameter run more slowly because handling and orienting components at that scale requires tighter process control.

The advantage of an automated pogo pin assembly line over manual assembly is consistency. Human assembly introduces variation in spring seating depth, crimp force, and plunger insertion angle that automated tooling eliminates. For high-volume production or tight-tolerance applications, automation directly protects field reliability.

What Affects Pogo Pin Assembly Quality?

Pogo pin assembly quality depends on more than the final crimp or contact resistance reading. It starts with component accuracy, then carries through spring force control, plating durability, and contamination prevention. If any of these variables drift, the finished pin may show higher resistance, unstable contact, or shorter service life in the field.

Component dimensional consistency

Assembly quality starts with component quality. If the barrel bore diameter drifts during a CNC turning run, plunger-to-barrel clearance shifts. Tight incoming inspection standards on component dimensions protect the assembly process downstream.

Spring rate consistency

Spring force variation between pins in the same batch causes inconsistent contact force across a multi-pin connector. In printed circuit board testing fixtures, force variation directly affects which pins make reliable contact. Spring wire diameter tolerance and winding consistency both contribute to spring rate variation between units.

Plating integrity

Plating defects often appear under cycling rather than at initial inspection. A pin that passes a static contact resistance test can still fail at 5,000 cycles if the gold plating on the plunger tip is thinner than specified at the contact points.

Typically, lifecycle and contact resistance testing methodology follows MIL-STD-1344A, the standard test method for electrical connectors. Post-assembly lifecycle testing on sample sets catches plating failures before production ships.

Contamination control

Oils, cutting fluids, and handling residues from CNC machining transfer to plated surfaces if components aren’t cleaned properly between steps. Contamination on the plunger tip or barrel bore increases contact resistance and accelerates fretting wear. On a properly run pogo pin assembly line, ultrasonic cleaning between critical steps is standard practice.

Common Pogo Pin Assembly Defects and Their Causes

The table below summarizes the most common assembly-related defects, their root causes, and their effect on performance.

Defect	Root Cause	Effect on Performance	What to Check
High contact resistance	Contamination, thin plating, or barrel distortion from over-crimping	Signal loss, power delivery degradation	Request plating specs and contact resistance test data.
Inconsistent spring force	Spring rate variation, improper spring seating depth	Unreliable contact in multi-pin arrays	Review spring force tolerance and sample test results.
Plunger binding	Excessive clearance variation, over-crimping	Intermittent contact, stuck plunger at low temperatures	Inspect crimp quality and plunger travel under compression.
Plunger pullout	Under-crimped barrel or worn retention shoulder	Pin failure at maximum extension	Check retention testing and crimp consistency.
Plating flaking	Poor adhesion, insufficient nickel undercoat	Rising resistance over cycle count, mating surface contamination	Confirm plating stack and lifecycle test data.

How to Evaluate Assembly Quality When Sourcing Pogo Pins

When you’re qualifying a pogo pin manufacturer, the spec sheet tells only part of the story. Assembly quality is harder to see on paper, so here’s what to look for:

• Request lifecycle test data: Ask for contact resistance vs. cycle count results from the manufacturer’s own testing. Quality manufacturers may test 10,000, 50,000, or up to 100,000 cycles and share data on request.
• Check plating specifications by layer: Ask for nickel and gold thickness separately. A vague ‘gold-plated’ spec without a thickness value is a warning sign.
• Test samples at working compression: Contact resistance at zero compression doesn’t reflect real operating conditions. It’s good practice to test at the compression height your design specifies.
• Inspect crimp quality under magnification: A clean, symmetrical deformation around the barrel indicates controlled crimping. Irregular or asymmetrical crimping signals inconsistent process control.
• Confirm assembly line automation level: For high-volume orders, ask whether your production run will use automated or manual assembly. The answer affects batch-to-batch consistency more than most buyers realize.

Need a Pogo Pin Assembly Process You Can Trust?

Pogo pin assembly quality depends on control at every stage, from component machining and plating to crimping and final testing. A pin may look correct on the drawing, but poor spring seating, weak plating control, or inconsistent crimp force can still cause higher resistance, unstable contact, and early field failures. That’s why buyers should evaluate the assembly process, not just the part specification.

If you’re sourcing custom pogo pins for a new design or production program, our team at Promax Pogo Pin can help you review the critical details before tooling starts.

Share your electrical requirements, mating cycle target, and space limits, and talk to our engineering team about a design approach that fits your application and manufacturing goals.

Pogo Pin Assembly FAQs

What is the most critical step in pogo pin assembly?

Crimping is the most critical step because it locks the plunger in place without restricting movement. If the barrel is over-crimped, plunger drag increases and contact becomes inconsistent.

Should I ask whether the pins are assembled manually or on an automated line?

Yes, the assembly method affects consistency across large production runs. Automated lines usually give better control over spring seating, plunger alignment, and crimp force.

What plating details should a pogo pin manufacturer provide?

A manufacturer should provide the full plating stack and thickness for each layer. Ask for the Nickel undercoat and Gold finish separately instead of accepting a vague “gold-plated” description.

How do I verify pogo pin assembly quality before mass production?

Sample testing is the best way to verify assembly quality before release. Ask for contact resistance data, spring force results, lifecycle testing, and magnified images of the crimped area.

Why can two pogo pins with the same drawing perform differently in the field?

Assembly quality changes real-world performance even when the drawing looks identical. Minor differences in spring seating, plating thickness, or crimp control can raise resistance or shorten service life.
