TNC vs. BNC Connectors: Key Differences, Specs & Selection Guide (2026)

TNC and BNC connectors are both RF coaxial connectors used in similar cable families and signal applications, but they use different locking mechanisms. When you specify the wrong one, you’ll face installation delays, failed vibration tests, or connectors that physically can’t mate with existing infrastructure. In many cases, the choice comes down to connection speed, vibration resistance, and whether the installation needs better environmental protection.

This guide covers every specification that separates TNC from BNC: mechanical design, impedance, frequency performance, mounting configurations, and the environmental ratings that determine which connector survives in the field.

TNC vs. BNC: Quick Comparison

The table below covers the specifications that matter most in connector selection. Use it as a decision shortcut before reading the detailed breakdown.

Specification	BNC Connector	TNC Connector
Full name	Bayonet Neill–Concelman	Threaded Neill–Concelman
Mating mechanism	Bayonet quarter-turn lock	Threaded screw lock
Connection speed	Fast — one-handed quarter-turn	Slower — full thread engagement required
Frequency range	Up to ~4 GHz for standard; ~11 GHz for precision	Up to ~11 GHz for standard
Impedance options	50Ω and 75Ω	50Ω for primary; 75Ω available
Vibration resistance	Moderate — bayonet can back off under sustained vibration	High — threaded lock resists vibration dropout
Ingress protection	Minimal — requires separate weatherproofing	IP67 available in sealed versions
Typical mating cycles	~500 cycles	~500 cycles
Governing standards	IEC 61169-8, MIL-STD-348	IEC 61169-17, MIL-C-39012
Best for	Lab test equipment, CCTV, broadcast video, rapid field connections	Outdoor RF, military/avionics, cellular antennas, sealed enclosures

What is a BNC Connector?

A BNC connector is a miniature bayonet-locking RF coaxial connector designed for quick connect/disconnect with consistent impedance across the mating interface. The bayonet mechanism achieves a secure lock with a quarter-turn rotation. BNC connectors are manufactured in 50Ω and 75Ω versions and are specified under IEC 61169-8 and MIL-STD-348. They operate reliably up to approximately 4 GHz in standard form and up to 11 GHz in precision versions.

The BNC name comes from the U.S. Navy development program of the 1940s. Paul Neill and Carl Concelman contributed to the design, with the “B” reflecting the bayonet locking mechanism. You’ll find BNC connectors on oscilloscopes, spectrum analyzers, broadcast video routers, CCTV systems, and RF test instruments. Any environment that demands repeatable RF connections with fast field servicing defaults to BNC.

What is a TNC Connector?

A TNC connector is a threaded RF coaxial connector related to the BNC family. It uses a threaded coupling nut instead of a bayonet lock, which gives it better resistance to vibration and loosening. TNC stands for Threaded Neill–Concelman. The threaded interface resists vibration-induced uncoupling that can affect bayonet connectors under sustained mechanical stress. TNC connectors are standardized under IEC 61169-17 and MIL-C-39012.

TNC connectors maintain the same 50Ω impedance and cable compatibility as BNC connectors. The threaded design also supports IP67-rated sealed versions for outdoor deployment. Their frequency ceiling extends to approximately 11 GHz in standard configurations. This threshold is higher than standard BNC, which stabilizes at around 4 GHz.

TNC connectors are the first choice in cellular antenna systems, defense radio equipment, and avionics. They are relevant in any outdoor installation where moisture ingress or vibration would cause a BNC to fail.

TNC vs. BNC: Key Differences Explained

The BNC and TNC connectors share a common origin and nearly identical electrical performance at lower frequencies. The differences that matter for connector selection are mechanical, not electrical. Each one has a direct consequence for your installation.

Mating Mechanism: Bayonet vs. Thread

BNC connectors lock with a quarter-turn bayonet. Two lugs on the female body engage J-slots in the male shell, and a quarter-turn clockwise seats the connector. This mechanism allows one-handed mating in under a second. This makes it fast enough for test environments where connections are made and broken dozens of times per day.

TNC connectors require full thread engagement. The coupling nut must rotate through several turns to seat and tighten. This is typically 5–10 seconds per connection. That’s slower than BNC, but it produces a mechanically locked interface. Under sustained vibration, the thread maintains consistent contact pressure. A BNC bayonet can back off under long-duration vibration, raising contact resistance or breaking the connection entirely. In a vehicle-mounted radio or airborne system, that failure mode isn’t acceptable.

Frequency Performance

Standard BNC connectors operate reliably up to approximately 4 GHz. Above that frequency, radiation from the slotted outer conductor introduces signal instability. Precision BNC variants extend usable frequency to around 11 GHz through tighter dimensional tolerances.

Standard TNC connectors operate stably up to approximately 11 GHz without requiring the precision-grade tolerances that push BNC performance to the same frequency. The threaded outer shell provides better electromagnetic shielding than the slotted bayonet body, which accounts for the improved high-frequency performance. If your application runs above 4 GHz and you’re not locked into BNC infrastructure, specify TNC. It reaches 11 GHz without requiring precision-grade tolerances.

Vibration and Environmental Resistance

BNC connectors offer moderate vibration resistance. The bayonet locking mechanism maintains contact under brief mechanical stress, but sustained vibration can cause the connector to back off gradually. This increases contact resistance and eventually causes dropouts.

TNC connectors are built for these environments. The threaded lock resists vibration forces and maintains consistent mating pressure through sustained mechanical stress. Sealed TNC variants with elastomeric gaskets achieve IP67 ingress protection. They are also rated for temporary submersion and continuous dust and moisture exposure. Standard BNC connectors offer no comparable sealing without external weatherproofing boots or heat-shrink.

Physical Size and Connector Compatibility

BNC and TNC connectors share the same body diameter and cable compatibility. They accept the same coaxial cable types: RG-58 for 50Ω and RG-59 or RG-6 for 75Ω applications. They are not directly interchangeable, as the mating interfaces are mechanically incompatible. However, BNC-to-TNC adapters are available for transitioning between systems.

The TNC coupling nut adds length to the connector body. In dense panel layouts, that extra length reduces how many connectors fit per unit of panel width. It’s worth accounting for in high-density rack designs.

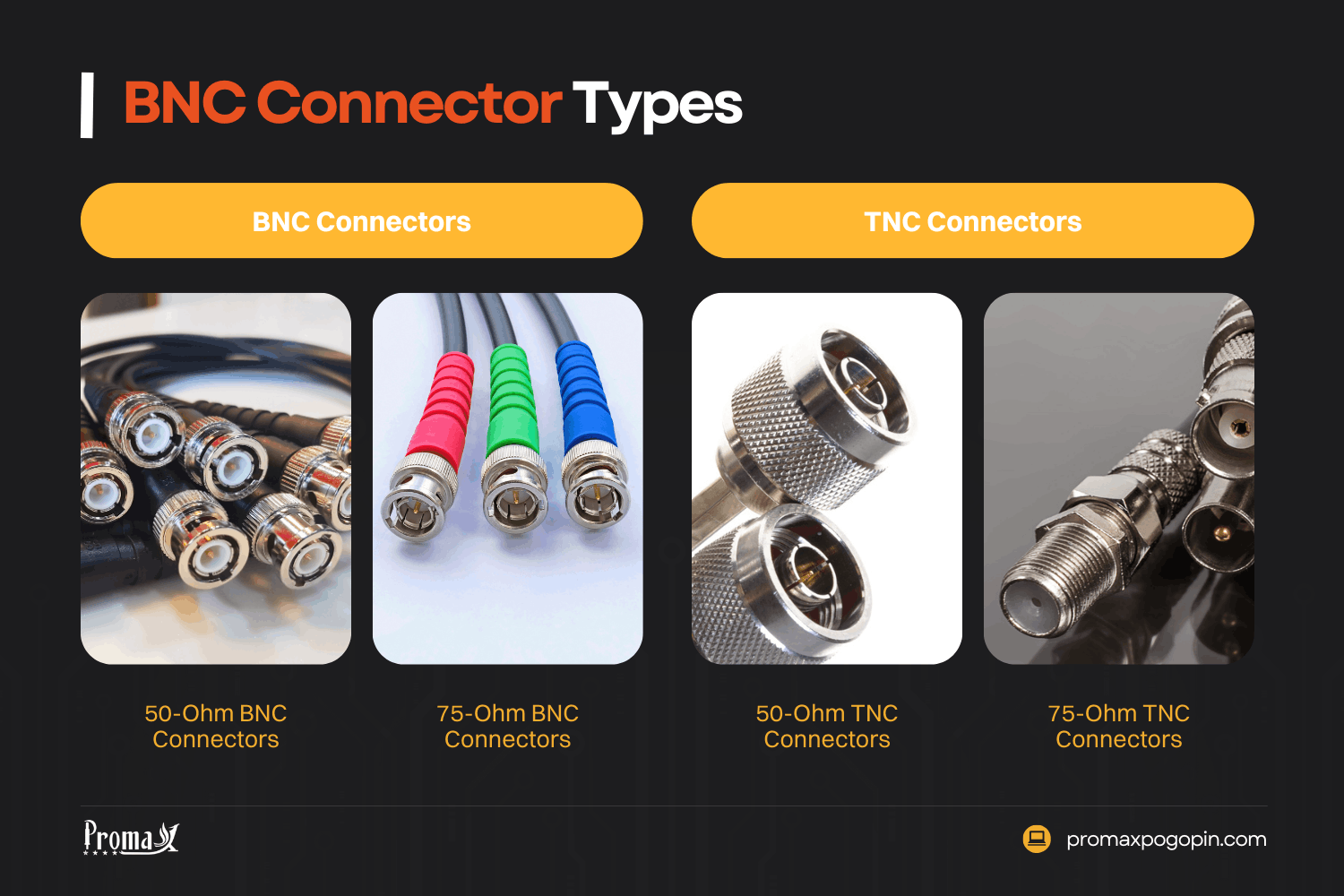

BNC and TNC Connector Types by Impedance

Both BNC and TNC connectors are available in 50Ω and 75Ω versions. The impedance rating must match the cable and the system. Mixing impedances degrades return loss by approximately 20 dB, which appears as signal reflection, ghosting on analog video, and bit errors on digital links.

Connector	Impedance	Primary Applications	Compatible Cables
BNC 50Ω	50 ohms	RF test equipment, radio, military communications	RG-58, RG-8
BNC 75Ω	75 ohms	Broadcast SDI, CCTV, cable TV distribution	RG-59, RG-6, RG-11
TNC 50Ω	50 ohms	Cellular antennas, military radios, avionics, outdoor RF	RG-58, RG-8, LMR-200
TNC 75Ω	75 ohms	Sealed video surveillance, outdoor broadcast feeds	RG-59, RG-6

75Ω TNC connectors are less common than 50Ω versions. Most TNC applications involve RF signal transmission rather than video, and 50Ω is the standard for those environments. The connectors look physically identical within each family, so verify impedance from the part number before installation.

BNC Connector Types: Which Variant Fits Your Application?

BNC connectors come in several variants defined by attachment method, orientation, mounting style, and frequency grade. Each variant solves a specific installation or performance problem. The wrong variant produces either a mechanically failed termination or a signal path that doesn’t meet spec.

How do crimp, compression, and twist-on BNC connectors compare?

The attachment method determines pull-out strength, installer error rate, and long-term signal integrity. Three methods are in common use.

Crimp BNC connectors use a separate ferrule compressed over the cable braid with a dedicated crimping tool. Pull-out strength exceeds 40 lb on RG-59. When the ferrule size matches the cable’s outer diameter, the connection is permanent with contact resistance well below 10 mΩ. Professional broadcast and security installers use crimp connectors as the default for indoor permanent runs.

Compression BNC connectors drive a sleeve forward with a compression tool, sealing the cable jacket and braid simultaneously. The compression stroke self-indexes, reducing installer error. The sealed interface makes compression connectors the standard for outdoor CCTV and any installation where moisture ingress at the cable termination is a risk. When installed correctly, crimp and compression deliver comparable RF performance.

Twist-on connectors require no dedicated tools. Strip the cable, rotate the connector clockwise, and it’s done. Such an arrangement makes them fast for temporary bench setups and prototyping. Pull-out strength is lower than crimp or compression, and contact resistance drifts upward as the mechanical grip relaxes over time. Use them for bench work and short-term setups. Don’t use them for permanent runs or outdoor installations.

Straight vs. Right-Angle BNC Connectors

Straight BNC connectors route the cable along the same axis as the mating interface. This is the standard for rack-mounted equipment, test instruments, and patch panel connections where straight cable exits align with cable management systems.

Right-angle BNC connectors route the cable at 90 degrees to the connector axis. They’re used in space-constrained PCB layouts and panel-mount applications where the cable bend radius would be tight with a straight connector. Right-angle variants introduce marginally higher insertion loss than straight connectors because of the bend geometry in the signal path. This is negligible in most applications but worth accounting for in high-precision RF measurement setups operating near the connector’s frequency limit.

PCB-Mount and Bulkhead BNC Connectors

PCB-mount BNC connectors solder directly onto a printed circuit board and provide an RF interface at the board edge or panel. They’re available in edge-launch and through-hole vertical configurations. Contact resistance on a well-soldered PCB-mount BNC runs below 10 mΩ. Poor solder joints introduce resistance that degrades signal quality at higher power levels.

Bulkhead BNC connectors mount through a chassis panel using a hex nut or flange. They provide an external-facing interface for internal cabling. They serve instrument front panels, rack equipment rear panels, and RF enclosure ports. Bulkhead connectors are available in both 50Ω and 75Ω versions and in isolated and chassis-grounded configurations.

TNC Connection Types and Variants

TNC connectors follow the same physical form factor variants as BNC, but add configurations driven by their outdoor and defense applications.

Reverse Polarity TNC

Reverse polarity TNC connectors swap the pin and socket positions relative to standard TNC. The female RP-TNC body carries the center pin, and the male RP-TNC body carries the socket. This non-standard polarity prevents accidental mating between consumer antenna products and equipment requiring certified antennas. RP-TNC connectors are physically incompatible with standard TNC, so verify polarity requirements before specifying.

Waterproof and Sealed TNC Connectors

Sealed TNC connectors use elastomeric O-ring gaskets between the mating faces and within the coupling nut to achieve IP67 ingress protection. IP67 means the connector withstands temporary submersion to one meter for 30 minutes and continuous exposure to dust without ingress. Standard BNC connectors provide no comparable sealing without external weatherproofing. For any outdoor RF installation, a sealed TNC is the industry standard.

Right-Angle and PCB-Mount TNC Connectors

TNC connectors are available in right-angle cable-mount versions for space-constrained installations and in PCB-mount configurations for board-level RF interfaces. PCB-mount TNC connectors provide the same threaded coupling capability at the board edge. This is useful in equipment enclosures where panel-mount connectors are impractical. Insertion loss for right-angle TNC connectors is comparable to right-angle BNC at the same frequency.

What are TNC and BNC Connectors Used for?

The correct connector depends on the environment, connection frequency, and frequency performance requirements. Here’s where each type performs best.

RF Test and Measurement

Oscilloscopes, network analyzers, signal generators, and spectrum analyzers use 50Ω BNC connectors as the standard probe and cable interface. The quarter-turn connection speed allows engineers to reconfigure test setups quickly. Standard BNC connectors are rated for approximately 500 mating cycles. In automated test equipment running continuous cycles, that rating can be reached within weeks. Track contact resistance drift and schedule replacements before degraded contact geometry affects measurement accuracy.

Broadcast Video and CCTV

Broadcast SDI video, including HD-SDI at 1.5 Gbps and 3G-SDI at 3 Gbps, uses 75Ω BNC connectors throughout the production infrastructure. The bayonet connection speed supports fast equipment changes in live broadcast environments. Security camera installations use 75Ω BNC on RG-59 or RG-6 cable runs. For exterior camera installations, compression BNC is the standard. The sealed interface blocks moisture ingress at the cable termination, which is the most common failure point in outdoor CCTV systems.

Cellular Antennas and Outdoor RF

Cellular base station antennas, outdoor Wi-Fi access points, and vehicle-mounted radio systems use TNC connectors. This is because the threaded lock withstands the vibration and thermal cycling that would cause BNC connectors to back off over time. The IP67-rated sealed versions protect against rain, condensation, and dust in permanent outdoor installations. LMR-200 and similar low-loss coaxial cables pair with 50Ω TNC connectors for these applications.

Defense, Avionics, and Defense Electronics

TNC connectors specified under MIL-C-39012 are used in airborne radar and vehicle communication systems, where signals must maintain reliable through sustained vibration and temperature swings. Military-grade TNC connectors use beryllium copper spring contacts and gold plating. This is to maintain contact resistance below 5 mΩ across environmental extremes from –67°F to +257°F. The threaded lock provides vibration resistance that meets MIL-STD-810 requirements for mechanical shock and vibration.

PCB Test Fixtures and Spring-Loaded Contact Arrays

In automated board-level testing, BNC and TNC connectors handle the RF interface between the test instrument and the test fixture. Pogo pins handle the contact layer between the fixture and the device under test. The RF signal chain runs from a test instrument through a coaxial cable to a PCB-mount BNC or TNC on the fixture. It then runs to the spring-loaded test probes contacting the PCB test pads.

How to Choose Between TNC and BNC Connectors: A Selection Guide

Use the following steps to narrow the decision. Most applications reach a clear answer by step three.

Step 1: Identify the operating environment

If you install the connector outdoors, on a vehicle, or in a sealed enclosure, specify TNC. The threaded lock resists vibration, and the IP67-rated sealed versions prevent moisture ingress. In a controlled indoor environment, BNC’s connection speed is the more practical consideration.

Step 2: Check the frequency requirement

Applications running below 4 GHz can use either BNC or TNC. If the system operates between 4 GHz and 11 GHz, standard TNC is the cleaner choice without requiring precision-grade BNC tolerances. Above 11 GHz, both families are outperformed by SMA connectors, which handle up to 18 GHz with a threaded lock and broader part availability.

Step 3: Consider connection frequency and labor costs

BNC connectors mate in under a second with one hand. In test environments where connections are made dozens of times per day, that speed saves measurable labor. TNC connections take several turns to engage and disengage. For permanent installations made once and left in service, that difference doesn’t matter. For high-frequency connection cycles, BNC reduces operator fatigue and setup time.

Step 4: Confirm cable compatibility

Both BNC and TNC connectors are designed to fit specific cable outer diameters. A connector rated for RG-58 won’t crimp correctly on RG-8. The ferrule geometry won’t capture the braid, producing a failed connection that passes visual inspection but fails under pull-out force. Always match connector part numbers to cable type: RG-58 pairs with 50Ω connectors; RG-59 and RG-6 pairs with 75Ω connectors. For TNC connectors used in outdoor antenna systems, LMR-200 and LMR-400 are common cable pairings with their own specific connector dimensions.

Step 5: Account for Mating Cycle Life

Both standard BNC and TNC connectors are rated for approximately 500 mating cycles. In automated test equipment running continuous cycles, operators should track contact resistance drift and schedule connector replacements before contact geometry degradation affects measurement accuracy. Gold-plated contacts maintain contact resistance stability across that range. Design the fixture to allow connector replacement without disturbing the rest of the RF signal chain.

When to Use TNC vs. BNC: Application Decision Table

Application	Recommended Connector	Reason
Oscilloscope / spectrum analyzer probe leads	BNC	Fast connection speed; controlled lab environment
Broadcast SDI video routing	BNC 75Ω	Industry-standard for SDI infrastructure; quick reconfiguration
Interior CCTV runs	BNC 75Ω	Permanent indoor installation; no moisture exposure
Exterior CCTV installation	BNC 75Ω	Sealed interfaces prevent moisture ingress at termination
Cellular antenna feedline	TNC 50Ω	IP67 sealing; threaded lock resists wind vibration
Vehicle-mounted radio	TNC 50Ω	Threaded lock resists automotive vibration; meets MIL-C-39012
Airborne avionics / radar	TNC 50Ω	MIL-C-39012 rated; beryllium copper contacts; gold plating to <5 mΩ
RF test fixture	TNC 50Ω	Stable to 11 GHz without precision-grade tolerance requirements
Outdoor Wi-Fi access point	TNC or RP-TNC 50Ω	RP-TNC required for FCC-regulated equipment; sealed for weather
Lab signal generator / function generator output	BNC 50Ω	Universal lab interface; high connection frequency suits BNC speed

How Promax Pogo Pin Supports RF Test and BNC/TNC-Connected Systems

BNC and TNC connectors handle the RF interface between test instruments and fixtures. Pogo pins handle the contact layer between the fixture and the device under test. At Promax Pogo Pin, we manufacture connectors and pogo pins for consumer electronics, medical devices, automotive, and PCB testing applications, including fixtures that use both BNC and TNC RF interfaces.

Our test probe lineup covers contact resistance below 20 mΩ, current ratings from 1A to 40A, and lifecycle ratings from 100,000 to 500,000+ mating cycles. Explore our pogo pin connector range or send us your board layout and contact requirements. We’ll confirm pin geometry, plating specifications, and sample lead time within 1–3 days.

Need a custom test probe for your next fixture? Request free samples and a design consultation.

TNC vs. BNC Connectors FAQs

What is the main difference between TNC and BNC connectors?

The main difference between TNC and BNC connectors is the mating mechanism. BNC connectors use a bayonet quarter-turn lock, which mates in under a second. TNC connectors use a threaded coupling nut, which takes longer to engage but produces a vibration-resistant mechanical lock. Both share the same body dimensions, cable compatibility, and impedance options. Environment and connection frequency determine which connector fits your application.

Are TNC and BNC connectors interchangeable?

TNC and BNC connectors are not directly interchangeable. The bayonet body of a BNC connector and the threaded coupling nut of a TNC connector are mechanically incompatible. They won’t physically mate with each other. BNC-to-TNC adapters are available for transitioning between systems, but each adapter introduces a small impedance discontinuity. For critical RF measurements or high-frequency applications, adapters can degrade return loss. Verify adapter impedance and frequency specifications before use.

Can TNC connectors handle higher frequencies than BNC connectors?

Standard TNC connectors operate stably up to approximately 11 GHz. Standard BNC connectors are reliable to approximately 4 GHz, with precision BNC extending to around 11 GHz through tighter dimensional tolerances. The threaded outer shell of the TNC provides better electromagnetic shielding than the slotted bayonet body. This accounts for the improved high-frequency performance without requiring precision-grade tolerances. Above 11 GHz, SMA connectors are the preferred specification for new designs.

What does IP67 mean for TNC connectors?

IP67 is an ingress protection rating defined under IEC 60529. For a sealed TNC connector, IP67 means the connector withstands temporary submersion to one meter for 30 minutes and continuous exposure to dust without ingress. This rating applies to sealed TNC variants with elastomeric O-ring gaskets. Standard BNC connectors do not achieve IP67 without separate weatherproofing. If your installation involves outdoor exposure, moisture, or condensation, specify a sealed IP67 TNC connector.

What coaxial cable types work with TNC and BNC connectors?

BNC and TNC connectors in 50Ω configurations pair with RG-58 and RG-8 coaxial cable. The 75Ω versions pair with RG-59, RG-6, and RG-11. For outdoor TNC applications requiring lower cable loss, LMR-200 and LMR-400 are common pairings and are available in TNC-terminated versions. Match the connector part number to the cable’s outer diameter specification. A connector sized for one cable won’t crimp or compress correctly on a different dimension. The result is a termination that passes visual inspection but fails under pull-out force testing.
