BNC Connector Types Explained: Uses, Specs & Selection Guide

BNC connectors are widely used in video, RF, and test applications. However, choosing the wrong type can still lead to impedance mismatch, signal loss, or installation issues later on.

This guide covers every major BNC connector type across impedance rating, attachment method, orientation, mounting style, and frequency grade. At the end, a five-step selection guide will help you decipher which connector to specify and when.

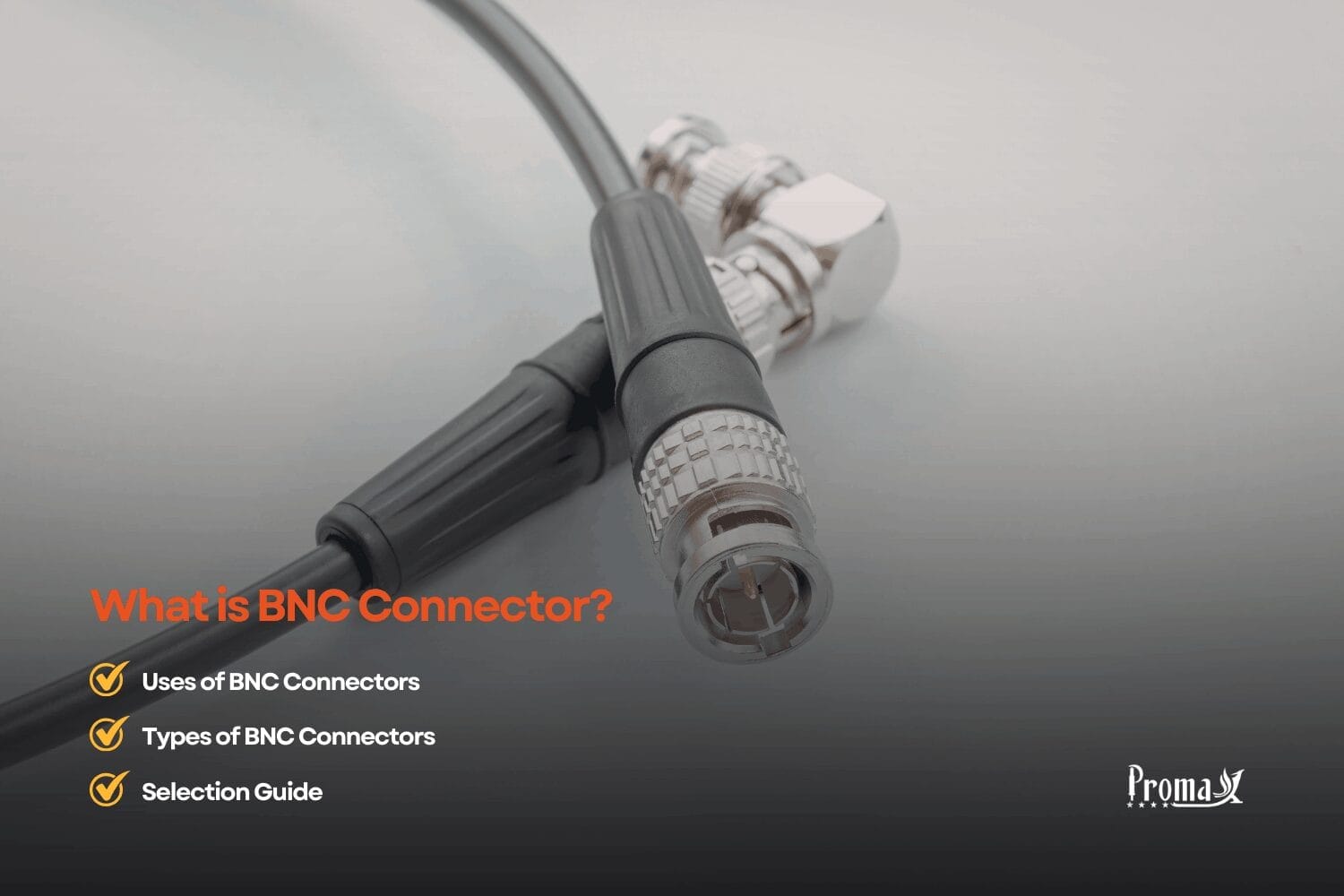

What is a BNC Connector?

A BNC connector is a miniature bayonet-locking RF coaxial connector built for quick connect/disconnect. Its bayonet mechanism, where two lugs engage slots in the male shell, locks with a quarter-turn and holds securely under vibration.

BNC connectors come in 50-ohm and 75-ohm versions. Both are specified under IEC 61169-8 and MIL-STD-348.

The BNC designation originates from U.S. Navy development in 1944. Paul Neill’s prototype was modified and assigned the name “Baby Neill Constant.” This name reflects both the designer and the constant-impedance design intent. You’ll find BNC connectors on oscilloscopes, broadcast video routers, CCTV systems, RF test instruments, and avionics. All of these demand repeatable RF connections with low-loss impedance matching in a compact, field-serviceable form.

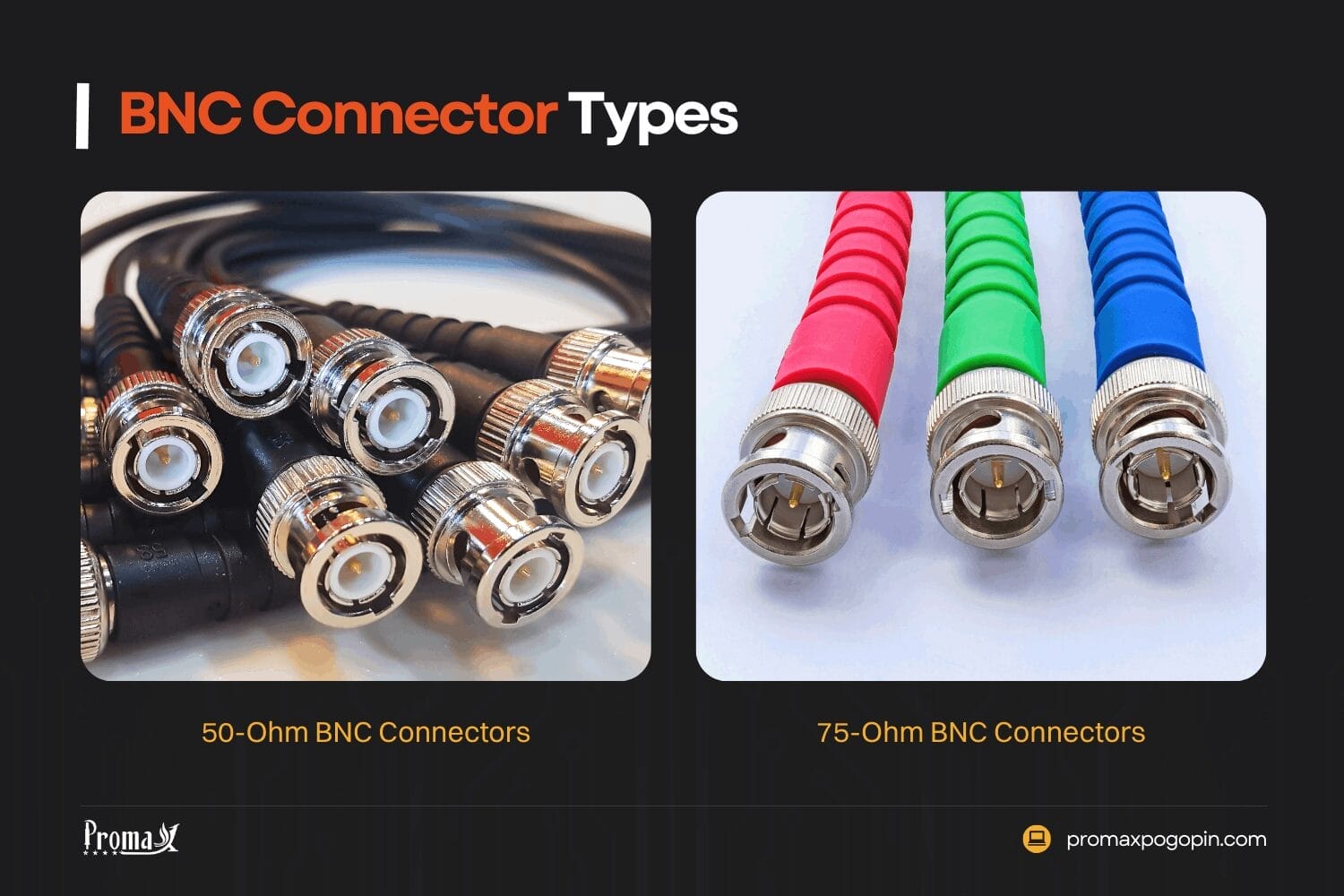

BNC Connector Types by Impedance

Impedance is the first specification to lock in. Mismatching impedance between the connector and cable generates reflections that degrade signal quality. A 50Ω connector on a 75Ω cable creates measurable return loss. That error compounds at every connection in the chain.

50-Ohm BNC Connectors

50-ohm BNC connectors are built for power transfer across RF environments: test equipment, defense communications, radio systems, and data networking all use them. They’re optimized for power transfer and handle frequencies up to 4 GHz efficiently.

Oscilloscopes, spectrum analyzers, signal generators, and RF antenna feeds all use 50Ω BNC. The 50-ohm standard matches the characteristic impedance of RG-58 coaxial cable, which is the most common cable pairing for lab and field RF work.

75-Ohm BNC Connectors

75-ohm BNC connectors are the video standard. Broadcast SDI, composite video, HD-SDI, and cable television distribution all operate on 75Ω infrastructure. The 75-ohm design minimizes signal attenuation over longer cable runs. It’s the reason broadcast facilities running hundreds of meters of coaxial cable use 75Ω throughout.

Compatible cables include RG-59 and RG-6. Mixing 50Ω and 75Ω connectors degrades return loss by 20 dB or more. On analog video, that shows up as ghosting. On digital SDI links, it causes bit errors.

BNC Connector Types by Attachment Method

Once impedance is specified, the attachment method determines installation quality, pull-out strength, and long-term signal integrity. Three methods are in common use: crimp, compression, and twist-on.

Crimp BNC Connectors

Crimp connectors use a separate ferrule that gets crimped over the cable braid and connector body using a dedicated coaxial crimping tool. A correctly crimped connection is mechanically permanent. Its pull-out strength is above 40 lb on RG-59 and its contact resistance holds under sustained mechanical stress.

Crimp BNC connectors come in two-piece and three-piece configurations. The three-piece style captures the braid more thoroughly and suits demanding environments with mechanical stress on the cable.

Professional security integrators and broadcast cable installers reach for crimp connectors as their default permanent termination. Incorrectly sized crimp ferrules produce failed connections that pass visual inspection but fail under pull-out force or RF return-loss measurements. Check ferrule size against the cable’s outer diameter spec before crimping.

Compression BNC Connectors

Compression connectors drive a compression sleeve forward with a dedicated compression tool. They simultaneously lock the cable jacket and braid in one action. A compression connector is moisture-sealed at the cable entry. This is the right call for outdoor CCTV, cable TV drop points, and any run where water ingress at the termination is a risk.

Compression connectors also produce fewer installer errors than crimps. This is because the compression stroke self-indexes and the tool bottoms out when compression is complete, eliminating under-compression.

When installed correctly, both crimp and compression connectors can perform well. In outdoor or moisture-prone environments, compression connectors are often the safer choice.

Twist-On BNC Connectors

Twist-on connectors require no dedicated tool beyond a cable stripper. Strip the cable, rotate the connector body clockwise, and the braid threads on. It’s fast for temporary installations, prototyping, and low-volume field repairs.

Twist-on connectors offer lower pull-out strength than crimp or compression alternatives, and contact resistance increases over time as the mechanical grip relaxes. They’re appropriate for temporary test setups and bench work. They’re not suitable for permanent installations, outdoor use, or any application where connector pull-out or signal drift would cause a failure.

BNC Connector Types by Orientation

Straight BNC Connectors

Straight connectors route the cable along the same axis as the mating interface — the default for rack-mounted equipment, test instruments, and patch panels. They’re used wherever cable routing allows a straight pull from the device port. This includes rack-mounted broadcast equipment, test instruments, and patch panel connections.

Right-Angle BNC Connectors

Right-angle connectors route the cable at 90 degrees to the connector axis. Use them in space-constrained PCB layouts, tight panel-mount runs, or anywhere a straight cable exit would put mechanical stress on the connector body.

Right-angle BNC connectors introduce marginally higher insertion loss than straight variants because of the bend geometry in the signal path. In most applications, the difference is minor, but it may matter in higher-frequency or more measurement-sensitive setups.

BNC Connector Types by Mounting Style

Cable-Mount BNC Connectors

Cable-mount connectors terminate the end of a coaxial cable either as a male plug or a female jack. They use the crimp, compression, or twist-on attachment methods. This is the most common form factor for patch cables, field-installed cabling, and equipment interfaces.

PCB-Mount BNC Connectors

PCB-mount BNC connectors solder directly onto a printed circuit board, providing an RF interface at the board edge or panel. They’re available in edge-launch configurations where the connector body extends horizontally from the board edge. You can also find them in through-hole vertical configurations.

PCB-mount BNCs are used in test instrument design, radar system PCBs, and RF front-end modules. Contact resistance on a well-soldered PCB-mount BNC runs below 10 mΩ. A poor solder joint introduces resistance that affects both signal quality and thermal performance at higher power levels. Getting the reflow profile right matters as much as the connector spec.

Bulkhead / Panel-Mount BNC Connectors

Bulkhead connectors mount through a chassis panel using a hex nut or flange, providing an external-facing interface for internal cabling. They’re the go-to for instrument front panels, rack equipment rear panels, and enclosure RF ports. Bulkhead BNC connectors are available in both 50Ω and 75Ω versions. They are also available in isolated and chassis-grounded configurations, depending on whether the shield needs to be isolated from the panel ground.

BNC Connector Types by Frequency and Performance Grade

Standard BNC Connectors

Standard BNC connectors cover the vast majority of applications: frequencies below 3 GHz, voltages below 500V, and operating temperatures from –67°F to +185°F. Standard BNC handles CCTV, broadcast SDI, oscilloscope probe leads, and general RF lab work.

Operating above 3 GHz with a standard BNC connector produces signal instability because of radiation from the slotted outer conductor. It’s not a catastrophic failure, but a measurable source of error in precision measurement setups.

Precision BNC Connectors

For applications requiring stable performance up to approximately 11 GHz, precision BNC connectors use tighter dimensional tolerances and improved dielectric geometry to extend usable frequency. Microwave test equipment and radar front-end hardware use precision BNCs when system requirements mandate the BNC interface.

Above 4 GHz, SMA is the better specification: 18 GHz rated, threaded lock, and wider part availability than precision BNC.

Miniature BNC Variants: MCX and MMCX

Where board space and mass are constrained, Micro Coax and Micro Miniature Coax connectors offer a BNC-compatible signal interface in a fraction of the footprint. MCX connectors are approximately 30% smaller than standard BNC and use a snap-on retention mechanism. MMCX features a snap-lock design for miniaturized RF modules, GPS receivers, and wireless communication PCBs. Both are rated to 6 GHz, outperforming standard BNC on frequency range. The trade-off is retention: snap and push-on mechanisms replace the rugged bayonet lock.

What Is a BNC Connector Used For?

Broadcast & Professional Video

Broadcast studios rely on 75Ω BNC connectors as the interface for SDI video signals across cameras, routing switchers, monitors, and recording decks. HD-SDI runs at 1.5 Gbps; 3G-SDI runs at 3 Gbps. Both operate reliably through standard BNC connectors with properly terminated 75Ω cable infrastructure.

12G-SDI for 4K video demands tighter impedance tolerance and lower-loss cable — but still uses the BNC interface. The connector has outlasted three generations of video standards without being replaced.

CCTV & Security Systems

Security camera installations overwhelmingly use 75Ω BNC connectors on RG-59 or RG-6 cable runs. The bayonet lock prevents accidental disconnection when cables are pulled, which is a failure mode that RCA connectors in the same application can’t prevent. For exterior cameras, use compression connectors. The sealed interface blocks moisture at the cable termination, the most common failure point in outdoor CCTV runs.

RF Test & Measurement

Oscilloscopes, network analyzers, signal generators, and spectrum analyzers all use 50Ω BNC for probe and cable connections. The low contact resistance and consistent impedance of a properly terminated BNC connection allow accurate measurements up to the connector’s frequency limit. Standard BNC connectors withstand approximately 500 mating cycles.

In automated test equipment running continuous measurement cycles, operators should track contact resistance drift and schedule connector replacement before it affects measurement accuracy.

Aerospace & Radar

BNC connectors specified under MIL-STD-348 are used in radar systems and avionics where secure connections under vibration are mandatory. The bayonet locking mechanism provides vibration resistance comparable to screw-thread connectors, but with faster field connections.

PCB Test Fixtures and Spring-Loaded Contact Arrays

In automated board-level testing, BNC connectors handle the RF interface between the test instrument and the fixture. Spring-loaded contact probes handle the contact layer between the fixture and the device under test. The RF signal chain runs from the test instrument through a coaxial cable to a PCB-mount BNC on the fixture. It then runs through spring-loaded probes to the PCB test pads.

How to Choose the Right BNC Connector: A Selection Guide

Step 1: Lock in the impedance

Start with the system impedance. Video applications like CCTV, SDI and composite require 75Ω throughout. RF test equipment, radio systems, and data networking require 50Ω. A 50Ω connector in a 75Ω video chain introduces–20 dB return loss, ghosting on analog and bit errors on digital SDI. The two connector types look identical, so check impedance against the part number, not the body shape.

Step 2: Match the attachment method to the environment

Permanent outdoor runs require compression connectors for moisture sealing. Permanent indoor runs with tool access are well-served by crimp connectors. Temporary bench and prototype setups can use twist-on connectors where installation speed takes priority over long-term reliability.

Step 3: Confirm cable compatibility

BNC connectors are designed to fit specific cable outer diameters. A connector rated for RG-59 won’t crimp correctly on RG-6, as the ferrule geometry won’t capture the braid. This will produce a failed connection that passes visual inspection but fails under pull-out force or RF return-loss tests. Match part number to cable type: RG-58 with 50Ω, RG-59 and RG-6 with 75Ω. This is the one check that prevents the most common installation failures.

Step 4: Evaluate frequency requirements

Applications below 3 GHz are well-served by standard BNC connectors. Between 3 and 4 GHz, precision BNC extends the usable range. Above 4 GHz, SMA connectors are the preferred specification for new designs. This is because they handle up to 18 GHz with a threaded lock and wider availability.

Step 5: Account for the mating cycle life

Standard BNC connectors can handle approximately 500 mating cycles. Automated test equipment running continuous cycles can reach that rating within weeks. In high-cycle ATE applications, gold-plated contacts hold contact resistance stable across the full 500-cycle rating. Design the fixture to allow connector replacement without disturbing the rest of the RF chain.

How Promax Pogo Pin Supports RF Test and BNC-Connected Systems

BNC connectors handle the RF interface. Pogo pins handle the contact layer between the fixture and the device under test. At Promax Pogo Pin, we manufacture spring-loaded contact probes for exactly this interface: through-hole and SMT pogo pins with contact resistance below 20 mΩ and lifecycle ratings from 100,000 to 500,000+ mating cycles. Our spring-loaded contact probes match the fixture’s test pad geometry perfectly every time.

Send your board layout and contact requirements, and we’ll confirm pin geometry, plating specification, and sample lead time within 1–3 days.

BNC Connector Types FAQs

What is the difference between 50-ohm and 75-ohm BNC connectors?

50-ohm BNC connectors are designed for RF signal transmission in test equipment, radio systems, and data networks. 75-ohm BNC connectors are designed for video signal transmission, like for CCTV, broadcast SDI, and cable TV.

The impedance must match the cable and system to prevent signal reflections. They look identical and the part number is the only reliable way to tell them apart.

How many mating cycles can a BNC connector handle?

Standard BNC connectors are rated for approximately 500 mating cycles under normal operating conditions. Gold-plated contacts maintain contact resistance stability across that range. In ATE running high-cycle applications, track contact resistance drift and build connector replacement into the maintenance schedule before it affects measurement accuracy.

Can BNC connectors be used above 3 GHz?

Standard BNC connectors are stable up to approximately 3 GHz. Above 3 GHz, the slotted outer conductor radiates, introducing signal instability. Precision BNC connectors extend usable frequency to approximately 11 GHz. For applications consistently operating above 4 GHz, SMA connectors are the preferred choice, as they handle up to 18 GHz with a threaded lock and broader part availability.

What’s the difference between crimp, compression, and twist-on BNC connectors?

Crimp BNC connectors use a ferrule compressed over the cable braid with a crimping tool, producing a permanent, high-strength termination. Compression BNC connectors drive a compression sleeve forward with a compression tool, sealing the cable entry against moisture.

Twist-on BNC connectors thread onto the cable by hand with no additional tools, making them fast for temporary setups. However, this makes them unsuitable for permanent or outdoor applications because of lower pull-out strength and contact resistance drift over time.

Are BNC and RCA connectors interchangeable?

BNC and RCA connectors are not directly interchangeable.

They use different locking mechanisms and body geometries. BNC-to-RCA adapters allow BNC-only professional video equipment to connect to consumer devices with RCA jacks. The adapter introduces a small impedance discontinuity. For analog composite video at low frequencies, this is negligible. For HD-SDI or RF test applications, the mismatch introduces signal degradation that affects measurement accuracy or video quality.
