Understanding Pogo Pin Material: Common Materials for Pogo Pin Parts

Common Materials Used in Pogo Pins

Common materials for pogo pins include stainless steel, brass, and copper, usually with nickel or gold plating for improved conductivity and corrosion resistance. But let’s examine a bit more detail.

So, what is a pogo pin? A pogo pin is a type of electrical connector that uses a plunger, barrel, and spring mechanism to maintain contact under mechanical stress. Each of these components has different materials. Pogo pins, also known as spring-loaded pins, are important components in many modern electronic devices, such as consumer electronics and industrial testing equipment. These pins are used to provide reliable electrical connections.

Promax Pogo Pin is an affordable pogo pin manufacturer. We break down everything you need to know about different pogo pin component materials and how to choose the right ones!

Key Takeaways

  • Pogo pins consist of three main parts: the plunger, barrel, and spring.
  • Common materials for pogo pin construction include brass, beryllium copper, and phosphor bronze.
  • Gold plating improves electrical conductivity and corrosion resistance in pogo pins.
  • Selecting the right materials is important for ensuring durability and performance in electronic devices.
  • Custom pogo pin manufacturers like Promax Pogo Pin offer personalized solutions for specific applications.

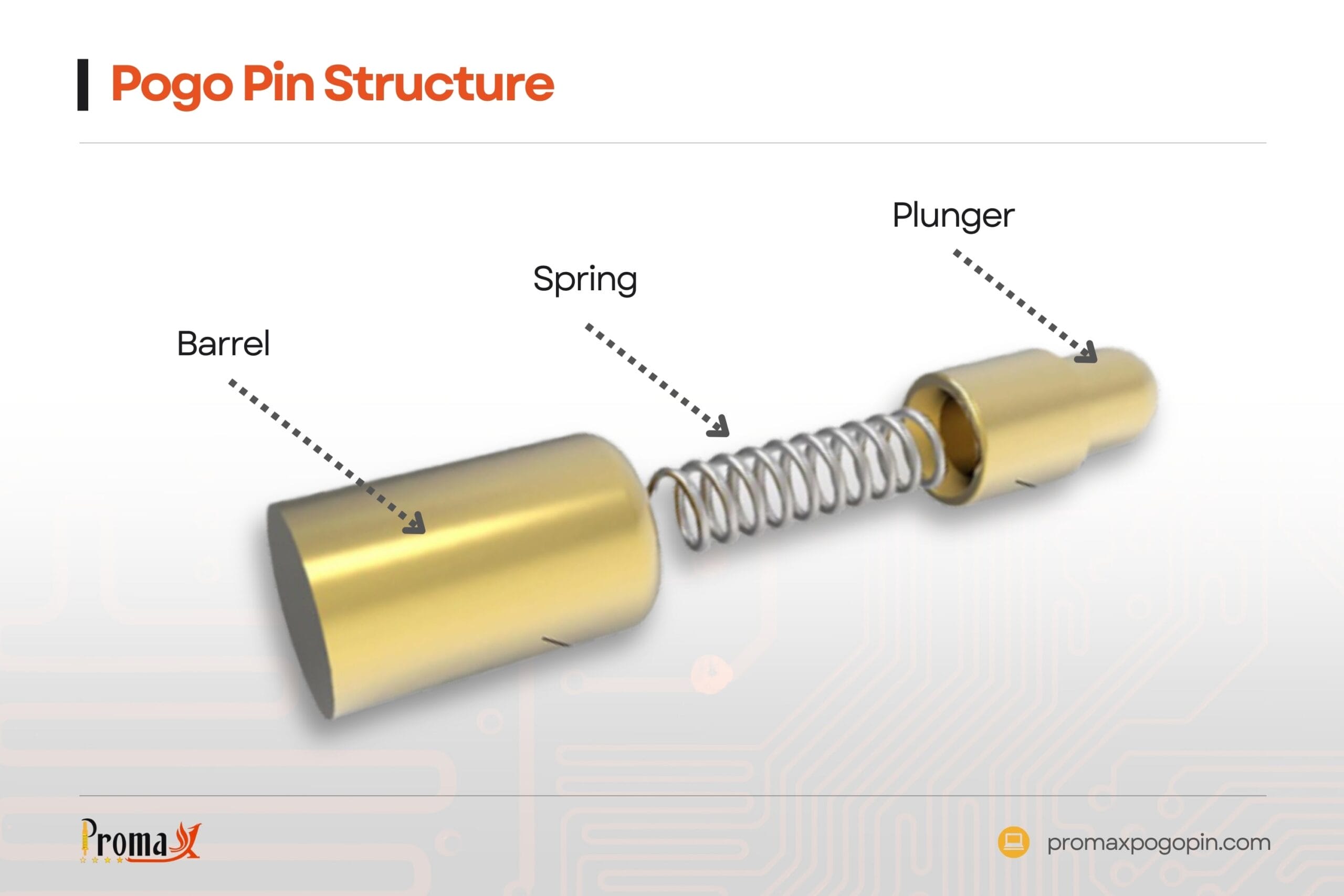

The Structure of Pogo Pin Connectors

The Structure of Pogo Pin Connectors

The structure of pogo pins includes three parts: the plunger, barrel, and spring. The plunger moves inside the barrel when pressure is applied to the pin, allowing for a stable electrical connection. This design ensures that even if the pin is not locked in place, the spring maintains contact with the mating surface.

Additionally, the barrel usually has a slight slant to enhance contact points, which makes for better performance. The plunger is typically designed with a rounded or tapered tip to facilitate more accurate engagement with the contact plate. This design part is significant, as it increases the number of contact points and reduces contact resistance. The spring-loaded mechanism allows for some movement, handling any misalignment during connection without impacting performance.

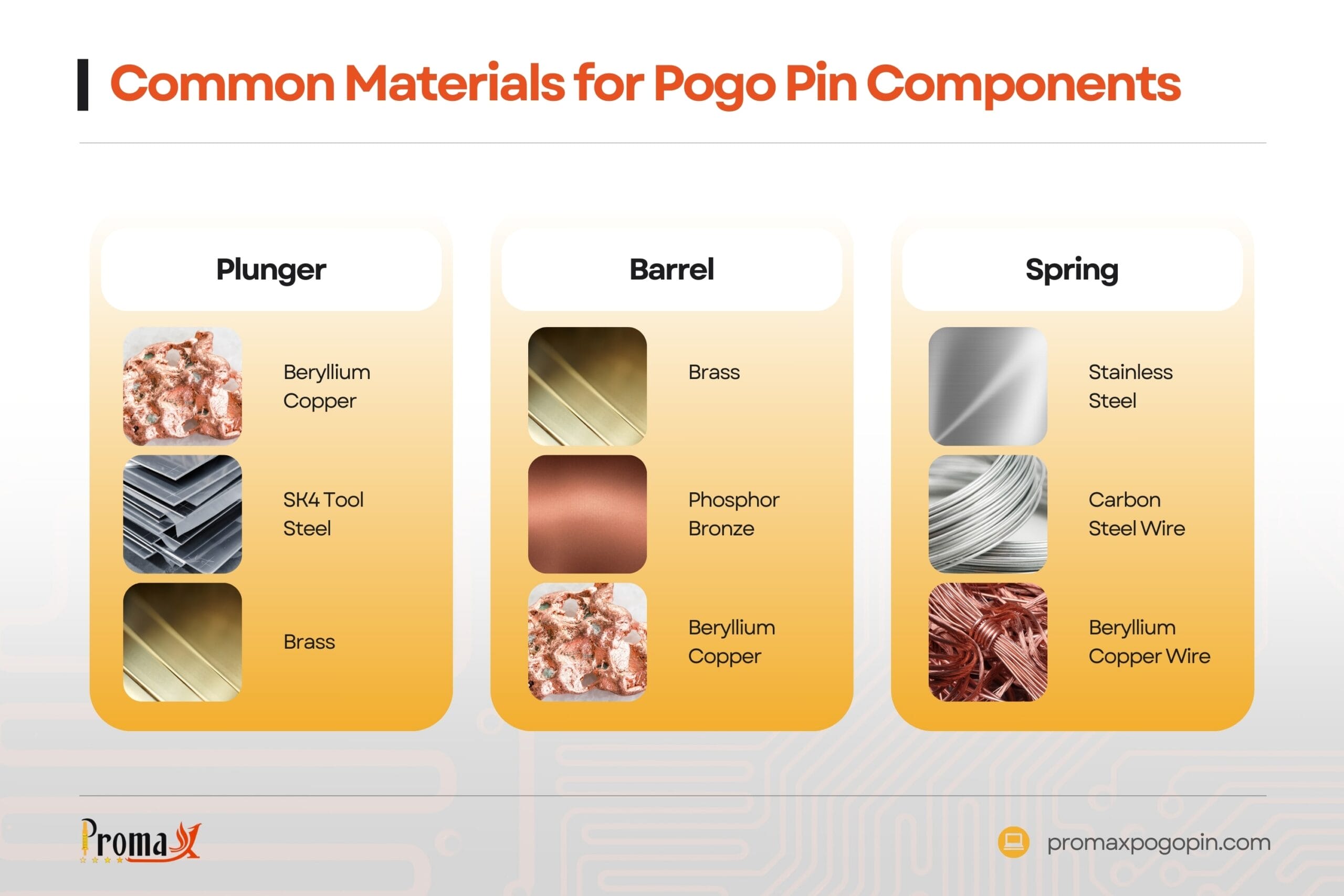

Common Materials Used in Pogo Pins

The most commonly used materials in pogo pins include brass, beryllium copper, SK4 tool steel (a high-carbon steel), and phosphor bronze. Pogo pins are used for a variety of applications, such as in a printed circuit board (PCB). However, depending on its application, it will need different base materials. As a pogo pin includes a plunger, barrel, and spring, each requires different materials. We’ve outlined the most popular materials for each of the main parts of a pogo pin:

Common Materials Used in Pogo Pins

Component Material Key Properties
Plunger Beryllium Copper High conductivity, durable in high-frequency use
SK4 Tool Steel Hard, requires heat treatment
Brass Cost-effective, lower performance under stress
Barrel Brass Low cost, good conductivity, may corrode
Phosphor Bronze Corrosion-resistant, suitable for high frequencies
Beryllium Copper Durable, low resistance, higher cost
Spring Stainless Steel Good elasticity, corrosion-resistant
Music Wire High elasticity, shorter lifespan
Beryllium Copper Wire Long-lasting under high-stress conditions

Plunger Materials

The choice of materials for the plunger greatly affects its performance. Beryllium copper is a good choice because of its high electrical conductivity and low impedance. This conductive material provides a durable solution for high-frequency applications where stable current flow is essential.

Another option is SK4 tool steel, which offers intense hardness but requires heat treatment to maintain its integrity under mechanical stress. Brass is also commonly used for plungers because of how cost-effective it is. However, it may not perform as well under high-stress conditions compared to beryllium copper or SK4 steel.

Barrel Materials

The barrel of a pogo pin connector plays an important role in maintaining structural integrity while providing electrical connectivity. Brass is often used due to its low cost and great conductivity. However, it may corrode over time if not properly plated.

Phosphor bronze is another good choice for high-frequency applications because of its strong conductivity and resistance to corrosion. In more demanding environments, beryllium copper can also be used for barrels. It offers improved durability and low resistance but at a higher cost. The selection of barrel materials must consider factors such as environmental conditions and expected mechanical stresses during operation.

Spring Materials

Springs are important in pogo pins as they provide the necessary force to maintain contact with the mating surface. Stainless steel (SUS304) springs are popular due to their balance of elasticity and corrosion resistance. They can handle extreme temperatures while maintaining their shape over time.

Music wire, or carbon steel wire, offers high elasticity but usually has a shorter lifespan compared to stainless steel options. For applications requiring maximum longevity under high stress, beryllium copper wire springs are best, despite their lower elasticity. The choice of spring material directly affects the overall performance and longevity of pogo pins.

Plating Material Selection for Pogo Pins

Plating materials can greatly improve the performance characteristics of pogo pins by increasing electrical conductivity and providing corrosion resistance. Gold plating is considered one of the best options due to its great conductive properties and resistance to galvanic corrosion. This makes it suitable for high-current applications where stable current flow is important in the fixture.

Nickel plating works as an effective undercoat for gold plating. It provides extra hardness and corrosion protection, but may bring about some contact resistance if used alone. For cost-sensitive applications where gold plating might not be realistic, tin plating is a reasonable alternative. It can provide adequate conductivity at a lower price point.

How to Choose the Right Materials for Pogo Pins

Pogo pins must have the perfect material to meet your needs, so selecting the right spring force pin material can be overwhelming. Here are a few tips to help you pick materials if you’re using pogo pins:

  • Assess Application Requirements: Find out whether the pogo pins will be used in consumer electronics, industrial testing equipment, or other applications, as this affects material choices based on environmental conditions.
  • Evaluate Mechanical Stresses: Think about the mechanical stresses that pogo pins will face during operation. Choose materials that can handle these stresses without losing functionality over time.
  • Frequency of Mating Cycles: If frequent mating cycles are expected, choose materials with higher wear resistance, such as beryllium copper or SK4 tool steel.
  • Balance Performance and Cost: While premium materials give you better performance, they can also really increase manufacturing costs. Find a balance between performance needs and budget constraints.
  • Consult with Experts: Talk to us! We are highly skilled in pogo pin manufacturing, and we can help you choose the best material options for your specific application needs.

Promax: Custom Pogo Pin Manufacturers

Understanding pogo pins are made of — from their structure to material selection — is essential for anyone involved in designing or manufacturing electronic devices. Promax Pogo Pin has expertise in creating custom pogo pin solutions tailored to specific needs across various industries.

Our experience in the electronics industry ensures that you receive high-quality connectors that meet your exact specifications while improving performance in your applications. Request a free sample to get started!

Common Materials for Pogo Pin Parts FAQs

What are the different types of pogo pins?

Pogo pins come in various types, including standard probe pins, spring-loaded pins, and those designed specifically for semiconductor applications. These pins are used for a wide variety of purposes, such as connecting electrical signals in testing equipment.

What is the lifespan of a pogo pin?

The lifespan of a pogo pin can range up to 1 million mating cycles, depending on the quality and design. Properly made pins are designed to minimize wear and ensure consistent signal transmission throughout their use.

Are pogo pins waterproof?

While pogo pins are not inherently waterproof, some designs can be treated or enclosed to provide moisture resistance. When used in appropriate housings, they can maintain reliable connections without solder in wet environments.
