Connector plating decides the kind of electrical reliability and lifespan of electronic interconnections. That works across all industries. This electrochemical process puts thin metallic coatings from 0.1 to 5.0 µm in thickness on the connector. It does this to improve conductivity and mechanical durability. It also prevents corrosion. Knowing all there is to know about plating materials, application methods, and more is really important for engineers designing reliable electronic systems. Especially if the systems have to reach industry standards like IPC-2221 and MIL-DTL-38999.
Key Takeaways
- Connector gold plating thickness has 10,000+ mating cycles with the best electrical conductivity
- Selective plating lowers costs by around 40-60% while keeping contact area performance
- Gold needs less force while tin needs higher contact pressure for low contact resistance
- Tin whisker formation requires alloy additives for reliable connector system operation
- Advanced testing includes thermal cycling and contact force measurement for intense environments
What is Connector Plating and Why does it matter?
Connector plating puts metallic coatings on connectors. It does this through controlled electroplating to improve the electrical and mechanical properties of connector pins. Electroplating uses electrical current to deposit metal ions from chemical baths onto connector surfaces. This creates uniform coatings that improve electrical performance. The process creates coatings from 4 to 200 micro-inches thick. Although, this does depend on application needs and the type of plating chosen.

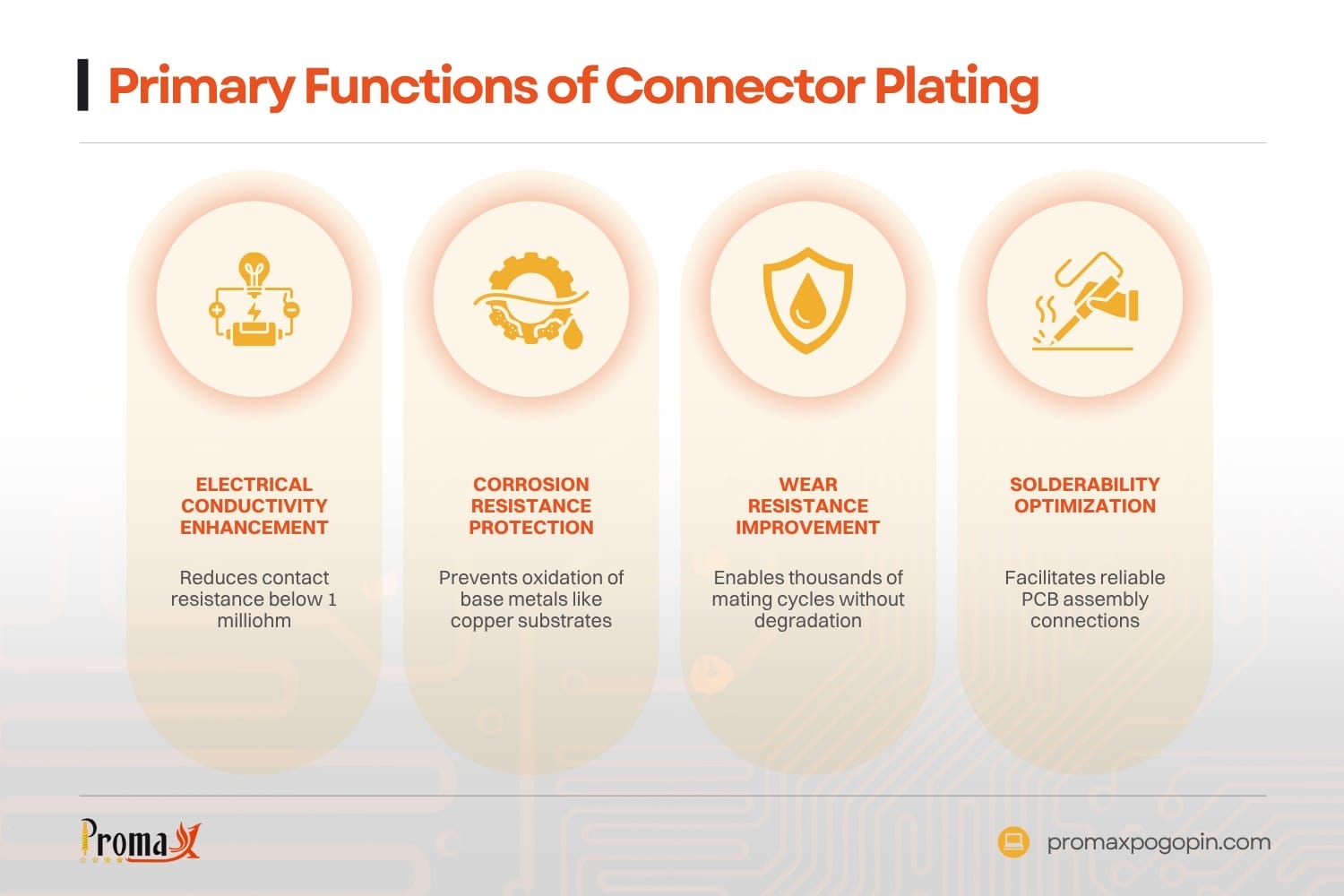

Primary Functions of Connector Plating
The main purposes of connector pins plating include:
- Electrical conductivity enhancement: Reduces contact resistance below 1 milliohm
- Corrosion resistance protection: Prevents oxidation of base metals like copper substrates
- Wear resistance improvement: Enables thousands of mating cycles without degradation
- Solderability optimization: Facilitates reliable PCB assembly connections
Plating is critical for connector reliability, with studies showing that 60-70% of connector failures result from inadequate or incorrect plating specifications.
Which Plating Materials offer the Best Performance?
Material selection depends on application requirements, environmental conditions, and cost constraints for the connector system, but the best plating is gold, tin, and silver. Each plating material provides distinct advantages and limitations that engineers must consider when evaluating plating options available for their specific needs.
Gold Plating Characteristics
Gold plating excels in high-reliability applications due to its noble metal properties that resist oxidation and corrosion. As a noble metal with low ionization tendency, gold maintains stable electrical properties over extended periods without forming insulating oxides.
According to Smart Revenue Insights, the U.S. gold plating solution market, important for high-quality connector plating, was worth $0.6 billion in 2024. It is expected to grow to $0.9 billion by 2033, growing about 6% each year from 2026 to 2033.
Performance Specifications:
- Contact resistance: Less than 1 milliohm
- Mating cycles: 10,000+ without degradation
- Thickness range: 0.1 to 2.5 µm
- Temperature stability: -55 °C to +125 °C
Gold-plated connector pins deliver exceptional performance with specifications that exceed most alternative materials. Gold alloys alloyed with cobalt increase hardness and wear resistance compared to pure gold formulations, making them ideal for high-cycle applications. However, gold requires nickel underplating to prevent diffusion into copper substrates, which would cause expensive coating loss over time.
Understanding Gold Flash Plating Applications
Gold flash plating applies extremely thin gold layers from 0.1 to 0.3 µm thickness as a cost-effective alternative to thicker gold coatings. What does flash plated mean in practical terms? Flash plating provides basic oxidation protection and good solderability while significantly reducing material costs compared to standard gold plating thickness.
Gold Flash vs. Gold Plating Comparison:
- Cost: 60-70% reduction in material costs
- Thickness: 0.1-0.3 µm vs. 0.5-2.5 µm standard
- Durability: Limited wear resistance, suitable for low-cycle applications
- Applications: Prototype development, cost-sensitive consumer electronics
The gold flash option works best for low voltage applications where contact durability requirements are moderate. Unlike standard gold plating, flash coatings require careful handling to prevent mechanical damage during assembly processes.
Tin Plating Applications
Tin plating provides cost-effective performance for moderate-duty applications where lower cost alternatives to gold are essential. Unlike gold, tin forms oxide films that require specific contact mechanics to achieve reliable connections and maintain low contact resistance over time.
Key Properties:
- Excellent solderability due to tin’s role in solder compositions
- Lower material costs compared to noble metals
- Requires higher normal force to break through oxide films
- Contact wipe area must be longer than gold applications
Tin offers the popular plating choice for PCB edge connector plating and solderable terminations. However, tin whisker risk management becomes critical in narrow-pitch applications, where these conductive crystals can cause short circuits.
Tin Whisker Risk Management:
- Tin-lead alloys (where regulations permit)
- Stress-relieving heat treatments
- Bismuth or other alloy additions
- Adequate spacing between conductors
Silver Plating for High-Current Applications
Silver plating provides the highest electrical conductivity among all metals, making it ideal for power applications and RF connectors requiring maximum current-carrying capacity. However, silver suffers from tarnishing in sulfur-containing environments, which limits its use in certain industrial applications.
Performance Benefits:
- Maximum electrical conductivity (6.3 × 10⁷ S/m)
- Excellent high-frequency characteristics
- Superior current-carrying capacity
- Good thermal conductivity
Environmental Limitations: Gold and silver both offer excellent electrical properties, but silver’s susceptibility to environmental contamination requires careful application consideration. Silver tarnishing occurs through sulfide formation rather than standard oxidation processes.
Selective Plating Cost Optimization
Selective plating applies different materials to specific areas of the same connector to optimize both performance and cost-effectiveness. This approach places expensive materials only where critical performance is required.
Area | Material | Purpose | Thickness |
---|---|---|---|
Contact zone | Gold | Low resistance, wear protection | 0.25-1.0 µm |
Solder tail | Tin | Solderability, cost reduction | 2.0-5.0 µm |
Barrier layer | Nickel | Prevents metal diffusion | 1.0-3.0 µm |
How Do Contact Force Requirements Affect Plating Selection?
Contact force mechanics determine reliable electrical connection between mated connectors and directly influence the increase in contact resistance over operational life. Different plating materials require specific normal force levels to achieve stable contact resistance and maintain electrical performance throughout the operational envelope.
Normal Force Requirements by Material
Gold Plating: Gold plating allows reliable contact with minimal normal force due to its noble metal properties and resistance to oxide formation. The lack of surface oxidation means contact resistance remains stable under light pressure conditions.
Tin Plating: Tin plating requires significantly higher contact forces to break through the insulating oxide film that forms naturally on tin surfaces. Contact design must generate sufficient normal force and wipe distance to penetrate oxides reliably.
Contact Force Comparison:
- Gold: 25–50 grams force per contact
- Tin: 100–200 grams force per contact
- Silver: 30–75 grams force per contact
Microminiature Connector Constraints
Fine-pitch connectors face physical limitations that affect plating choices due to restricted contact beam dimensions. Contact beam thickness and deflection capability determine achievable normal forces.
Design Limitations:
- Narrow spacing restricts contact beam size
- Thin beams cannot generate high deflection forces
- Gold becomes the only viable plating option for many miniature designs
- Tin plating requires robust contact geometries unavailable in small packages
Alternative Plating Materials and Specialized Applications
Engineers often evaluate nickel vs. gold-plated connectors for applications requiring balance between performance and cost. Nickel plating serves multiple functions including wear resistance, corrosion protection, and barrier layer applications beneath noble metals. Electroless nickel plating offers uniform coverage on complex geometries for high-density interconnects, while electroless nickel with gold flash combines durability with cost-effectiveness. Zinc, gold or silver plating are some of the most common conductive plating. These plating options are available to provide high electrical conductivity and excellent resistance in high humidity environments.
Aluminum
Aluminum connector plating presents unique challenges due to the metal’s natural oxide layer and thermal expansion characteristics. Specialized processes including zincate pretreatment enable reliable plating adhesion on aluminum substrates commonly used in automotive and aerospace applications. Similar considerations apply to titanium substrates used in medical implants, where DIN standards govern biocompatibility requirements for plated surfaces.
Palladium
Palladium emerges as an alternative than gold for cost-sensitive applications requiring noble metal properties. Palladium nickel plating systems offer improved hardness and thermal stability up to 150 °C, while maintaining compatibility with existing plating processes. Chromium coatings provide additional corrosion resistance when applied over base metals, while phosphorus content in electroless nickel affects deposit hardness and requires careful control according to JEDEC standards for semiconductor applications.
What Advanced Testing Methods Ensure Plating Reliability?
Beyond basic thickness measurement, comprehensive testing validates plating performance under real-world conditions, including frequent thermal cycling and environmental exposure. These test methods ensure that plating affects connector performance predictably throughout the operational life.
Environmental Resistance Testing
Salt Spray Testing: Salt spray testing according to ASTM B117 exposes plated samples to continuous salt fog. Test durations vary by application:
- Consumer electronics: 48–96 hours
- Automotive applications: 240–500 hours
- Military/aerospace: 500-1000+ hours
This testing validates the corrosion resistance of different plating materials under accelerated aging conditions.
Thermal Cycling: Temperature cycling from -55 °C to +125 °C tests plating adhesion and thermal compatibility:
- Rapid temperature transitions
- Extended exposure at temperature extremes
- Humidity cycling combined with temperature
- Mechanical stress during thermal exposure
Advanced Characterization Methods
Contact Resistance Measurement: Four-wire resistance measurement techniques eliminate lead resistance effects when evaluating contact performance:
- Initial contact resistance baseline
- Resistance stability during mating cycles
- Environmental exposure effects
- Recovery after contamination exposure
Plating Adhesion Testing: Testing validates coating bonding strength through:
- Tape pull tests for thin plating applications
- Bend testing for flexible substrates
- Thermal shock cycling
- Ultrasonic bond testing
How does Manufacturing Integration Optimize Plating Quality?
Manufacturing integration ensures consistent plating quality through automated process control and real-time monitoring systems. Modern connector manufacturing integrates plating with other production processes to maintain quality standards while maximizing efficiency and throughput.
Continuous Electroplating Process
Continuous plating systems process stamped metal strips in reel-to-reel operations. This approach provides:
Process Advantages:
- Consistent plating thickness across production runs
- Automated quality control and inspection
- Reduced handling damage
- Higher throughput than batch processing
Quality Control Integration:
- Real-time thickness monitoring using X-ray fluorescence
- Automated optical inspection for surface defects
- Statistical process control with immediate feedback
- Defect tracking and root cause analysis
Post-Plating Manufacturing Steps
Post-plating manufacturing steps integrate plated components into final connector assemblies while maintaining plating integrity and electrical performance. These processes include careful handling procedures to prevent contamination and mechanical damage to delicate plating surfaces. Injection molding integration allows plated contacts to be insert-molded into plastic housings while maintaining precise contact positioning, protection of plated surfaces, consistent electrical performance, and minimal contamination risk during the molding process.
Final Assembly Considerations:
- ESD-protected handling procedures with UL certification requirements
- Contamination prevention during assembly through passivation treatments
- Quality verification at each manufacturing step per SAE standards
- Packaging design to protect plated surfaces with proper sealing
What Emerging Technologies are Advancing Connector Plating?
New plating technologies address traditional limitations while enabling next-generation connector designs for applications including electric vehicle charging systems and high-speed data transmission.
Nanocomposite Coatings
Nanocomposite plating incorporates carbon nanotubes and other nanoparticles into traditional metal matrices:
Enhanced Properties:
- Increased wear resistance without thickness penalties
- Improved thermal conductivity for heat dissipation
- Enhanced mechanical strength for thin plating
- Better corrosion resistance in harsh environments
Microscale Selective Laser Sintering
Microscale selective laser sintering (μ-SLS) enables precise material placement using metal nanoparticle inks:
Technical Capabilities:
- Sub-5 μm resolution for complex geometries
- Multiple material layers with precise interfaces
- Throughput exceeding 60 mm³/hour
- Over 50 layers with 1 μm overlay accuracy
Advanced Alloy Development
New alloy combinations optimize performance for specific applications. Palladium-nickel systems provide cost-effective alternatives to gold while maintaining thermal stability up to 150 °C. These systems offer improved hardness for wear resistance and compatibility with existing plating processes, making them attractive for high-volume manufacturing applications where plating costs must be controlled.
Choose Promax Pogo Pin for Advanced Connector Plating Solutions
Connector plating technology continues evolving to meet demanding performance requirements across automotive, aerospace, telecommunications, and industrial applications. Understanding material properties, application methods, and testing protocols enables engineers to specify optimal plating solutions that balance performance, reliability, and cost for their specific requirements.
As pogo pin and connector technology advances toward higher speeds and greater miniaturization, proper plating selection becomes increasingly critical for system reliability. Promax Pogo Pin combines advanced plating capabilities with comprehensive engineering support to deliver superior interconnection solutions for the most demanding applications. Contact our technical team to discuss your specific plating requirements and discover how our expertise can enhance your connector performance.
Connector Plating | FAQs
How do you prevent tin whisker formation in lead-free applications?
Tin whisker mitigation requires multiple strategies including stress-relieving heat treatments, bismuth alloy additions for whisker suppression, and proper storage conditions below 60% relative humidity. Conformal coatings can contain whiskers if they form, preventing short circuits in narrow-pitch applications. Additionally, zinc-based alternatives and specialized tin alloys reduce whisker formation risk while maintaining good solderability characteristics.
What causes contact resistance to increase over time in plated connectors?
Contact resistance degradation results from several mechanisms including fretting corrosion, contamination buildup, and plating wear during operational cycles. Fretting occurs when micro-movements break protective films, exposing fresh metal to oxidation processes. Proper contact force design and lubrication minimize these effects while maintaining stable electrical performance throughout the connector’s operational life.
How does voltage affect plating material selection for connector applications?
Low voltage applications benefit from gold plating due to its ability to maintain stable contact resistance without requiring high contact forces. Higher voltage systems can often use less expensive alternatives like tin or silver, since the electrical energy available can overcome modest increases in contact resistance. The conductive properties of different plating materials become more critical as operating voltages decrease and signal integrity requirements increase.
