EMC Shielding

Your electronic devices deal with constant attacks. Radio waves, WiFi signals, and more try to disrupt your circuits. When this interference gets it right, your devices can break, or become dangerous.

Think of an EMC shield like a metal fortress around your electronics. Bad signals can’t get in, and your device’s own signals won’t leak out to bother other equipment. This protection keeps everything running smoothly.

Key Takeaways

• EMC shielding puts metal barriers between electromagnetic interference and your sensitive circuits
• Metal enclosures trap electromagnetic waves and redirect them safely into the ground
• Copper and aluminum are popular shield material choices, each working best for certain frequency ranges and budgets
• Organizations like IEC and FCC set specific EMC protection rules you must follow to sell products legally
• Combining circuit board shields with cable shielding gives your electronic systems complete protection

What is EMC Shielding?

EMC shielding prevents electromagnetic interference from damaging electronic circuits by wrapping conductive materials around vulnerable components. Electromagnetic compatibility ensures devices function correctly near other electronics without causing interference problems.

Every electronic device generates magnetic fields during normal operation. These invisible energy fields can disrupt nearby circuits, leading to data corruption, signal degradation, or total system crashes. An EMC screen solves this problem by trapping electromagnetic energy within acceptable boundaries.

Without proper EMC protection, serious issues arise. Hospital equipment might malfunction and endanger patients. Vehicle safety systems could fail unexpectedly. Your everyday electronics wear out faster or stop functioning when hit by electromagnetic fields from neighboring devices.

The EMC shielding market is big, over $8 billion, and it’s getting even bigger every year, according to the latest research by Markets and Markets.

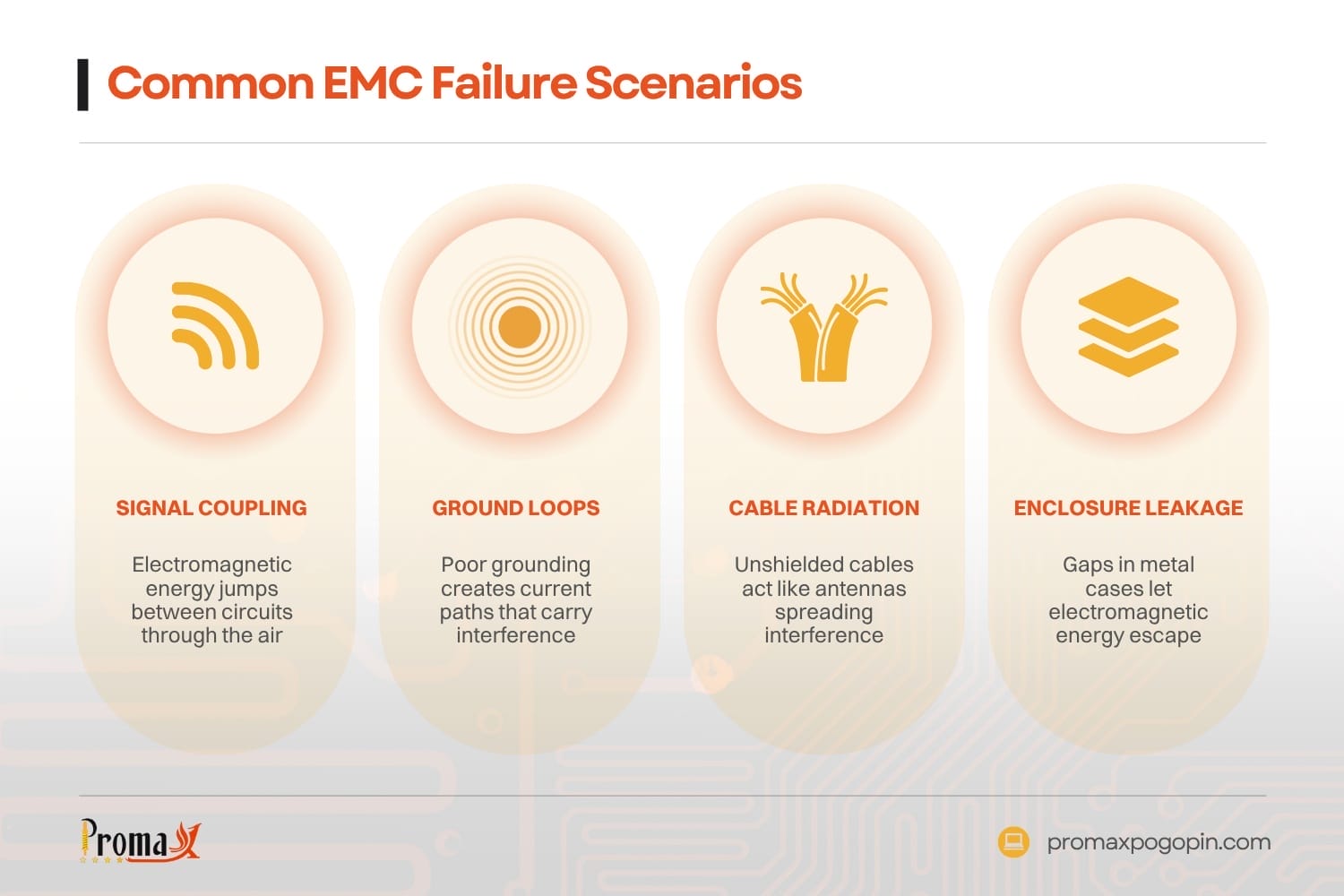

Common EMC Failure Scenarios

Electronic devices fail EMC testing in predictable ways:

• Signal coupling – Electromagnetic energy jumps between circuits through the air
• Ground loops – Poor grounding creates current paths that carry interference
• Cable radiation – Unshielded cables act like antennas spreading interference
• Enclosure leakage – Gaps in metal cases let electromagnetic energy escape

How does EMC Shielding Work to Block Electromagnetic Interference?

It uses faraday cage principles where metallic materials absorb electromagnetic energy. Metallic screens made from copper, aluminum, or steel create barriers that catch electromagnetic waves. Current absorption happens when electromagnetic fields create electrical currents in the shield material.

The conductor must electrically conduct well to work effectively. When electromagnetic waves hit a metal surface, they create electrical currents inside the material. These currents make opposing magnetic fields that cancel the incident field and radiate the interference signal away. The electromagnetic energy turns into heat and disappears safely.

Shielding Effectiveness Measurements

Shielding effectiveness measures how well materials reduce electromagnetic field strength with attenuation values:

• 20 dB reduction = Field strength reduced to 1/10th original power
• 40 dB reduction = Field strength reduced to 1/100th original power
• 60 dB reduction = Field strength reduced to 1/1000th original power

Most commercial products need 30-60 dB effective shielding. This depends on how sensitive the protected circuits are and how strong nearby interference sources might be.

What are the Main Types of EMC Shielding Materials and Methods?

Conductive materials including copper, aluminum, and steel provide different conductivity and cost options for EMI EMC shielding applications. Copper offers excellent performance with good corrosion resistance for high-frequency uses. Aluminum provides decent performance with lower cost and weight for consumer electronics.

Material Performance Comparison

Advanced Shielding Technologies

Coating materials apply metallic particles in polymer bases to create flexible types of shielding solutions. Silver-filled options provide the highest conductivity but cost more. Nickel and copper alternatives offer good performance for most uses. Conductive paints absorb electromagnetic energy instead of reflecting it.

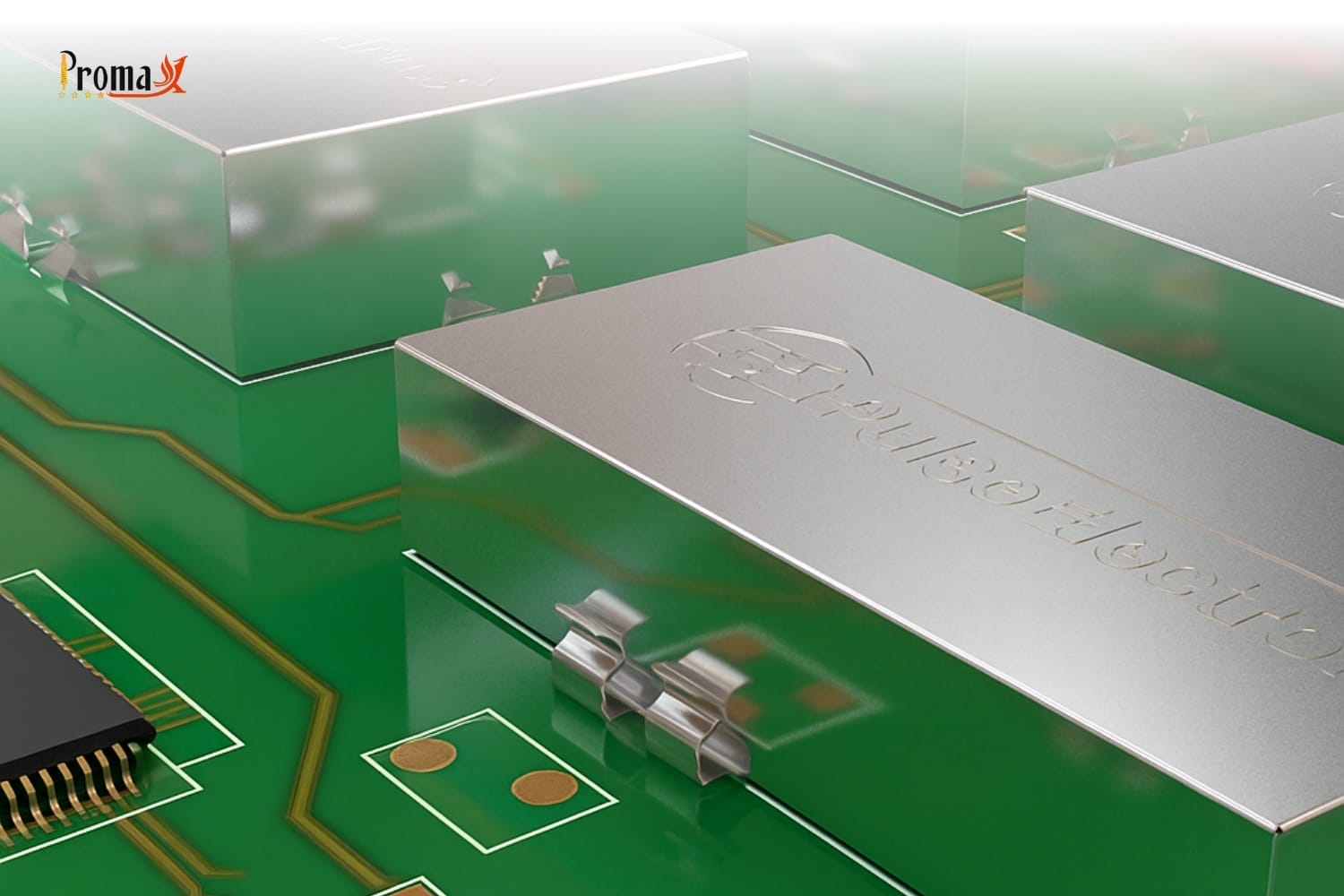

Board Level Shielding (BLS) uses small metal box designs soldered directly onto circuit boards. These shields protect specific components like processors, oscillators, and sensitive analog circuits. BLS provides precise protection without adding bulk to the overall product design.

Specialized materials address specific frequency ranges and environmental needs:

• Ferrite magnetic material – Absorb 1 MHz to 1 GHz interference on cables and power lines
• Conductive fabrics – Provide flexible shielding for wearable electronics and irregular shapes
• Absorptive foams – Reduce internal reflections in sensitive measurement equipment
• Wire mesh screens – Allow airflow while blocking electromagnetic fields

Which Industries Require EMC Shielding Solutions?

Medical devices need the highest EMC protection because interference can cause equipment failures or wrong readings. These industries protect medical and laboratory equipment to prevent external electromagnetic fields from disrupting critical operations. MRI systems generate powerful magnetic fields that need extensive shielding to protect nearby equipment.

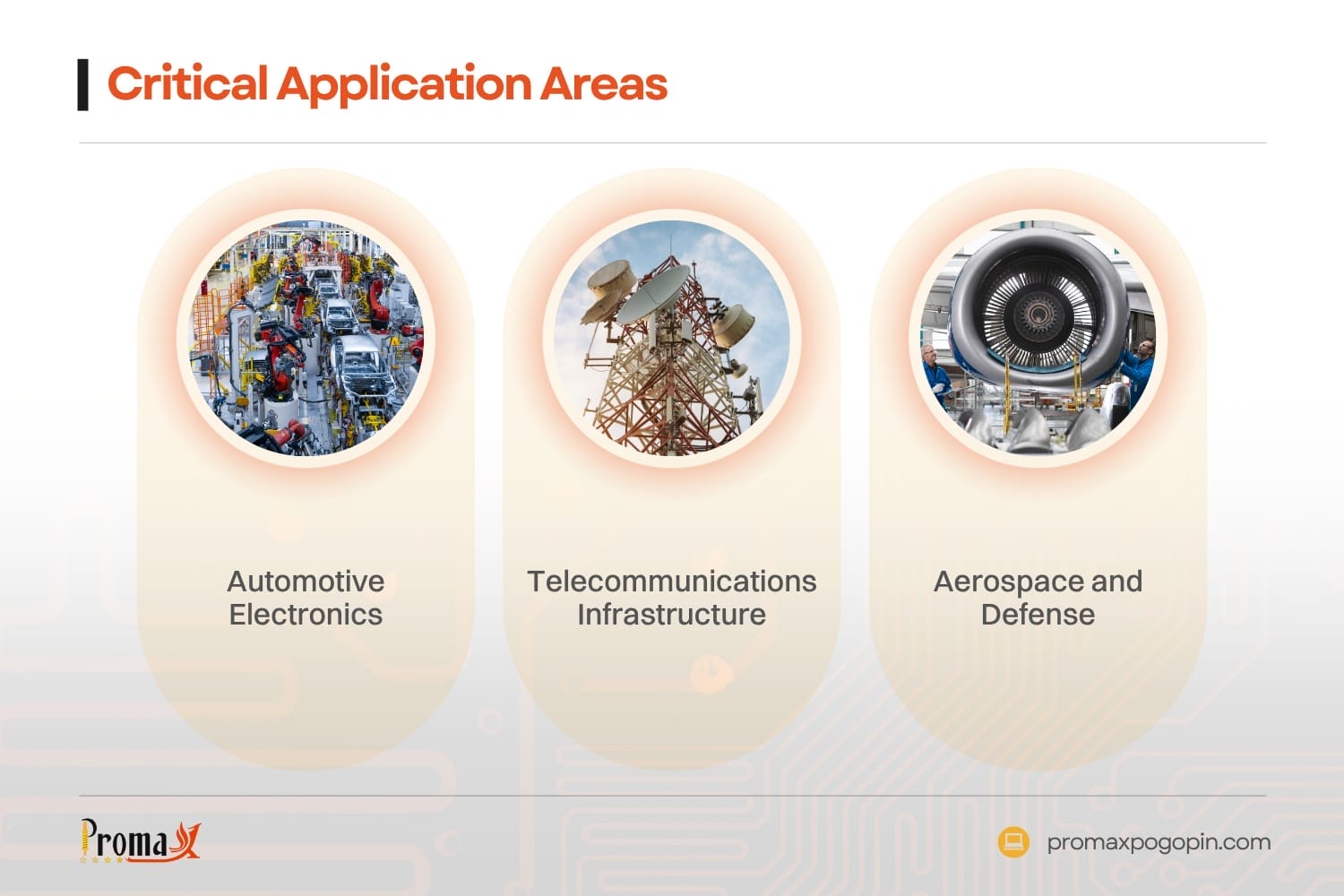

Critical Application Areas

These industries face unique electromagnetic challenges requiring specialized solutions.

Automotive Electronics

• Advanced Driver Assistance Systems (ADAS) must work reliably despite electromagnetic noise
• Electric vehicle power systems create high-frequency interference
• Infotainment and navigation systems need protection from engine ignition interference

Telecommunications Infrastructure

• 5G base stations operate at higher frequencies with greater interference sensitivity
• Data centers prevent server malfunctions from electromagnetic fields of thousands of computers
• Fiber optic equipment requires EMC protection for electronic control circuits

Aerospace and Defense

• Avionics systems must function despite radar emissions and radio frequency communications
• Satellite equipment needs protection from onboard electronic systems
• Military applications follow MIL-STD-461 requirements for electromagnetic compatibility

How do You Choose the Right EMC Shielding Solution for Your Application?

Frequency analysis determines what electromagnetic spectrum needs protection by finding interference sources and sensitive circuit ranges. Low-frequency applications below 1 kHz need magnetic materials like steel or mu-metal for effective shielding. High-frequency applications above 100 MHz work better with highly electrically conductive materials like copper or silver surfaces.

Selection Criteria Framework

Consider these key factors when materials can be used for EMC shielding applications.

Environmental Electromagnetic Considerations

• Temperature cycling affects thermal expansion between shield materials and electronics
• Humidity and corrosion require protective coatings or corrosion-resistant materials
• Vibration and shock determine mechanical attachment requirements

Integration Requirements

• Board Level Shielding provides localized protection for specific circuit areas
• Cable shielding uses braided conductors or foil wraps around signal wires
• Gasket and seams maintain shielding continuity at mechanical joints

Cost Optimization Strategies

Material costs balance performance needs with budget constraints. Premium materials like silver provide superior performance, but may exceed consumer product budgets. Cost-effective engineering trade-offs often favor aluminum or copper solutions that provide adequate protection at reasonable cost while maintaining manufacturing feasibility.

What EMC Standards and Regulations Must Your Product Meet?

IEC 61000 establishes international electromagnetic compatibility standards covering immunity requirements and emission limits. IEC 61000-4-3 specifies radiated immunity tests using electromagnetic field strengths from 1-10 V/m depending on equipment type. IEC 61000-6-3 defines emission limits for residential, commercial, and light industrial equipment.

Regional Compliance Requirements

FCC Part 15 regulates radiated emissions for electronic equipment sold in the United States. Class A devices for commercial use have emission limits 10 dB higher than Class B devices for residential use. Non-compliance can result in product seizure, sales prohibition, and penalties up to $100,000 per violation.

Automotive standards including ISO 11452 and CISPR 25 address unique vehicle electromagnetic environments. These standards specify test methods for radiated and conducted immunity using automotive frequency ranges and field strengths. Testing includes bulk current injection, stripline testing, and radiated immunity assessment up to 6 GHz.

How much does Professional EMC Shielding Cost and What Factors Affect Pricing?

Material costs represent 40-60% of total EMC shielding project expenses, with copper and aluminum providing cost-effective solutions. Premium materials including silver-plated surfaces can increase material costs by 200-500% but may be necessary for high-performance applications. Volume purchases reduce per-unit costs by 30-50% compared to prototype quantities.

Cost Impact Analysis

Several factors determine the final investment required for effective electromagnetic shielding.

Design Complexity Effects

• Simple rectangular enclosures cost 20-40% less than custom-formed shields
• Multi-part assemblies with gaskets and access panels increase manufacturing complexity
• Precision tolerance requirements affect tooling and production costs

Testing and Certification Expenses

• Basic EMC testing for commercial products costs $5,000-15,000
• Automotive EMC testing can exceed $50,000 for complete vehicle validation
• Military testing following MIL-STD-461 often costs $25,000-100,000

Early EMC consideration during product design reduces overall costs by 60-80% compared to retrofit solutions. Rush projects requiring expedited testing can increase costs by 50-200% due to premium scheduling requirements.

What is the Step-by-Step Process for Implementing EMC Shielding?

Pre-assessment analysis identifies electromagnetic interference sources and susceptible circuits through frequency analysis and field mapping. Circuit evaluation determines sensitive frequency ranges, signal levels, and acceptable interference thresholds. Environmental assessment characterizes electromagnetic background including nearby transmitters and potential interference sources.

Implementation Phases

Follow these systematic steps to ensure successful electromagnetic shielding deployment.

Phase 1: Design Development

• Material selection considers frequency response, environmental conditions, and cost targets
• Mechanical integration ensures shielding continuity while maintaining thermal management
• Performance modeling predicts shielding effectiveness before physical implementation

Phase 2: Installation Execution

• Ground plane preparation establishes low-impedance current return paths
• Continuity verification confirms electrical connections between shield sections
• Seam treatment applies conductive gaskets to eliminate electromagnetic leakage paths

Phase 3: Validation Testing

• Pre-compliance testing identifies potential issues before formal certification
• Compliance testing at accredited facilities provides official market access certification
• Performance monitoring establishes baseline measurements for quality assurance

How Can Promax Pogo Pin Help with Your EMC Shielding Requirements?

Specialized pogo pin connectors provide EMC-compliant interconnections between shielded enclosures while maintaining signal integrity. Our connectors feature built-in EMC protection, including filtered signal paths and integrated grounding systems. Custom designs address specific frequency response, contact resistance, and environmental requirements used to protect sensitive electronic systems.

Technical Support Services

Our engineering team provides electromagnetic simulation, material selection, and compliance strategy development. Application analysis identifies potential EMC vulnerabilities and recommends solutions based on connector design experience. Quality assurance programs ensure consistent EMC performance through rigorous testing and validation procedures.

Manufacturing expertise delivers high-quality EMC solutions through precision production and quality control systems. Supply chain management ensures consistent material quality and delivery schedules for production requirements.

Promax Pogo Pin | Professional EMC Shielding

EMC shielding protects your products from electromagnetic interference while meeting international safety standards. Success requires proper materials, expert engineering, and systematic testing across diverse operating conditions. Poor EMC planning leads to expensive redesigns, delayed launches, and market access problems.

Promax Pogo Pin delivers proven EMC solutions through specialized connectors, advanced plating technologies, and comprehensive technical support. Our team understands the unique challenges of maintaining electromagnetic compatibility in modern electronic systems.

Contact us today to discuss your EMC connector requirements and ensure your product’s compliance success.

Frequently Asked Questions

What specific connector features improve EMC shielding performance?

Integrated grounding springs in pogo pin connectors create multiple low-impedance paths to chassis ground, reducing electromagnetic leakage through connector interfaces. Filtered pin designs incorporate built-in capacitive or inductive elements that attenuate high-frequency interference while maintaining signal integrity. 360-degree shielding continuity through connector housings eliminates electromagnetic coupling between adjacent pins and prevents radio frequency interference.

How does connector plating affect long-term EMC performance?

Plating degradation increases contact resistance over time, reducing shielding effectiveness and creating potential EMC failure points. Gold plating maintains stable electrical properties in harsh environments, ensuring consistent grounding performance throughout the product lifecycle. Silver plating provides optimal high-frequency performance but requires proper environmental protection to prevent tarnishing that degrades conductivity.

What testing validates connector EMC performance in real applications?

Transfer impedance testing measures how well connectors maintain shielding effectiveness across frequency ranges up to 3 GHz using specialized test fixtures. Bulk current injection testing evaluates connector immunity to conduct interference on cable assemblies. Radiated emission testing verifies connectors don’t create electromagnetic leakage paths that could cause compliance failures in electronic devices.
