What is Panel Mount? Full Technical Guide for Connector Solutions

Panel mount technology totally gets rid of connection failures. It does this by securing connectors directly to equipment panels. In turn, this creates really reliable pathways between internal electronics and external cable connections. This mounting method stops environmental damage and mechanical stress from happening. These issues generally tend to cause system failures in industrial automation applications. Knowing everything about panel mount configurations, specifications, and applications will make sure you get the best connector performance.

Key Takeaways

• Panel mount secures connectors to equipment panels for reliable inside-outside connections
• Three configurations (external, internal, side) work for different space and environmental needs
• IP67-rated panel mounts provide total dust and water protection for harsh conditions
• Proper selection lowers connection failures through mechanical stress relief and environmental sealing
• Custom solutions improve performance for some electrical and mechanical requirements

What is Panel Mount Technology?

Panel mount is a mechanical feature built into the connector design. It secures the connector to equipment panels, enclosures, or chassis. This mounting system creates a permanent attachment point where the connector body blends with the panel structure. This is done through standardized mounting holes and hardware. The technology works as a really important interface between internal electronic circuits and external cable connections.

The main purpose goes beyond just simple mechanical connection to provide environmental protection and electrical isolation. Panel mount connectors create sealed barriers that stop moisture, dust, and contamination from getting into electronic enclosures. It also keeps up reliable electrical conductivity. This dual function makes panel mounting essential for different industries. These include telecommunications, medical equipment, and control systems.

How does Panel Mount Differ from Board Mount?

Understanding the key differences between mounting methods helps engineers and users select the appropriate connector type for their applications. Panel mounted solutions serve different purposes than surface mount alternatives, each offering specific advantages for particular installation requirements.

Panel Mount vs. Surface Mount Applications

Panel mount secures connectors to equipment panels, while board mount attaches connectors directly to printed circuit boards (PCBs). Board mount applications use mechanical connection hardware like screws, nuts, or latching mechanisms to secure the connector to the same PCB where electrical soldering occurs. This type of mount reduces mechanical stress on delicate solder joints by distributing forces across separate mechanical connections.

Panel mounting applications create connections between enclosed electronics and external environments through the enclosure wall. The connector body mounts to the panel structure, while inside electronics connect through wiring to the back of the connector. This separation allows internal electrical components to remain protected while providing accessible external connection points.

Hybrid Mounting Solutions

Hybrid configurations combine both mounting methods, where connectors secure to both PCB and panel simultaneously. These dual-mount systems provide maximum mechanical stability for high-vibration environments while maintaining electrical reliability through stress-isolated solder connections. This approach facilitates secure installations in applications that require both electrical connections on the back of the connector and structural mounting to the chassis.

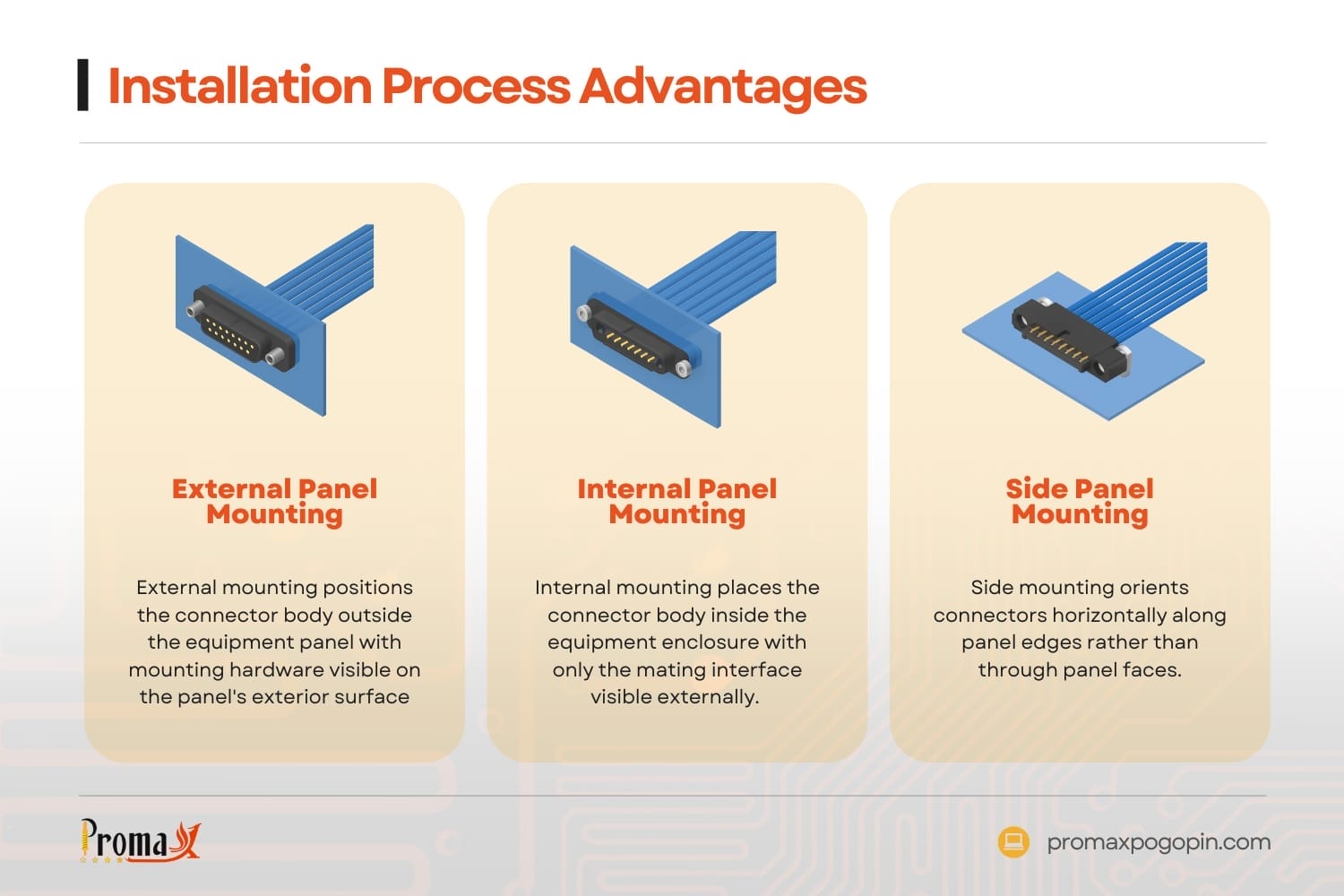

What are the Three Types of Panel Mount Configurations?

The three types of panel mount configurations are external mounting, internal mounting, and side mounting. Each configuration serves specific installation requirements and environmental factors for different applications.

External Panel Mounting

External mounting positions the connector body outside the equipment panel, with mounting hardware visible on the panel’s exterior surface. This configuration provides maximum accessibility for users making connections while keeping the connector assembly exposed for maintenance. The bulk of the connector extends outward from the panel face, mounted on the front of the device wall.

Technical Specifications:

• Standard mounting holes: 15.5 mm to 30 mm diameter
• Panel thickness accommodation: 1.0 mm to 6.0 mm
• Mounting torque: 0.5 Nm to 5.0 Nm depending on size

Internal Panel Mounting

Internal mounting places the connector body inside the equipment enclosure, with only the mating interface visible externally. This configuration creates streamlined external appearances with a professional appearance, while providing substantial internal mounting surfaces for mechanical stability. The connector assembly occupies internal space but offers superior protection from environmental conditions and untrained personnel access.

Design Considerations:

• Heat dissipation requirements within enclosed spaces
• Internal space allocation for the connector body
• Enhanced mechanical stability through larger mounting surfaces

Side Panel Mounting

Side mounting orients connectors horizontally along panel edges rather than through panel faces. This configuration serves space-constrained applications where traditional through-panel mounting proves impractical due to internal component placement or cable routing requirements. Side mounts function primarily as securing methods, designed to be installed almost anywhere on the product chassis.

Which Panel Mount Configuration Should You Choose?

Configuration selection depends on accessibility requirements, environmental protection needs, and available mounting space. External mounting suits applications requiring frequent user access and maintenance visibility. Internal mounting serves installations prioritizing aesthetic appearance and maximum environmental protection.

Selection Criteria Matrix:

Environmental factors significantly influence configuration choice. Applications exposed to harsh conditions benefit from internal mounting’s superior protection, while user-accessible installations require external mounting’s convenient access.

What are the Key Technical Specifications for Panel Mount Connectors?

Key technical specifications for panel mount connectors include electrical ratings (60V-800V+), environmental protection (IP67/IP66), and mechanical durability (500+ mating cycles). These specifications determine connector suitability for specific applications and operating conditions.

Electrical Characteristics

Panel mount connectors support voltage ratings from 60V for signal applications to 800V+ for industrial power systems. Current ratings range from 2.0A for low-power signal connections to 50A+ for power distribution applications. Insulation resistance typically exceeds 10^10 Ω, ensuring reliable electrical isolation between circuits and maintaining signal integrity.

Advanced Electrical Specifications:

• Rated impulse voltage: Up to 800V for high-voltage applications
• Contact resistance: <10 milliohms for power, <50 milliohms for signal
• Pollution degree classifications: Degree 2 (normal) to Degree 3 (industrial)
• Overvoltage category ratings: CAT II to CAT III for different environments

Environmental Protection Standards

IP67 ratings provide complete protection against dust ingress and temporary water immersion to 1-meter depth. IP66 ratings offer dust-tight sealing with protection against powerful water jets from any direction. These ratings ensure reliable operation in industrial environments with exposure to contamination and moisture, incorporating sealing features like gaskets or O-rings.

Certification Standards:

• UL 508A Type 3R, 4, and 12 for industrial control panels
• CSA Type 3R, 4, and 12 for Canadian installations
• IEC 60529 IP66 for international applications
• NEMA standards for electrical enclosure compatibility

Material Specifications and Durability

Standard panel mount connectors provide 500+ mating cycles for applications requiring frequent connection changes. Contact materials include phosphor bronze, beryllium copper, and brass alloys with gold, silver, or tin plating for corrosion resistance and optimal signal transmission.

Material Construction Details:

• Housing materials: PA (polyamide), polycarbonate (PC) for dimensional stability
• Contact plating options: Gold (low resistance), Silver (high current), Tin (cost-effective)
• Operating temperature: -25 °C to +85 °C standard range
• Weight considerations: 4.79 grams for 12-contact configurations

What Advanced Panel Mount Technologies are Available?

Advanced panel mount technologies include Panel PC integration systems, guide pin technology for female connectors, and adhesive mounting methods. These technologies extend beyond traditional connector designs to address specific application challenges.

Panel PC Integration Systems

Panel PC technology combines industrial computers with display monitors in panel-mountable configurations. These systems eliminate separate computer mounting requirements while providing ruggedized performance for industrial environments. Panel PCs feature enhanced reliability specifications designed for continuous operation, designed to be installed in control panels and machinery interfaces.

Panel PC Mounting Options:

• Direct panel mounting through cut-outs in electrical enclosures
• VESA Mount compatibility for standard display mounting
• DIN rail mounting capabilities for control panel integration
• Rackmount configurations for server room installations

According to Research and Markets, the global market for panel rack mount power connectors was worth $3.71 billion in 2025. It is expected to grow to $4.68 billion by 2029, with an annual growth rate of 6%.

Guide Pin Technology for Female Connectors

Guide pins facilitate precise connector alignment during mating operations, reducing insertion forces and preventing damage to contact elements. Female connectors with integrated guide pins ensure proper alignment before electrical contact engagement, preventing cross-threading and mechanical damage. This technology offers easy integration and compatibility with existing systems.

Guide Pin Benefits:

• Reduced insertion force requirements
• Prevention of contact damage during mating
• Improved reliability in blind-mating applications
• Enhanced durability for high-cycle applications

Alternative Mounting Methods

Adhesive mounting provides alternatives to mechanical fixings for specialized applications. Structural adhesives create permanent bonds between connector housings and panel surfaces without requiring mounting holes. This method suits applications where panel integrity cannot be compromised by cut-outs, offering easy installation for specific design requirements.

Adhesive Mounting Applications:

• Consumer electronics (smartphone USB/headphone connectors)
• Thin panel applications where mechanical mounting impractical
• Vibration-sensitive installations requiring flexible mounting
• Aesthetic applications requiring seamless panel appearance

What Industries Benefit Most from Panel Mount Solutions?

Industries that benefit most from panel mount solutions include industrial automation, telecommunications, medical equipment, and aerospace/avionics. These sectors require robust solutions that withstand demanding environmental conditions while providing secure connections.

Industrial Automation Applications

Manufacturing equipment uses panel mount connectors for human-machine interfaces (HMI), sensor connections, and control system integration. Programmable logic controllers (PLCs) rely on panel-mounted I/O connectors for field device connections. Motor control centers utilize high-current panel mounts for power distribution, with connectors designed to be mounted at different locations throughout the facility.

Connector Series Examples:

• PowerLok 300 series: 30 mm pitch spacing for high-power applications
• ST series: Standard screw terminations for general-purpose use
• Rectangular power connectors: 1 to 50 contacts with various termination methods

Telecommunications Infrastructure

Data centers use panel mount fiber optic connectors for network equipment integration and signal transmission. Base stations equipment requires weatherproof panel mounts for antenna connections and RF signal distribution. Network switches utilize panel-mounted RJ45 connectors for copper cable terminations, protecting against electromagnetic interference and radio frequency disruption.

Medical Equipment Integration

Patient monitoring equipment uses panel mount connectors for sensor interfaces and data acquisition systems. Diagnostic imaging systems require panel-mounted high-voltage connectors for X-ray applications. Laboratory instruments utilize panel mounts for analytical equipment interfaces, incorporating coupling mechanisms that ensure reliable connections in sterile environments.

Aerospace and Avionics Systems

Aerospace applications demand panel mount solutions that withstand extreme environmental conditions while maintaining signal integrity. Avionics systems utilize panel-mounted connectors for flight control interfaces and navigation equipment. These applications require off-the-shelf solutions with enhanced reliability specifications for critical system operations.

How do Pogo Pins Enhance Panel Mount Connector Performance?

Pogo pin technology integrates spring-loaded contacts within panel mount housings to create self-aligning, low-force connections. The spring mechanism maintains consistent contact pressure across temperature variations and mechanical tolerances. This design eliminates precision alignment requirements of traditional pin-and-socket connectors while providing superior electrical performance.

Pogo Pin Advantages:

• 40-60% reduction in insertion forces compared to conventional connectors
• Accommodation of PCB warpage and component tolerances
• Self-wiping contact action removes oxide layers and contamination
• Gold-plated contacts provide superior corrosion resistance

The receptacle design incorporates spring-loaded contacts that maintain electrical continuity even with mechanical movement. This technology proves essential for applications where vibration or thermal expansion might otherwise compromise connection integrity.

What are the Installation Best Practices for Panel Mount Connectors?

Panel preparation requires precision hole cutting to manufacturer specifications with proper edge finishing. Hole diameters must maintain +0.1/-0.0 mm tolerances for proper gasket compression and environmental sealing. Deburring operations remove metal particles that compromise electrical insulation and proper thread engagement.

Installation Procedures:

• Torque specifications: 0.5 Nm (small) to 5.0 Nm (large power connectors)
• Thread-locking compounds prevent vibration loosening
• Gasket compression verification ensures environmental sealing
• Electrical continuity testing validates proper installation

Engineers must ensure the back of the panel mount connector remains accessible for wiring connections. The mounting panel should provide adequate support for the connector weight and mating forces.

Ready for Expert Custom Panel Mount Solutions?

Promax Pogo Pin delivers custom panel mount solutions engineered for your specific application requirements. Our expertise in pogo pin integration and advanced connector design ensures optimal performance for challenging environments. Contact our engineering team today to discuss your panel mount connector requirements and receive expert application guidance tailored to your project needs.

FAQs in What is Panel Mount?

How do you determine proper panel thickness for different connector mounting requirements?

Panel thickness requirements depend on connector design and mounting hardware specifications. Standard connectors accommodate 1.0 mm to 6.0 mm panels using adjustable mounting nuts. Heavy-duty power connectors require 8-12 mm thick panels for mechanical support. Thin panels below 1.0 mm may require reinforcement plates or alternative mounting methods to secure the connector properly.

What environmental sealing methods ensure IP67 protection in panel mount installations?

IP67 protection requires proper gasket compression between connector housing and panel surface. Use manufacturer-specified torque values to achieve optimal gasket compression without over-stressing housing materials. Apply thread-locking compounds to prevent loosening. Verify sealing integrity through pressure testing before final installation to ensure the hole in the enclosure wall maintains environmental protection.

Can panel mount connectors handle high-vibration applications without mechanical failure?

High-vibration applications require connectors with enhanced mechanical specifications, including reinforced housing materials and vibration-resistant mounting hardware. Use thread-locking compounds rated for continuous vibration exposure. Consider shock-absorbing mounting techniques for extreme vibration environments. Select connectors meeting MIL-STD vibration specifications for critical applications to fasten connections reliably under dynamic conditions.
