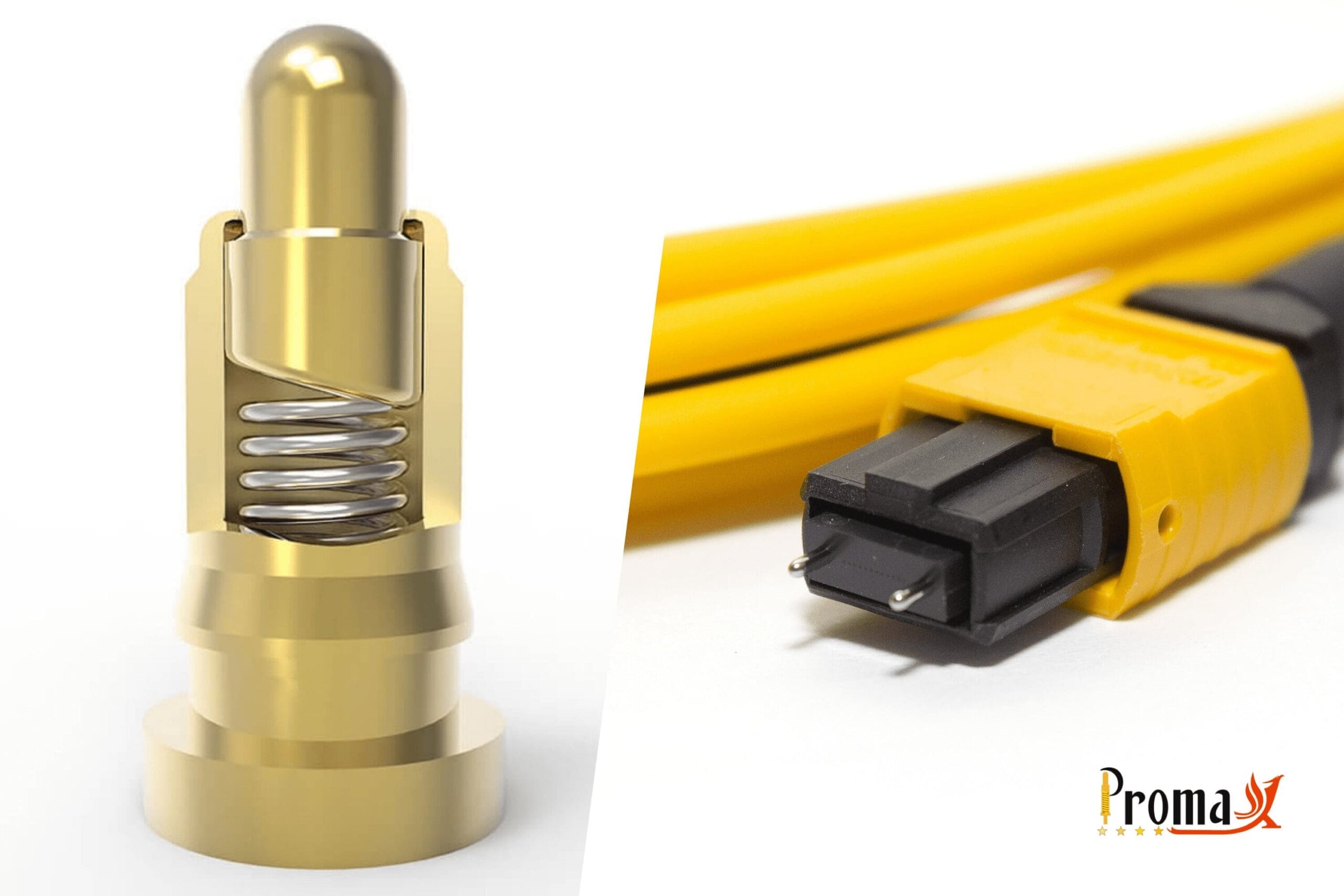

The main difference is that a pigtail connector has a fixed wire or cable for permanent connections, whereas a pogo pin is a spring-loaded contact used for temporary connections in testing or docking applications.
However, there’s a lot more to it! Understanding their unique functions and applications in the electronics industry is important for successful projects. Promax Pogo Pin is a premium pogo pin manufacturer, and our guide dives into what are pogo pins and pigtail connectors, their benefits, applications, and more.
Key Takeaways
- Pigtail connectors are multipurpose wire connectors used in various applications.
- Pogo pins provide a durable, spring-loaded connection that is best for compact electronics.
- Pigtail connectors are generally easier to use for direct wire connections.
- Pogo pins work well in environments requiring frequent connections and disconnections.
What is a Pigtail Connector?
| Aspect | Details |
|---|---|
| Definition | A pigtail connector is a short wire with a connector on one end and exposed wires on the other |
| Components | Made of copper or aluminum with insulation and connectors |
| Functionality | Joins wires securely without soldering; organizes wiring |
| Benefits | Easy to use, versatile, and cost-effective |
| Applications | Used in automotive, telecommunications, and industrial equipment |
A pigtail connector is an essential tool that includes a short length of wire with a connector on one end and exposed wires on the other. This design makes for easy termination of electrical connections without the need for soldering or complex assembly. Here’s a quick breakdown of pigtail connector components:
- Wire: Usually made from copper or aluminum for good conductivity
- Insulation: Protects the wires from environmental factors and prevents short circuits
- Connector: Can be a male or female connector, depending on the application
Functionality
The main function of these types of connections is to join two or more wires together securely. This allows for reliable electrical connections and applications in various settings, including automotive and telecommunications. By using pigtails, you can easily extend existing wiring or integrate new components without extensive modifications.
These wire connectors simplify the process of creating an electrical circuit by providing a straightforward method to connect wires without soldering tools or specialized equipment. They also help manage wire organization within devices.
Pigtail connectors can organize and reduce clutter by grouping multiple wires and connectors, which makes it easier to troubleshoot and maintain systems over time. This organization is really helpful in complicated installations.

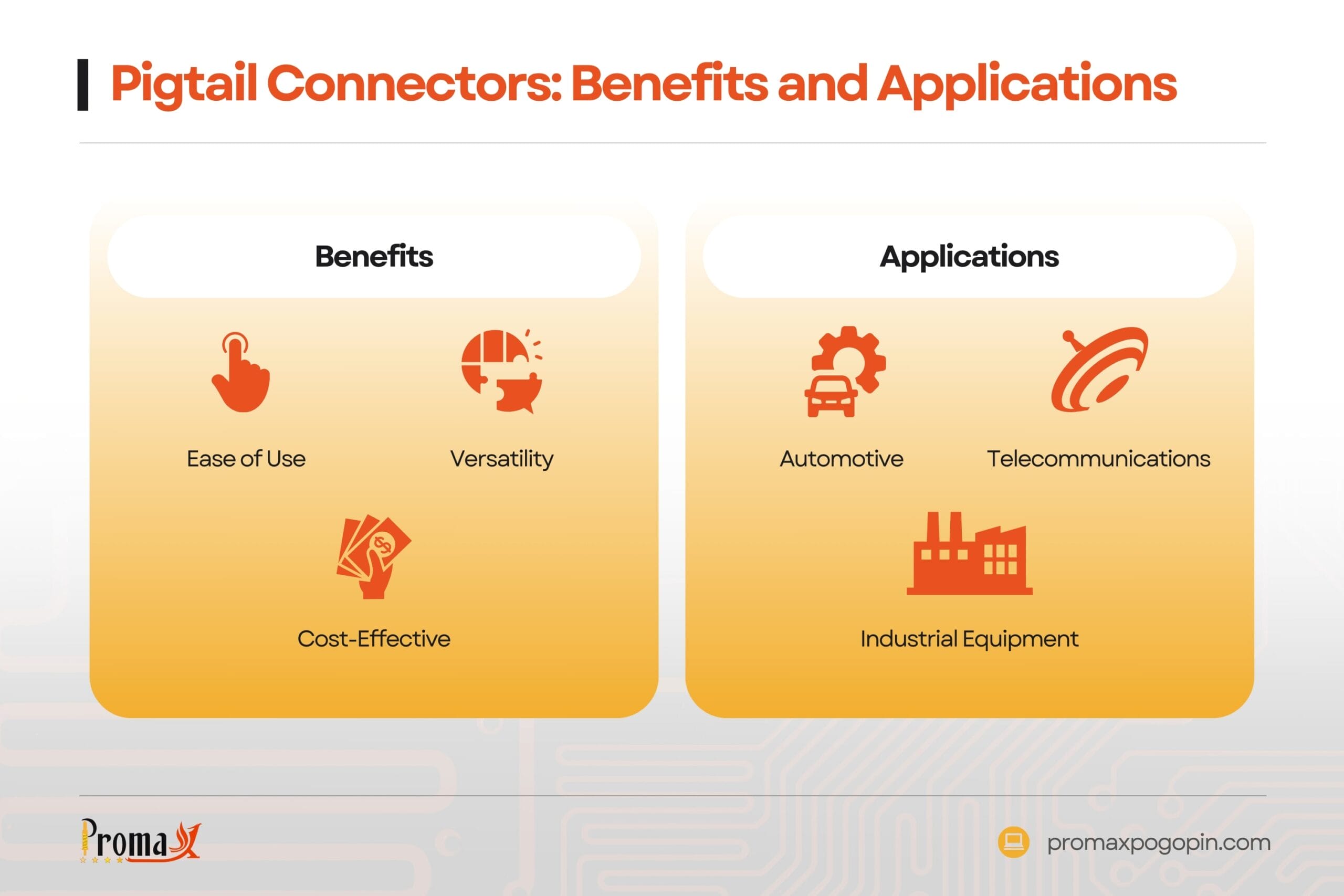

Benefits
- Ease of Use: Pigtail connectors make it simple to connect wires without soldering.
- Versatility: These connectors can be used in many applications, from automotive systems to home electronics. This adaptability means that they can be employed in a range of projects, whether for DIY electronics or professional installations.
- Cost-Effective: Pigtail connectors are generally less expensive than other types of connectors due to their straightforward design.
Applications
- Automotive: Connect sensors, lights, and power sources
- Telecommunications: Used in fiber optic and coaxial cable assemblies
- Industrial Equipment: Link machinery and control systems for efficient operation
What is a Pogo Pin?
| Aspect | Details |
|---|---|
| Definition | Pogo pins are spring-loaded connectors for stable electrical contact |
| Components | A plunger, spring, and barrel |
| Functionality | Engages with PCBs, compensating for misalignment; ideal for portable devices |
| Signal Integrity | Supports high-frequency signals for reliable data transmission |
| Benefits | Durable (up to 1 million cycles), tolerant of manufacturing errors, and space-efficient |
| Applications | Common in consumer electronics, test equipment, and medical devices |
A pogo pin, also called a spring-loaded pin contact or pogo pin, is an electrical connector that has a plunger mechanism housed within a barrel. This design allows the pin to maintain contact with a mating surface through spring tension. These spring loaded connectors are made up of these components:
- Plunger: Makes contact with the target surface
- Spring: Provides the necessary force to keep the plunger engaged
- Barrel: Houses the plunger and spring while allowing movement
Functionality
Spring-loaded pogo pins create an electrical connection by engaging with a mating receptacle, usually found on a printed circuit board (PCB) or other components. The spring-loaded mechanism compensates for misalignment and vibration, ensuring a stable connection under harsh conditions. This feature is really important in applications where devices might experience movement or shock, such as in portable electronics or automotive systems.
Pogo pins can also handle high-frequency signal transmission due to their design. They minimize resistance and maintain signal integrity across connections, which is essential for applications like data transfer in IoT devices or communications equipment. Their ability to provide consistent contact under different conditions improves overall system reliability.

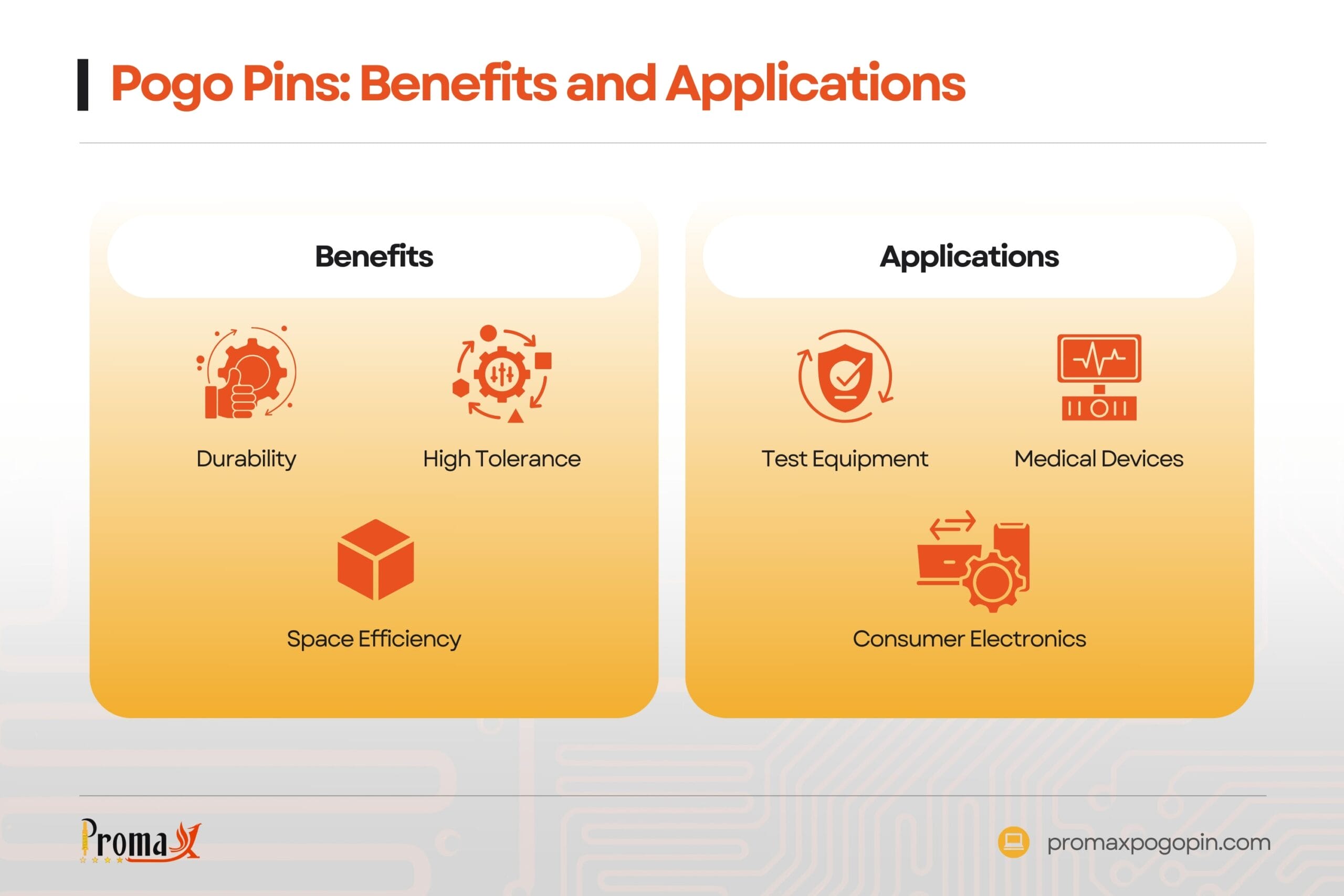

Benefits
- Durability: Pogo pins can withstand many mating cycles — up to 1 million cycles. This durability turns into lower maintenance costs over time, as you won’t need to replace them often.
- High Tolerance: Pogo pins can handle minor manufacturing errors without compromising connectivity. This tolerance ensures that even with slight changes during production, pogo pins will still function properly.
- Space Efficiency: These connectors are ideal for small electronic designs where space is a limited resource. Their small configuration allows designers to fit them into tight spaces without affecting performance.
Applications
- Consumer Electronics: Charging docks for devices like smartphones and smartwatches
- Test Equipment: Provide reliable connections during testing phases of electronic devices
- Medical Devices: Ensure secure connections in important applications where reliability is essential
Pigtail Connectors vs. Pogo Pin Connectors
Let’s examine the main differences between these two in terms of design, connection type, application, customization, and durability:
| Feature | Pigtail Connectors | Pogo Pin Connectors |
|---|---|---|
| Design | Simple with exposed wires, various pins | Spring-loaded, maintaining contact |
| Connection Type | Direct wire-to-wire for quick assembly | Board-to-board for frequent disconnections |
| Applications | Used in automotive and home wiring | Ideal for testing equipment and battery chargers |
| Customization | Limited options mainly customized for wire length | Highly customizable in size and materials |
| Durability | Fair, may need protective measures | Designed for longevity and stress resistance |
Design
Pigtail connectors have a straightforward design with exposed wires terminating in connectors, without necessarily being crimped or soldered to ensure a secure fit. These connectors typically come in different configurations, such as 2- or 3-pin connectors, allowing users to connect two or more wires easily.
In contrast, pogo pins have a more complex structure that includes a spring-loaded mechanism. This design allows them to maintain contact despite movement or misalignment, making them great for applications where precision is important.
Connection Type
Pigtail connectors enable direct wire-to-wire connections, allowing for quick and easy assembly in electrical work. They are often used to terminate wires into a socket, ensuring a reliable connection.
Pogo pins engage with specific receptacles on PCBs or other surfaces, making them suitable for board-to-board connections and applications requiring a lot of disconnections. This flexibility allows pogo pins to function effectively as adapters in different electronic setups.
Applications
While pigtail connectors are flexible across many industries — from automotive to telecommunications — pogo pins work better in high-frequency applications such as testing equipment and consumer electronics where reliable connections are crucial.
For example, pogo pins are commonly used in devices and components like battery chargers and docking stations, where they allow for quick connections without the need for complicated assembly. Pigtail connectors, on the other hand, are typically found in home wiring systems, connecting lights in your home or other electrical fixtures.
Customization
Pigtail connectors offer limited customization options, mainly related to wire length and connector type. They can be customized for specific applications, but generally come in standard sizes.
On the other hand, pogo pins can be highly customized in terms of size, spring force, and plating materials to meet specific application requirements. For example, manufacturers can create pogo pin configurations that fit into compact spaces while maintaining a secure connection, making them ideal for 5-pin electrical setups or even specialized 4-pin electrical configurations.
Durability
Pigtail connectors provide decent durability, but may they wear over time if not properly insulated. These connectors usually require extra protective measures like heat shrink tubing or wire nuts to ensure longevity.
Pogo pins are designed for longevity with minimal wear due to their spring-loaded mechanism, making them great for environments where reliability is extremely important. Their special construction lets them withstand mechanical stress and vibration better than traditional connectors, ensuring that they maintain a secure connection.
Promax: Affordable Pogo Pin Manufacturers
Both pigtail connectors and pogo pins play significant roles in modern electronics. While pigtails are best for straightforward wire connections across different applications, pogo pins offer advanced functionality suited to high-performance environments.
If you’re looking to explore affordable options for pogo pin manufacturing, Promax Pogo Pin provides reliable solutions customized to meet diverse needs. Reach out for cost-effective pogo pin solutions!
Pigtail Connector vs. Pogo Pin FAQs
What are the three types of connectors?
The three types of connectors are electrical connectors, data connectors, and mechanical connectors. Pogo pins and pigtails are electrical connectors.
Are pigtail connectors safe?
Yes, pigtail connectors are generally safe when properly installed and used according to recognized electrical standards. They provide secure connections that help prevent electrical shorts and ensure reliable operation. This makes them a good choice for any project requiring a solid electrical header.
How long can an electrical pigtail be?
Common electrical pigtails range from a few inches to several feet, depending on the specific application. It’s best to keep them as short as is practical to reduce resistance and potential signal loss.
