Everything You Need to Know About 3-Pin Connector Male and Female

In the electronics world, all you need to understand about connecting components starts with mastering male and female connectors. A 3 pin connector is a fundamental component that creates secure electrical connections between devices. These connector types serve numerous applications across industries, from household appliances to automotive systems, with each pin and socket designed for specific functions in an electrical circuit.

Key Takeaways

• Male connectors have protruding pins, while female connectors have receptacles or sockets that accept these pins.
• The third pin in power connectors provides crucial safety grounding, preventing electrical shock and equipment damage.
• Gender identification can be confusing with certain connector types, like barrel connectors, where conventional definitions don’t apply clearly.
• 3-pin connectors typically handle voltage ratings from 12V (in computing applications) to 400V+ (in industrial settings).
• Proper selection should consider wire connectors’ current capacity, environmental conditions, and application-specific standards.

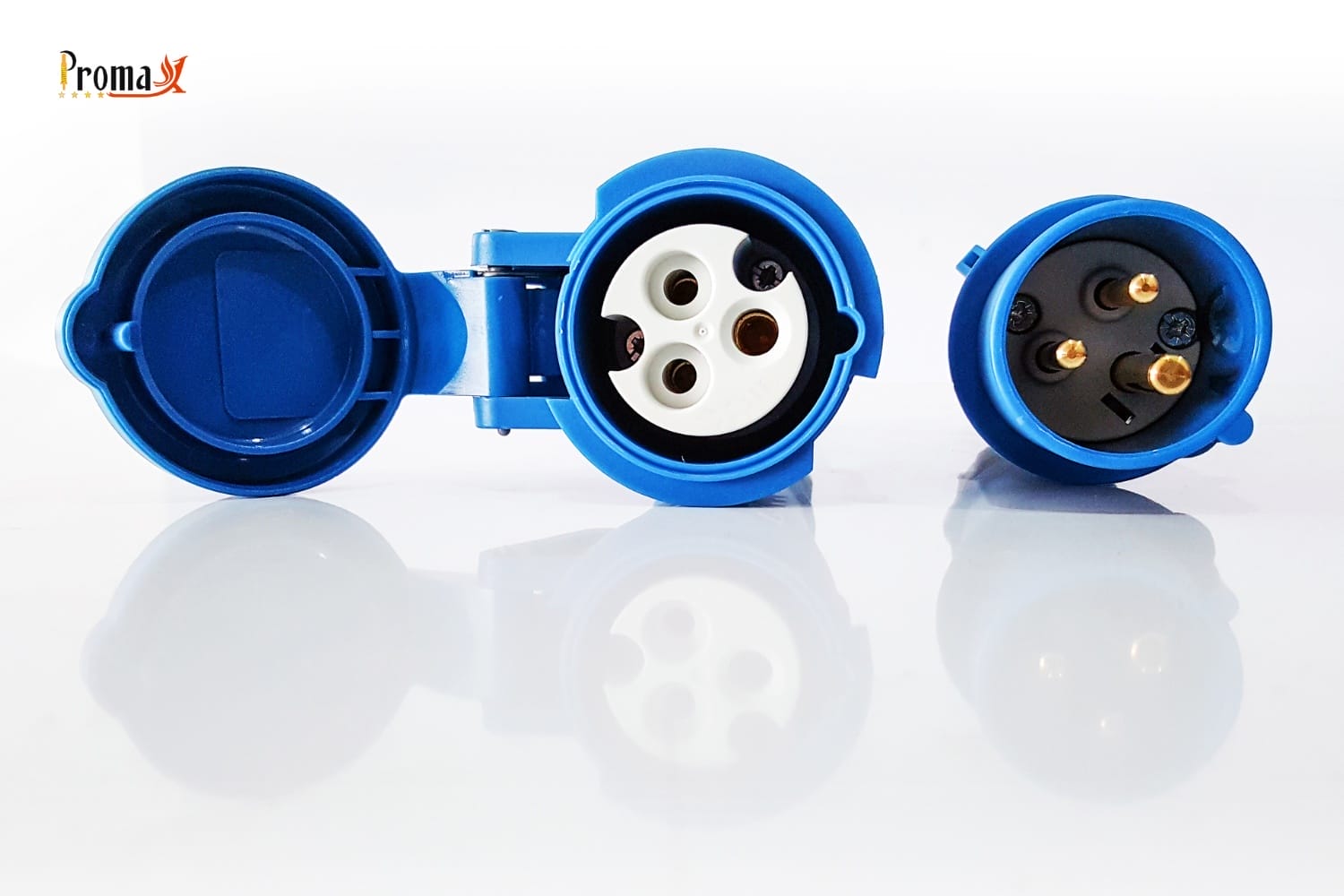

What is the Difference Between Male and Female 3-Pin Connectors?

Male connectors feature protruding metal pins designed to insert into corresponding female receptacles. The female end contains recessed sockets that receive and secure the male plug, creating complete electrical connections. This basic distinction applies to most connector types, though the gender of connectors can be confusing in specific designs like coaxial power connectors. According to Research Nester, the pin and socket connectors market size was more than USD 86.16 billion in 2024 and is expected to go higher than USD 226 billion by 2037.

The terminology derives from the physical connection method, mirroring biological concepts. As explained by DigiKey, “In the electrical and electronic field, mating connectors are typically designated male or female in gender,” with male connector pins and female jacks having receptacles.

Gender Identification Challenges

The confusion often arises with a couple of connectors, like DC jack connectors, where the receptacle has a male pin while the plug on the end has a female center hole. In these cases, some manufacturers define male gender by the housing, while others reference the pin diameter.

How do you Identify Male vs. Female Connectors?

You can identify male or female connector types by examining their interface characteristics. Male plugs have protruding pins that extend outward from the connector body. Female connectors contain recessed receptacles designed to accept and secure these pins. Examine the contact elements rather than the housing to determine gender correctly.

When dealing with complex types like SMA connectors, check the pin arrangement at the connection interface. For SMA male connectors, you’ll find a center pin, while an SMA female has a receptacle. With RP-SMA female and RP-SMA male connector variants, these features are reversed despite the naming.

Identification Best Practices

• Examine the mating interface, not just the exterior
• Look for pin protrusion (male) versus socket recession (female)
• Check the manufacturer’s documentation for standard designations
• For mixed-feature connectors, prioritize the center conductor gender

What are the Different Types of 3 Pin Connectors?

Electrical connectors encompass various designs optimized for specific applications. Power plug connectors used in household and industrial applications feature standardized designs. Automotive applications include specialized types like sealed connectors and vehicle-specific variants.

Computer applications utilize options like JST connector types and modular connectors for internal connections and fan control. The motherboard often contains a pin header that accepts a cable with a female header. Industrial applications employ robust metal connectors designed to withstand harsh environments.

Industry-Specific Connector Types

How are 3-Pin Connectors Constructed?

3-pin electrical connections consist of a housing structure and three metal contact elements. Male header housings are typically made of nylon, polyester, or plastic (with some metal options for industrial applications) and contain rows of pins arranged in a specific configuration. These conductor elements are commonly made of copper alloys.

Female header housings contain three receptacles positioned to align with the male connector pins. Many using connectors include polarization features that prevent incorrect connections, ensuring pins or sockets align only in the proper orientation.

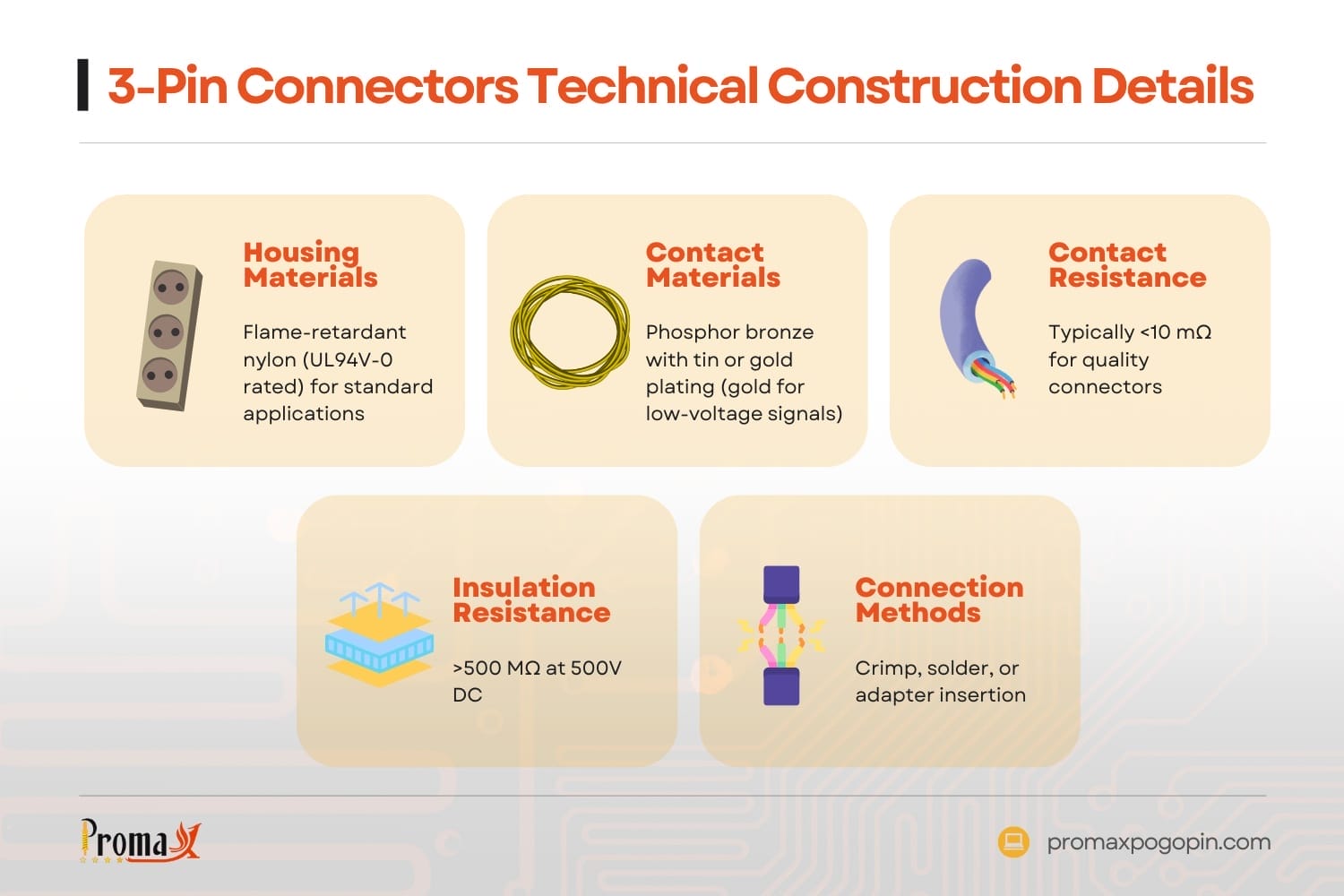

Technical Construction Details

• Housing materials: Flame-retardant nylon (UL94V-0 rated) for standard applications
• Contact materials: Phosphor bronze with tin or gold plating (gold for low-voltage signals)
• Contact resistance: Typically <10 mΩ for quality connectors
• Insulation resistance: >500 MΩ at 500V DC
• Connection methods: Crimp, solder, or adapter insertion

What do the 3 Pins in these Connectors do?

The three pins in standard power connectors serve specific electrical functions essential for safe operation. The first pin typically carries phase/live current from the power source to electrical loads, marked brown or red in standard color coding. The second pin carries neutral current back from the device, typically colored blue or black.

The third pin provides the earth/ground connection, usually colored green/yellow, which is critical for safety. This ground path redirects excess current away from the device in case of faults, protecting users from electrical shock. In non-power applications, the pins may serve different functions, such as power, signal, and ground, in electronic devices.

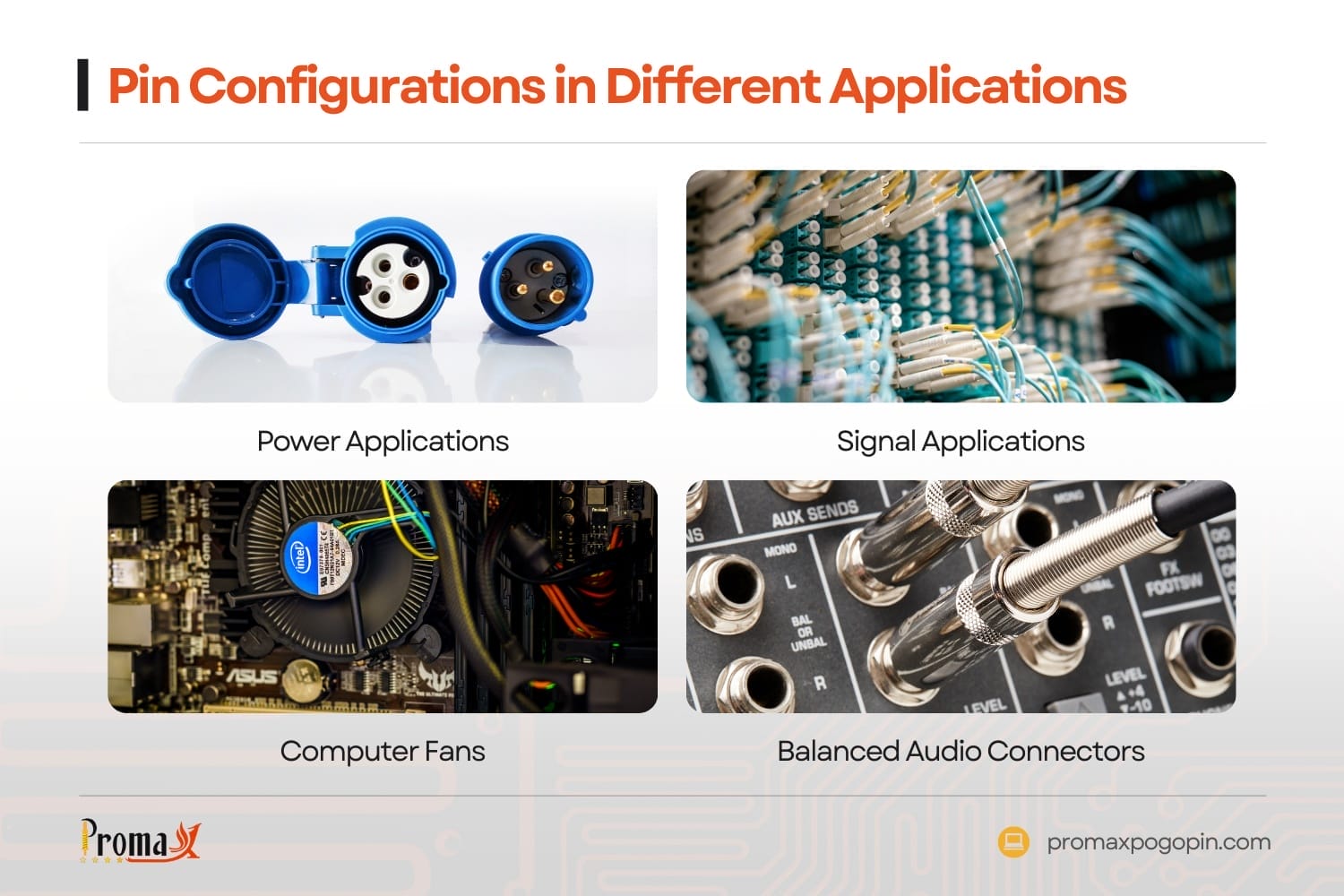

Pin Configurations in Different Applications

• Power applications: Live, Neutral, Earth
• Signal applications: Power (+V), Ground, Signal
• Computer fans: +12V, Ground, Tachometer signal, or PWM control
• Balanced audio connectors: Positive (+), Negative (-), Ground/Shield

What Technical Specifications Should You Consider When Selecting 3-Pin Connectors?

When selecting connectors, voltage rating is the maximum voltage the connector can safely handle, ranging from 12V for computer applications to 400V+ for industrial uses. Current rating indicates the maximum amperage capacity, typically between 2A for electronics to 5A for industrial variants.

Temperature tolerance defines the operating range, generally from -25 °C to 85 °C for standard types, while industrial variants may handle -50 °C to 70 °C. Physical dimensions, including mm spacing between pins, must match your application requirements.

Critical Technical Parameters

• Contact plating thickness: 1-30μin (microinches) based on application
• Mating cycles: 500-5000 insertions/extractions before failure
• Contact pressure: 50-200g for a reliable connection
• Dielectric withstanding voltage: 1500 to 2500V AC (1-minute test)
• IP rating: IP20 (standard) to IP67 (fully waterproof)

How do Pogo Pin Connectors Differ From Standard 3-Pin Connectors?

Pogo pin connectors feature spring-loaded pins rather than solid pins found in standard types. These spring-loaded pins provide controlled contact force regardless of position variations, making them ideal for test fixtures and applications requiring frequent mate/demate cycles. The compression mechanism compensates for misalignments and surface irregularities.

Promax Pogo Pin’s connectors offer unique advantages, including self-cleaning wiping action during connection, consistent contact resistance across thousands of cycles, and the ability to handle high-current applications without performance degradation. Our proprietary gold-plated contacts achieve >10,000 mating connector cycles compared to standard 500–1000 cycles.

Key Pogo Pin Advantages

• Pogo pins have a self-adjusting spring compression that accommodates height variations
• Integrated wiping action cleans contact surfaces during mating
• Enhanced durability with 10x the connection cycle life of fixed pins
• Consistent contact force throughout the product’s lifespan
• Reduced insertion force for easier connections

How are 3-Pin Connectors Used Across Different Industries?

In household electronics, 3-pin connectors carry power to high-consumption appliances requiring grounded connections. The automotive industry uses specialized types for engine management systems, lighting, and battery connector interfaces. Many electrical engineering applications use a 3 pin connector when three separate pathways are needed.

Industrial applications employ robust connectors in manufacturing equipment and control panels where reliability is paramount. Two connectors that, as a maker, you’ll often encounter are the 4 pin variant and the basic 3 pin type.

Emerging Applications

• EV charging interfaces: Specialized configurations for level 1 charging
• IoT device connections: Low-profile connectors for smart home devices
• Renewable energy systems: Weather-resistant connections for outdoor solar equipment
• Wearable technology: Miniaturized connectors ending in flexible attachment points

How do you Properly Install and Wire a 3-Pin Connector?

To install a connector, first identify the correct terminals marked with “E” (Earth), “L” (Live), and “N” (Neutral) on the housing. Strip approximately 5 cm of outer cable insulation and 1 cm from each individual wire using wire strippers, ensuring clean cuts without damaging the conductor.

Connect the earth/ground wire (green/yellow) first to the terminal marked with the earth symbol, followed by the live wire (brown or red) to the “L” terminal, and finally the neutral wire (blue or black) to the “N” terminal. You can use male IEC connectors in this same manner, following the manufacturer’s guidelines.

Professional Installation Sequence

1. Identify and prepare an appropriate cable with the correct gauge wire
2. Strip outer sheath 5 cm, inner conductors 1 cm
3. Connect the earth/ground wire first (safety priority)
4. Connect the neutral wire second
5. Connect the live/hot wire last
6. Apply appropriate torque to terminal screws (typically 0.5-0.8 Nm)
7. Secure cable with strain relief
8. Test connections before energizing

Why is Understanding 3-Pin Connector Safety Critical?

Understanding 3-pin connector safety is critical because the third pin provides essential grounding that protects users from electrical shock caused by equipment faults. This ground connection creates a low-resistance path for fault currents, causing circuit breakers to trip quickly and preventing dangerous voltage on exposed male metal parts.

Improper connector choice or installation can bypass these safety features, creating serious hazards. Using two female ends of unmatched connectors or attempting to join incompatible types eliminates critical protection, potentially exposing users to dangerous situations.

Safety Standards Compliance

Properly selected and installed connectors comply with international safety standards, including:

• IEC 60884-1 for household plugs and sockets
• UL 498 for electrical attachment plugs
• IEC 60320 for appliance couplers
• ISO 4165 for automotive connectors

How do 2-Pin and 3-Pin Connectors Compare?

2-pin connectors contain only live and neutral wires, without the critical ground/earth connection found in 3-pin versions. 3-pin provides superior safety through the additional ground pin, which protects users by redirecting fault currents away from the equipment chassis.

Electrical ratings differ significantly, with 2-pin types typically handling up to 250V, while 3-pin industrial variants can manage 400V+ in appropriate applications. Application suitability varies based on safety requirements, with 2-pin connection appropriate only for double-insulated devices.

Comparative Analysis

What are Common 3-Pin Connector Problems, and How do you Fix Them?

Loose connections causing intermittent power or signal issues are common problems, typically fixed by tightening terminal screws or replacing worn components. Corrosion on contacts reduces connectivity and can be remedied by cleaning with an appropriate electronic contact cleaner or replacing the affected part.

Bent pins prevent proper mating and may be carefully straightened using fine-tipped pliers if the deformation is minor, though replacement is often safer. Damaged housings compromise insulation and physical protection, requiring complete replacement rather than attempted repair.

Advanced Troubleshooting Techniques

• Contact resistance testing: Measure resistance across mated contacts (<10 mΩ is typical)
• Dielectric strength verification: Test insulation integrity between pins
• Thermal imaging: Identify abnormal heating, indicating high-resistance connections
• Pull-force testing: Verify retention force meets specifications

Promax Pogo Pin: Innovative Pogo Pin Solutions

The basics you need to know about 3 pin connector female and male types center on their critical role in creating safe, reliable electrical connections across numerous applications. Understanding the differences between these components, along with their technical specifications and proper installation requirements, ensures optimal performance and safety in electrical systems.

Promax Pogo Pin’s innovative spring-loaded connectors provide superior durability and reliability compared to conventional fixed-pin designs, especially in applications requiring frequent connections or where alignment challenges exist. With proper selection and installation, quality connectors will provide years of trouble-free service in even the most demanding environments. Contact us if you require assistance in choosing the correct connector for your project!

3-Pin Connector Male and Female FAQs

Can I convert a 2-pin connector to a 3-pin connector safely?

Converting from 2-pin to 3-pin should only be done with a proper grounding installation by a qualified electrician. This modification requires adding a ground wire connected to an appropriate ground point, not simply changing the connector used.

Why do some barrel connectors seem to have reversed gender terminology?

Some connectors appear to contradict standard gender definitions because terminology can refer to either the housing or the center contact. The jack has a female housing with a male pin, but on the other hand, the plug contains a male housing with a female pin.

Are 3-pin connectors waterproof?

Standard types are not waterproof unless specifically designed with appropriate seals and rated with an IP (Ingress Protection) classification. For outdoor or wet environments, look for connectors that are suitable for moisture exposure.

How do I test if a 3-pin connector is working properly?

Test using a multimeter to check continuity between each pin and its corresponding wire. Verify resistance readings match expected values and check for shorts between pins, which would indicate insulation failure.

What’s the difference between crimped and soldered connections?

Crimped connections form a mechanical bond by deforming metal around the wire, providing excellent vibration resistance. Soldered joints create metallurgical bonds with lower electrical resistance, but may be more susceptible to vibration fatigue in high-movement applications.

Back to Top: Everything You Need to Know About 3 Pin Connector Male and Female
