What is Flash Gold Plating for Connectors? Full Engineering Guide

Flash gold plating is a super-thin electroplated gold layer. It’s around 3-5 microinches (0.076-0.25 microns) that are placed on connector contacts and pogo pins. Flash gold plating provides corrosion resistance and electrical conductivity at a far cheaper material cost than platinum plating.

Adding a thin gold layer to your connector or pogo pin works as the best answer for controlled environment applications, especially when you need to balance cost with performance. While more expensive than silver or nickel plating, you’ll frequently use flash gold plating in telecommunications, automotive, and consumer electronics industries.

Key Takeaways

• Flash gold plating (3-5 microinches) reduces connector material costs by up to 40-60% compared to standard gold plating.
• Flash gold plating supports 100-300 mating cycles in controlled indoor environments with proper nickel barrier layer application
• It also shows porosity levels of 600-1000 pores/cm², needing careful environmental consideration per JLP Consultants data

What is Flash Gold Plated?

Gold flash is a precise electroplating process that places a thin layer of gold between 0.10-0.25 microns thick onto connector substrates. It does this using a controlled electrical current density of around 20 amps per square foot.

How does Flash Gold Plating Work?

Flash gold plating works through an electroplating process that applies gold atoms uniformly across pogo pin contact surfaces. This is done through ionic deposition in an electrolytic bath containing gold salts and conductive additives. In the process, it also minimizes precious metal usage compared to standard thick gold plating specifications.

What are the Steps in the Electroplating Process?

The electroplating process sequence begins with a thorough substrate cleaning using several degreasing solvents and acid activation to remove oils, oxides, and contaminants from the copper or alloy base metal.

Once that’s complete, a nickel plating layer typically 50-200 microinches thick gets applied through electrodeposition to create a Stable Diffusion barrier and prevent gold migration into the substrate. The final gold layer deposits through precisely controlled bath chemistry, temperature, and plating time parameters to achieve the specified plating thickness.

Electroplating is extremely valuable in today’s technology-driven economy. According to Precedence Research, Asia-Pacific is the fastest-growing area for gold plating chemicals. Countries like Japan, China, India, and South Korea have the most demand and offer the best services for your flash gold plating needs.

Why Choose Gold Flash vs. Gold Plating for Pogo Pins?

Gold flash vs. gold plating comparison shows flash gold offers superior cost-performance optimization for pogo pin applications where spring-loaded mechanisms require excellent lubricity during compression and extension cycles. Flash gold-plated pogo pins reduce friction forces by at least 28% compared to base metal contacts, extending mechanical life and maintaining consistent contact resistance.

The thin gold coating provides adequate protection for controlled indoor environments while keeping material costs manageable for high-volume test fixture production.

Spring Contact Mechanisms

Spring-loaded contact mechanisms in pogo pins experience unique mechanical stresses during operation that require careful plate consideration for long-term performance. Flash gold maintains electrical continuity during thousands of compression cycles, while the underlying nickel layer prevents gold migration into the spring metal under mechanical stress. This plating combination ensures stable contact resistance throughout the pogo pin’s operational life in automated test equipment applications.

Economic Advantages

The economics of pogo pin manufacturing make flash gold particularly attractive, since these components often require gold-plate application on multiple contact points per assembly. Using less gold instead of 30 microinch specifications can reduce costs significantly on high-density connector arrays where hundreds of pogo pins operate simultaneously in production test environments.

How does Gold Flash Compare to Standard Gold Plating?

Gold flash plating thickness ranges from 3-5 microinches compared to hard gold plating specifications of 10-30 microinches. This makes the material cost for flash gold plating lower while still maintaining essential electrical properties for specific applications.

While less costly, contact resistance performance remains comparable between flash gold and standard gold-plated connectors in low-current applications, typically measuring less than 10 milliohms initial resistance for both types of plating.

Flash Gold Plating vs. Standard Gold Plating Porosity

Flash plating exhibits higher porosity levels (600-1000 pores/cm²) compared to thicker gold deposits, according to research from JLP Consultants. This porosity can affect long-term corrosion resistance in aggressive environments but remains acceptable for controlled indoor applications. Proper nickel and gold barrier layer thickness helps compensate for flash porosity by providing secondary protection.

What Applications Benefit Most from Flash Gold Plated Connectors?

Consumer electronics applications including smartphones, tablets, and wearable devices utilize flash gold-plated connector pins for battery connections and internal component interconnects.

This is especially the case for telecommunications equipment such as network switches and base stations, which employ connector plating on backplane connectors operating in controlled datacenter environments. Test and measurement applications represent a significant market for flash gold-plated pogo pins in automated test equipment where thousands of test points require reliable electrical contact with enhanced reliability.

What Industries are Flash Gold Plated Connectors used in?

• Telecommunications: Indoor equipment connectors benefit from flash gold’s cost advantages while meeting Telecordia performance standards for contact resistance and environmental stability on PCB applications.
• Automotive: Interior electronic modules and infotainment systems use flash gold as an alternative to gold for cost-sensitive applications away from engine compartment environments.
• Medical Devices: Diagnostic equipment and patient monitoring systems leverage flash gold’s clean electrical contact properties for sensor connections and measurement circuits requiring precise conductivity.
• Test Equipment: Production test fixtures utilize flash economics to enable high-density test point arrays that would be cost-prohibitive with standard gold thickness specifications.

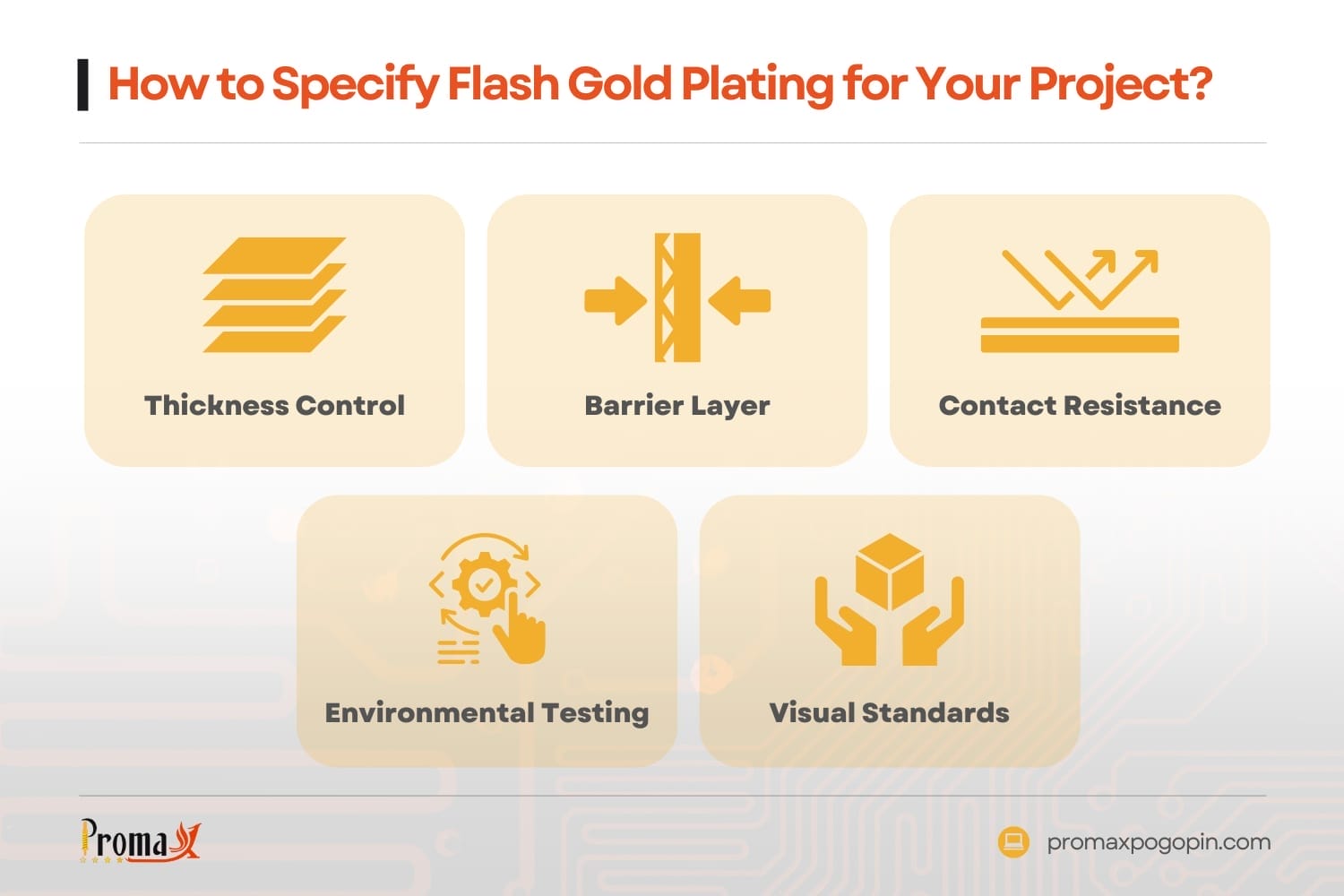

How to Specify Flash Gold Plating for your Project?

Flash gold plating specifications require precise thickness callouts in microinches (3µ” or 5µ”) along with nickel barrier requirements per IPC standards to ensure proper adhesion and performance. Engineering drawings should specify contact area dimensions, environmental exposure conditions, and expected cycle requirements to optimize plating parameters. Quality requirements must include contact resistance specifications following IPC testing protocols with appropriate solder compatibility.

Technical Specification Elements

• Thickness Control: Specify gold thickness with ±0.5 microinch tolerance for consistent performance
• Barrier Layer: Require 50-200 microinch nickel underlayer for diffusion protection
• Contact Resistance: Define maximum allowable resistance (typically <10 milliohms)
• Environmental Testing: Reference salt spray exposure per ASTM requirements
• Visual Standards: Establish acceptance criteria for plating appearance and defects

Documentation Requirements

Procurement specifications need to address lot traceability, incoming inspection procedures, and certificates of compliance with thickness measurements, contact resistance data, and environmental test results. Many applications require verification and metallographic cross-sectioning for quality validation on connector types.

What Quality Testing Ensures Flash Gold Performance?

Contact resistance testing using four-wire measurement techniques verifies electrical performance by measuring resistance across plated interfaces under specified normal force conditions. Environmental testing including salt spray exposure (48–96 hours per ASTM) validates corrosion resistance in intended operating conditions. Thickness verification uses X-ray fluorescence spectroscopy to confirm the thickness of the gold layer meets specification requirements within acceptable tolerances.

Advanced Testing Methods

• Mixed Flowing Gas Testing: Simulates long-term environmental exposure using controlled corrosive gas mixtures to evaluate flash gold durability over extended periods on various substrate materials.
• Thermal Cycling: Temperature cycling between -40 °C to +85 °C validates adhesion and thermal expansion compatibility between the gold layer and base copper or tin materials.
• Microsectioning: Cross-sectional metallography reveals layer structure, thickness uniformity, and potential defects that could affect performance and solderability characteristics.

What are the Limitations of Flash Gold Plating?

Flash gold thickness limitations restrict applications to controlled environments with limited exposure to temperatures above 85 °C or high humidity conditions, where the thin coating may not provide adequate long-term protection. Mechanical wear resistance decreases compared to hard gold, limiting cycle capability to approximately 100–300 cycles depending on contact design and normal force conditions. Porosity increases as thickness decreases, potentially allowing environmental contaminants to reach the underlying substrate through the thin gold layer.

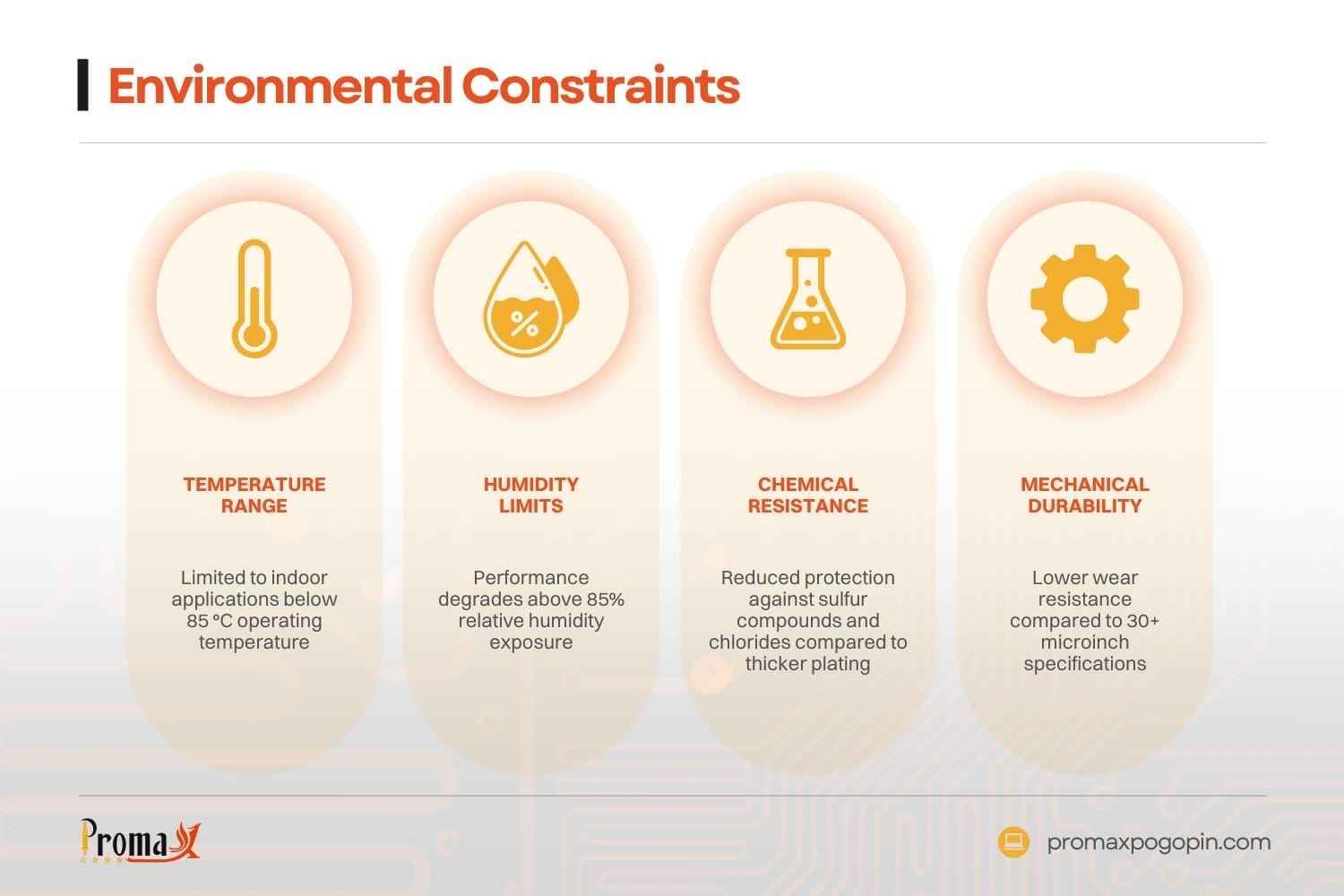

Environmental Constraints

• Temperature Range: Limited to indoor applications below 85 °C operating temperature
• Humidity Limits: Performance degrades above 85% relative humidity exposure
• Chemical Resistance: Reduced protection against sulfur compounds and chlorides compared to thicker plating
• Mechanical Durability: Lower wear resistance compared to 30+ microinch specifications

How does Environmental Exposure Affect Flash Gold?

Environmental exposure effects on flash gold depend on the thin coating’s barrier protection capability, with performance degrading more rapidly than standard electroplated gold in aggressive conditions. Controlled indoor environments with stable temperature (20-25 °C) and relative humidity below 60% provide optimal conditions for longevity. Outdoor applications or industrial environments with chemical vapors require thicker specifications or electroless nickel alternatives.

Fretting Corrosion Resistance

Flash gold provides excellent resistance to fretting through its lubricious properties that reduce micro-motion wear at contact interfaces. This characteristic makes flash particularly suitable for spring-loaded pogo pin applications where repetitive mechanical movement occurs during normal operation. The properties prevent oxide formation that could increase contact resistance over time.

Advanced Plating Alternatives to Flash Gold

Palladium-nickel alloy with gold flash (GXT® technology) offers enhanced durability compared to standard flash while maintaining cost advantages over full gold systems. This multilayer approach provides superior resistance and has met Telecordia standards for over 30 years in telecommunications applications. Silver-based systems deliver low contact resistance for high-current applications like electric vehicle connectors, while offering cost benefits as metals used in connector manufacturing.

Emerging Technologies

Gold-Capped Silver: Combines silver’s excellent conductivity with flash protection, providing resistance and low friction at reduced material costs compared to full specifications.

Electrolytic vs. Immersion: Electrolytic flash offers better thickness control and avoids black pad defects common in electroless processes, according to IPC research data. Since ENIG uses a chemical process, electrolytics provides superior control.
