Harsh Environment Connectors

When your equipment works in rough places, regular connectors give up on you. Cold weather, heat, water, and shaking can totally destroy normal electrical connections. This means your equipment stops working when you need it most. Industrial applications need strong connectors that handle intense environments.

Promax Pogo Pin makes special harsh environment cable assemblies. Our connectors work when others fail. Our military-grade pogo pin connector technology handles high temperature ranges from -65 °C to +200 °C. They easily resist crushing vibrations and stay waterproof underwater. Whether you build defense systems, oil platforms, or aerospace equipment, we keep your connections working.

What are Harsh Environment Connectors?

Harsh environment connectors are basically devices that work in intense weather. They use military-grade materials and sealing to prevent failure when regular connectors would break. They keep electrical connections even when exposed to things like water, high temperature, and chemicals.

Design Features

These connector systems differ from regular ones through their construction. They use stainless steel housing instead of plastic housings. They have special contact technology that resists vibration damage. They include multiple seal layers that keep water and dust out completely. Many connectors are designed with circular configurations for superior mechanical strength.

Military Standards

All harsh environment connectors must meet strict mil standards. MIL-DTL-38999 defines requirements for miniature connectors used in aircraft and vehicles. MIL-DTL-26482 covers quick-disconnect connectors for field equipment. These standards ensure reliable performance in military and aerospace applications where ruggedized solutions are essential.

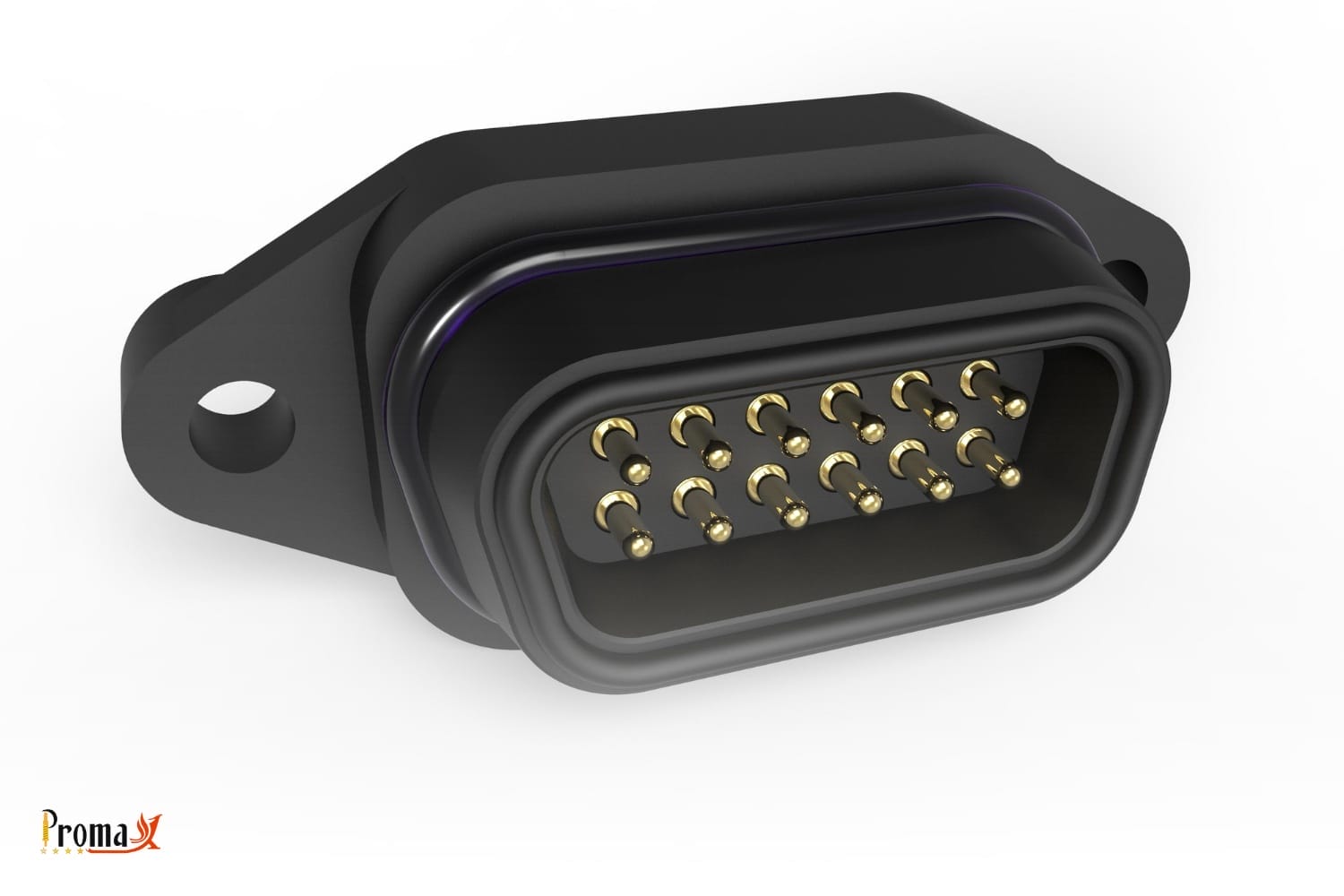

How do Pogo Pin Contacts Improve Reliability?

Pogo pin contacts use spring-loaded mechanisms that maintain constant electrical connection under stress. The spring action compensates for thermal expansion, vibration, and mechanical movement without losing contact integrity. This design provides superior performance compared to traditional pin-and-socket connections that can fail from wear or corrosion.

Spring-Loaded Technology Benefits

Self-Cleaning Action

Pogo pins feature self-cleaning contact surfaces that remove oxidation and contamination during each mating cycle. The spring action creates wiping motion that maintains low contact resistance throughout the connector’s service life. This capability ensures reliable operation in commercial and industrial applications.

Which IP Ratings Protect Against Water Damage?

IP ratings define protection levels against dust and water intrusion using standardized test methods from IEC standard 60529. The first digit indicates solid particle protection, while the second digit specifies water resistance levels. Proper IP rating selection prevents costly equipment failures from environmental protection issues.

Common IP Ratings for Harsh Environments

• IP65: Dust-tight protection with low-pressure water jet resistance for outdoor enclosures and panel mount applications
• IP67: Complete dust protection plus submersion resistance up to 1 meter for 30 minutes
• IP68: Dust-tight with continuous submersion beyond 1 meter depth as specified by manufacturer
• IP69K: Highest protection against high-pressure, high-temperature water jets for equipment washdown

Critical IP Rating Differences

IP68 rating is intended for components that are expected to be immersed in water. While we might assume that the IP69K rating is superior for that condition, it is not; IP69K is specifically intended to protect against high-pressure water jets, not against being left in static water. Engineers must carefully match connector specifications to actual application requirements for optimal environmental protection.

What Materials Withstand Extreme Conditions?

Material selection determines connector performance and longevity in harsh conditions. Premium materials resist corrosion, maintain mechanical properties at temperature extremes, and provide reliable electrical performance throughout the service life. Advanced thermoplastic materials offer lightweight alternatives to metal housings.

Shell Materials for Maximum Protection

Stainless Steel 316L offers superior corrosion resistance for marine and chemical environments. This material contains molybdenum additions that resist chloride corrosion and pitting. It maintains strength from -200 °C to +400 °C while providing electromagnetic shield effectiveness.

Titanium Alloys deliver exceptional strength-to-weight ratio with outstanding corrosion resistance. These materials resist stress corrosion cracking in chloride environments while maintaining properties at extreme temperatures for aerospace applications.

Marine Bronze (NAB) provides excellent seawater resistance with good electrical conductivity. These copper-based alloys resist galvanic corrosion when coupled with stainless steel components in hybrid configurations.

Advanced Insulator Materials

• PEEK (Polyetheretherketone): Maintains properties up to 250 °C with excellent chemical resistance for fiber optic applications
• PPS (Polyphenylene sulfide): Enhanced dimensional stability with low moisture absorption for next generation designs
• Specialized Polyamides: UV resistance for outdoor applications with good mechanical properties and flexibility

How do Military Standards Ensure Performance?

Military specifications define exact performance requirements that connectors must meet for critical applications. These standards establish testing procedures and acceptance criteria that ensure reliable operation in extreme conditions. The connector series must demonstrate capability across a wide range of environmental stresses.

Primary Military Specifications

MIL-DTL-38999 governs miniature, high-density connectors for severe environments. These connectors must operate from -65 °C to +200 °C while resisting vibration, moisture, and electromagnetic interference. They feature bayonet, threaded, or push-pull coupling mechanisms for secure connections and mate reliability.

MIL-DTL-26482 covers environment-resisting quick-disconnect connectors for field applications. These specifications ensure rapid connection/disconnection capability while maintaining environmental sealing and electrical performance for multi-pin configurations.

MIL-DTL-5015 defines heavy-duty circular connectors with superior mechanical strength. These connectors use larger contact sizes for high power applications while maintaining environmental protection through advanced backshells and dust cover systems.

Testing Requirements

All military-grade connectors undergo extensive testing, including:

• Temperature cycling from -65 °C to +200 °C for assembly validation
• Vibration resistance up to 20G acceleration for transportation applications
• Salt spray exposure testing per ASTM B117 for corrosion resistance
• Electrical performance validation under stress for signal integrity

Which Applications Demand Harsh Environment Connectors?

Critical applications across multiple industries require connectors that maintain performance when failure is not acceptable. These applications expose connectors to conditions that would destroy standard electrical connections. Each application demands specific connector arrangement and mounting solutions.

Military and Defense Systems

Combat vehicles, aircraft, and portable equipment operate in extreme conditions with exposure to vibration, temperature extremes, and electromagnetic interference. Connector failure in these applications can compromise mission success and personnel safety. Wire-to-wire and PCB connections must maintain integrity under combat stress.

Aerospace and Space Applications

Spacecraft systems face vacuum conditions, radiation exposure, and extreme temperature cycling without maintenance access. Launch vehicles experience high vibration and acceleration forces that stress all electrical connections. Fiber optic and electrical interconnect systems require intelligent design for mission success.

Oil and Gas Operations

Offshore platforms and drilling equipment expose connectors to salt spray, high pressure, corrosive chemicals, and explosion hazards. Equipment operates continuously for months without maintenance access. Sensor connections and actuator controls demand waterproof performance with flange mount options.

Marine and Underwater Systems

Naval vessels, underwater vehicles, and offshore installations subject connectors to constant salt water exposure, pressure variations, and mechanical stress from wave action. Communication systems and optical cables require mateable connections that withstand submersion.

Industrial Automation

Manufacturing plants, chemical processing facilities, and mining operations expose equipment to dust, chemicals, temperature extremes, and mechanical vibration that destroys standard connectors. Automation systems require robust connectivity with installation flexibility and wide range of configurations.

How much do Military-Grade Connectors Cost?

Pricing for harsh environment connectors reflects the premium materials, specialized manufacturing, and extensive testing required for reliable performance. Investment in quality connectors prevents costly equipment failures and downtime. The portfolio includes various connector types to meet efficiency requirements.

Pricing Structure

• Standard Configurations: $125-$450 per connector depending on complexity and technology
• Volume Discounts: 15-25% reduction for 100–500 pieces, 30-40% for 500+ pieces
• Custom Engineering: 10-20% premium for modifications, 50-100% for new designs
• Rush Delivery: 25% premium for 7-14 day delivery vs. standard 4–6 weeks

Total Cost Considerations

Quality connectors provide lower total ownership costs through:

• Extended service life, reducing replacement frequency and lock-in maintenance costs
• Reduced maintenance requirements and downtime through robust design
• Lower failure rates, preventing costly equipment damage in electric systems
• Proven reliability in critical applications with cap protection features

Why Choose Promax Pogo Pin for Critical Applications?

Promax Pogo Pin combines advanced pogo pin technology with military-grade materials and manufacturing processes. Our expertise in harsh environment applications ensures optimal connector performance for the most demanding requirements. Connectors offer superior value through innovative design and comprehensive connectivity solutions.

Unique Advantages

7-14 Day Rapid Prototyping enables faster project development compared to industry standard 4-6 week lead times. Our streamlined design and manufacturing processes reduce development time while maintaining quality standards. Connectors are available in multiple configurations for rapid deployment.

Custom Engineering Services address specific application requirements that standard catalog products cannot meet. Our team analyzes environmental conditions, electrical requirements, and mechanical constraints to develop optimal solutions with appropriate wire gauge and adapter compatibility.

Transparent Pricing eliminates uncertainty with clear cost structures and volume discounts. Customers can budget accurately without hidden fees or quote delays for any cable or connector configuration.

Quality Certifications including ISO 9001 and AS9100 ensure consistent manufacturing quality and full traceability from materials through delivery.

Technical Support

Our engineering team provides comprehensive support throughout the product lifecycle including application analysis, connector selection, installation guidance, and troubleshooting assistance. This support ensures optimal performance and helps avoid common application errors.

Start Your Project Today

Don’t let connector failures compromise your critical systems. Promax Pogo Pin delivers proven harsh environment solutions that maintain reliable performance when everything else fails.

Contact us to learn more about our connectors designed for harsh environments. We’ll recommend the optimal connector solution and provide transparent pricing within 24 hours. Your mission-critical connections deserve nothing less than military-grade reliability.
