High Reliability Connectors

Here’s a real scenario that happens every day: engineers build a satellite worth $200 million. It gets launched into space. If something breaks up there, tough luck; nobody’s going up there to fix it. That satellite needs to work flawlessly for over 15 years in brutal conditions. That’s why engineers pick high-reliability connectors rather than regular ones.

Regular connectors are fine for your office computer or home stereo. But high-reliability ones are different connectors entirely. They need to work when it’s freezing cold or burning hot. They can’t break when the conditions are harsh. They have to keep water and crud out. Regular connectors just can’t handle that kind of abuse. Here’s everything you need to know about high reliability connectors!

Key Takeaways

• High reliability connectors work in extreme cold (-65 °C) and extreme heat (+200 °C) while regular connectors fail outside -25 °C to +85 °C
• These connectors connect and disconnect over 1,000 times without breaking, versus only 30 to 300 times for regular versions
• Military standards like MIL-DTL-38999 set strict rules that aerospace and defense connectors must follow
• Special materials like beryllium copper and gold coating stop these connectors from failing in tough conditions
• They cost 3–10 times more upfront, but save millions by preventing system breakdowns

What are High Reliability Connectors?

High reliability connectors are interconnect systems that keep electrical connections working under extreme conditions. That’s where ordinary connectors would totally fail. These connectors use the latest materials and precise manufacturing. There is also full testing to make sure there is the best performance in aerospace, defense, space, and more. Engineers specify them because connector failure in mission-critical systems can cause death, mission failure, or equipment damage worth millions.

Unlike regular connectors designed for normal office environments, high-reliability versions must handle temperature extremes, intense vibration, moisture, radiation, and chemical exposure while maintaining perfect electrical contact. They include features like multiple contact points per terminal, positive locking mechanisms, and environmental sealing that standard connectors simply don’t have.

Understanding High Reliability Meaning in Engineering Context

The high reliability meaning in connector applications is about the statistical probability that a connector system will perform its intended function. This is without failure over a specified time period under special operating conditions. This concept needs strong design and material selection. It also requires qualification testing.

The global high-reliability connector market reached $3.54 billion in 2024, according to industry research. The expected growth is at 6.5% CAGR through 2033. This expansion shows a huge demand from sectors where system reliability has a big impact on safety and operational success. This includes unmanned vehicles and satellite communications. It also has an important part in medical devices.

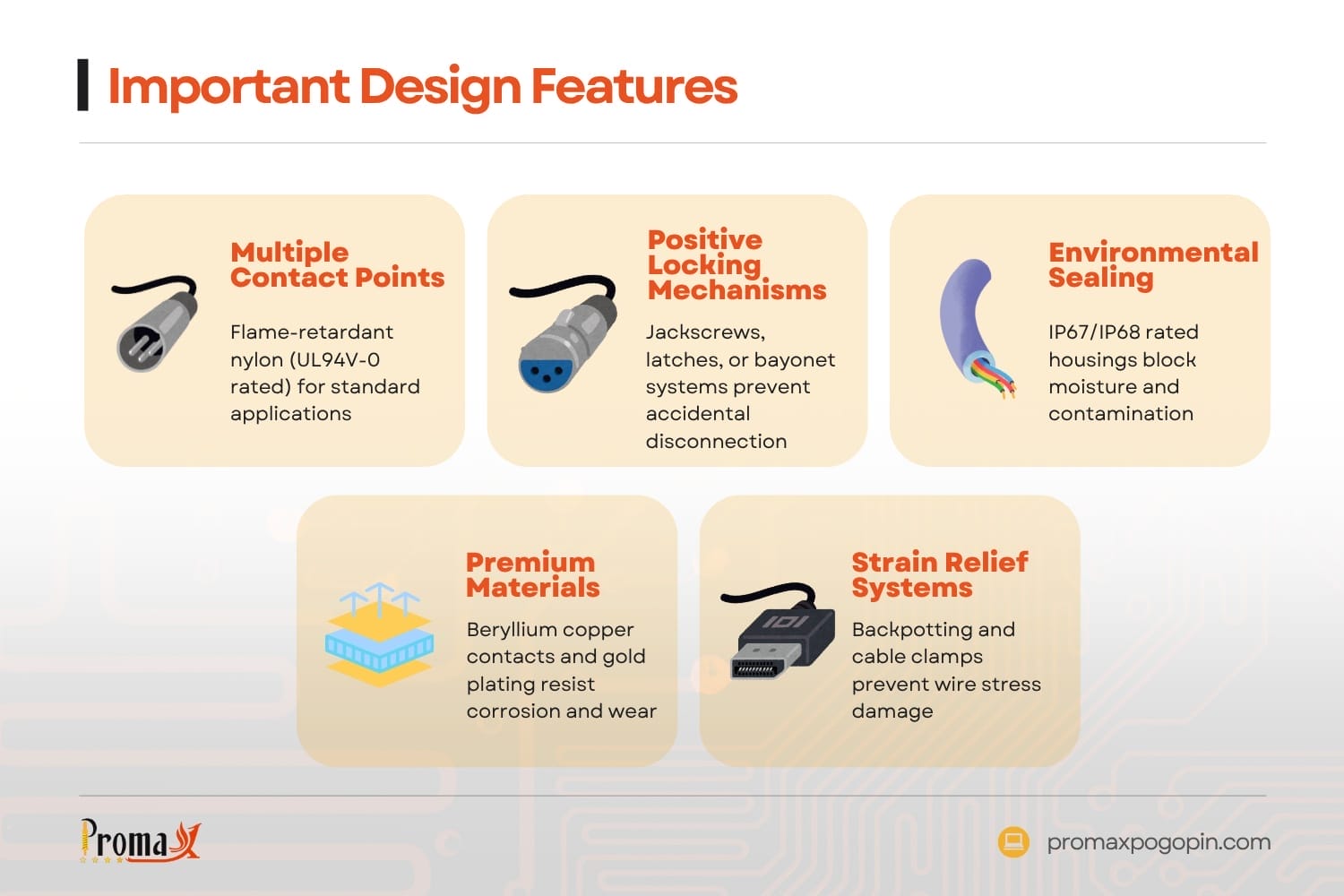

Important Design Features

High-reliability connector systems use a few key design elements:

• Multiple Contact Points: Four contact beams instead of two maintain connection during vibration events
• Positive Locking Mechanisms: Jackscrews, latches, or bayonet systems prevent accidental disconnection
• Environmental Sealing: IP67/IP68 rated housings block moisture and contamination
• Premium Materials: Beryllium copper contacts and gold plating resist corrosion and wear
• Strain Relief Systems: Backpotting and cable clamps prevent wire stress damage

How do High Reliability Connectors Achieve Superior Performance?

Hirel connectors achieve superior performance through advanced materials, precision manufacturing, and rigorous testing protocols that exceed commercial connector standards by significant margins. Beryllium copper contacts maintain consistent spring force through extensive mating cycles, while gold plating prevents oxidation that causes contact resistance increases. Housing materials like LCP (Liquid Crystal Polymer) maintain structural integrity at temperatures reaching 175 °C and beyond.

Advanced Contact Systems

The contact system represents the most critical element determining connector reliability:

Material Performance Comparison:

Beryllium copper provides optimal spring properties that maintain contact force under thermal cycling and mechanical stress. This material retains elasticity across extreme temperature ranges while resisting fatigue failure that causes intermittent connections in commercial connectors.

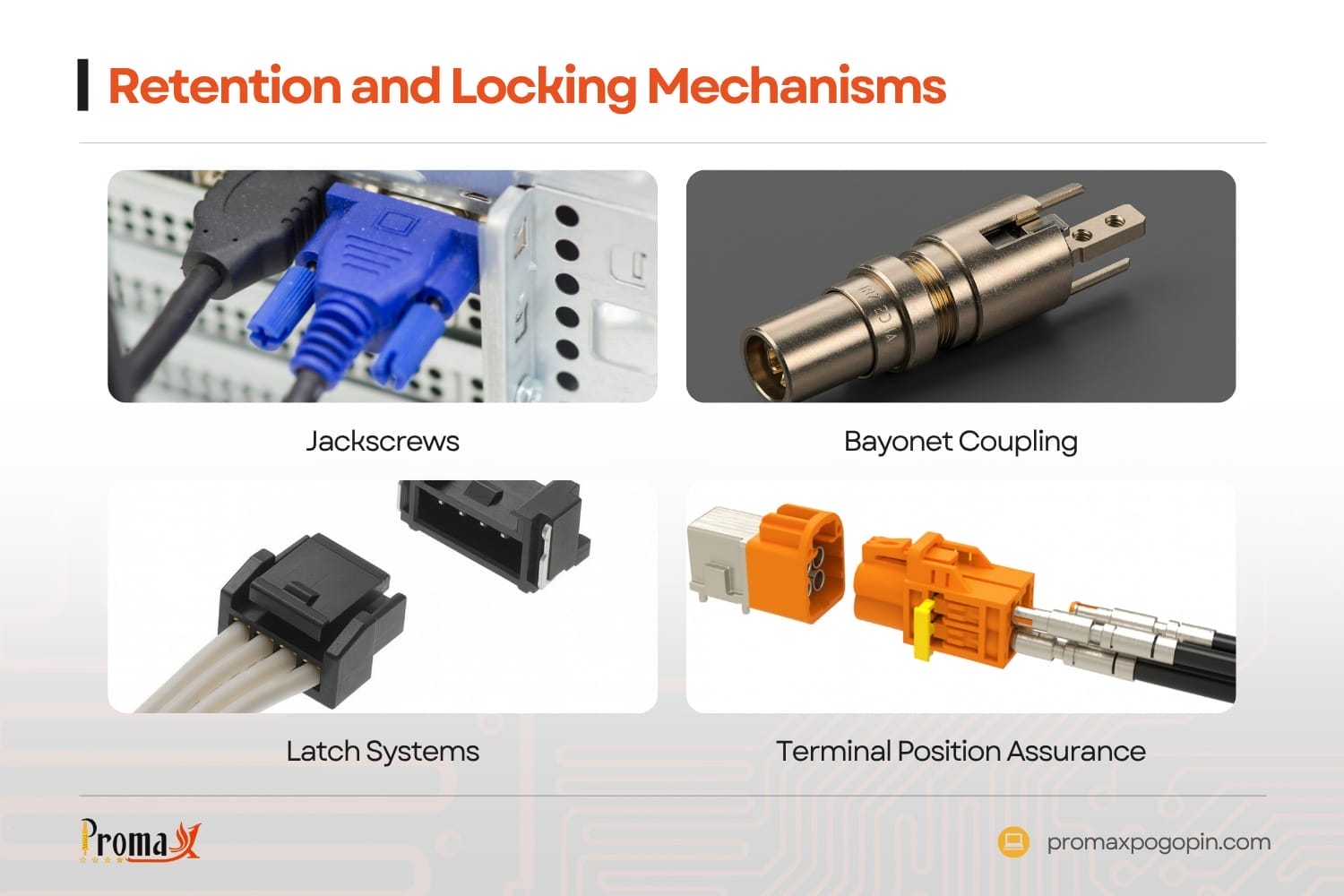

Retention and Locking Mechanisms

High-reliability applications demand sophisticated retention systems suitable for a wide range of demanding environments:

• Jackscrews: Threaded coupling nuts provide secure mechanical connection and lock engagement
• Bayonet Coupling: Quarter-turn locking with positive engagement feedback for rapid mate/unmate cycles
• Latch Systems: Spring-loaded mechanisms with audible engagement confirmation for field assembly
• Terminal Position Assurance (TPA): Prevents contacts from backing out of connector housing under vibration

Which Industries Demand High Reliability Connectors?

Aerospace applications require high-reliability connectors for flight control systems, engine monitoring, navigation equipment, and communication systems where connector failure could compromise aircraft safety. Commercial aviation connectors must withstand continuous engine vibration, rapid pressure changes during altitude transitions, and temperature extremes in unpressurized equipment bays. Military aircraft impose additional requirements for electromagnetic pulse (EMP) resistance and operation in combat environments.

Aerospace and Defense Applications

Critical System Requirements:

• Flight control computers processing pilot inputs through rugged signal pathways
• Engine monitoring systems tracking turbine performance via high-temperature interfaces
• Navigation systems including GPS and inertial guidance requiring precise electrical connections
• Communication radios for air traffic control coordination using robust cable connector assemblies
• Weapon systems requiring precise targeting and firing control through reliable interconnect solutions

Space and Satellite Systems

Space applications represent the most demanding environment for connector performance due to impossibility of repair once deployed. Satellites, space stations, and launch vehicles require connectors with zero-defect reliability, outgassing resistance per ASTM E 595 standards, and radiation hardness for multi-year missions.

Space-Specific Challenges:

• Temperature cycling from -200 °C in Earth shadow to +115 °C in direct sunlight
• Vacuum outgassing that can contaminate sensitive optical instruments
• Radiation exposure causing housing material degradation over time
• Micro-meteorite impact resistance for external connections
• Magnetic cleanliness requirements for precision instruments

Specialized High Reliability Applications

Industrial Automation Systems:

• Factory automation requiring connectors that withstand high vibration environments
• Down-well drilling controls in oil and gas extraction using specialized pitch configurations
• PCB test fixtures for production testing requiring innovative design flexibility
• Robotics applications demanding micro-miniature connector solutions

What Military and Space Standards Define High Reliability Requirements?

MIL-DTL-38999 Series III defines the most widely adopted military connector standard, specifying circular connectors supporting up to 128 contacts with environmental sealing to IP67 standards. This specification evolved from earlier standards to address requirements for high-density connectors in modern military systems, with shell sizes ranging from #9 to #25 and multiple keying options preventing mismating.

International and Industry Standards

Global standards organizations establish requirements for high-reliability range applications across different industries and geographic regions.

Additional Critical Standards:

• IEC 61586-TS: Electrical connector reliability estimation methods for statistical analysis
• DEF STAN 59-411: EMC suppression requirements for military connector systems
• EIA-364-F: Electrical connector test procedures and methodologies defining qualification protocols
• ISO/IEC TR 29106: MICE environmental classification system for industrial applications

How are High Reliability Connectors Tested for Performance Validation?

High-reliability connectors undergo extensive testing protocols that far exceed commercial connector requirements, including temperature cycling validation that proves their ability to withstand thermal stress without performance degradation. Each test cycle includes precise monitoring to detect any change in electrical or mechanical properties that could indicate potential failure modes.

Environmental Testing Protocols

Comprehensive environmental testing ensures connector performance across the full operational envelope specified for each application type.

Temperature Cycling Procedures:

• Rapid temperature transitions, simulate thermal shock conditions from -55 °C to +85 °C
• Extended dwell times verify long-term stability at temperature extremes
• Contact resistance monitoring detects intermittent failure development during thermal stress
• Housing material evaluation confirms structural integrity across temperature range

Vibration and Shock Testing:

• Swept sine vibration: 10-2000 Hz at 15G peak acceleration across three-axis testing
• Random vibration: 7.56 grms across specified frequency spectrum simulating operational conditions
• Shock testing: 100G peak acceleration in three orthogonal directions
• Low Level Contact Resistance (LLCR) monitoring during dynamic testing prevents undetected failures

Specialized Testing Requirements

Advanced testing protocols validate connector performance under specific environmental stresses that standard commercial testing doesn’t address.

Salt Spray Corrosion Testing:

• Standard applications: 48 hours exposure per ASTM B117 for general industrial use
• Marine environments: 1,000+ hours for underwater cable connector applications
• 5% sodium chloride solution at 35 °C simulates ocean conditions
• Post-test electrical verification confirms performance retention without degradation

Outgassing Testing for Space Applications:

• Total mass loss <1.0% per ASTM E 595 requirements preventing instrument contamination
• Volatile condensable materials <0.1% maintaining optical surface cleanliness
• 24-hour exposure at 125 °C in vacuum conditions simulating space environment
• Gravimetric analysis measures material loss rate from housing material and contact plating

What Causes High Reliability Connector Failures and How are they Prevented?

Open circuits account for 61% of high reliability connector failures according to NSWC Crane analysis, typically resulting from contact degradation, wire termination failure, or solder joint fatigue under thermal cycling conditions. Contact resistance increases gradually due to oxidation, mechanical wear, or contamination until electrical continuity fails completely.

Primary Failure Mechanisms

Understanding failure modes enables engineers to select appropriate connector types and implement preventive design measures in their applications.

Contact Resistance Degradation:

• Galvanic corrosion between dissimilar metals creates high-resistance oxide layers at the interface
• Contact force reduction due to spring relaxation or material creep over operational life cycles
• Surface contamination from environmental exposure during handling or storage
• Mechanical wear from excessive mating operations beyond design limits specified by the supplier

Intermittent Connection Failures (23% of failures):

• Inadequate contact normal force, allowing vibration-induced separation at the electrical interface
• Thermal expansion mismatches, causing temporary contact loss during temperature cycling
• Foreign object debris interfering with proper contact engagement in the connector housing
• Housing deformation under mechanical stress, affecting contact alignment and electrical continuity

Advanced Failure Prevention Strategies

Modern high-reliability connector design incorporates multiple redundant systems to prevent single-point failures that could compromise system operation.

Contact System Optimization:

• Multiple contact beams (4 vs. 2) provide redundant electrical paths for critical signals
• Optimized contact geometry maintains force under deflection without permanent deformation
• Surface treatments including precious metal plating prevent oxidation and resist corrosion
• Controlled contact insertion force prevents damage during PCB assembly operations

Environmental Protection Systems:

• Hermetic sealing prevents moisture and contamination ingress in harsh industrial environments
• Gasket systems maintain seal integrity across operational temperature ranges
• Comprehensive strain relief prevents cable stress transmission to individual wire connections
• Positive locking mechanisms resist vibration-induced disconnection during high vibration operation

Selecting the Right High Reliability Interconnect Solution

High-reliability connectors represent essential components for any system where failure carries unacceptable consequences or operational risks. The investment in premium materials, rigorous testing, and advanced manufacturing processes delivers decades of trouble-free operation in the harshest environments imaginable. Whether your application involves aerospace flight systems, defense electronics, space missions, or critical industrial automation processes, the right connector choice prevents costly failures while ensuring mission success across diverse operational scenarios.

Promax Pogo Pin specializes in high-reliability interconnect solutions, including spring-loaded pogo pins, magnetic connectors, and PCB interconnect systems engineered to exceed demanding performance requirements. Our technical expertise in contact technology and precision manufacturing ensures your critical systems maintain reliable connections when failure simply isn’t an option. Contact our engineering team today to discuss your high reliability connector requirements and discover how our innovative solutions can enhance your system reliability and performance.

Frequently Asked Questions

What is Terminal Position Assurance (TPA) and why is it critical for high reliability applications?

Terminal Position Assurance (TPA) is a mechanical system that ensures each contact remains fully seated within the connector housing throughout operational life, preventing contacts from backing out due to vibration, thermal cycling, or mechanical stress. TPA mechanisms include retention tabs, locking wedges, or secondary housings that engage only when contacts achieve full insertion depth. This prevents intermittent connections that create difficult-to-diagnose system failures, particularly critical in applications where connector access for maintenance is limited or impossible such as aerospace or space applications.

How do jackscrew and bayonet coupling systems compare for high vibration environments?

Jackscrew coupling systems provide superior retention force and vibration resistance through threaded engagement that distributes mechanical loads across multiple thread contact points, making them ideal for applications with continuous high-level vibration like aircraft engines or industrial machinery. Bayonet coupling offers faster connection/disconnection with quarter-turn engagement but relies on spring-loaded retention pins that may not provide equivalent holding force under extreme vibration conditions. Jackscrew systems typically handle vibration levels exceeding 50G peak while bayonet systems work best under 20G peak acceleration in most connector applications.

What specific outgassing requirements must space-grade connectors meet and why?

Space-grade connectors must meet ASTM E 595 outgassing requirements with total mass loss less than 1.0% and volatile condensable materials less than 0.1% when exposed to 125 °C vacuum conditions for 24 hours. These limits prevent contamination of sensitive optical instruments, solar panels, and thermal control surfaces that can degrade spacecraft performance over multi-year missions. Outgassing molecules can condense on cold surfaces, creating optical interference, reduced solar panel efficiency, or altered thermal properties that affect spacecraft operation and mission success in the demanding environment of space.
