Male vs. Female Connectors: Complete Identification & Selection Guide

Understanding the difference between male and female connectors is essential for proper electrical connection functionality and safety in electronic systems. This comprehensive guide provides clear identification methods, application information, and selection criteria to help you choose whether a male connector vs. female connector is right for your needs.

Key Takeaways

• Male vs. female connector identification depends on physical characteristics: male connectors have protruding pins, while female connectors have receptacles or holes.
• Connector gender is determined by the innermost conducting parts, not the external housing shape.
• Female connector vs. male connector selection for power sources prioritizes safety to prevent accidental contact with live conductors.
• XLR connectors use specific gender designs, with female versions having a longer metal sleeve for ground connection safety.
• Male and female connectors combine in various configurations for different applications, while hermaphroditic designs offer flexible connectivity options.

What are Male and Female Connectors?

Male connectors feature protruding pins, prongs, or parts designed to fit into corresponding female connector slots or receptacles. They initiate connections by inserting into female sockets and are found on cables that transmit power or data signals between devices.

Female connectors contain internal receptacles or holes that accept the male pin or protruding elements of male connectors. These connectors are designed with slots or sockets that accommodate the pins, creating a secure electrical circuit when properly mated.

The terminology for male and female follows conventional gender assignment that dates back to the 18th century, when early dictionaries mentioned male and female screws as a mechanical metaphor for convex and concave shapes.

Historical Naming Convention

• First documented in a 1736 builder’s manual describing male screws as convex and female as concave
• Talmudic texts mentioned arrow heads and mating shafts using similar gender distinctions
• This designation has been standardized across various industries for consistency

How do you Identify Male vs. Female Plugs?

Male plugs are identified by their protruding pins, prongs, or parts that extend outward from the connector body. The key identifying feature is the presence of exposed conductive contacts designed to be inserted into another connector.

Female plugs are recognized by their recessed holes, sockets, or receptacles designed to receive male components. These female sockets typically have their contact points positioned inside a protective housing to shield them from damage.

In complex connectors like D-sub types, the male or female designation depends on the innermost connecting parts (the pins), not the outer shell or protrusion that might be misleading at first glance.

Why does Connector Gender Matter for Your Application?

Male vs. female cables matter primarily for safety, especially in power applications where female connectors are used at power sources to prevent accidental contact with live conductors. This fundamental safety practice is codified in electrical standards worldwide.

Proper connector gender selection ensures compatibility between connecting devices and prevents damage from forced incorrect connections. Using the wrong type of male vs. female plug can damage both the connector and the connected equipment.

System reliability depends on appropriate male end vs. female end selection, as the correct match ensures stable electrical connections with proper signal integrity and power transfer characteristics.

Critical Safety Applications

• Power distribution networks require female connectors at source points
• Medical equipment connections follow strict connector gender protocols for patient safety
• Industrial machinery uses specific male or female connector arrangements to prevent incorrect hookups

What are the Common Applications for Different Connector Genders?

Power delivery applications typically use female vs. male connectors, with the female side at the power source and male connectors on the receiving end. This configuration protects users from accidental contact with live electrical connections and reduces short circuit risks.

Data transmission systems often use standardized male vs. female cables for consistency, with female sockets commonly found in fixed equipment ports (like USB cables endpoints on computers) and male plugs on the end of a removable cable.

XLR audio connectors are typically designated male or female based on specific design requirements, with female versions having a longer metal sleeve to connect the earth pin before other pins make contact, allowing for insertion/removal in live equipment without static pops.

Industry-Specific Applications

• Audio/Visual: Female sockets at signal sources, male at receiving equipment
• Computing: Female USB/HDMI ports on devices, male plugs on cables
• Industrial Control: Keyed connector genders to prevent misconnection
• Testing Equipment: Specialized gender arrangements for measurement accuracy

How do Pogo Pin Connectors Use Male-Female Design Principles?

Pogo pin connectors implement the male-female principle with spring-loaded male pin connectors that compress against flat contact pads or cups (female). The spring mechanism ensures a reliable electrical connection, even with slight misalignments or vibrations. According to a 2019 study in Semantic Scholar, when connectors are exposed to vibrations, movements between connector parts can cause mechanical degradation and electrical disturbances through the formation of third-body layers at contact zones.

Promax Pogo Pin designs specialized male connector types with precision-engineered spring mechanisms that provide consistent contact force for optimal electrical performance. These male pin elements compress when mated with female contact surfaces.

Female counterparts for pogo pins are typically flat contact pads, plated cups, or specialized receptacles designed to receive the spring-loaded pins, with surface treatments that enhance conductivity and wear resistance.

Pogo Pin Technical Advantages

• Spring travel distance: 0.5-2.5 mm tolerance accommodation
• Contact resistance: <30 mΩ for high electrical efficiency
• Durability: 10,000+ mating cycles compared to 500-1,000 for conventional pins
• Self-cleaning wiping action during the mating process

What Safety Considerations Apply to Connector Gender Selection?

Power-carrying connectors follow strict gender conventions, with power sources using female connectors to prevent accidental contact with live parts. This practice prevents potential electric shock and fire hazards that could cause a short circuit.

Data and signal connectors have less stringent safety requirements, but still follow gender conventions to ensure proper system function and prevent connection errors. Incorrect connections can damage equipment, even at low voltages.

“Suicide cables” with male connectors at both ends create extremely dangerous scenarios and are explicitly forbidden by electrical codes for power distribution. These double-male connectors pose serious shock and fire hazards.

Hazard Prevention Measures

• Female connection points at power sources conceal live contacts
• Polarized connectors prevent incorrect orientation
• Keyed interfaces ensure connections only mate in the correct configurations
• Color-coding and physical differentiation provide visual safety cues

How are Connectors Classified by Industry Standards?

IEEE standards (IEEE STD 100, IEEE-315-1975) define plugs and sockets by location or mobility rather than gender. According to these standards, a fixed connector is a jack, while a movable connector is a plug, regardless of whether it’s female or male.

Industry practices often use “male” and “female” for connector gender, while “plug” and “jack” refer to connector function or mobility. This distinction helps clarify potentially confusing terminology across different electrical and electronic applications.

Reference designators follow standardized conventions, with jacks using the prefix “J” and plugs using the prefix “P” in technical documentation, helping engineers identify each side of a connector pair consistently.

What are Hermaphroditic and Gender-Neutral Connectors?

Hermaphroditic connectors incorporate both male and female pins in a single connector design. These specialized connectors can mate with identical connectors, eliminating the need to match specific genders when two connectors need to be joined.

Applications requiring flexible connectivity benefit from hermaphroditic designs, including military communications equipment, industrial systems, and specialized audio equipment. These designs reduce logistical complexity by using identical connector parts.

Examples include the SAE connector for 12V DC power, IBM Token Ring connectors, Anderson Powerpole connectors, and the General Radio GR connector for RF applications, all featuring complementary mating surfaces designed to receive the opposite connector.

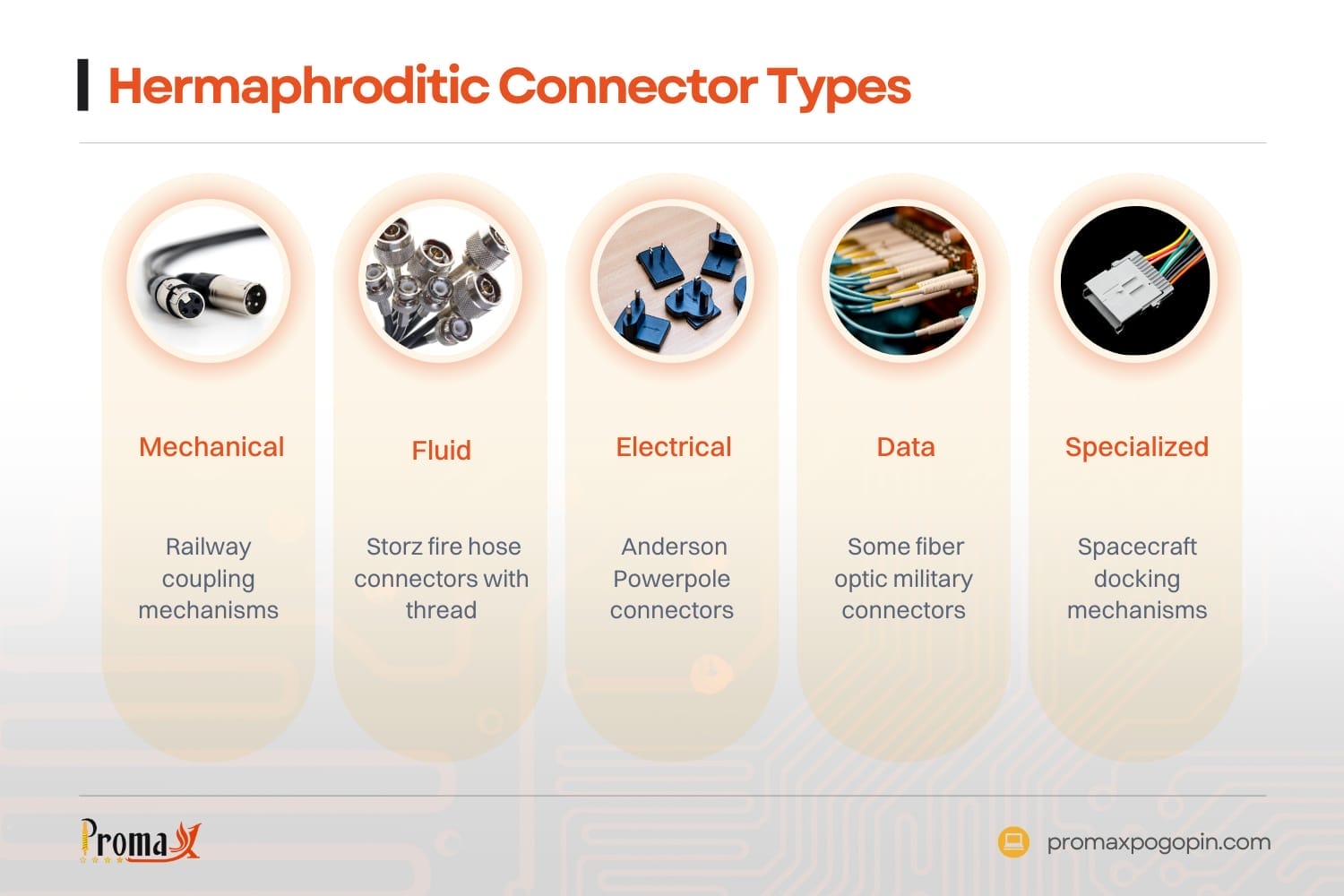

Hermaphroditic Connector Types

• Mechanical: Railway coupling mechanisms
• Fluid: Storz fire hose connectors with thread
• Electrical: Anderson Powerpole connectors
• Data: Some fiber optic military connectors
• Specialized: Spacecraft docking mechanisms (Androgynous Peripheral Attach System)

How do you Select the Right Connector Gender for Your Project?

Select the appropriate male or female connectors based first on safety requirements, particularly for power applications where female connectors should be used at the power source. This fundamental consideration overrides all other selection factors.

Consider the application environment and usage patterns when choosing between male and female plugs, with fixed installations typically using female connectors for durability and mobile connections using male connectors on cables.

Evaluate compatibility with existing systems and industry standards for your specific application, as many industries have established conventions that should be followed for interoperability and compliance.

Selection Decision Matrix

• Power Source: Always use female connectors
• Fixed Equipment: Typically female side with recess
• Mobile/Cable End: Usually male plugs with protrusions
• Data Rate Requirements: Specific gender patterns may apply
• Environmental Conditions: May influence gender choice for protection

How do Pogo Pin Connectors Solve Common Connection Challenges?

Pogo pin connectors from Promax Pogo Pin solve alignment issues with their spring-loaded design that accommodates minor misalignments while maintaining electrical contact. This self-adjusting capability makes them ideal for automated assembly where the male connector into the female must engage reliably.

High-frequency testing applications benefit from Promax Pogo Pin’s precision-engineered pogo pins that maintain consistent impedance for signals or power across thousands of connection cycles. The spring mechanism ensures reliable contact pressure throughout the connector’s lifespan.

Space-constrained designs leverage the compact nature of pogo pins as an electronic component that provides reliable connections in a fraction of the space required by conventional pin-and-socket designs, making them ideal for modern miniaturized electronics.

Promax Pogo Pin: Premium Pogo Pin Connectors

Understanding the difference between male and female connectors is crucial for ensuring proper connectivity, safety, and reliability in electrical systems. The gender designation follows clear principles: male connectors have protruding elements, while female connectors are designed to receive these elements.

Promax Pogo Pin’s innovative spring-loaded design combines the best aspects of traditional male-female connector principles with enhanced flexibility, reliability, and durability. By selecting the appropriate connector gender and type for your specific application, you ensure optimal performance and safety for your electronic systems with perfect mating connections. Contact us to learn more about our electrical connectors!

Male vs. Female Connectors FAQs

Can you connect two male connectors or two female connectors together?

Male plugs cannot directly connect to other male plugs, nor can female plugs connect to female plugs without an adapter. Gender changers or adapter cables are specifically designed to join two connectors of the same gender when necessary for electrical circuits.

How do you identify gender in coaxial connectors?

Coax connectors gender is determined by the center contact: male coax connectors have a protruding center pin, while female connectors have a socket to receive this pin. The outer shell configuration might sometimes appear misleading, but the center conductor defines the gender.

What are reverse polarity connectors?

Reverse polarity connectors intentionally reverse the traditional gender configuration while maintaining the same outer appearance. In reverse polarity BNC or TNC connectors, the center contact is opposite to standard connectors, preventing connection with standard parts.

How do you protect unused connectors from damage?

Protect unused male connectors with protective caps that shield protruding pins from physical damage or contamination. Female connectors should be covered with dedicated protective plugs to prevent dust and debris from entering the socket areas.

What maintenance do connectors require?

Maintain connectors by regularly inspecting for physical damage, corrosion, or contamination. Clean connectors using appropriate methods for the connector type—typically compressed air for dust removal and specialized contact cleaners for removing oxides or contaminants.
