What is a PCB Connector?

Think about your phone for a second. Inside that small device, there are quite a few tiny parts that need to talk to each other electrically. They need to send power and data back and forth without any wires getting tangled. That’s exactly what printed circuit board connectors do. They’re like tiny electrical bridges that let different parts of electronics connect and disconnect.

These small but cardinal components show up everywhere. They’re in the USB connector on your phone and the memory slots in your computer. PCB connectors make the latest electronics possible. They let manufacturers make devices in separate parts and then snap them together to carry electricity. Here’s everything you need to know about what they are and what these connectors are used for!

Key Takeaways

• PCB connectors create removable electrical pathways between circuit boards and external devices
• Common types include board-to-board and wire-to-board connector systems for different connection needs
• Connector selection depends on electrical requirements, physical space, and environmental conditions
• Specialized connectors like pogo pins serve unique testing and harsh environment applications
• Proper connector choice ensures a reliable connection and easier manufacturing processes

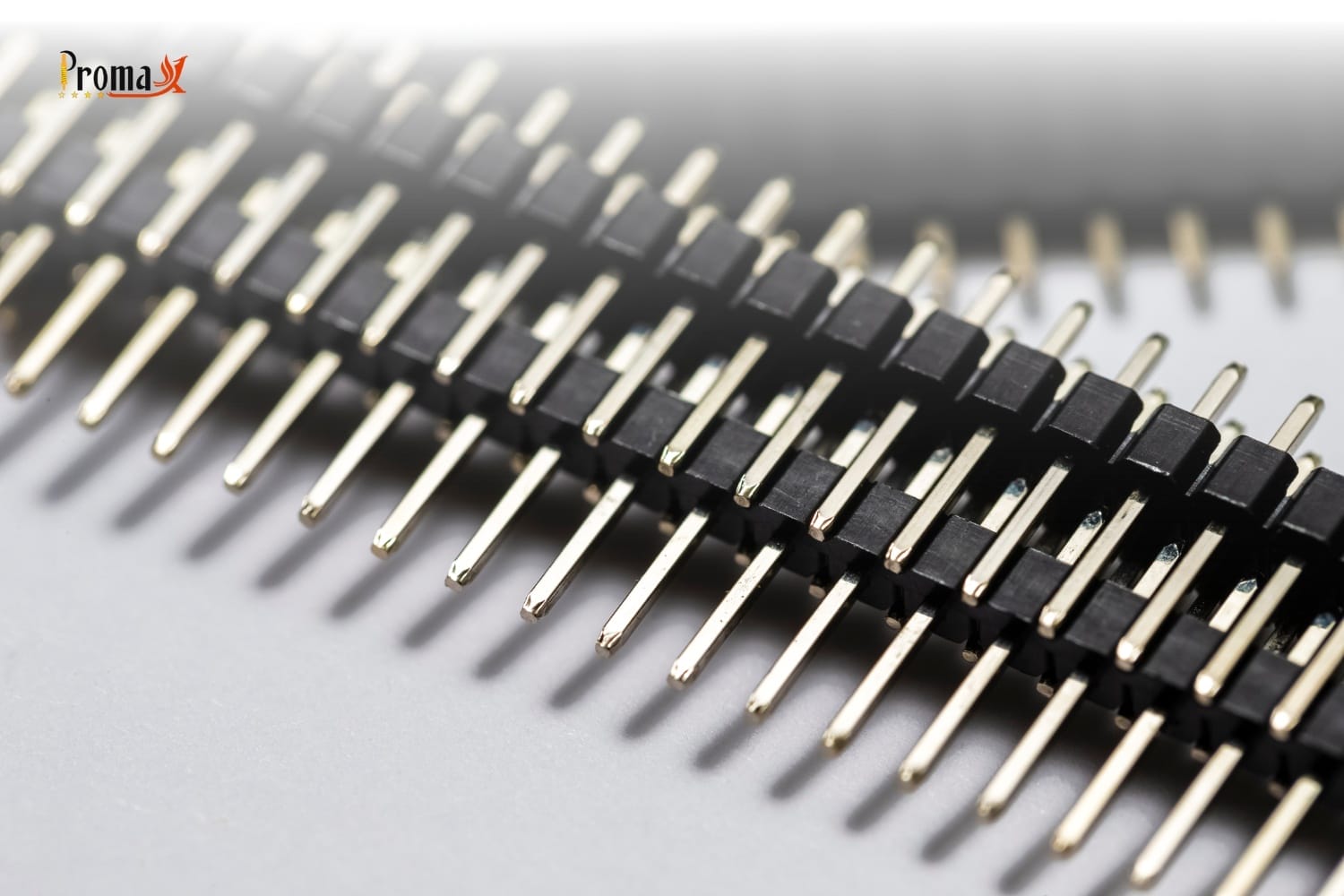

What is a PCB Connector?

A PCB connector is basically an electrical plug that connects printed circuit boards to each other or to outside cables and devices. These connectors have metal contacts inside plastic or metal housings that create secure electrical paths. When you plug them together, electricity and data can flow between different parts of an electronic system.

The magic happens through simple metal-to-metal contact. Male connectors have pins or contacts that slide into female connectors with matching holes or receptacles. The metal surfaces touch and create a pathway for electrical current. Most contacts use copper with special coatings like gold or tin to prevent rust and keep the connection clean.

PCB connectors follow strict rules set by organizations like IPC (Institute for Printed Circuits). These standards make sure that connectors from different companies work together properly. The IPC-2221 standard covers basic PCB design rules, while IPC-A-610 sets quality requirements for connector assembly. The latest research shows that the global connector market is expected to grow at about 3.9% per year until 2034.

How do PCB Connectors Actually Work?

PCB connectors work by creating physical contact between metal surfaces that conduct electricity. When you push two connectors together, their metal parts touch and form a pathway for electrical signals and power to flow through.

Contact Mechanisms and Materials

PCB connectors rely on controlled mechanical pressure between conductive surfaces to maintain electrical continuity. Contact materials utilize copper alloy bases with specialized platings including gold (for corrosion resistance), silver (for high conductivity), and tin (for cost-effective general applications). Contact geometry designs include pins, sockets, and spring-loaded mechanisms that accommodate manufacturing tolerances while maintaining stable electrical resistance.

The housing provides structural support and electrical isolation between contacts. Housing materials include thermoplastic polymers for standard applications and metal alloys for electromagnetic interference (EMI) shielding requirements. Dielectric strength ratings ensure proper insulation between adjacent contacts and ground planes.

Electrical Performance Parameters

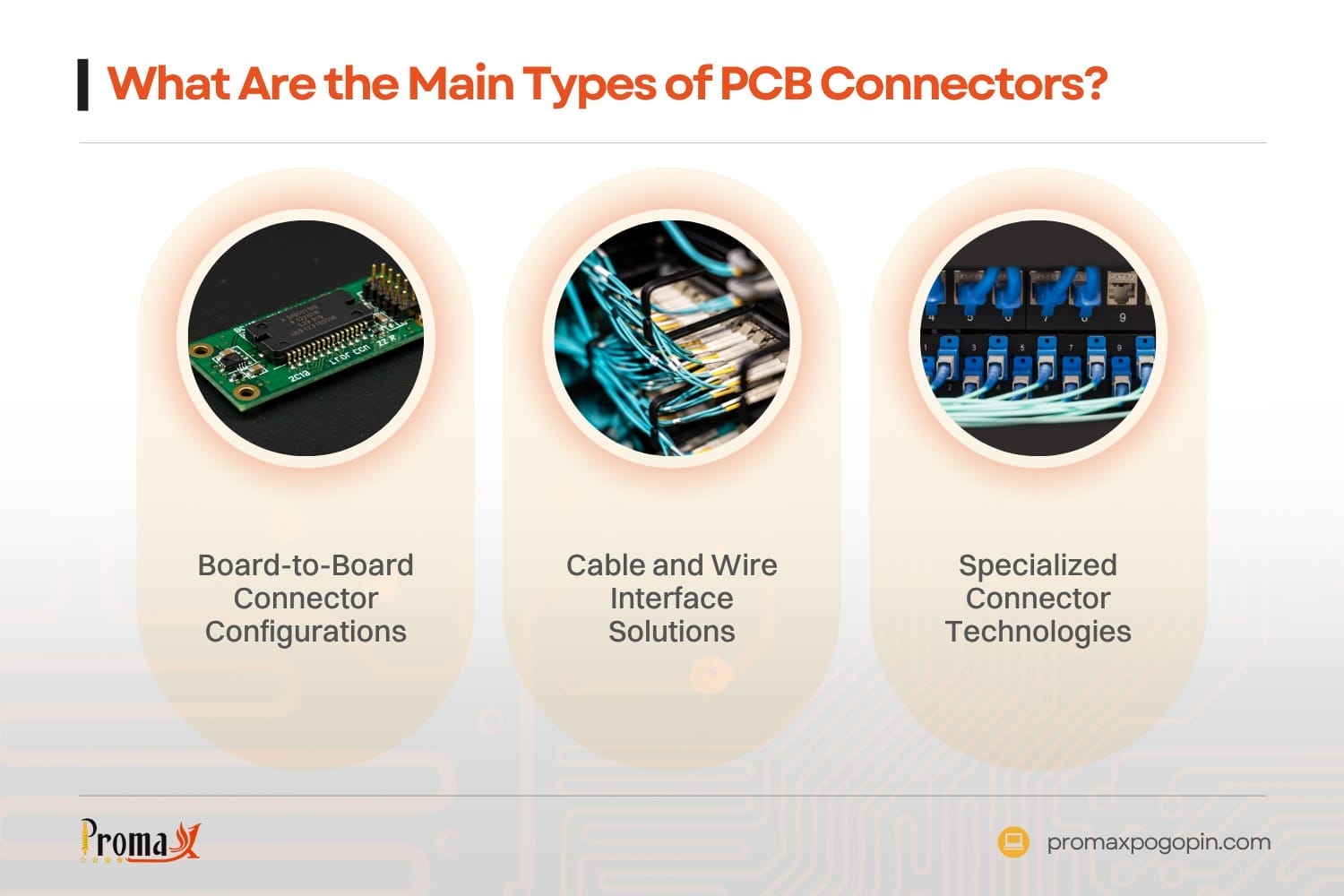

What are the Main Types of PCB Connectors?

PCB connectors come in different shapes and sizes to handle various connection needs in electronics. The main types connect boards to other boards, boards to cables, or provide special features for specific applications.

Board-to-Board Connector Configurations

Board-to-board connectors enable direct PCB connection between circuit boards through three primary orientations. This type of PCB connector facilitates power from one PCB to another while maintaining signal integrity:

Parallel/Mezzanine Mounting

• Both PCBs maintain horizontal orientation
• Mezzanine connectors enable compact stacking with controlled separation distances
• Widely used in high-density applications like graphics cards and memory modules

90-Degree/Right-Angle Mounting

• Connects vertical PCB to horizontal PCB
• Optimizes space utilization in constrained enclosures
• Typical in motherboard-to-daughterboard applications

180-Degree/Coplanar/Edge-to-Edge Mounting

• Both PCBs remain in horizontal plane
• Enables side-by-side PCB connections
• Used in modular system designs requiring lateral expansion

Cable and Wire Interface Solutions

Wire-to-Board Connector Systems: Wire-to-board connectors interface external cables with PCB-mounted receptacles through standardized contact arrangements. These connector systems accommodate both data transfer and power requirements, with current ratings from milliamps to hundreds of amps. Pin header connector designs support various cable types, including ribbon cables and individual wire terminations.

Card Edge Connectors: Card edge connectors mate directly with PCB edges, eliminating separate connector hardware on one PCB side. Common applications include memory modules (DIMM, SO-DIMM), expansion cards, and interface boards. Gold finger plating on the surface of the PCB provides reliable contact surfaces for repeated insertion cycles.

Specialized Connector Technologies

USB Connector Applications: USB connectors represent one of the most widely used connector types in consumer electronics. Different types of USB connectors (USB-A, USB-C, micro-USB) serve various device interfaces while maintaining standardized electrical protocols. These connectors provide both power supply connections and data transmission capabilities.

Power Connector Specifications: Power connectors designed for high-current applications feature larger contact cross-sections and enhanced thermal management. Terminal block connectors and barrel connectors serve industrial applications requiring secure power distribution. These connectors must handle significant electrical loads while maintaining low contact resistance.

Backplane Connector Systems: Backplane connectors enable high-density interconnection within large electronic systems. These connector solutions facilitate communication between multiple PCBs within server systems and telecommunications equipment. Backplane designs often incorporate shielding to prevent electromagnetic interference between channels.

How do you Select the Right PCB Connector for Your Application?

Choosing the right connector means matching its features to your project’s specific needs. You need to think about how much power it will carry, how much space you have, and what conditions it will face.

Size, Weight, and Power (SWaP) Analysis

When selecting a PCB connector, engineers must balance Size, Weight, and Power (SWaP) constraints with electrical and mechanical requirements. Mobile applications demand miniaturized connectors with fine pitch spacing to maximize functionality within space limitations. Industrial applications prioritize robust connections with standard pitch spacing for reliable field maintenance.

Pitch Selection and Pin Configuration

Environmental Requirements Assessment

Different environments put different stresses on connectors that can cause them to fail over time. Understanding these conditions helps you pick connectors that will last longer and work reliably.

Temperature Range Considerations

• Commercial grade: 0 °C to +70 °C
• Extended temperature: -40 °C to +85 °C
• Military specification: -55 °C to +125 °C

Sealing and Protection Levels

• IP54: Basic dust and splash protection
• IP67: Dust-tight and temporary submersion protection
• IP68: Dust-tight and continuous submersion protection

Mounting Technology Comparison

Choosing a PCB connector involves evaluating mounting methods that affect both mechanical strength and assembly processes:

Advanced Connector Technologies and Applications

Some connectors use special designs and materials to solve unique problems that standard connectors can’t handle. These advanced types offer benefits like easier connection, better durability, or performance in harsh conditions.

Pogo Pin Contact Systems

Pogo pins utilize spring-loaded contact mechanisms, providing consistent electrical connection through controlled compression rather than friction-based mating. Each pogo pin assembly contains precision-machined plungers, springs, and barrels that accommodate PCB warpage and component height variations while maintaining optimal contact force.

Applications include test fixtures, programming interfaces, and temporary connections requiring high cycle durability. The connector used in these applications must withstand millions of actuation cycles while maintaining electrical performance.

Magnetic Connector Solutions

Magnetic connectors employ permanent magnets integrated into connector housings to provide self-aligning, quick-disconnect capabilities. These connector solutions excel in applications requiring frequent connection/disconnection cycles or environments where mechanical stress could damage traditional retention mechanisms.

Insulation Displacement Connectors

Insulation displacement connectors (IDCs) enable wire connection without stripping insulation by using sharp contacts that pierce wire insulation. These connectors are commonly used in flat cable connectors and ribbon cable applications, where mass termination reduces assembly time and cost.

Common Failure Modes and Prevention

Professional PCB Connector Design Considerations

Professional connector design involves careful planning and testing to make sure the connector works perfectly for its intended use. Engineers analyze every detail from electrical performance to manufacturing requirements before creating the final product.

Custom Connector Development Process

Professional connector development begins with comprehensive application analysis, including electrical load calculations and environmental exposure assessment. Design optimization utilizes finite element analysis (FEA) for mechanical stress distribution and electromagnetic simulation for signal integrity validation.

Categories of PCB connectors can be classified based on application requirements, with automotive connectors requiring enhanced durability and consumer electronics prioritizing miniaturization. The size and type of connector directly impacts both performance and manufacturing cost.

Quality Assurance and Testing Standards

Manufacturing quality control implements statistical process control (SPC) monitoring for critical dimensions, contact resistance measurements, and plating thickness verification. The connector must meet environmental testing standards across temperature cycling (IEC 60068-2-14), vibration exposure (IEC 60068-2-6), and humidity conditions (IEC 60068-2-78).

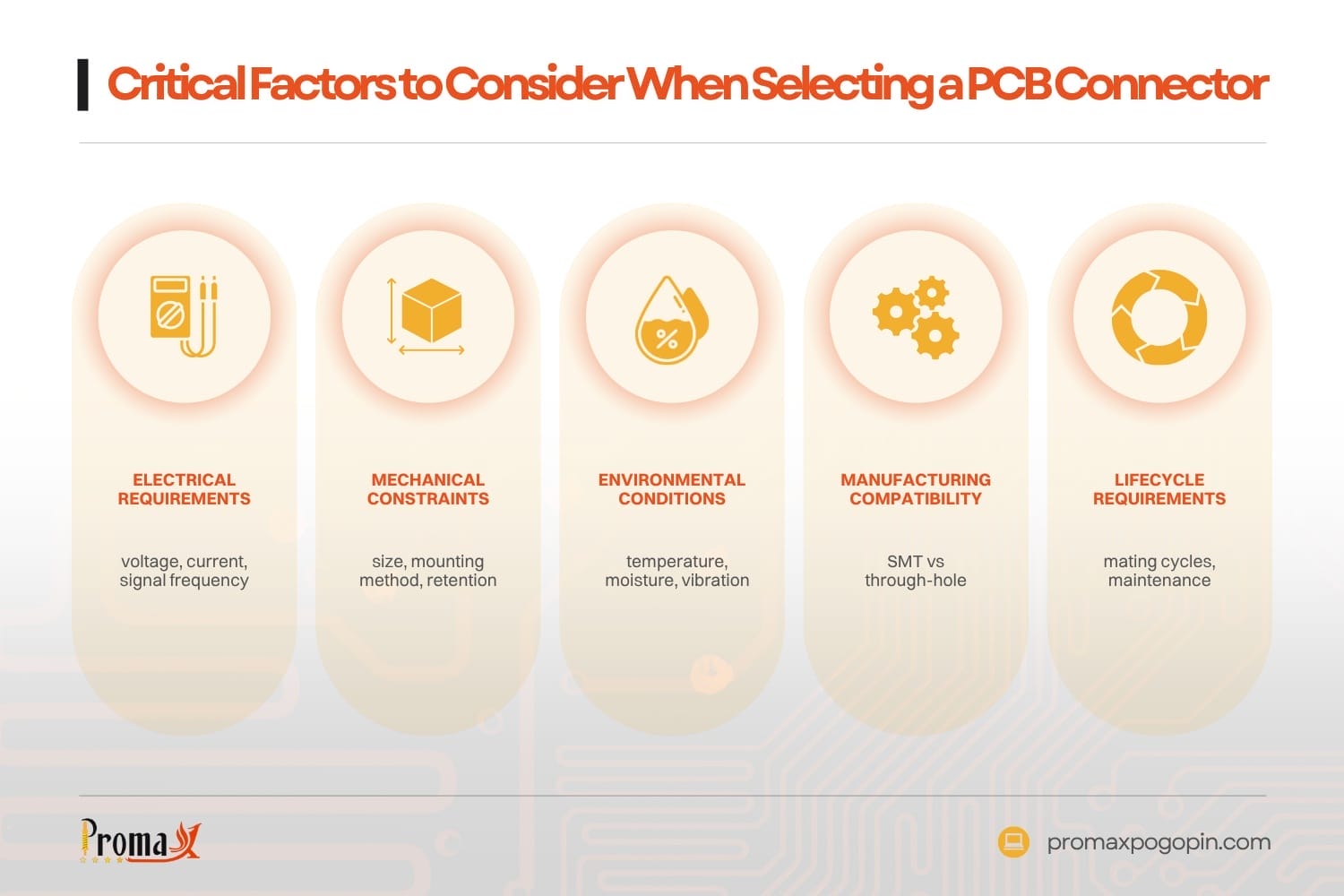

Critical Factors to Consider When Selecting a PCB Connector:

• Electrical requirements (voltage, current, signal frequency)
• Mechanical constraints (size, mounting method, retention)
• Environmental conditions (temperature, moisture, vibration)
• Manufacturing compatibility (SMT vs. through-hole)
• Lifecycle requirements (mating cycles, maintenance)

Compliance documentation supports RoHS hazardous substance restrictions and REACH chemical safety regulations. PCB connectors are critical components that require complete traceability for each production lot to ensure reliable connection performance throughout operational lifetime.

Transform Your Electronics with Professional Connector Solutions

Understanding PCB connector technology empowers better design decisions that improve product reliability, reduce manufacturing costs, and enhance user experience. The right connector ensures optimal electrical performance while supporting efficient assembly processes across diverse applications from consumer electronics to industrial systems.

Ready to optimize your PCB connectivity solutions? Contact our engineering team to discuss your specific requirements and discover how advanced connector technologies including pogo pins and magnetic systems can enhance your electronic designs. Let us help you achieve superior performance and reliability in your next project.

Frequently Asked Questions

What determines the number of times a connector can be mated safely?

Connector mating cycle ratings depend on contact material quality, retention mechanism design, and environmental exposure conditions. Standard connectors support 100-500 mating cycles under normal conditions, while high-reliability versions exceed 10,000 cycles through improved materials and spring-loaded contact designs. Environmental factors including temperature extremes and chemical exposure significantly impact durability through contact degradation.

How do crimp connectors compare to PCB mount connector options?

Crimp connectors provide field-serviceable connections for cable assembly applications but require specialized tooling and training for proper installation. PCB mount connectors offer automated assembly compatibility and consistent quality but involve soldering the connector directly to the circuit board. The choice depends on whether field maintenance capability outweighs manufacturing efficiency requirements.

Can RCA connectors and ethernet interface types be used in professional PCB designs?

RCA connectors and standard ethernet interfaces serve specific audio/video and networking applications but may not meet the size, performance, or reliability requirements of custom PCB designs. Professional applications often require specialized electrical connector systems optimized for specific signal types, environmental conditions, and form factor constraints that standard consumer connectors cannot address effectively.
