Pogo Pin Design: Full Technical Guide for Engineers

Spring-loaded electrical connectors are an essential component across several applications. They ensure low-resistance through three main subassemblies: plunger, barrel, and springs. These three-component systems get contact resistance below 30 milliohms.

While doing this, it also gives you mechanical flexibility that can handle misalignment and vibration. The latest pogo pin designs work as cardianl functions in semiconductor test fixtures. This also applies to medical devices and consumer electronics, especially those where signal integrity makes a huge impact on product performance.

Key Takeaways

• Inclined surface structures get rid of clearance gaps through beveled plunger interfaces
• Ball bearing integration sends out contact forces while lowering impedance
• Through-hole designs allow direct current flow through plunger cores for the best charge transfer
• Reverse drilling configurations maximize spring compression ratios in space-constrained electronic assemblies
• Beryllium copper springs provide top conductivity and 300,000 mating cycles durability

What are the Four Important Pogo Pin Design Architectures?

The 4 important pogo pin design architectures are the selection between inclined surface, ball bearing architecture, through-hole, and reverse drilling configurations. Pogo pin designs use these four main structural approaches to get the best performance for specific application requirements.

Every single one of these designs can handle specific engineering problems from current capacity, space constraints, or something else. It also affects mechanical lifecycle and general system reliability for electronics industry applications.

Inclined Surface Structure Fundamentals

Inclined surface designs feature beveled plunger ends cut at 15-30 degree angles that ensure continuous contact with barrel walls during compression cycles. This configuration eliminates clearance gaps that could cause momentary disconnections under vibration or mechanical shock in portable electronics. The angled interface maintains electrical continuity while allowing smooth plunger movement within tight tolerance specifications.

Manufacturing precision becomes critical for inclined surface designs, as the bevel angle must be carefully controlled to ensure proper contact pressure without binding. The precise angular relationship between plunger and barrel surfaces determines both electrical performance and mechanical reliability across operational lifecycles.

Ball Bearing Enhanced Architecture

Ball bearing enhanced designs incorporate intermediate metal elements between plunger and spring components to improve force transmission and reduce mechanical wear. The ball bearing interface distributes contact forces more evenly while minimizing friction during compression cycles. This configuration enables higher current capacity and extends operational lifecycle through reduced component stress in medical applications requiring precise data transfer.

Material selection for ball bearings focuses on conductive alloys including brass, bronze, or silver-plated steel spheres that maintain electrical performance while providing mechanical durability. The ball diameter must be precisely controlled to ensure proper force transmission while maintaining assembly tolerances.

Through-Hole Configuration Benefits

Through-hole designs create direct electrical pathways through the center of plunger assemblies, enabling maximum current density while maintaining compact form factors for PCB applications. The through-hole design bypasses traditional spring current paths, allowing electricity to flow directly through the plunger core. This approach provides superior performance in high-current applications while offering immunity to barrel contamination in harsh environmental conditions.

Reverse Drilling Structure Optimization

Reverse drilling designs achieve enhanced spring compression ratios by hollowing out internal plunger sections to accommodate longer spring elements within standard barrel lengths. This configuration allows spring lengths to exceed barrel dimensions while maintaining compact overall connector profiles. The extended spring geometry provides increased compliance and more consistent force characteristics essential for miniature electronic devices.

How does Incline Surface Design Achieve Stable Low Resistance?

Inclined surface pogo pins achieve contact resistance values below 30 milliohms through beveled plunger interfaces that maintain 100% electrical contact with barrel walls throughout compression cycles. The angled plunger end eliminates clearance gaps between moving components while ensuring continuous electrical pathways during mechanical operation. This design approach prevents momentary disconnections that could disrupt signal integrity or power delivery in sensitive electronics applications.

Contact Mechanics and Force Distribution

The beveled interface mechanism creates multiple contact points between plunger and barrel surfaces as compression forces are applied. Unlike straight-cut plunger ends that experience point contact, the inclined surface distributes electrical current across larger contact areas. This expanded contact zone reduces current density while lowering overall resistance values for reliable electrical performance.

Manufacturing Precision Requirements

Typical bevel angles range from 15 to 30 degrees, optimized for specific spring force characteristics and barrel tolerances. Surface finish requirements ensure smooth contact interfaces, while dimensional control maintains proper clearances for reliable operation in automotive and industrial probe applications.

Why do Ball Bearing Designs Reduce Contact Impedance?

Ball bearing enhanced pogo pins achieve lower contact impedance through improved force transmission that creates more stable electrical connections between plunger and barrel assemblies. The intermediate ball elements distribute contact forces evenly while reducing mechanical stress concentrations that can degrade electrical performance over time. Multiple current paths through the ball interface provide redundancy that ensures stable electrical performance throughout extended operational cycles in circuit boards and testing fixtures.

Force Transmission Optimization

The ball bearing mechanism functions by creating multiple contact points that maintain electrical continuity even when individual contact areas experience wear or corrosion. The distributed contact approach reduces localized heating that can occur with single-point contact designs while improving overall thermal management for high-power applications.

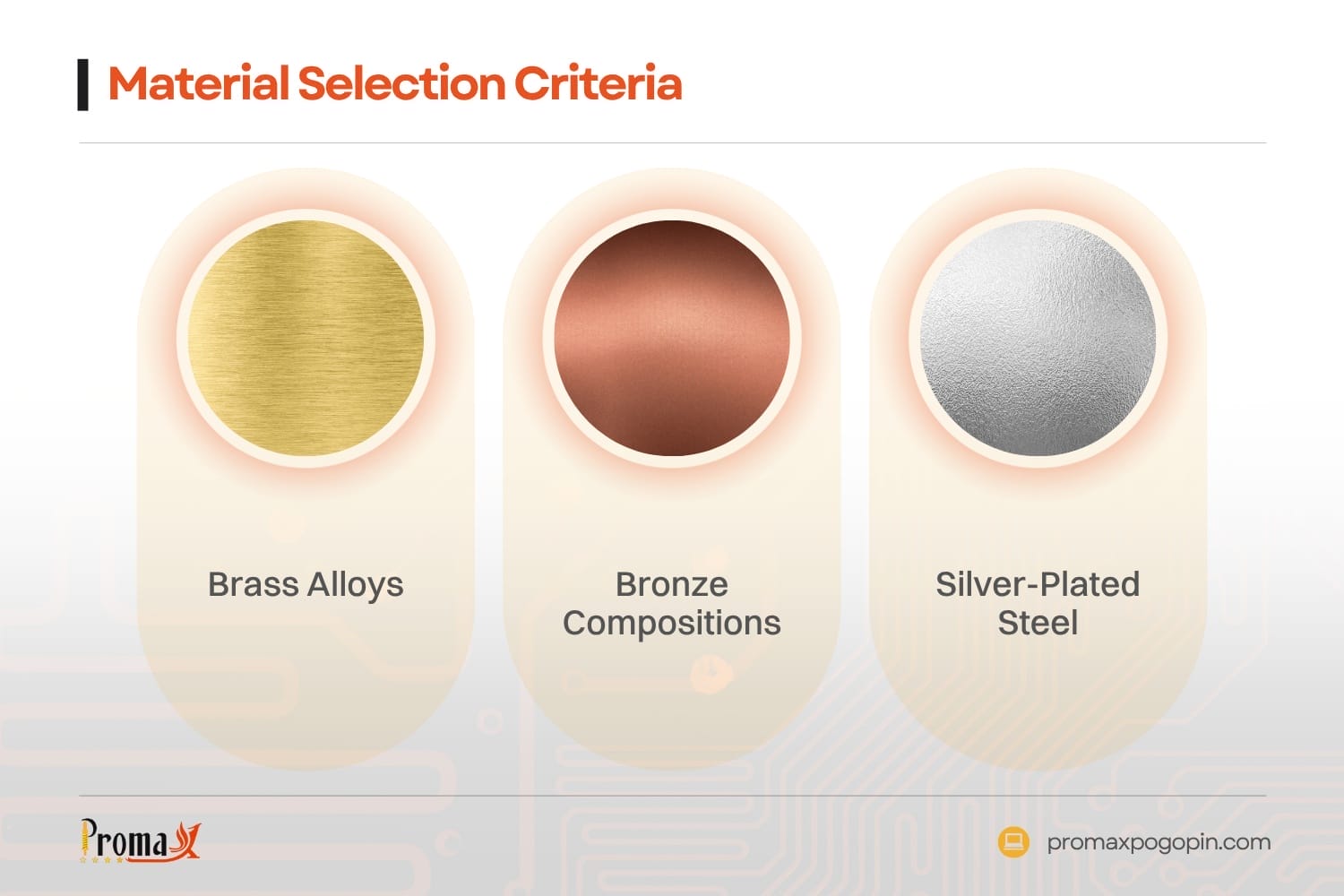

Material Selection Criteria

Common ball bearing materials include:

• Brass alloys: Cost-effective with good conductivity for consumer applications
• Bronze compositions: Enhanced wear resistance for industrial use
• Silver-plated steel: Maximum conductivity with mechanical strength

When Should Engineers Specify Through-Hole Designs?

Through-hole pogo pins deliver optimal performance for high-current applications requiring maximum current density within compact form factors, typically handling 2–5 amperes compared to 0.5-2 amperes for standard designs. The direct current path through the plunger core eliminates resistance from spring interfaces while providing immunity to barrel contamination that could affect traditional current flow paths.

These designs prove essential for power delivery applications, where voltage drop and thermal management become critical design considerations in automobile electronics.

Current Density Advantages

Environmental Immunity Features

Through-hole designs continue functioning when barrel surfaces become contaminated with oils, dust, or insulating materials. The internal current path remains isolated from external contamination sources that could compromise electrical performance in traditional spring-loaded contact designs used in harsh environments.

How does Reverse Drilling Maximize Spring Performance?

Reverse drilling designs achieve enhanced spring compression ratios by hollowing out internal plunger sections to accommodate longer spring elements within standard barrel lengths. This configuration typically increases available compression stroke by 25-50% compared to solid plunger configurations. The extended spring geometry provides increased compliance and more consistent force characteristics compared to compressed spring designs in space-limited dock applications.

Spring Geometry Optimization

Longer springs exhibit more consistent force-deflection characteristics while reducing stress concentrations that can lead to premature spring failure. Force consistency improvements result from enhanced spring geometry that enables more linear force-deflection relationships throughout compression ranges for precise mechanical operation.

Space Efficiency Benefits

The hollowed plunger construction creates additional assembly space while maintaining compact connector profiles essential for:

• Semiconductor test fixtures requiring precise height control
• Mobile device connectors with limited pad space
• Wearable technology interfaces demanding versatile configuration options

What Materials Define Pogo Pin Performance Characteristics?

Beryllium copper serves as the primary spring material due to its exceptional combination of electrical conductivity (45-60% IACS), mechanical resilience, and corrosion resistance that enables reliable operation across 20,000 to 300,000 compression cycles. The plunger and barrel assemblies typically utilize brass or phosphor bronze alloys that provide adequate conductivity while offering the machinability required for precision manufacturing. Custom solutions often incorporate stainless steel components for enhanced environmental resistance.

Spring Material Properties

Surface Treatment Options

Surface treatments enhance corrosion resistance and reduce contact resistance while providing environmental protection:

• Nickel plating: Base protection layer (5-10 μm) for standard applications
• Gold plating: Premium conductivity (0.5-2.5 μm) for critical signal paths
• Palladium coating: Cost-effective precious metal alternative offering excellent reliability

Housing Material Selection

Engineering plastics including PA9T (polyamide) provide UL94 V-0 flammability ratings while maintaining dimensional stability across temperature ranges from -40 °C to +125 °C. These materials maintain mechanical integrity while providing electrical insulation between individual pins in multi-pin connector assemblies used in SMT applications.

How do Environmental Factors Impact Design Selection?

Operating temperature ranges significantly influence material selection and design optimization, with standard pogo pins rated for -40 °C to +70 °C, while specialized designs accommodate -55 °C to +125 °C through advanced material selection and thermal management. Temperature cycling affects spring characteristics, contact resistance, and dimensional stability of connector assemblies in various environmental conditions.

According to Verified Market Research, the global pogo pin market is expected to grow from $335 million in 2023 to $576.1 million by 2031. This means it is growing 8.1% each year due to miniaturization and IoT growth, so environmentals factors are an important consideration.

Environmental Testing Standards

Testing protocols validate performance under extreme conditions:

• Temperature cycling: MIL-STD-202 Method 107 for thermal shock resistance
• Humidity testing: 90% RH at 85 °C per IEC 60068-2-78 for moisture resistance
• Salt spray resistance: 24+ hours per ASTM B117 for marine environments
• Vibration testing: 20-2000, Hz per MIL-STD-883 for mechanical resilience

Contamination Resistance Factors

Vibration and shock resistance depend on spring design characteristics and mechanical assembly methods. High-vibration applications require enhanced spring force to maintain electrical contact while accommodating mechanical disturbances up to 1000g acceleration levels in industrial machinery and automotive applications.

What Quality Standards Ensure Reliable Performance?

ISO 9001:2015 quality management systems ensure consistent manufacturing processes and dimensional control that directly impact pogo pin electrical and mechanical performance characteristics. IPC-A-610 acceptability standards define workmanship criteria for electronic assemblies incorporating pogo pin connectors. RoHS compliance ensures environmental responsibility, while UL94 V-0 flammability ratings validate safety performance for electronic device integration.

Manufacturing Quality Control

Quality control encompasses precision manufacturing with strict consideration for:

• Dimensional verification: ±0.005 mm tolerances for precise fit
• Electrical testing: Contact resistance validation across operational ranges
• Mechanical cycling: Force consistency verification through lifecycle testing
• Environmental validation: Temperature and humidity performance confirmation

Industry Certifications

Manufacturer certification requirements vary by application sector:

• Aerospace: AS9100 quality systems for critical applications
• Medical devices: ISO 13485 compliance for healthcare electronics
• Automotive: TS16949 quality requirements for vehicle systems
• Military: MIL-STD specifications for defense applications

How to Select Optimal Pogo Pin Designs for Specific Applications?

Design selection begins with defining electrical requirements including current capacity, voltage ratings, and contact resistance specifications that determine basic design architecture requirements. This comprehensive pogo pin design guide emphasizes that mechanical requirements including cycle life expectations, operating force limits, and environmental conditions guide material selection and construction approaches for optimal performance.

Selection Criteria Matrix

High Current Applications (>2A):

• Through-hole design mandatory for maximum current capacity
• Beryllium copper springs required for thermal management
• Gold or palladium plating recommended for low resistance

Space-Constrained Applications:

• Reverse drilling design optimal for compact assemblies
• PA9T housing materials for insulation and dimensional stability
• Nickel plating sufficient for standard electrical performance

High Cycle Life Requirements (>100K cycles):

• Ball bearing enhancement recommended for extended durability
• Beryllium copper springs essential for fatigue resistance
• Precious metal plating required for corrosion protection

Application-Specific Considerations

Current capacity requirements typically range from 100 milliamperes for signal applications to 5 amperes for power delivery in electronic devices. Contact resistance specifications below 30 milliohms require careful attention to material selection and surface treatments. Environmental assessment considers operating temperature ranges, humidity exposure, and mechanical stress conditions for reliable long-term operation.

Engineers must evaluate types of pogo pin configurations based on specific application requirements, considering factors such as available space, current requirements, environmental exposure, and expected operational lifecycle. Off-the-shelf solutions provide cost-effective options for standard applications, while custom solutions address unique requirements in specialized industries.

Partner with Promax Pogo Pin for Superior Connectivity Solutions

Promax Pogo Pin combines advanced engineering expertise with precision manufacturing capabilities to deliver connectivity solutions that exceed industry standards for reliability and performance. Our technical team provides comprehensive design support, from initial concept through production validation, ensuring optimal connector performance for your specific application requirements across consumer, industrial, and medical device applications.

Contact our engineering specialists today to discuss your connectivity challenges and discover how Promax pogo pin solutions can enhance your product performance. Experience the advantage that precision engineering and quality manufacturing make in critical connectivity applications, where pogo pins allow reliable electrical connections in demanding environments.

Pogo Pin Design Guide FAQs

What determines pogo pin cycle life ratings?

Spring material selection primarily determines cycle life, with beryllium copper achieving 300,000+ mating cycles through superior fatigue resistance compared to standard spring steels rated for 50,000 cycles. Contact force optimization prevents excessive wear while maintaining electrical performance throughout operational lifecycles in demanding applications.

How do different plate materials affect contact resistance?

Gold plating provides the lowest contact resistance at 10–20 milliohms due to excellent conductivity and corrosion resistance, while nickel plating achieves 30–50 milliohms for cost-sensitive applications. Palladium offers intermediate performance at 15–30 milliohms, with enhanced durability compared to gold in harsh environmental conditions.

What spring force specifications optimize electrical contact?

Optimal spring force ranges from 0.5 to 2.0 newtons depending on application requirements, with higher forces improving contact reliability while increasing wear on mating surfaces. Force consistency within ±10% ensures predictable electrical performance across production quantities and operational lifecycles, making spring-loaded pin connectors ideal for precision applications requiring consistent contact pressure.
