How to Depin a Male Connector: The Complete Professional Guide

Knowing how to depin a male connector is essential when repairing or modifying electrical systems. The process of depinning connector assemblies requires precision and the right approach to avoid damage. At Promax Pogo Pin, our engineering team has perfected connector pin handling techniques through years of manufacturing premium pogo pins, test pins, and PCB connectors. This guide shares our professional expertise to help you safely de-pin connectors like a pro.

Key Takeaways

• Always disconnect power sources before attempting to disassemble any connector
• Identify your type of connector before selecting the appropriate de-pinning tool
• Use gentle pressure when extracting pins to prevent damage to the housing
• Documentation of pin positions before removal ensures correct wiring harness reassembly
• Quality terminal removal tools significantly reduce the risk of connector damage

What is a Male Connector and Why Would You Need to Depin it?

A male connector is an electrical component featuring protruding pins that mate with a female connector to create reliable electrical connections. You may need to depin a connector during wiring repairs, harness modifications, or when replacing damaged pins. Professional technicians regularly remove pins from automotive connectors when upgrading electrical systems or diagnosing intermittent circuit issues. According to iCrimp, common applications for male connectors include automotive, electronics, and industrial wiring.

What Tools do you Need to Safely Depin a Connector?

Connector repin kits contain specially designed tools, such as flat blade picks, that release the locking mechanisms holding pins in connector housings. Different connector styles require specific tool types, ranging from tubular extraction tools to a small flat screwdriver. Safety equipment, including eye protection, provides essential protection when working with electrical connectors that may have residual current.

Professional vs. DIY Tools

• Professional terminal removal kits: Precision-engineered tools designed for specific connector families
• Connector-specific extractors: Custom tools matched to exact connector dimensions
• Emergency alternatives: If you need to de-pin a connector without tool options, straightened paperclips or a needle can work

How do you Identify Different Types of Male Connectors?

Connector identification involves examining the plug shape, pin arrangement, and lock mechanism to determine the manufacturer and style. DTM-style connectors feature rectangular housings with distinctive latch designs, while molex connectors typically have a friction-fit design with visible catch mechanisms. Automotive connectors from manufacturers like Delphi, Tyco, and BOSCH often include specialized waterproofing features and may require brand-specific techniques to de-pin a connector.

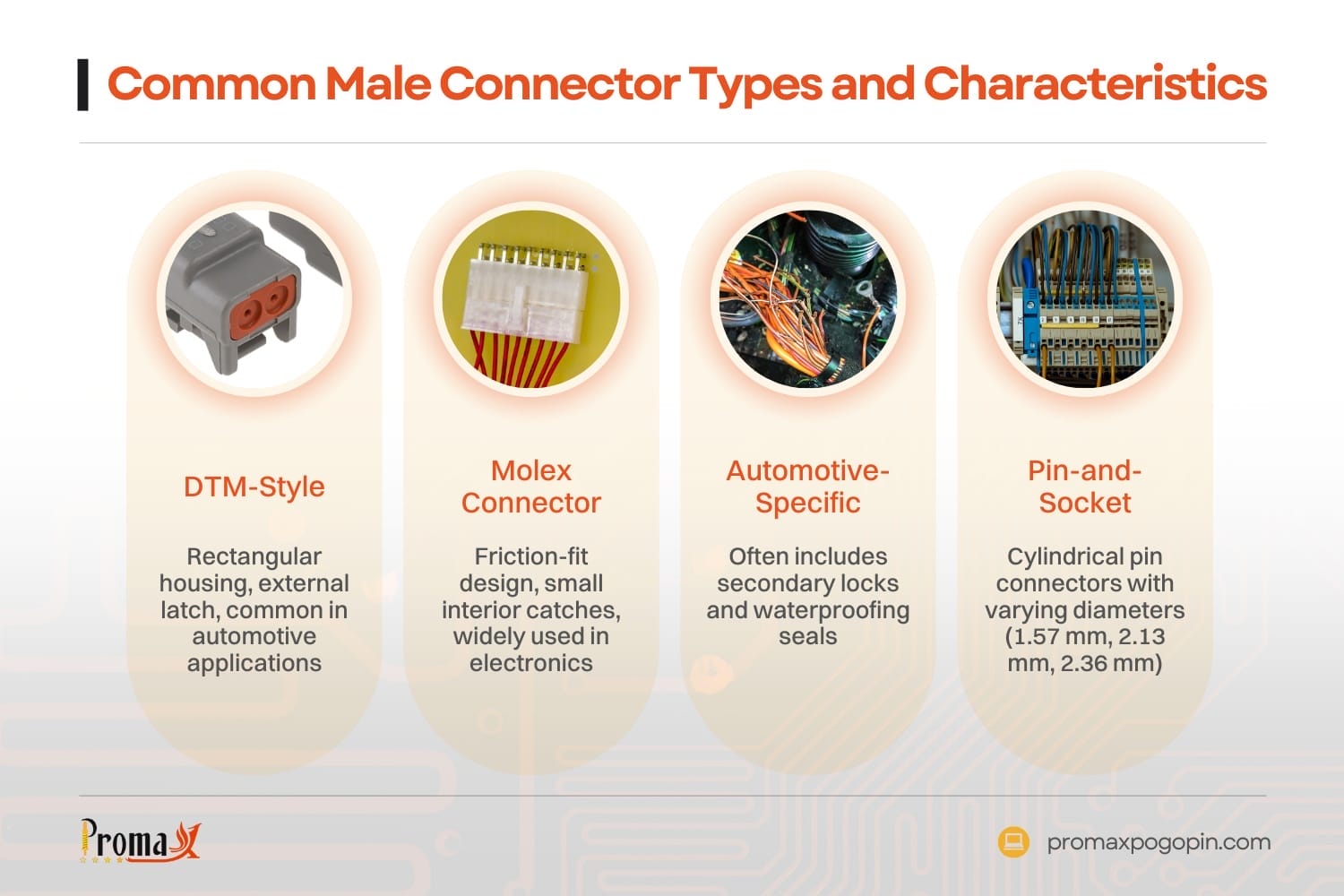

Common Male Connector Types and Characteristics

• DTM-style: Rectangular housing, external latch, common in automotive applications
• Molex connector: Friction-fit design, small interior catches, widely used in electronics
• Automotive-specific: Often includes secondary locks and waterproofing seals
• Pin-and-socket: Cylindrical pin connectors with varying diameters (1.57 mm, 2.13 mm, 2.36 mm)

What Safety Precautions Should You Take Before Depinning?

Power disconnection is the mandatory first step before attempting to de-pin connectors to prevent electrical shock and component damage. Work surfaces should be clean, well-lit, and free from conductive materials that could cause shorts in the circuit. Eye protection guards against potential debris or tool slippage, while proper documentation of connector pin slot positions ensures correct reassembly after depinning connector components.

Essential Safety Checklist

• Disconnect all power sources and verify with a multimeter
• Document pin positions with photos or detailed diagrams
• Wear safety glasses to protect against flying debris
• Use insulated tools when working near potential power sources
• Ensure adequate lighting for precise work

How do you Remove the Connector Locking Mechanism?

The front cap removal technique varies by connector type, but typically involves pressing release tabs while gently pulling the cap away from the main housing. Over-application of force during this step can crack plastic components, so proceed with controlled, deliberate movements to unlock the tab. Connector locking mechanisms often consist of an outer cover or latches that must be disengaged before accessing pins.

Step-by-Step Front Cap Removal Technique

1. Identify the release tabs or latches (often colored differently from the housing)
2. Apply gentle pressure to the release point with the appropriate tool
3. Maintain pressure while carefully sliding the cap away from the connector body
4. Store removed components in labeled containers to prevent loss

How do you Access and Release the Pin Retainer?

The catch identification process requires visual inspection of the connector interior to locate the small tabs that hold each pin in place. Pin retainers are small plastic or metal catches that secure individual terminals within the connector housing. Proper tool positioning involves inserting the right tools at the correct angle to lift the catch without applying pressure to surrounding components.

Pin Retainer Mechanisms by Connector Type

What is the Correct Technique for Extracting Pins Safely?

How to remove connector pins safely requires simultaneous actions, such as lifting the retaining catch with the depinning tool while you pull the wire from the back of the connector. Apply steady, even pressure when pulling the wire to avoid having to bend the pin back into shape or damaging the connector housing. Successful extraction is indicated by smooth movement of the pin from the housing without excessive force.

The Simultaneous Action Technique

1. Insert the appropriate tool to engage the catch
2. Apply gentle pressure to lift the catch away from the pin
3. While maintaining pressure on the catch, pull the wire with steady force
4. If resistance is felt, stop and reexamine the catch engagement

How do Different Connector Types Affect the Depinning Process?

Connector design determines the specific approach needed for safe pin removal. DTM-style connectors utilize interior latches accessible from the front of the housing, requiring a straight insertion of the depinning tool. Automotive connectors often feature secondary locking mechanisms that must be disengaged before individual pin catches can be released. Male and female Molex connectors typically use a simple friction-fit design with accessible catches.

Special Considerations for 4-Pin Fan Connectors

Unlike standard connectors, 4-pin PC fan connectors require a unique approach to how to depin connectors of this type. The pin layout is asymmetrical with indented sections for tab locking. Using a paperclip or needle, insert the tool through the small indent above each pinhole, applying pressure until you feel a “click” as the locking tab releases. Pull gently on the corresponding wire while maintaining pressure on the tab to extract the pin.

What Options Exist When Professional Tools Aren’t Available?

If you need to learn how to de-pin a connector without tools designed for the job, DIY solutions can be created using household items like a paperclip in emergency situations. A straightened paperclip with a small bend at one end can function as a basic depinning tool for many standard connectors. A needle or fine-gauge wire can also work for smaller connectors, though these alternatives increase the risk of connector damage.

Paperclip Modification Technique

1. Straighten a standard paperclip completely
2. Create a small 1-2 mm bend at one end using pliers
3. Test the fit before applying pressure to the connector catches
4. Work slowly and carefully to compensate for tool imprecision

How do you Troubleshoot Common Depinning Problems?

Depinning challenges often occur when catches are difficult to access or pins have become corroded or damaged, so troubleshooting involves solutions like magnification. Secondary locking mechanisms may be overlooked, requiring careful examination of the entire connector housing for additional release points. Apply light penetrating oil to free corroded pins, and use magnification when working with miniature connectors to better see catch mechanisms.

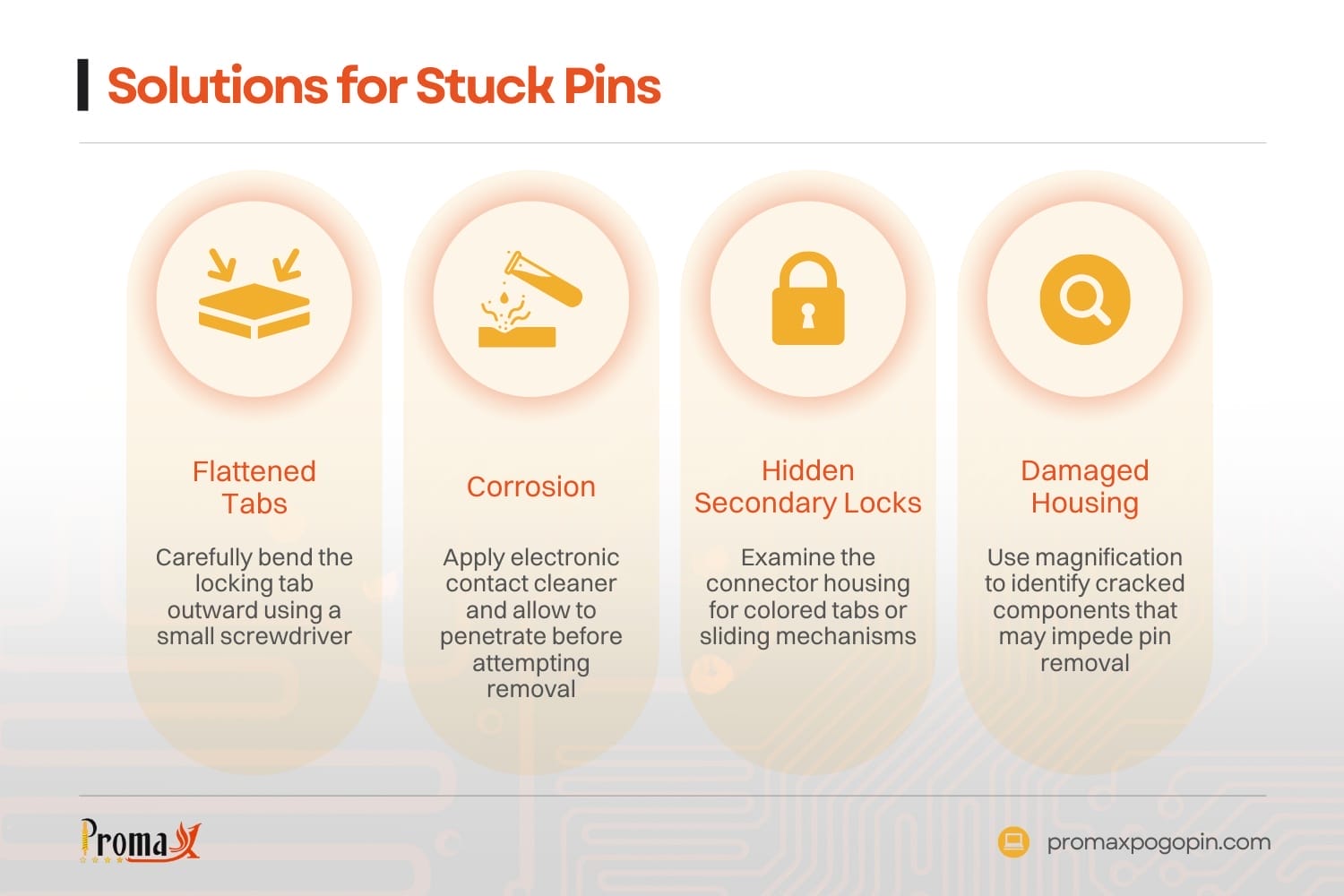

Solutions for Stuck Pins

• Flattened tabs: Carefully bend the locking tab outward using a small screwdriver
• Corrosion: Apply electronic contact cleaner and allow to penetrate before attempting removal
• Hidden secondary locks: Examine the connector housing for colored tabs or sliding mechanisms
• Damaged housing: Use magnification to identify cracked components that may impede pin removal

How do you Properly Reassemble a Connector After Depinning?

After you’ve de-pinned a connector, reinsertion involves aligning the terminal correctly and pushing to insert the pin back into the connector until you hear or feel a distinct “click.” Visual confirmation should be performed to ensure the catch has secured properly around the pin. Test the connection by gently pulling on the wire – a properly seated pin will resist removal without depressing the catch.

Pin Reinsertion Verification

1. Verify pin orientation matches the connector keying
2. Insert the pin until you feel/hear the locking mechanism engage
3. Pull gently on the wire to confirm secure locking
4. Inspect visually to ensure the pin is flush and properly seated
5. Reinstall any secondary locking mechanisms or connector caps
