NF7286-05PA

5 Pin Waterproof Connectors

When systems have to deal with intense environments, ordinary connectors generally tend to just give up. Our special waterproof connectors keep them going all the time, even when the conditions aren’t always the best. There’s a huge need for strong electrical connections these days. That’s why the waterproof connector market has become super important for industries that need dependable performance outdoors.

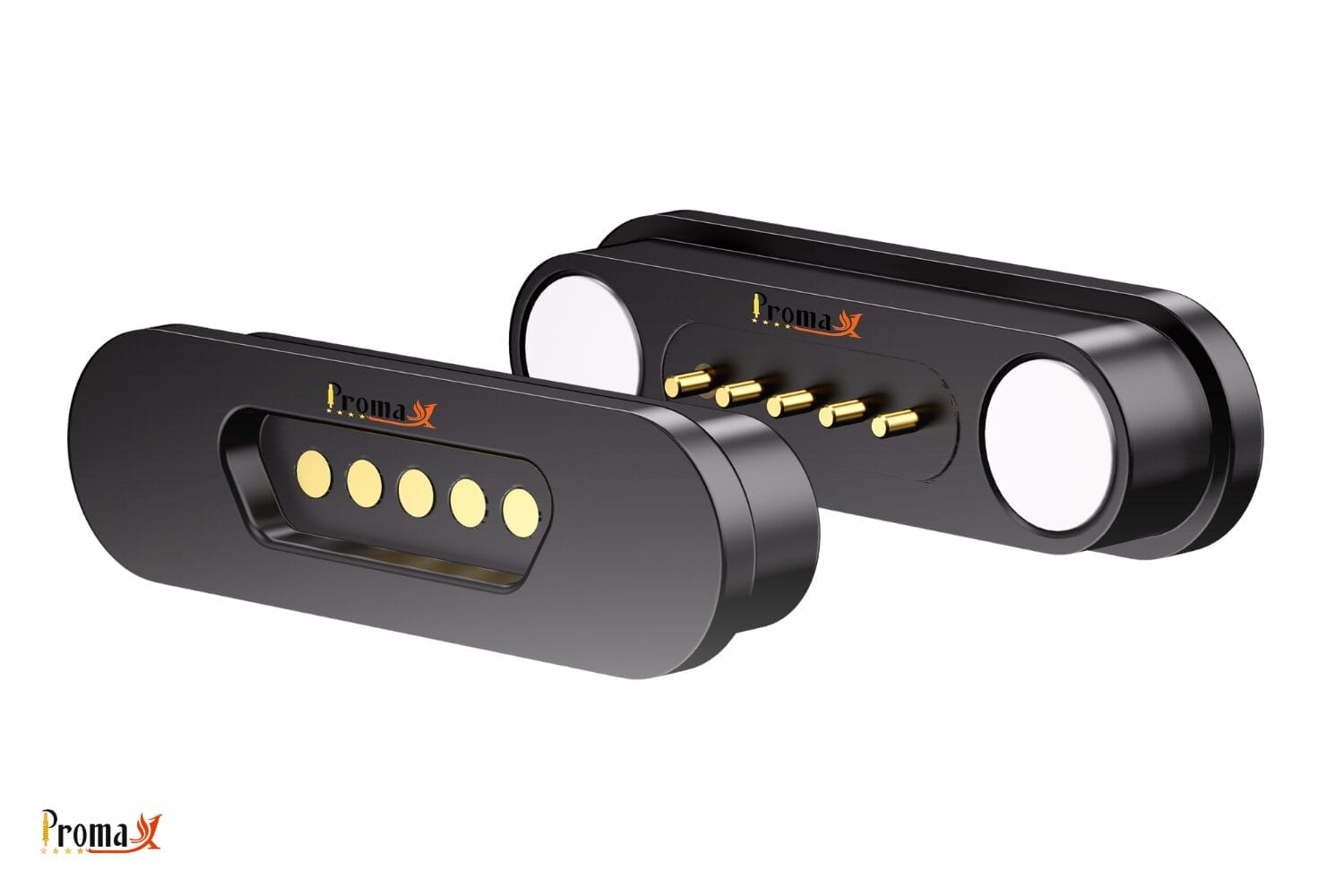

What is a 5 Pin Waterproof Connector & How does it work?

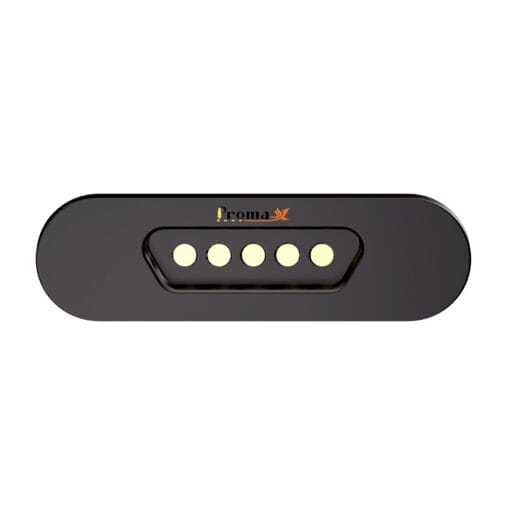

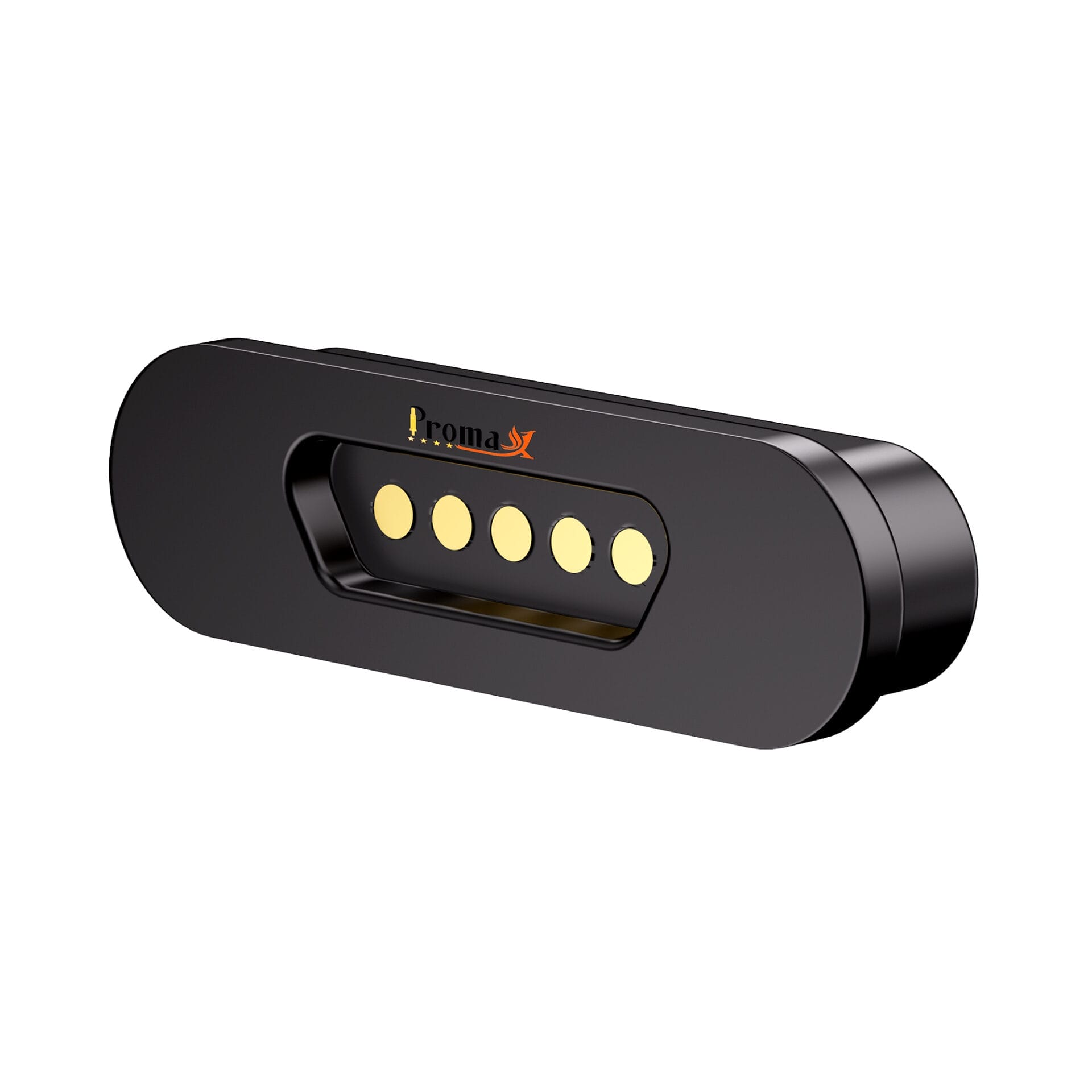

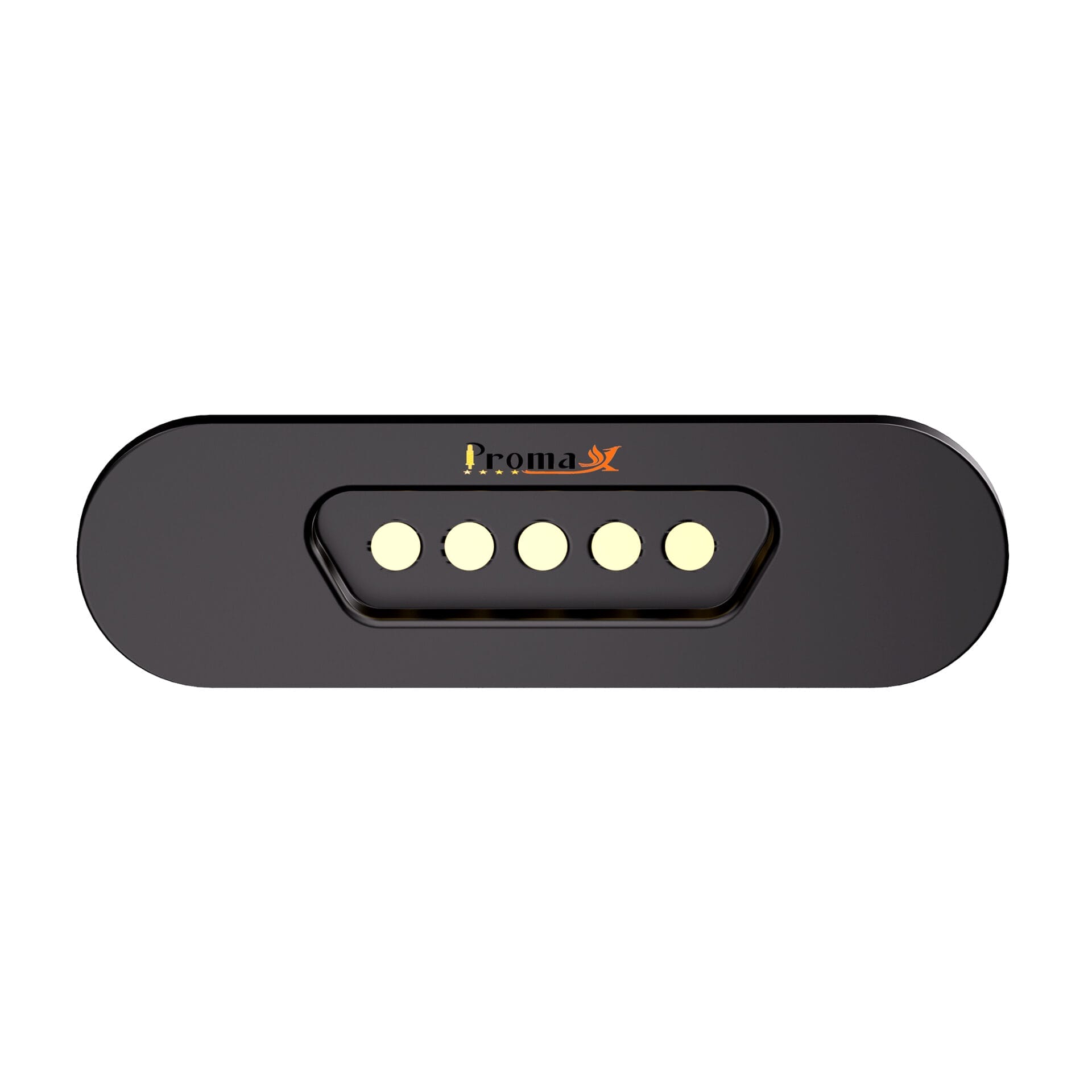

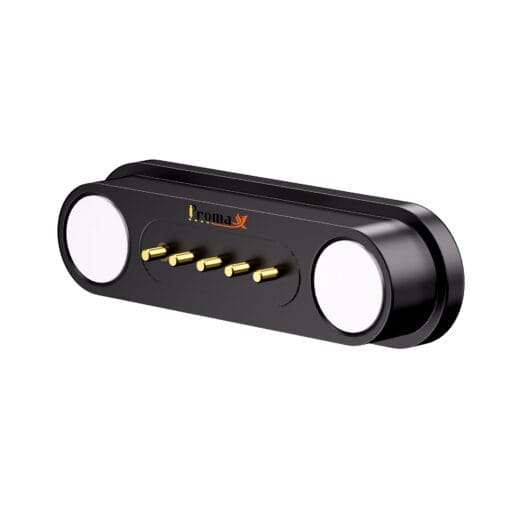

The 5-Pin Waterproof Connector (NF7286-05PA) is an IP67-rated industrial connector. It keeps up reliable electrical connections in intense environments. This precision-engineered connector features five gold-plated pins arranged in a specialized layout that ensures consistent signal transmission while preventing moisture ingress. The connector’s innovative design incorporates multiple sealing mechanisms, including waterproof GLUE technology and precise tolerancing, to achieve its exceptional environmental protection.

Promax Pogo Pin’s connector’s dimensions (19.00 mm × 5.50 mm × 4.50 mm) make it ideal for space-constrained applications while maintaining robust performance. Each pin measures 0.50 mm in diameter with precise 1.50 mm spacing between poles, ensuring optimal contact while preventing signal interference in sensitive wire connections. The 5-pin configuration offers versatility for various electrical applications requiring multiple connection points.

According to industry projections, the waterproof connectors market is expected to grow from $2.9 billion in 2023 to $5.8 billion by 2033, reflecting a 7.2% CAGR driven by increasing industrial and automotive applications.

Why do Engineers Choose IP67-Rated Connectors for Harsh Environments?

IP67-rated connectors provide complete protection against dust ingress and water immersion, making them essential for applications exposed to environmental hazards. The IP67 rating guarantees total dust protection (6) and waterproof capability (7) when submerged up to 1 meter for 30 minutes, ensuring continuous operation even in wet conditions. For even more demanding applications, our products meet IP68 specifications for continuous submersion and IP65 protection against water jets.

The comprehensive sealing technology in our connector includes specially formulated waterproof GLUE that creates a permanent barrier against moisture infiltration. Unlike common connectors with basic O-ring seals, our solution provides protection from multiple directions, preventing water ingress through cable entry points, housing junctions, and contact areas. This seal design ensures long-term performance in outdoor lighting systems and other exposed applications.

Following the standards established by the International Electrotechnical Commission (IEC) and Deutsches Institut für Normung (DIN), this connector continues the evolution of connection technology that began with standardized DIN connectors in the mid-1950s.

Key Protection Features

• Complete dust-tight sealing (IP6X)
• 30-minute water immersion protection to 1 meter (IPX7)
• 48-hour salt spray corrosion and seal out moisture resistance
• 10%RH to 90%RH humidity operation range

The IP (Ingress Protection) rating system is based on the IEC 60529 standard that defines the degrees of protection provided by enclosures, with testing protocols that include resistance measurement, pull strength evaluation, and waterproof verification across multiple environmental conditions.

What Technical Specifications Make Our 5 Pin Connector Superior?

The NF7286-05PA incorporates a specialized North-South pole design with precisely machined contacts that maintain alignment under mechanical stress. This engineering approach ensures reliable connectivity even when subjected to vibration, thermal expansion, and repeated mating cycles. Each terminal is designed for secure lead attachment while maintaining the environmental seal. The connector’s performance remains stable across diverse environments, from outdoor installations to industrial equipment settings.

How does the Design Ensure Long-Term Reliability?

The 5-Pin Connector achieves exceptional reliability through its sophisticated multi-layer protection system. The connector features a proprietary waterproof GLUE application process that creates an impermeable seal around critical junction points. This specialized sealant maintains flexibility across the entire temperature range while preventing moisture penetration.

The connector’s pin design incorporates a specialized working height configuration that maintains optimal contact pressure throughout the connection lifecycle. This ensures the 50 mOhm maximum contact resistance specification is maintained even after thousands of mating cycles, making it an ideal power accessory for critical systems. The screw-lock mechanism prevents accidental disconnect during operation or maintenance procedures.

Durability Features

• High-temperature plastic housing (UL94 V-0 rated)
• Gold-plated pins (5μ” minimum thickness)
• Nickel underlayer (50μ” minimum thickness)
• Specialized waterproof GLUE technology
• Precision-machined contacts with controlled spring force

Which Industries Benefit Most from Our 5 Pin Waterproof Connector?

The NF7286-05PA connector delivers critical performance advantages across multiple sectors where environmental protection and reliable connections are non-negotiable requirements. Its versatile design makes it suitable for diverse applications, ranging from outdoor equipment to sensitive medical devices.

Communications Industry

The NF7286-05PA connector excels in telecommunications applications where equipment must operate reliably in outdoor environments. The connector’s IP67 rating and 48-hour salt spray resistance make it ideal for cellular base stations, network infrastructure, and field communication devices. The low contact resistance ensures signal integrity for data transmission applications.

Automotive Applications

Vehicle systems demand connectors that withstand temperature extremes, vibration, and exposure to various fluids. Our 5-pin connector’s wide temperature range (-40 °C to +85 °C) and complete environmental sealing make it perfect for automotive sensors, lighting systems, and control modules. The UL94 V-0-rated housing provides additional safety through flame resistance.

Aerospace Industry

The aerospace sector requires connectors that deliver flawless performance under extreme conditions. The NF7286-05PA’s gold-plated contacts and comprehensive environmental protection ensure reliability in aircraft systems, avionics, and ground support equipment. The connector’s lightweight design and compact dimensions provide additional benefits for weight-sensitive applications.

Outdoor Lighting Systems

For outdoor lighting fixtures requiring reliable electrical connections in all weather conditions, our 5 wire waterproof connector provides the perfect solution. The lock mechanism prevents accidental disconnect during installation or maintenance, while the durable plastic housing and rubber gaskets resist corrosion and seal out moisture effectively. The 24 amp capacity of our larger models supports high-power lighting applications.

How has Our Connector Been Tested to Ensure Quality?

The NF7286-05PA undergoes comprehensive testing beyond standard industry requirements. Each connector completes a rigorous validation process for quality including:

Our quality assurance laboratory utilizes specialized testing equipment to verify every critical performance parameter. This includes automated optical inspection systems for dimensional verification, specialized resistance measurement equipment for contact performance, and environmental chambers for simulating extreme conditions. We connect every device to electrical testing stations before shipping to ensure perfect functionality.

What Makes Our Manufacturing Process Special?

The NF7286-05PA’s exceptional quality stems from our specialized manufacturing process that emphasizes precision and consistency. Production begins with high-grade materials including UL94 V-0 rated high-temperature plastic for the housing and precision Cu-Zn alloy for the contacts. The pins receive a 50μ” minimum nickel plating followed by 5μ” minimum gold plating to ensure optimal conductivity and corrosion resistance.

Our proprietary waterproof GLUE application system ensures precise sealant placement at critical junction points. This system applies the exact amount of specialized sealant required for optimal protection without interfering with mechanical function. Each female connector undergoes rigorous inspection to ensure proper junction box functionality. Our brand has invested heavily in advanced manufacturing equipment to assemble these precision components.

Manufacturing Quality Controls

• Automated optical inspection for dimensional accuracy
• Multiple in-process electrical testing stations
• Environmental simulation prior to final packaging
• Statistical process control for critical parameters
• 100% functional testing of finished products

How does Our 5 Pin Connector Compare to Standard Alternatives?

Our connector delivers superiority in every critical performance category. The specialized waterproof GLUE technology provides more reliable sealing than standard O-ring designs, while the premium contact materials ensure consistent electrical performance throughout the product lifespan. Unlike competitors, we also offer this product type in both 3 pin and 5-pin configurations to meet various application needs. The wire connectors’ quick-connect design simplifies installation while maintaining environmental protection.

How to Install and Maintain the 5 Pin Waterproof Connector

Proper installation ensures optimal performance of the NF7286-05PA connector. Begin by verifying the connector and mating surface are clean and free from debris. Align the connector according to the North-South pole markings, then press firmly until properly seated. For panel-mount applications, use 0.20 ± 0.02 N·m torque to secure without damaging the housing.

The connector requires minimal maintenance due to its comprehensive environmental protection. For applications in extremely harsh environments, periodic inspection of the housing for physical damage is recommended. When disconnecting, always grasp the connector body rather than pulling on the cable to prevent internal damage. The lock mechanism ensures a secure connection even in high-vibration environments. Installers appreciate how our product simplifies the repair process for field connections.

Installation Best Practices

• Verify proper pin alignment before mating
• Ensure clean mating surfaces
• Apply appropriate torque for mounting hardware
• Route cables to prevent strain on connection points
• Maintain minimum bend radius on attached cables

Ready to Secure Your Electronics with Superior Protection?

The Promax Pogo Pin NF7286-05PA 5-pin waterproof connector represents the pinnacle of connection technology for harsh environments. With its comprehensive protection system, premium materials, and rigorous testing, it delivers the reliability critical systems demand.

Contact our technical team today to discuss how our connector can solve your specific application challenges. Our engineers provide personalized support to ensure you select the optimal configuration for your requirements. We offer and sell this superior product through our global supplier network with competitive pricing for every project specification.
