Bed of Nails Test Fixture

A bed of nails test fixture is a device used to test printed circuit boards (PCBs) during manufacturing. It has many spring-loaded pins, called pogo pins or “nails,” that touch specific test points on the board. This process allows for quick testing of electrical connections, components, and overall function.

These test fixtures are also very precise. They can test with an accuracy of ±0.002 inches and repeatability of ±0.0005 inches. This is possible because their careful design keeps the probes aligned and working reliably.

Need high-quality pogo pins or custom spring-loaded connectors for precise PCB testing? Promax Pogo Pin delivers reliable, durable solutions tailored to your needs. Request a free sample.

Table of Contents

What is the Structure of a Bed of Nails Test Fixture?

A bed of nails test fixture consists of a base with a grid of spring-loaded pins that make contact with specific test points on a PCB. Here’s an overview:

Component	Function
Base Plate	Supports components, prevents movement, and ensures accuracy
Test Points	PCB locations for circuit or component measurement
Spring-Loaded Pins	Ensure consistent contact with PCB test points via spring mechanisms
Wiring Harness	Transmits signals between pins and test equipment
Alignment Mechanism	Positions and secures the PCB for accurate pin contact

Base Plate

The base plate supports the bed of nails test fixtures. Made from materials like aluminum or high-density plastics, it holds all components in place during testing. The plate firmly anchors each component and ensures consistent precision even under the stress of rigorous, repeated testing.

Test Points

Test points are locations on the PCB, like copper pads or vias, used for contact during testing. The pins align with and contact test points to measure circuits and components. Proper placement allows access without disrupting the board’s function.

Spring-Loaded Pins (Pogo Pins)

Spring-loaded pins make electrical contact with the PCB test points. Each pin contains a spring mechanism that adjusts to variations in PCB thickness or position. This design provides consistent contact for accurate measurements.

Wiring Harness

The wiring harness connects the pins to the test equipment. It carries signals to and from the PCB to measure electrical properties. Proper organization prevents interference and maintains accurate results.

Alignment Mechanism

The alignment mechanism positions the PCB using pins, bushings, or guides. It holds the board in place so the pins contact the correct points. Proper alignment avoids errors and damage while improving testing efficiency.

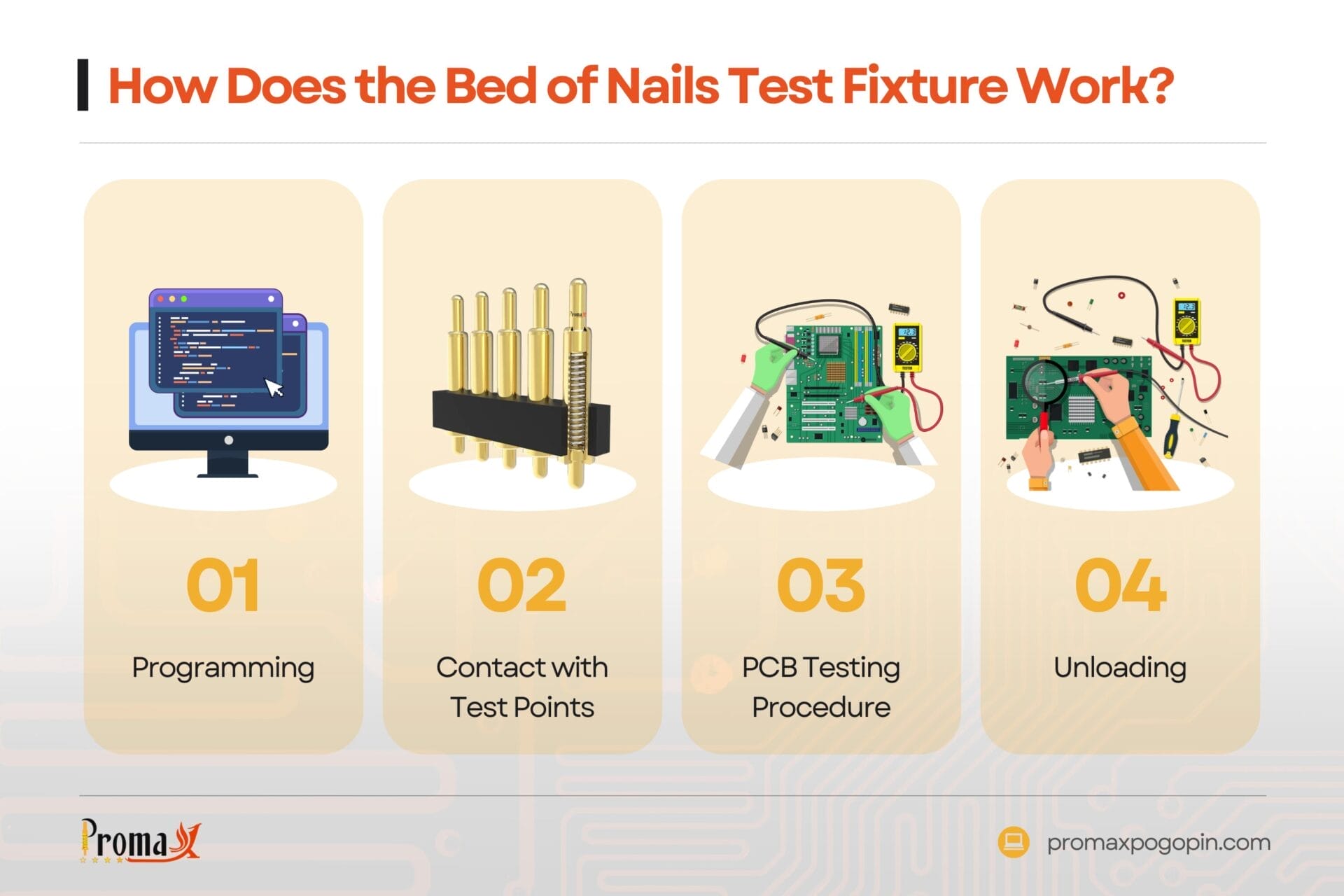

How does the Bed of Nails Test Fixture Work?

A bed of nails test fixture uses spring-loaded pins (pogo pins) to make contact with specific test points on a PCB. These pins establish temporary electrical connections, enabling a range of tests to be performed during the manufacturing process.

1. Programming

Programming defines the sequence and parameters for the bed of nails test. Pre-configured software controls which tests are performed, including voltage, current, and signal integrity checks.

The program automates the testing process, reducing manual errors and increasing consistency. It can also be updated quickly to match design changes or accommodate different printed circuit boards.

2. Contact with Test Points

Spring-loaded pins make direct contact with the designated test points on the PCB. Pressure is applied to the board manually or through a vacuum mechanism to secure the connection. This allows for consistent electrical contact, even if slight misalignments or variations exist in the PCB’s position or thickness.

3. Printed Circuit Board Testing Process

The PCB testing process follows a step-by-step procedure:

The PCB is placed in the nest or fixture base.
A mechanical hood lowers to hold the board securely in place.
Spring-loaded pins establish contact with the test points.
Pre-programmed automated tests begin, measuring electrical properties like resistance, current, and signal quality.
The system collects and records test data.
A report is generated based on the test results.
The mechanical hood lifts and releases the PCB.

4. Unloading

Once testing is complete, the PCB is removed carefully to prevent damage to the board and pins. Manual or automated systems may assist in lifting the PCB cleanly from the pins. Proper unloading preserves the test equipment and prepares the board for the next stage of production or inspection.

What are the Different Bed of Nails Test Fixture Designs?

Bed of nails test fixture designs include movable flying probes, regular grid layouts, top and side probing, clamshell fixtures, custom nail placement, micro fixtures, and vacuum-assisted fixtures. These designs vary based on PCB complexity and testing requirements:

Movable Flying Probes: Flying probes move along X and Y axes to reach difficult test points.
Regular Grid Layout: Pogo pins are arranged in evenly spaced rows and columns — ideal for standard PCBs.
Top and Side Probing: Fixtures designed to access test points or connectors from multiple angles.
Clamshell Fixtures: Hinged plates close over the board and allow access to both sides for double-sided testing.
Custom Nail Placement: Pins are positioned to match test pads on irregular or complex board designs.
Micro Fixtures: Small fixtures with minimal pins provide a cost-effective solution for simple boards.
Vacuum-Assisted Fixtures: Vacuum pressure holds the PCB in place, improving signal stability but increasing cost.

What are the Benefits of Bed of Nails Testing?

Bed of nails testing offers rapid, accurate, and comprehensive testing of PCBs, enabling early defect detection and improving product quality and reliability.

Benefit	Description
Faster Testing	The bed of nails test can evaluate multiple points on a PCB at the same time, speeding up the testing process.
Reliable Accuracy	Direct contact with specific test points provides accurate and consistent results.
Cost-Effective for High Volumes	While initial setup costs may be higher, the test becomes cost-effective for large production runs due to its efficiency.
Customizable for Various PCBs	The bed-of-nails test can be tailored to test multiple products on the same fixture because it’s easily adapted for different PCB designs.
Effective Fault Detection	This test identifies a range of issues, including open circuits, short circuits, and faulty components.
Built for Durability	Bed of nails fixtures are designed for long-term reliability, so can handle repeated use without significant wear.
Early Defect Identification	Catches defects early to help prevent waste and improve product quality.

What are the Disadvantages of a Bed of Nails Test Fixture?

Bed of nails test fixtures can be expensive to design and manufacture. Moreover, they may not be suitable for complex PCBs with many fine-pitch components.

High Initial Cost

Developing a custom fixture for each PCB design requires a large investment in design and fabrication. This expense can be too high for small production runs or prototypes.

Limited Access to Dense or Complex Boards

As PCBs become more compact and densely populated, accessing all necessary test points becomes challenging. Components like ball grid arrays (BGAs) may lack exposed test points, which complicates the testing process.

Potential for Physical Damage

The spring-loaded pins apply pressure to the PCB during testing. If not properly calibrated, this force can damage delicate components or the board itself, leading to reliability issues.

Maintenance Requirements

Over time, the pins and contacts can wear out or become misaligned, which is why regular maintenance is necessary. The bed of nails may also need to be replaced after extended use. This upkeep adds to the overall cost and downtime in the testing process.

Lack of Flexibility for Design Changes

Any modification in the PCB design may require a new or significantly altered fixture, resulting in extra time and expenses to accommodate design iterations.

Where is the Bed of Nails Test Fixture Used?

Bed of nails test fixtures are used in design verification, end-of-line testing, troubleshooting, focused functional testing, and more:

Manufacturing Quality Control

Bed of nails fixtures are integral to end-of-line quality control. They facilitate rapid testing of assembled PCBs to identify defects like open circuits, short circuits, and component failures before products reach the market.

Research and Development (R&D)

During the R&D phase, engineers use these fixtures to validate new PCB designs. Engineers can thoroughly test circuit integrity and functionality, making sure that prototypes meet design specifications and perform as intended.

Functional Testing

Bed of nails test fixtures are employed in functional testing to verify that PCBs operate correctly within their intended applications. This involves assessing the performance of integrated circuits and overall system functionality under various conditions.

In-Circuit Testing (ICT)

These fixtures are commonly used for in-circuit testing, to evaluate individual components on the PCB without removing them. This process checks for accurate placement, orientation, and functionality of components.

High-Volume Production Testing

In large-scale production environments, bed of nails test fixtures provide rapid testing solutions. Their ability to quickly assess multiple test points makes them suitable for high-volume PCB production lines.
