A Staggered Pin Grid Array (SPGA) is a type of integrated circuit (IC) packaging where the pins are arranged in a staggered, diagonal grid pattern. This design allows many more pins to be placed within a limited space compared to traditional Pin Grid Array (PGA) configurations.
The SPGA design is older than newer technologies like Ball Grid Arrays (BGA) and Land Grid Arrays (LGA), but it remains a reliable choice for engineers. SPGA is often used in microprocessors and other ICs where higher pin counts are required without increasing the overall package size. It supports complex systems with demanding power and signal requirements, such as high-performance servers and advanced gaming setups.
Looking for reliable, high-performance pin solutions? Join forces with Promax Pogo Pin to meet your design needs with precision-engineered products built for durability and efficiency. Contact us today to learn more!
Design and Structure of an SPGA
An SPGA layout has a unique pin arrangement, a high pin density, and an open central area. Here’s how each is laid out:
Pin Arrangement
In an SPGA, pins are organized in diagonal rows, forming a diagonal square lattice within the package’s square boundary. This staggered configuration allows for closer pin placement, but it maintains precise pin spacing (to prevent electrical interference) and reduces signal crosstalk. Additionally, the diagonal pin arrangement contributes to structural stability and helps decrease mechanical stress.
Pin Density
The staggered layout of an SPGA allows for a higher pin count within the same surface area compared to standard pin grid arrays. This increased pin density supports more complex integrated circuits by providing extra connections for power, ground, and signals, which is particularly handy for high-performance applications. For example, SPGA solutions are commonly used in communication systems like high-speed network routers and base stations that require advanced data processing.
Central Area
SPGAs usually feature an empty area in the center of the package without pins, which allows for improved heat dissipation and accommodates die placement. The absence of pins in this region also reduces the risk of mechanical stress during insertion into pin grid array sockets, contributing to its overall reliability.
Where do You Use a Staggered Pin Grid Array?
Staggered pin grid arrays are used in numerous devices, including microprocessors, advanced microcontrollers, ASICs, and embedded system applications (e.g., medical devices). SPGA layouts might be older technology, but they’re found in diverse processors and devices with a high pin count.
Processors
SPGA packages are used in various microprocessors, especially Intel processors based on Socket 5 and Socket 7 architectures. The staggered pin arrangement accommodates the increased number of connections needed for advanced processing capabilities without increasing the overall package size.
High Pin Count Devices
SPGA is employed in other high pin count integrated circuits, like complex microcontrollers and specialized application-specific integrated circuits (ASICs). The pin layout provides the necessary interconnections for intricate functionalities while maintaining a manageable package footprint, and it keeps the devices reliable by helping with heat dissipation.

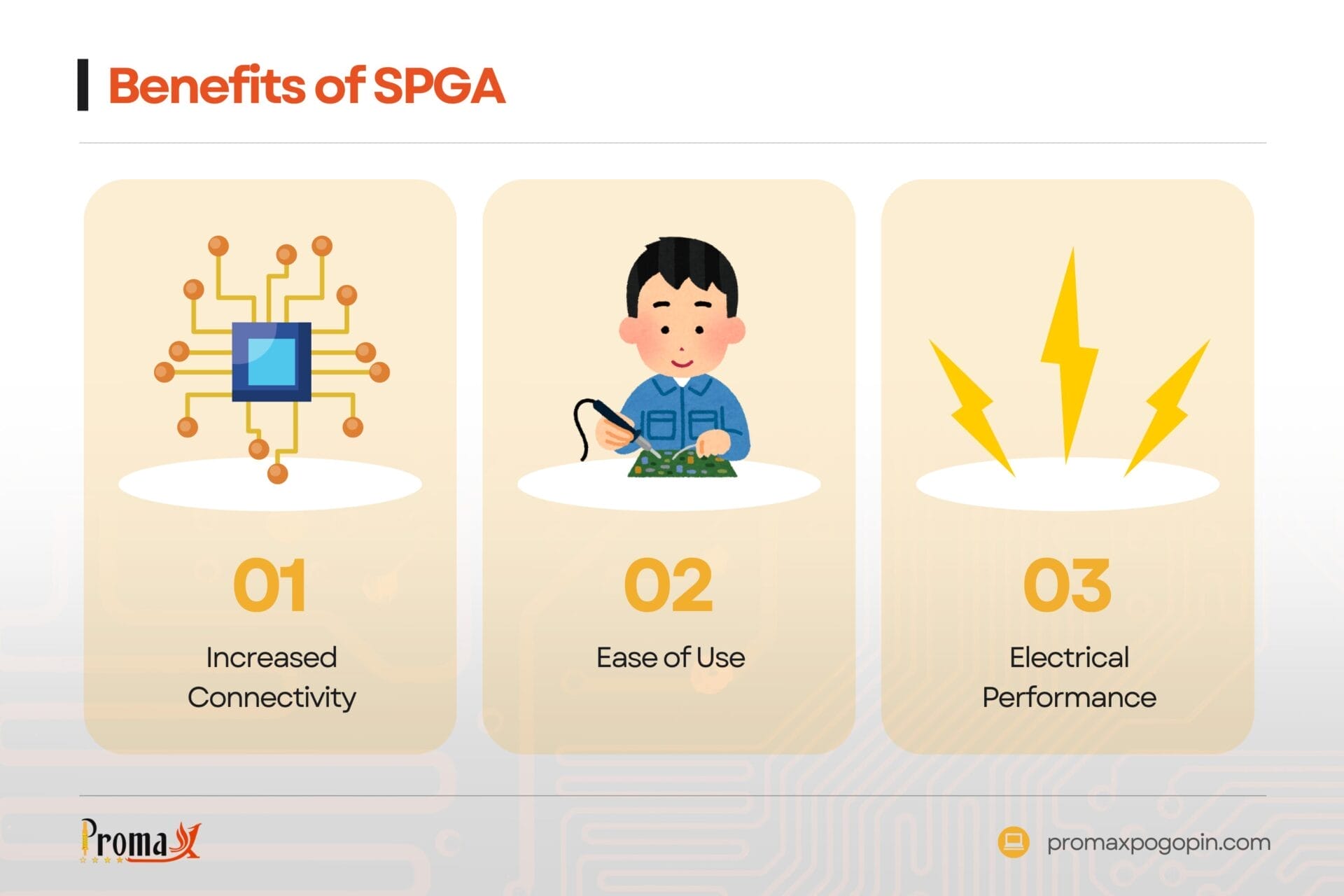

What are the Advantages of SPGA?
The staggered pin grid array configuration offers several advantages for electronic devices, including:
- Increased Connectivity
The staggered arrangement in SPGA design supports more input and output connections within the same package size, accommodating complex ICs like microprocessors that need numerous interconnections. This is because SPGA allows for a higher pin density compared to traditional pin grid arrays. - Ease of Use
SPGA packages are designed for simple, straightforward installation and replacement of ICs. The pin configuration aligns easily with corresponding pin grid array sockets on motherboards or circuit boards, simplifying the assembly process. This ease of use is beneficial for both manufacturing and maintenance. - Electrical Performance
The SPGA design contributes to improved electrical performance by providing shorter and more direct connections between the IC and the circuit board. This configuration reduces signal propagation delays and boosts signal integrity, which is especially important in high-speed computing applications.
SPGA vs. Other Technologies
When comparing SPGA to other IC packaging technologies, several distinctions emerge in terms of design, application, and performance.
| Type | Pin Arrangement | Pin Density | Installation |
|---|---|---|---|
| SPGA | Staggered diagonal grid of pins | Higher than PGA | Socketed |
| PGA | Straight grid of pins | Lower due to linear grid | Socketed |
| BGA | Solder balls in a grid | Very high | Soldered to PCB |
| LGA | Flat contact pads (lands) | High | Socketed |
Pin Grid Array (PGA)
In a standard PGA, pins are arranged in a regular grid on the underside of the package. This configuration facilitates easy insertion into corresponding sockets on PCBs. Although PGAs are user-friendly and allow for straightforward replacement, they have limitations in pin density due to the linear arrangement of pins. This linear arrangement can restrict the number of connections.
Ball Grid Array (BGA)
BGA packages use an array of solder balls on the underside of the IC to establish connections with the PCB. This design supports a higher density of connections and enhances heat dissipation, which is beneficial for high-performance applications. However, BGAs are soldered directly onto the PCB, making them difficult to replace or upgrade.
Land Grid Array (LGA)
In LGA packaging, the IC features flat contact pads (lands) on its underside, which align with pins located on the socket of the motherboard. This arrangement allows for a high density of connections and reduces the risk of damage to the IC during installation, as there are no protruding pins on the package. LGAs are commonly used in modern processors, offering reliable performance and easy installation.
What are the Downsides of Staggered Pin Arrays?
While SPGA offers benefits like increased pin density, it also presents certain challenges. The most common challenges include:
- Complexity: The staggered pin configuration in SPGA packages can complicate the manufacturing process, increasing production time and costs.
- Heat Management: The dense pin arrangement can impede airflow around the IC, which can lead to hotspots.
Partner with Promax Pogo Pin for all your pogo pin needs. Reach out for a free sample and let’s discuss how we can help you.
Staggered Pin Grid Array FAQs
How does SPGA impact signal integrity in complex circuits?
SPGA improves signal integrity in complex circuits by offering shorter, more direct connections between the integrated circuit and the circuit board. The staggered pin arrangement reduces delays and minimizes interference. Plus, the organized pin layout helps maintain consistent electrical performance by reducing crosstalk.
Can SPGA packages handle high thermal loads in modern systems?
Despite the central area without pins to assist with heat dissipation, the dense pin arrangement of SPGAs can restrict airflow and make cooling more difficult compared to newer technologies. To handle high thermal loads, external cooling applications like heat sinks or active cooling systems are often needed when SPGA packages are used in modern technology.
