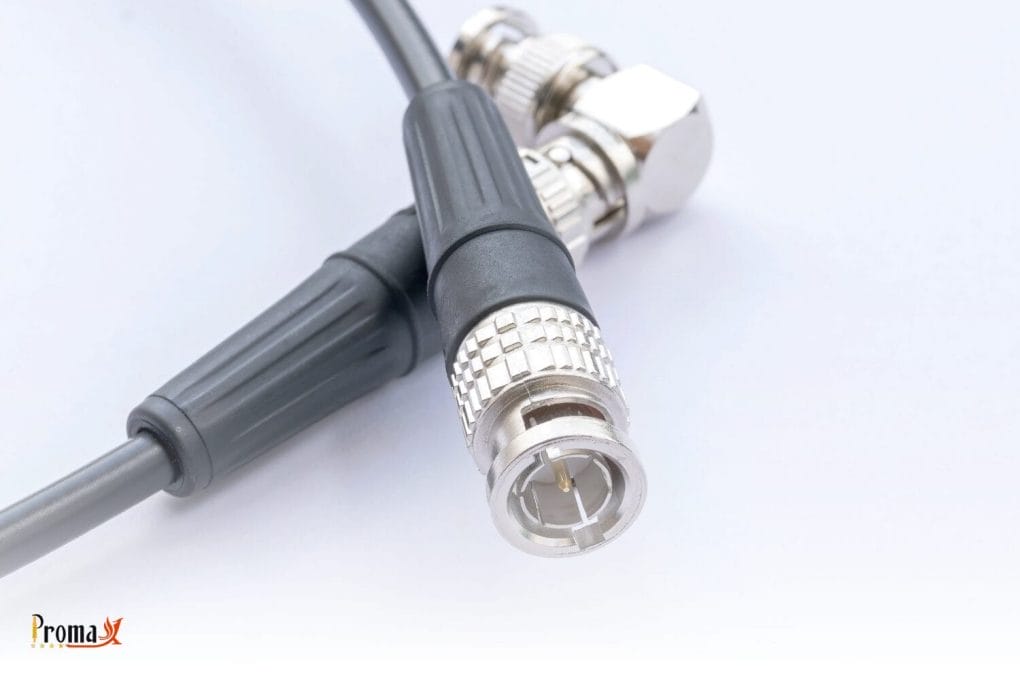

What is a BNC Connector?

A BNC connector provides quick connection and disconnect. This radio frequency connector handles signals effectively and joins coaxial câbles with a simple twist and lock motion. The bayonet-style locking mechanism facilitates rapid connections, named after Bayonet Neill-Concelman, the inventors.

BNC connectors support RF signals up to 4 GHz effectively. These can be found in video equipment, test tools, and networks. The design features a center pin and a circular housing, and the bayonet feature ensures easy and secure connections every time. This means you can rely on the BNC every single time.

Features of BNC Connectors

BNC connectors stand out for their ease of use. They also provide a highly effective and reliable design. Each BNC connector consists of a male plug and a female jack. The male plug incorporates two essential bayonet lugs, which lock securely into the female jack’s slots. This allows for a dependable connection.

Benefits of BNC Connectors

BNC connectors offer numerous advantages across a wide range of applications, from quick connections to low signal loss. They are a reliable choice for stable signal transmission. BNC connectors are also used to connect aviation electronics.

• Quick connect/disconnect saves time and money.
• A secure bayonet lock improves its reliability.
• Low signal loss ensures a quality signal.
• The compact size fits tight spaces with ease.
• Versatile cable combinations are available.
• A cost-effective solution saves on expenses.

BNC Connectors Technology

BNC technology places emphasis on ensuring signal integrity. These connectors feature a coaxial design with a pin and shield, which minimizes signal interference and data loss. The radio frequency connector is an absolute essential.

Recent designs can handle signals up to 12 GHz now, widening their use in high-speed applications. This includes high-speed data and video transmission. Now they can work in demanding aviation electronics settings.

BNC Connector Materials

BNC connectors are made from specific materials, such as brass and copper alloy. These materials dictate what role the part will play. The chosen material impacts performance and overall durability.

• Body: Brass or nickel-plated brass are effective choices.
• Center contact: Beryllium copper provides a very reliable connection.
• Insulator: PTFE ensures excellent electrical isolation.
• Outer conductor: Copper alloy provides good signal conductivity.

BNC Applications

BNC connectors are useful in several different industries and are a popular choice for electronic systems. These connectors excel at transmitting video signals.

• Video equipment uses them for stable links.
• Test and measurement devices require accurate signals.
• Ethernet networks need very reliable connectivity.
• Radio and television broadcasting depends on BNC.
• Security cameras use BNC connectors for surveillance.
• Aerospace systems need rugged, reliable connectors.

Promax Pogo Pin: Affordable BNC Connector Manufacturing

Promax Pogo Pin delivers superior quality BNC connectors. Our connectors are offered at highly competitive prices and we incorporate advanced manufacturing techniques. We ensure reliability and the best possible performance. Our connectors consistently meet industry standards of performance.

Contact Promax Pogo Pin for your BNC connector requirements. We can provide you with custom solutions, and are able to fill large bulk orders efficiently. Our team can help you get the perfect BNC for the job, and we look forward to working with you!
