Connecteur de broche pogo SMT/SMD

Are you looking for the SMT/SMD Pogo Pin Connector of the precise size? Are you greatly worried about how to find high-quality products, the shortest delivery time, the lowest cost, and optimal services? Promax Pogo Pin is a professional Pogo Pin Connector ODM Factory & Manufacturer since 2014, we believe we can provide you with the best solutions & perfect products, looking forward to win-win cooperation!

Demander un devis

TAILLE

Diamètre Φ : ≥0,7 mm, course totale ≥0,2 mm, course de travail ≥0,05 mm

FORME

Fond plat pour SMT/SMD, ou autres

MATÉRIAU

Laiton, SUS304/316F/L, CuTe, HBi59, Cu-Sn, etc

DRESSAGE

Au, Ag, Pd, Pt, Rh, Ru, Ni, etc.

Quantité minimale de commande

3000 pièces par T&R, plateau, tube, boîte, sac PE, etc.

Livraison

DHL, UPS, expédier l'échantillon dans les 2 semaines, production en série dans 3 à 4 semaines

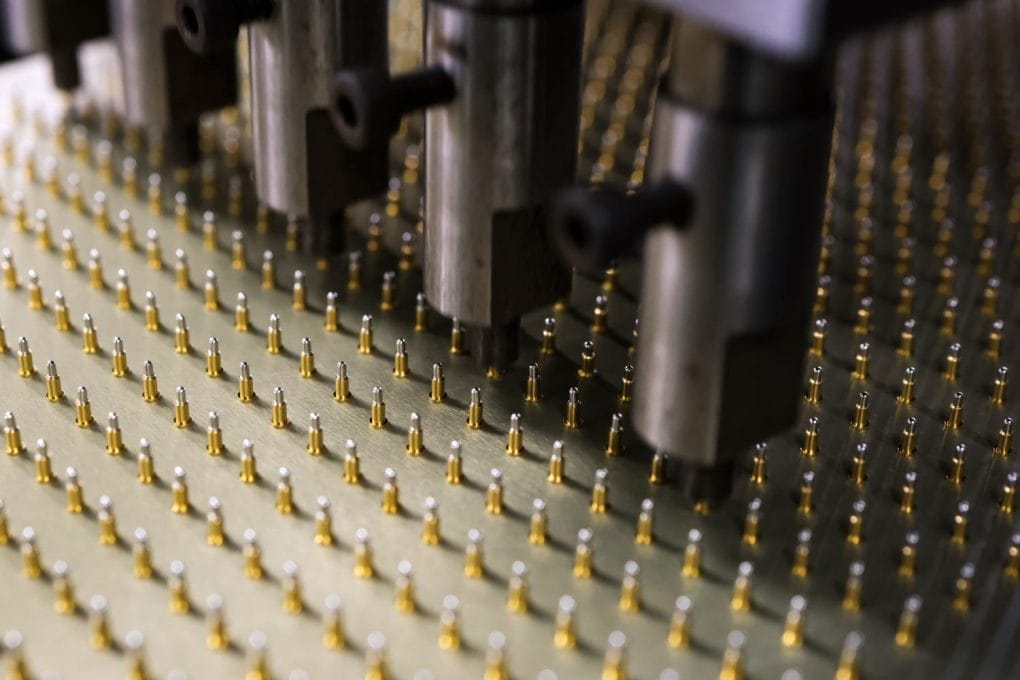

Use Case of SMT/SMD Pogo Pin Connector

The case was describing an SMT/SMD pogo pin connector used in an electric toothbrush from a famous electric appliance company YOUMAY group, based on the customer’s requests, the connector provided by us would be used in the bottom charging base, so as to realize the function of charging, and, the designed battery life was 3 months, It is used for electromagnetic induction of small power, which can obtain electric energy to charge the battery and drive the small motor.

So, it must be high precision, for us, we needed to just provide high-quality products based on the customer’s requirement. It was a 2pins flat bottom connector, rated voltage & current were DC 12V and 1.0A, full stroke was 1.50mm, working stroke was 1.0mm, spring force was 60gf±20% at working height, the contact resistance was 50mohm maximum, the package was Tape & Reel.

Our R&D engineer studied all requirements

The material of the plunger and the barrel was brass, and their plating was Au 3U” min over 50-100U” Ni. the material of the spring was SUS304 with stainless steel without surface treatment, and The housing was made of HTN.

The SMT/SMD connector is generally made by the riveting plunger, and plunger, and spring into a single pogo pin through an automatic crimping machine and then pressing it onto a housing. If SMT was required, a cap needed to be added to feed in & out during SMT. The barrel bottom of the SMT/SMD pogo pin connector was flat and fixed on the PCB circuit board by SMT wave solder. Because the bottom of the barrel was flat, double-sided soldering can be realized too, which not only saves product space but also saves cost.

LireMoins

Inner structurer of SMT/SMD Pogo Pin connector

Quelle est sa structure ?

The main parts of the SMT/SMD pogo pin connector can be divided into plunger, barrel, spring, and housing. The size of the core depends on the number of pogo pins. The common internal structure can be divided into three or four parts.

The three parts formula is composed of a flat bottom cylinder, plunger, and spring. On a three parts basis, a copper ball or T-pin is added between the spring and the plunger. Compared with the three parts structure, the current resistance of the four parts structure is significantly improved.

LireMoins

Quels sont les avantages de l'utiliser ?

Compared with the traditional connector, it can be quickly soldered on the PCB board by SMT technology, saving more space. SMT/SMD pogo pin connector parts using turning processing, do not need to open mold production, saving production time.

In the process of design and processing, it is easy to realize rapid replacement or switching, which effectively reduces the production cost. It also has the characteristics of stable contact and long working life.

LireMoins

La broche pogo SMT/SMD est un connecteur dont le cœur est une broche pogo,

qui peut transmettre à la fois puissance et signal. Parce que la broche pogo à fond plat possède les fonctions de miniaturisation, de multipolarisation et de haute fiabilité, elle est largement utilisée dans l'électronique grand public, les équipements de communication, la maison intelligente, les nouvelles énergies, les tests de chipsets, l'aérospatiale et d'autres domaines.

LireMoins

The product function of consumer electronics and communication equipment is more and more,

mais l'espace occupé diminue. La broche pogo à fond plat répond à deux exigences, elle est donc largement utilisée dans le domaine de l'électronique grand public et des équipements de communication.

LireMoins

Ces dernières années, des applications populaires telles que les casques Bluetooth TWS à chargement Bluetooth,

les cigarettes électroniques, la recharge électrique, les montres connectées, les bagues connectées et d'autres domaines liés aux appareils portables intelligents, permettant ainsi la recharge ou la transmission de signaux pour ces applications.

LireMoins

Y a-t-il des inconvénients potentiels à l'utiliser ?

Compare with other types of pogo pins, the soldering strength of SMT/SMD pogo pins is relatively weak. The lateral thrust that it can bear is relatively small. In addition, when the height required by the application is less than 1.5mm, it is difficult to realize.

LireMoins

OBTENIR UN DEVIS

Pourquoi est-ce la meilleure solution ?

Lorsque le volume de commande du client est relativement faible, le coût de l'estampillage personnalisé est relativement élevé. Vous pouvez choisir le connecteur à broches pogo à faible coût pour répondre à la demande de production et réduire également les coûts de production.

If the application of your products has the characteristics of miniaturization and multi-polarization, you can choose the SMT/SMD pogo pin. it saves the space of PCB, and it can also be soldered on PCB on both sides, making the spatial structure of application products more beautiful.

LireMoins

OBTENIR UN DEVIS

Comment choisir le bon ?

Choisissez-vous un connecteur d'un diamètre et d'une taille spécifiques ? Promax Pogo Pin a toujours été doué pour concevoir des produits pour des applications spécifiques. Que nous modifiions son diamètre, sa longueur ou sa force de ressort, nous pouvons produire avec précision le connecteur pogo pin requis. Personnalisation bienvenue !

At the same time, it can also meet the targets of customers in terms of functional reliability requirements, flow size, and others. We will also provide a multi-step quotation for customers, and provide customers with the most competitive price.

LireMoins

OBTENIR UN DEVIS

conclusion:

The pogo pin connector is a good choice for consumer electronics products, which can ensure that your products are connected firmly. Simple production and low production costs make him get the attention of all walks of life.The pogo pin connector will be used more and more widely in future emerging fields. If you want to know more about the pogo pin connectors or need to help select the correct connector for your project, please contact us at any time. Our team is happy to help you.
