PCB Pins Connector

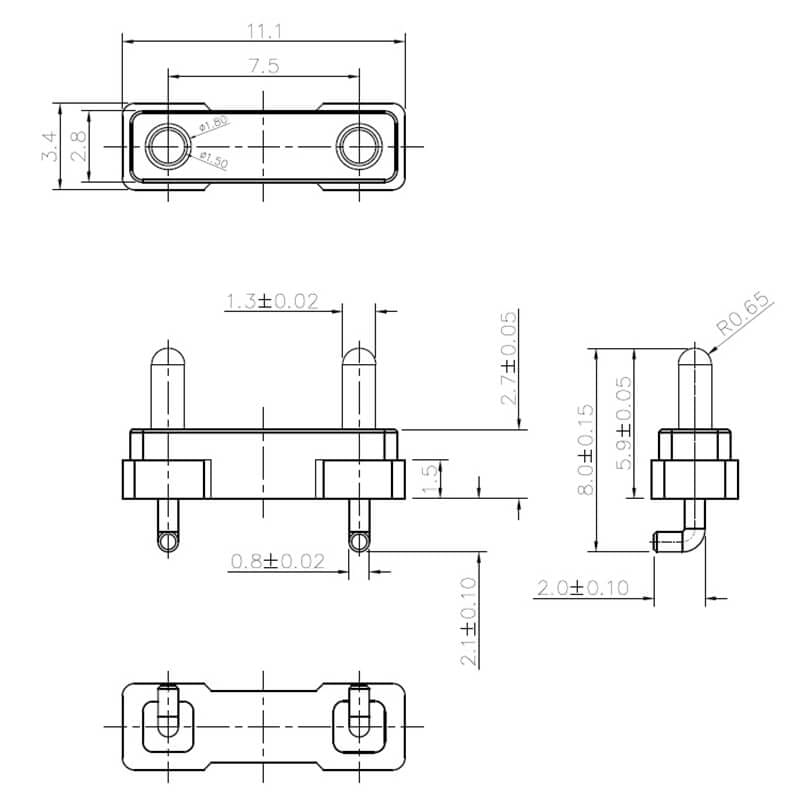

2Pin, 7.50mm Pitch, NF3847-02RA

  • Part Number
  • Length
  • Width
  • Height
  • Plated
  • Rated Current
  • NF3847-02RA
  • 11.10 mm
  • 8.00 mm
  • 3.40 mm
  • Au 3 u”
  • 3.0 A

2D

3D

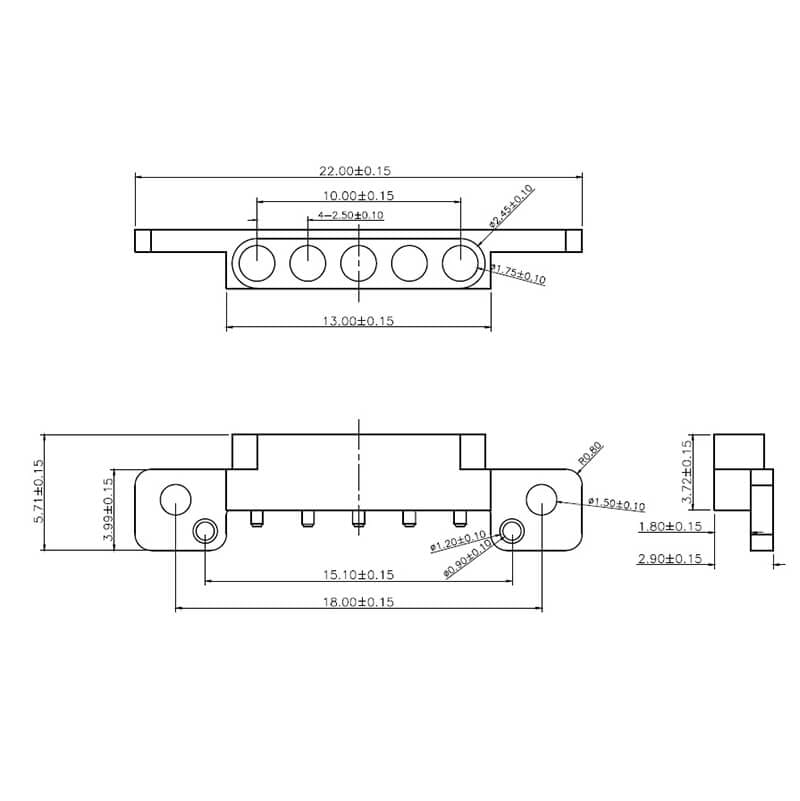

5Pin, 2.50mm Pitch, NF4565-05PA

  • Part Number
  • Length
  • Width
  • Height
  • Plated
  • Rated Current
  • NF4565-05PA
  • 22.00 mm
  • 5.71 mm
  • 2.90 mm
  • Au 3 u”
  • 1.0 A

2D

3D

6Pin, 3.00mm Pitch, NF3341-06RA

  • Part Number
  • Length
  • Width
  • Height
  • Plated
  • Rated Current
  • NF3341-06RA
  • 21.30 mm
  • 6.30 mm
  • 3.00 mm
  • Au 10 u”
  • 1.0 A

2D

3D

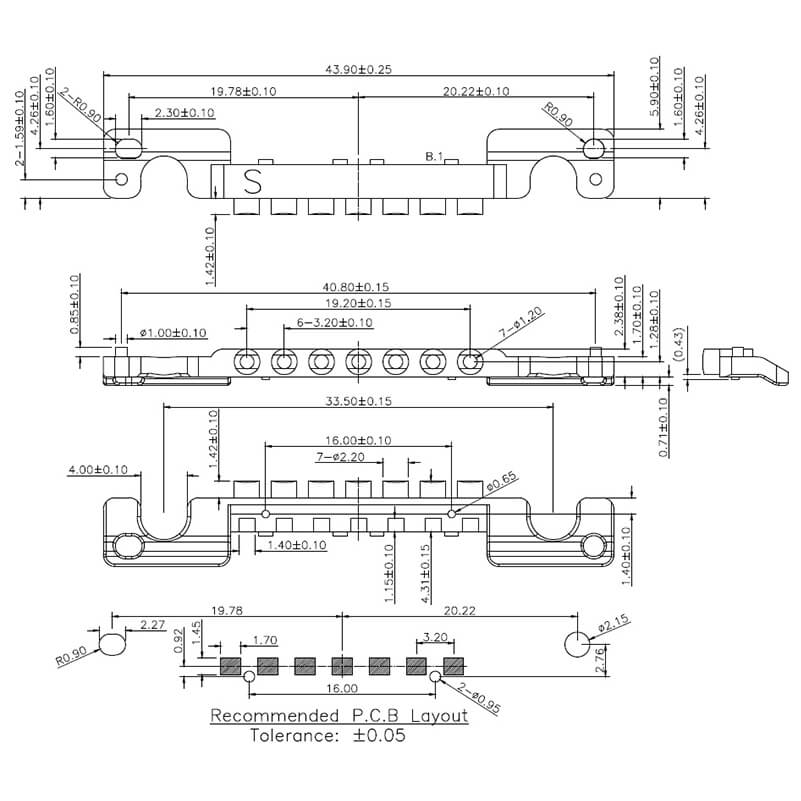

7Pin, 3.20mm Pitch, NF2042-07RA

  • Part Number
  • Length
  • Width
  • Height
  • Plated
  • Rated Current
  • NF2042-07RA
  • 43.90 mm
  • 7.32 mm
  • 3.09 mm
  • Au 10 u”
  • 1.0 A

2D

3D

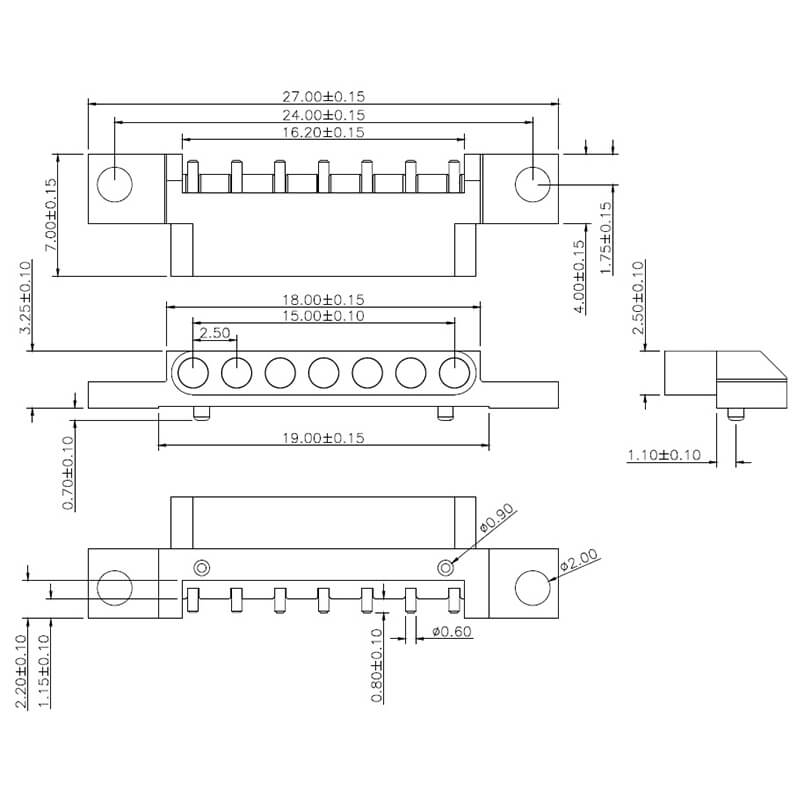

7Pin, 2.50mm Pitch, NF4347-07PA

  • Part Number
  • Length
  • Width
  • Height
  • Plated
  • Rated Current
  • NF4347-07PA
  • 27.00 mm
  • 7.00 mm
  • 3.25 mm
  • Au 3 u”
  • 2.0 A

2D

3D

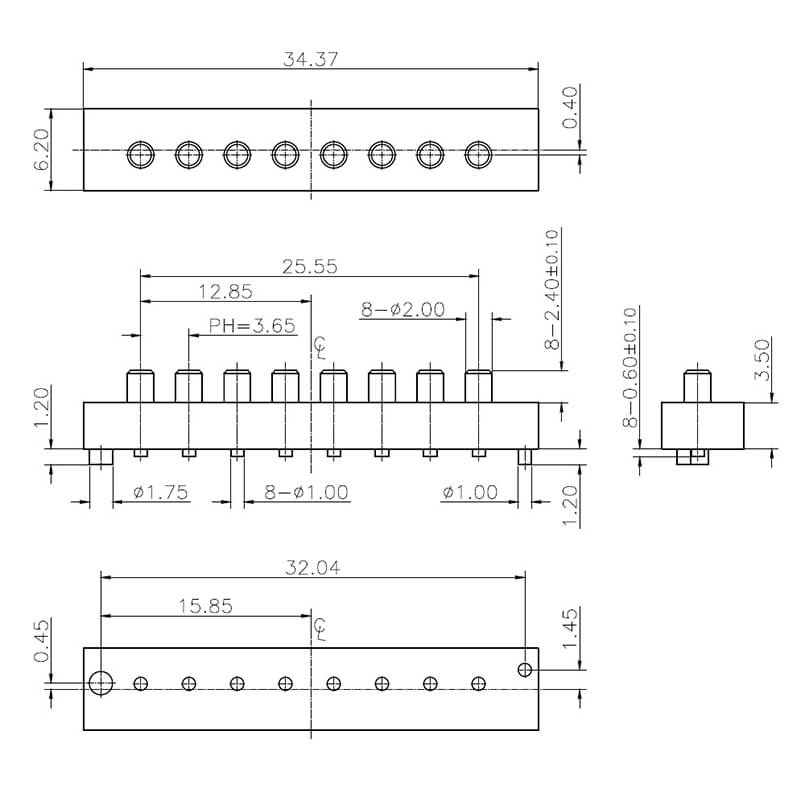

8Pin, 3.65mm Pitch, NF3799-08PA

  • Part Number
  • Length
  • Width
  • Height
  • Plated
  • Rated Current
  • NF3799-08PA
  • 34.37 mm
  • 6.20 mm
  • 5.90 mm
  • Au 5 u”
  • 1.0 A

2D

3D

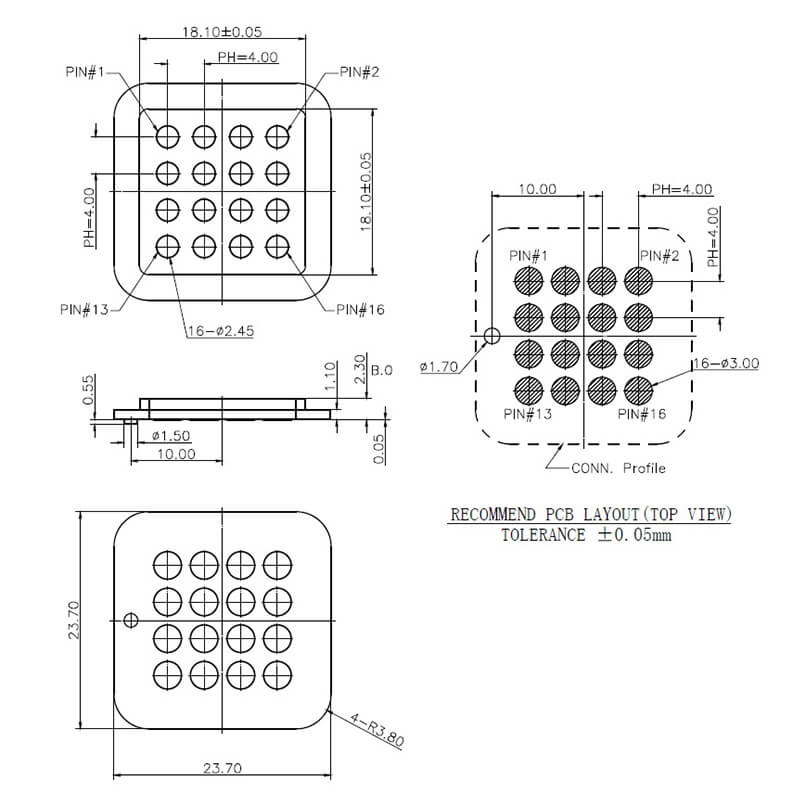

16Pin, 4.00mm Pitch, NF3800-16RC

  • Part Number
  • Length
  • Width
  • Height
  • Plated
  • Rated Current
  • NF3800-16RC
  • 23.70 mm
  • 23.70 mm
  • 2.30 mm
  • Au 5 u”
  • 1.0 A

2D

3D

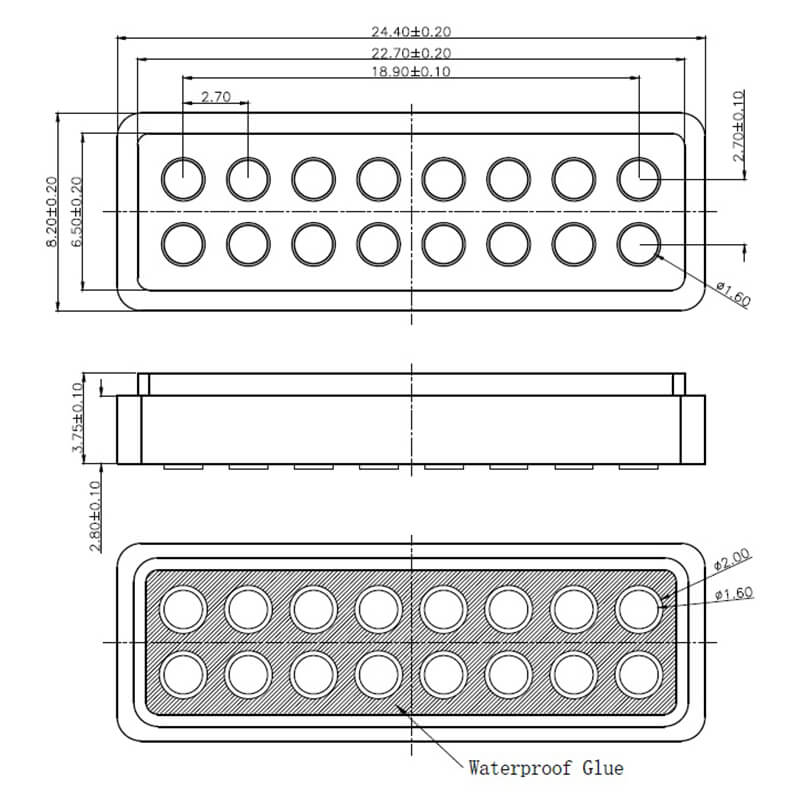

16Pin, 2.70mm Pitch, NF4519-16PA

  • Part Number
  • Length
  • Width
  • Height
  • Plated
  • Rated Current
  • NF4519-16PA
  • 24.40 mm
  • 8.20 mm
  • 3.75 mm
  • Au 10 u”
  • 1.0 A

2D

3D

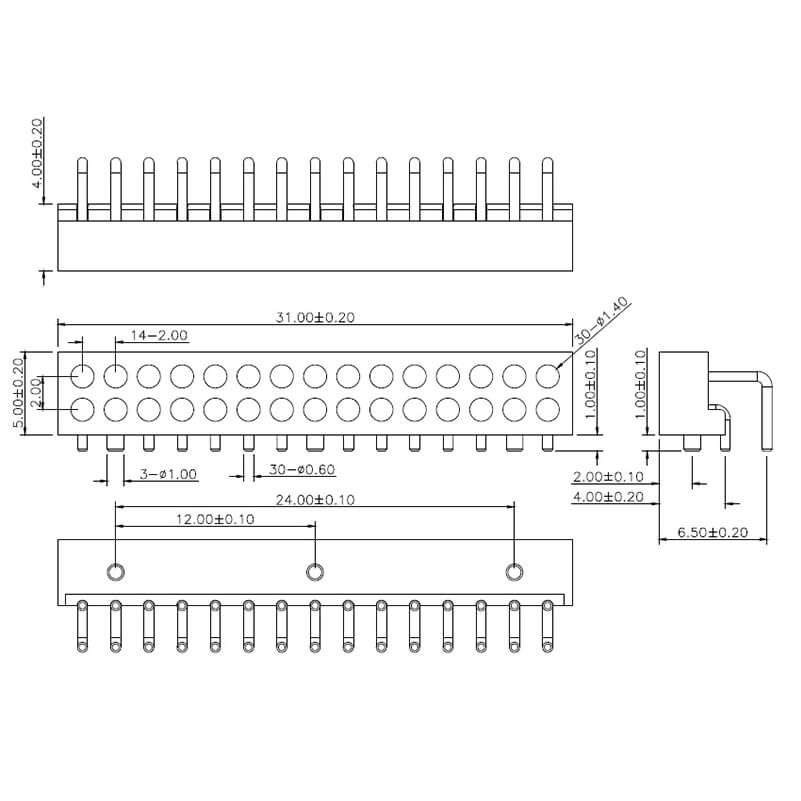

30Pin, 2.00mm Pitch, NF3979-30PA

  • Part Number
  • Length
  • Width
  • Height
  • Plated
  • Rated Current
  • NF3979-30PA
  • 31.00 mm
  • 5.00 mm
  • 4.00 mm
  • Au 5 u”
  • 1.0 A

2D

3D
