Double Ended Pogo Pin Connector

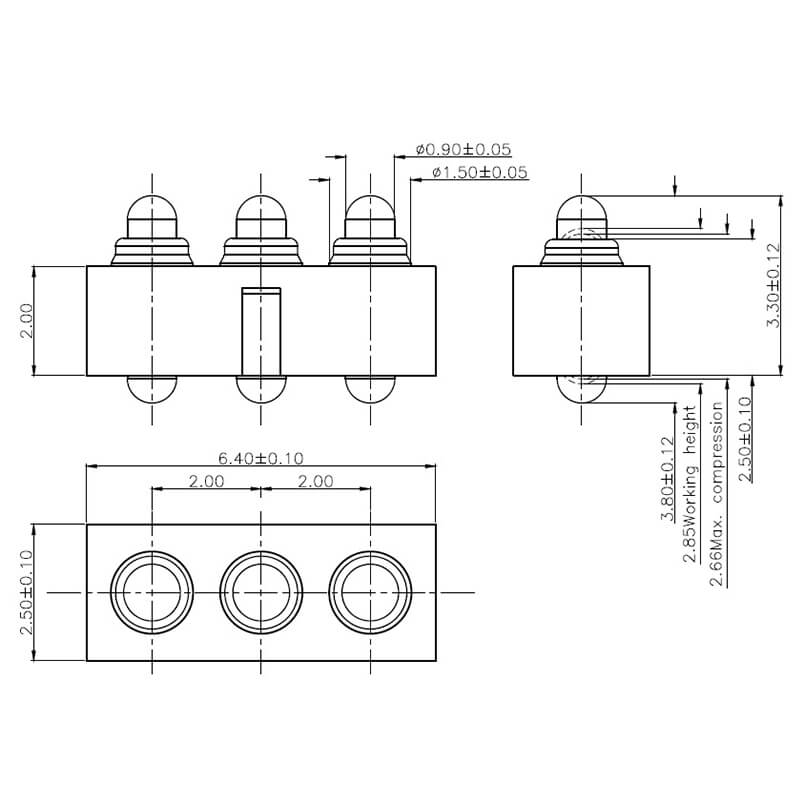

3Pin, 2.00mm Pitch, 2.85mm Working Height, C2170-03

  • Part Number
  • Length
  • Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • C2170-03
  • 6.40 mm
  • 2.50 mm
  • 3.80 mm
  • 60 gf
  • Au 2 u”
  • 1.0 A

2D

3D

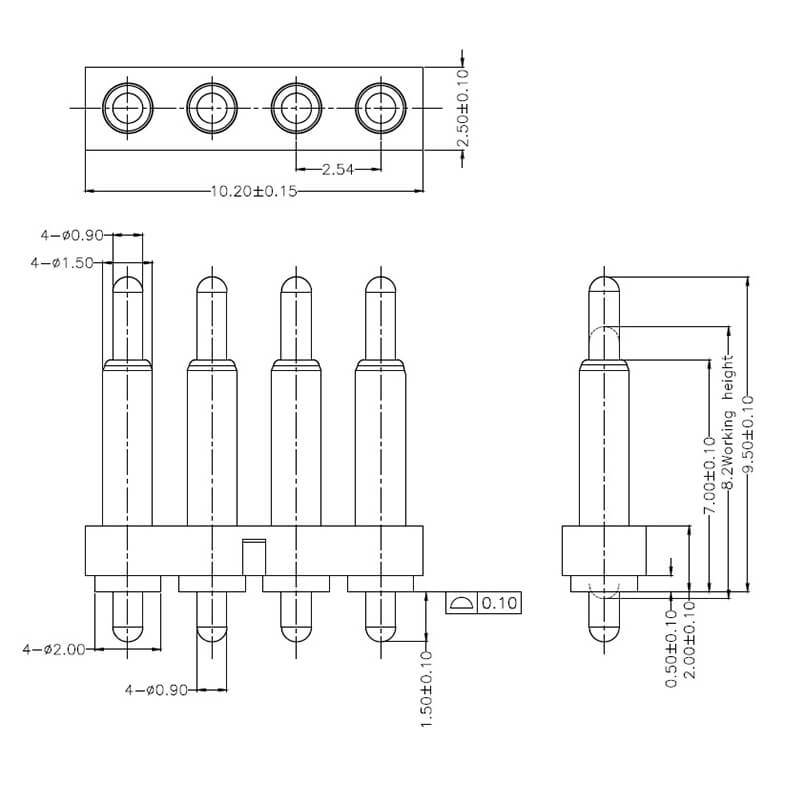

4Pin, 2.54mm Pitch, 8.20mm Working Height, NC1678-04

  • Part Number
  • Length
  • Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • NC1678-04
  • 10.20 mm
  • 2.50 mm
  • 11.00 mm
  • 80 gf
  • Au 43 u”
  • 1.5 A

2D

3D

3Pin, 3.00mm Pitch, 6.30mm Working Height, NC4200-04PB

  • Part Number
  • Length
  • Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • NC4200-04PB
  • 22.76 mm
  • 8.93 mm
  • 7.70 mm
  • 30 gf
  • Au 30 u”
  • 1.0 A

2D

3D

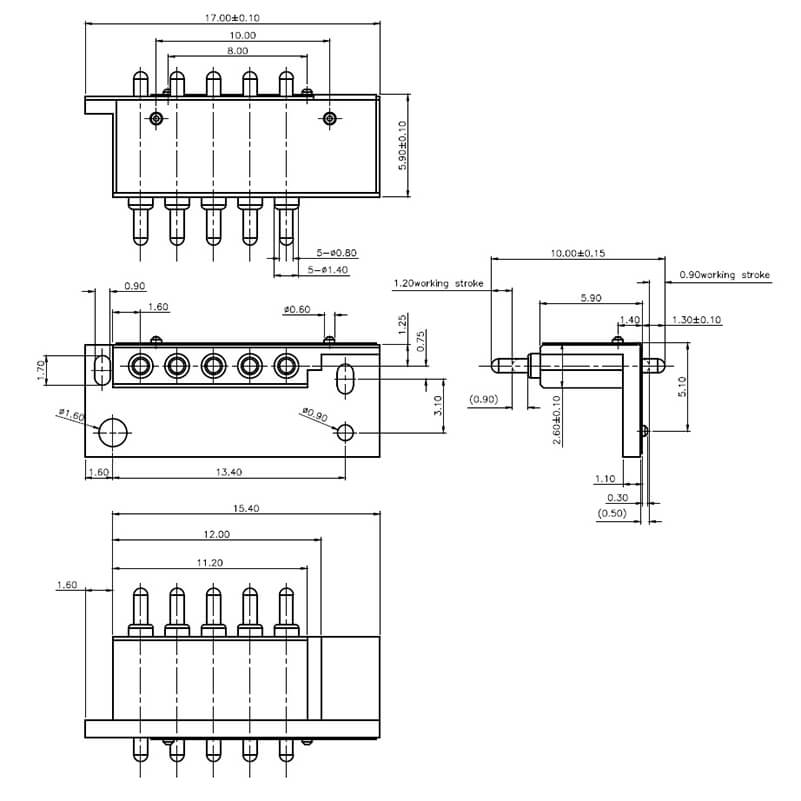

5Pin, 2.10mm Pitch, 7.90mm Working Height, C073-05R

  • Part Number
  • Length
  • Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • C073-05R
  • 17.00 mm
  • 5.90 mm
  • 10.00 mm
  • 80 gf
  • Au 3 u”
  • 1.5 A

2D

3D

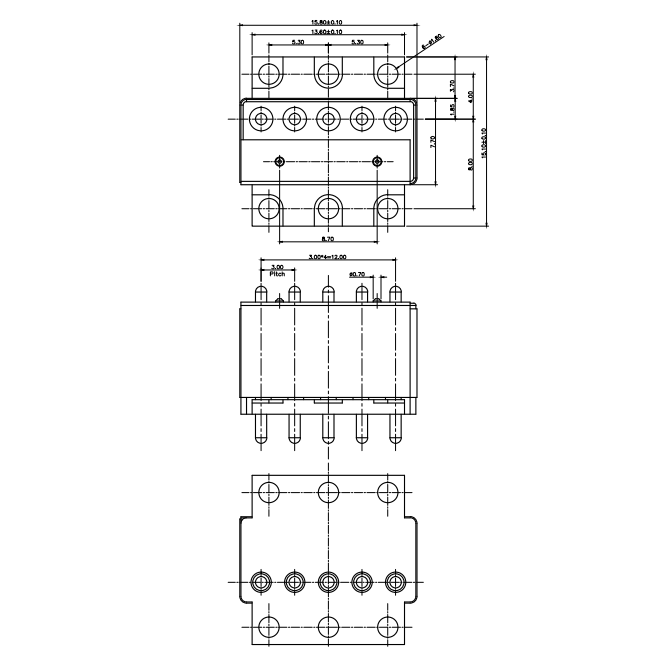

5Pin, 3.00mm Pitch, 11.90mm Working Height, C075-05R

  • Part Number
  • Length
  • Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • C075-05R
  • 18.50 mm
  • 15.10 mm
  • 14.00 mm
  • 80 gf
  • Au 3 u”
  • 1.5 A

2D

3D

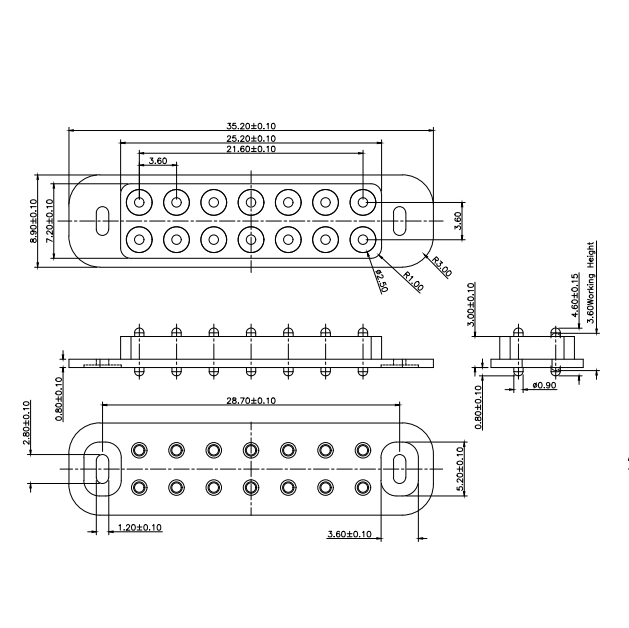

14Pin, 3.60mm Pitch, 3.60mm Working Height, NC3910-14PE

  • Part Number
  • Length
  • Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • NC3910-14PE
  • 35.20 mm
  • 8.90 mm
  • 4.60 mm
  • 50 gf
  • Au 3 u”
  • 1.0 A

2D

3D
