High Current Pogo Pins

3.0A, 5.60mm, 1 Pin, 0.80mm Working Height, NC4125-01PA

HIGH CURRENT POGO PIN NC4125-01PA
  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC4035-01
  • 5.60 mm
  • 0.80 mm
  • 68 gf
  • Au 2 u”
  • 3.0 A

2D

3D

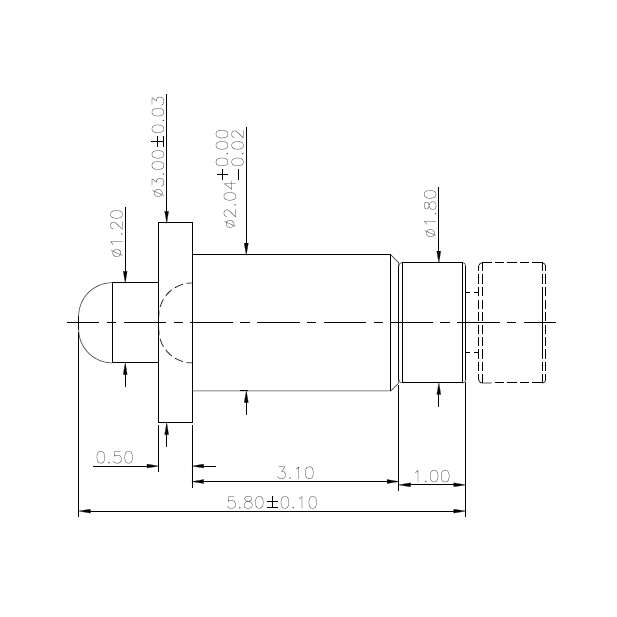

3.0A, 5.80mm, 1 Pin, 1.00mm Working Height, NC3057-01PA

HIGH CURRENT POGO PIN NC3057-01PA
  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC3057-01PA
  • 5.80 mm
  • 1.00 mm
  • 60~85 gf
  • Au 3 u”
  • 3.0 A

2D

3D

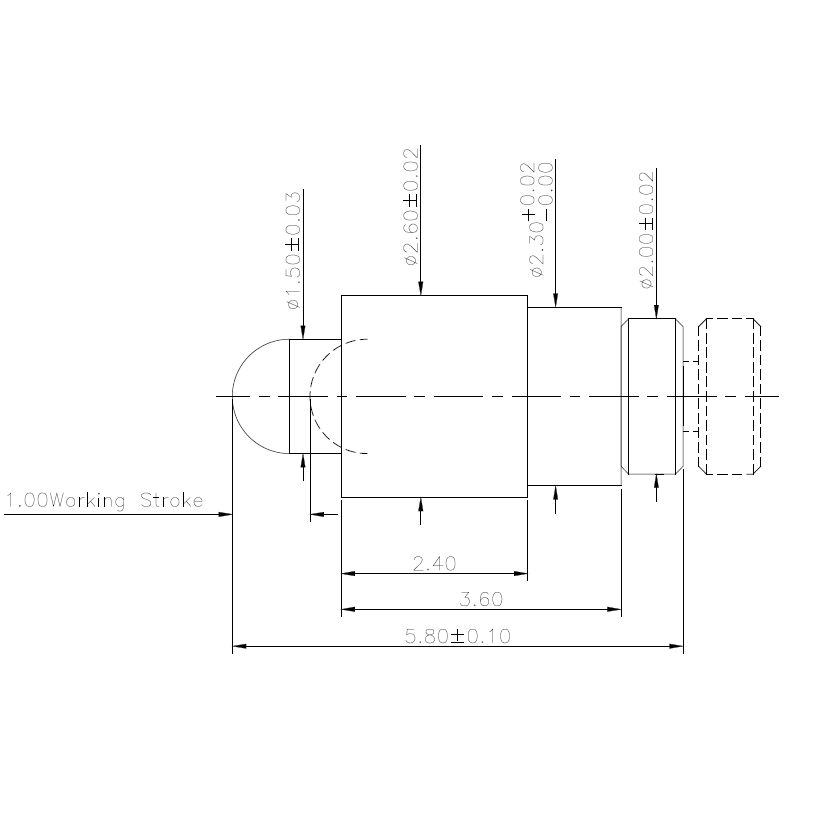

3.0A, 5.80mm, 1 Pin, 1.00mm Working Height, NC4190-01PA

HIGH CURRENT POGO PIN NC4190-01PA
  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC4190-01PA
  • 5.80 mm
  • 1.00 mm
  • 50 gf
  • Au 2 u”
  • 3.0 A

2D

3D

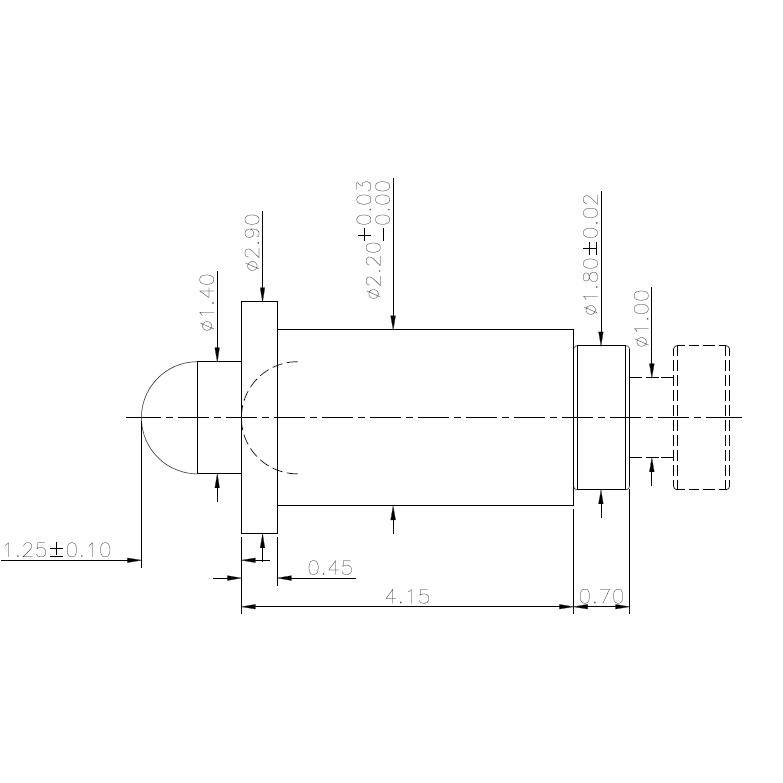

3.0A, 6.10mm, 1 Pin, 0.85 mm Working Height, NC3549-01PA

HIGH CURRENT POGO PIN NC3549-01PA
  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC3549-01PA
  • 6.10 mm
  • 0.85 mm
  • 60~85 gf
  • Au 1 u”
  • 3.0 A

2D

3D

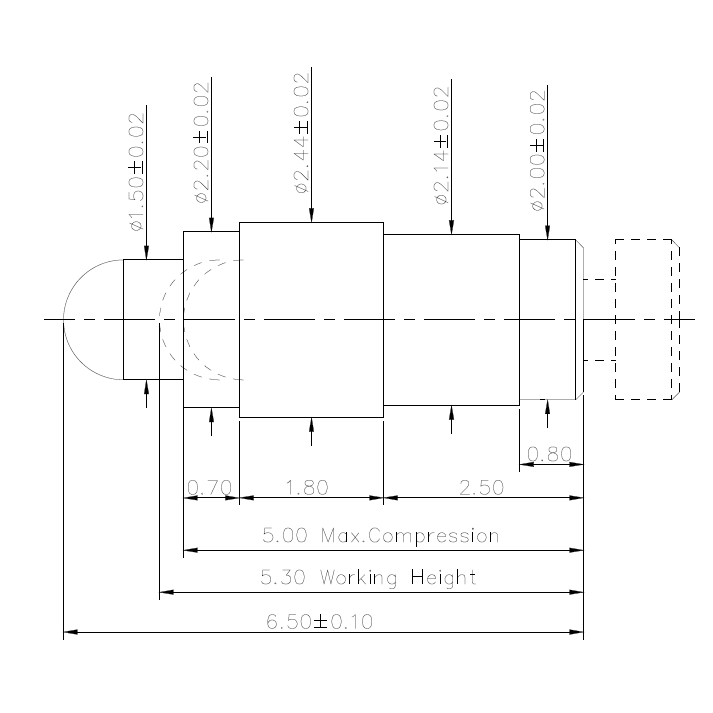

3.0A, 6.50mm, 1 Pin, 1.20mm Working Height, NC4012-01PA

HIGH CURRENT POGO PIN NC4012-01PA
  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC4012-01PA
  • 6.50 mm
  • 1.20 mm
  • 50 gf
  • Au 2 u”
  • 3.0 A

2D

3D

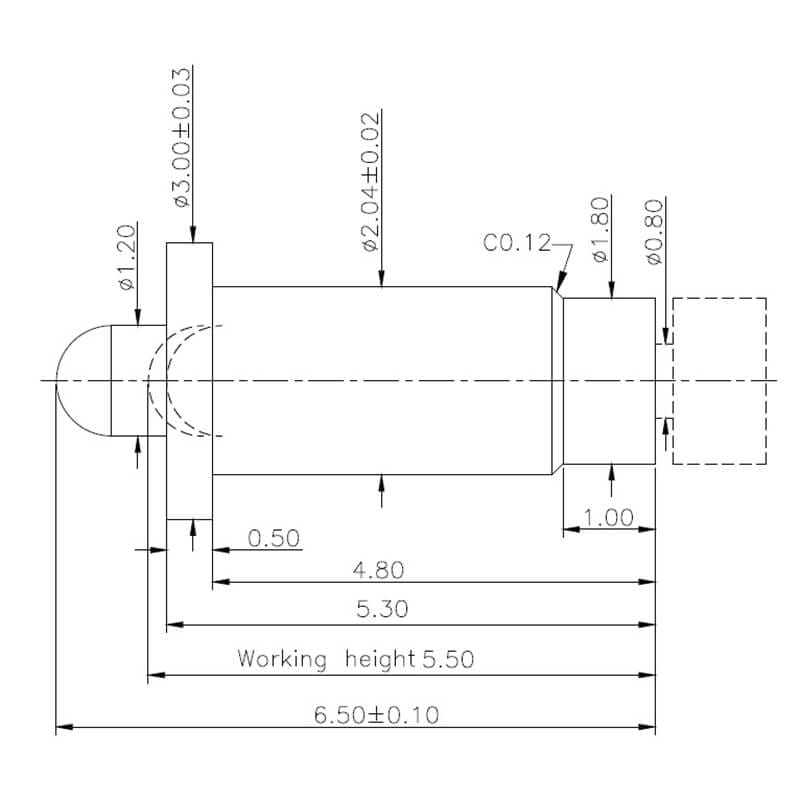

3.0A, 6.50mm, 1 Pin, 5.50mm Working Height, NC4035-01

  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC4035-01
  • 6.50 mm
  • 5.50 mm
  • 50 gf
  • Au 2 u”
  • 3.0 A

2D

3D

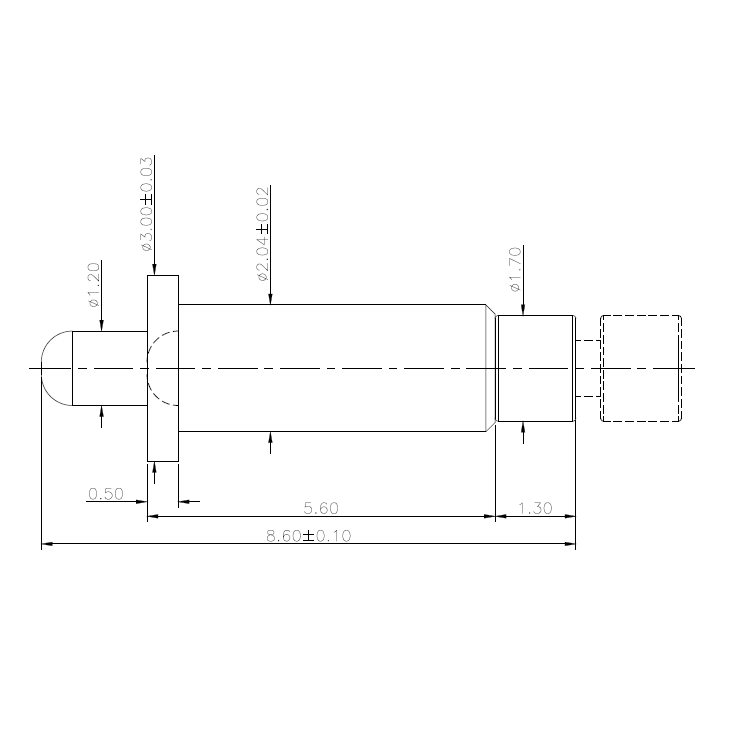

3.0A, 8.60mm, 1 Pin, 1.00mm Working Height, NC3012-01PA

HIGH CURRENT POGO PIN NC3012-01PA
  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC3012-01PA
  • 8.60 mm
  • 1.00 mm
  • 60~85 gf
  • Au 3 u”
  • 3.0 A

2D

3D

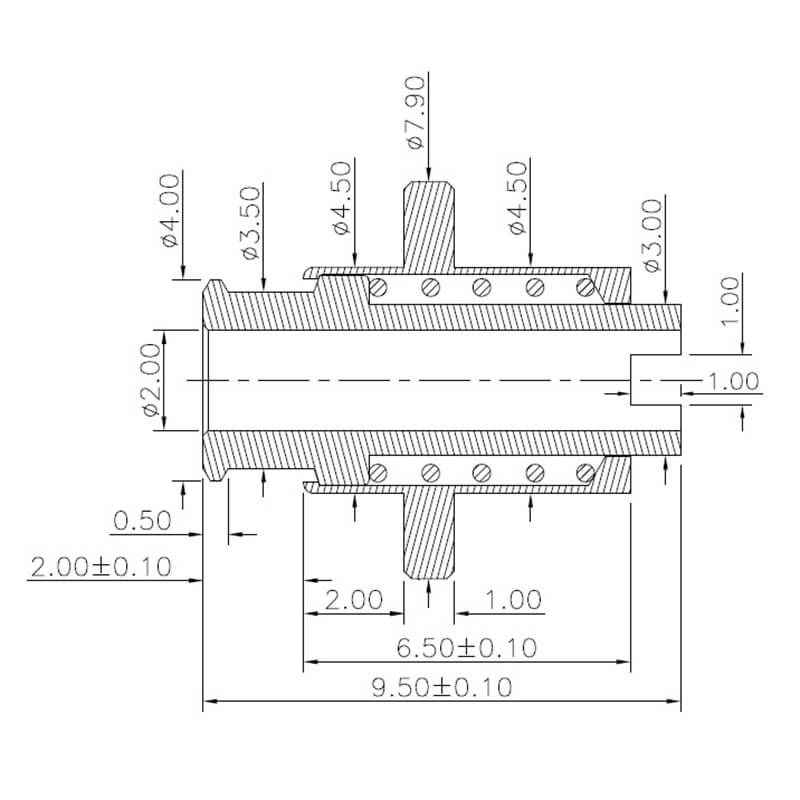

3.0A, 9.50mm, 1 Pin, 7.50mm Working Height, C1923-01

  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • C1923-01
  • 9.50 mm
  • 7.50 mm
  • 120 gf
  • Au 3 u”
  • 3.0 A

2D

3D

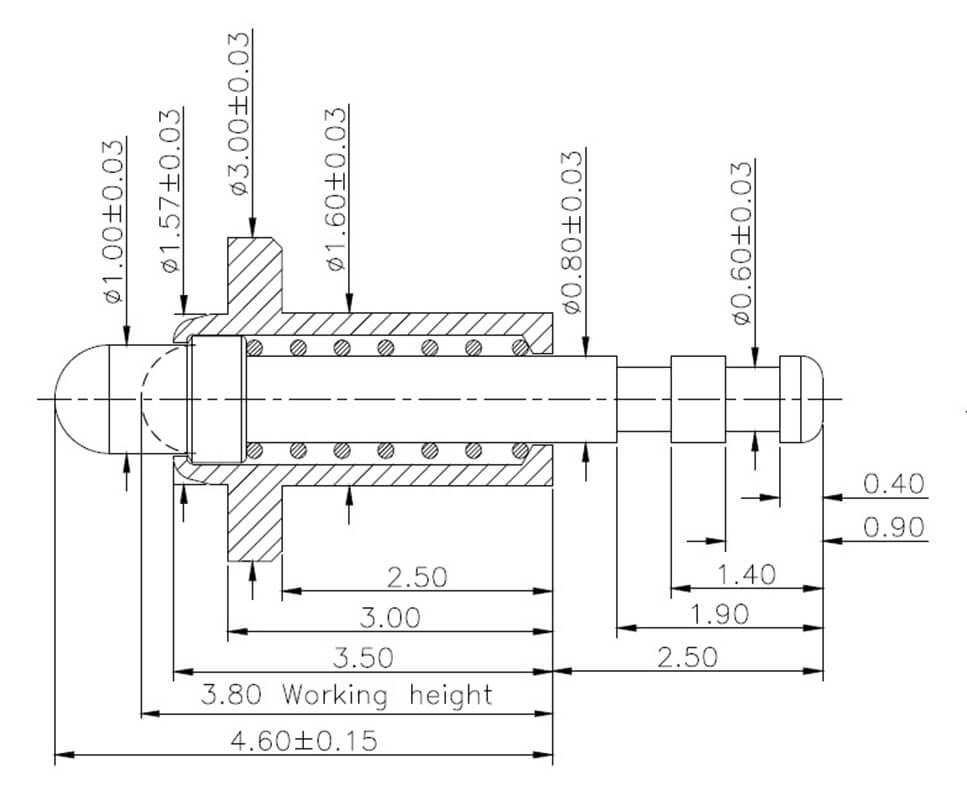

5.0A, 7.10mm, 1 Pin, 3.80mm Working Height, C1719-01

  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • C1719-01
  • 7.10 mm
  • 3.80 mm
  • 55 gf~70 gf
  • Au 5 u”
  • 5.0 A

2D

3D

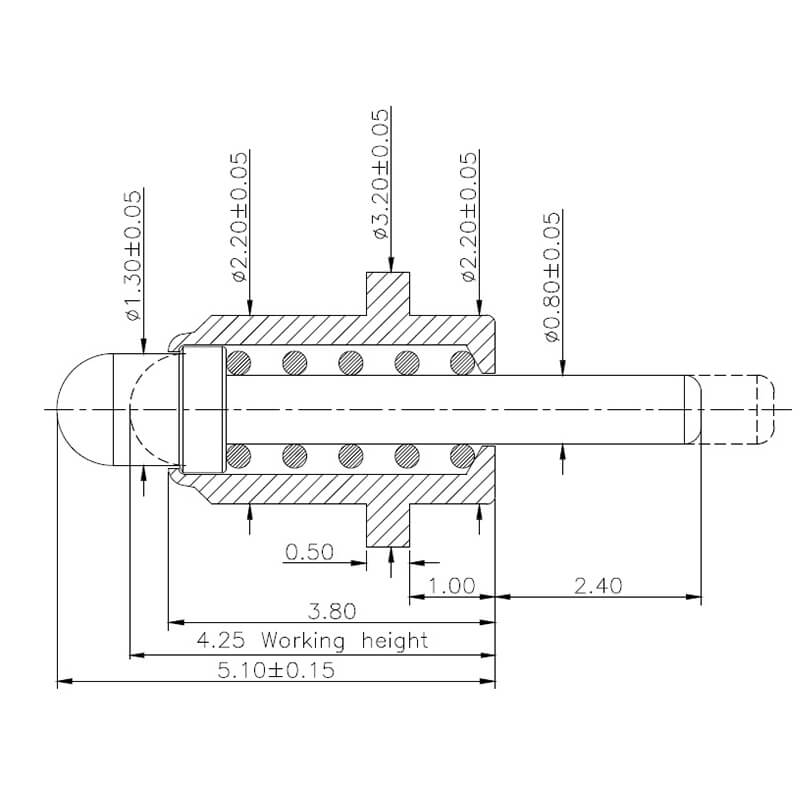

5.0A, 7.50mm, 1 Pin, 4.25mm Working Height, C1721-01

  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • C1721-01
  • 7.50 mm
  • 4.25 mm
  • 60 gf
  • Au 5 u”
  • 5.0 A

2D

3D

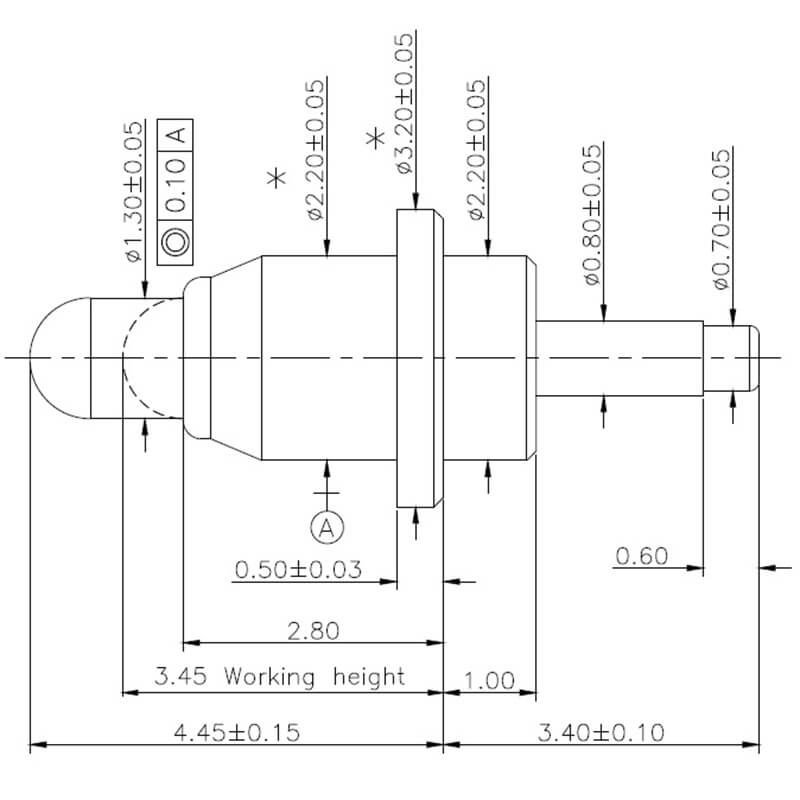

5.0A, 7.85mm, 1 Pin, 3.45mm Working Height, NC2363-01

  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC2363-01
  • 7.85 mm
  • 3.45 mm
  • 70 gf
  • Au 3 u”
  • 5.0 A

2D

3D

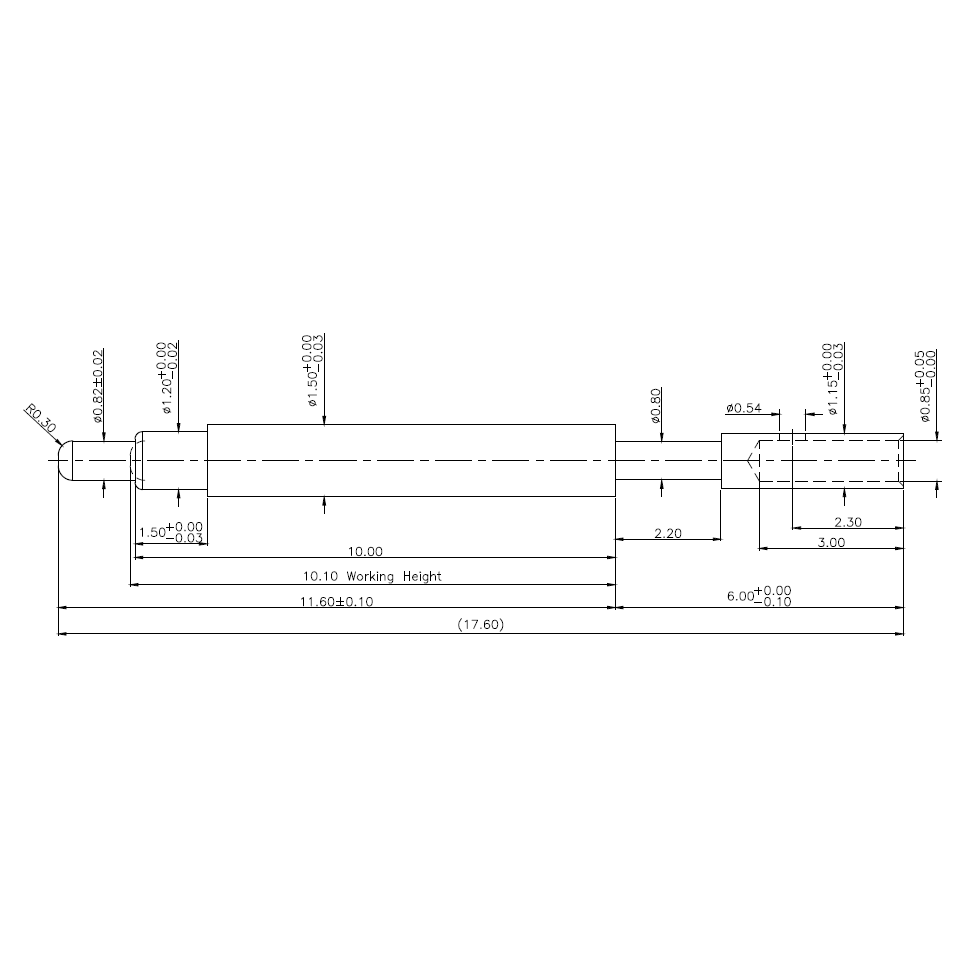

5.0A, 17.60mm, 1 Pin, 16.10mm Working Height, C1316-01

HIGH CURRENT POGO PIN C1316-01
  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • C1316-01
  • 17.60 mm
  • 16.10 mm
  • 100 gf
  • Au 30 u”
  • 5.0 A

2D

3D

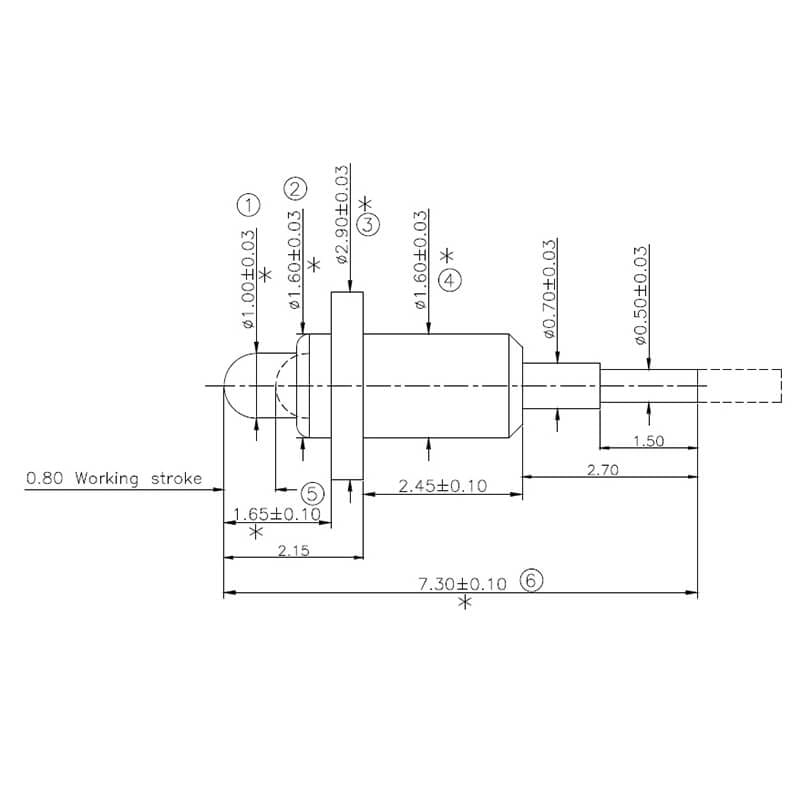

8.0A, 7.30mm, 1 Pin, 1.35mm Working Height, NC3818-01PA

  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC3818-01PA
  • 7.30 mm
  • 1.35 mm
  • 50 gf
  • Au 5 u”
  • 8.0 A

2D

3D

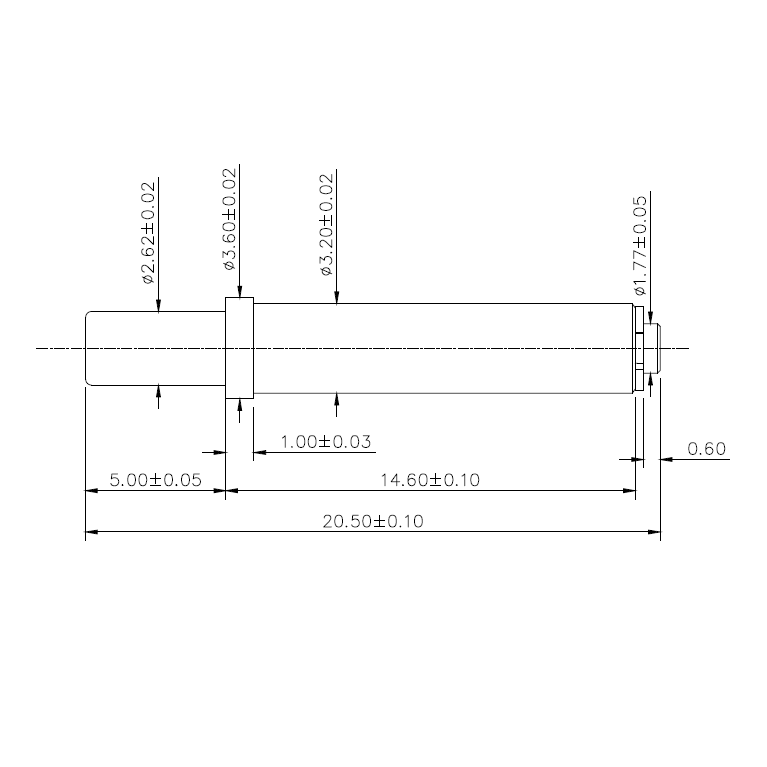

8.0A, 20.50mm, 1 Pin, 3.00mm Working Height, C1271-01

HIGH CURRENT POGO PIN C1271-01
  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • C1271-01
  • 20.50 mm
  • 3.00 mm
  • 350~420 gf
  • Au 2 u”
  • 8.0 A

2D

3D

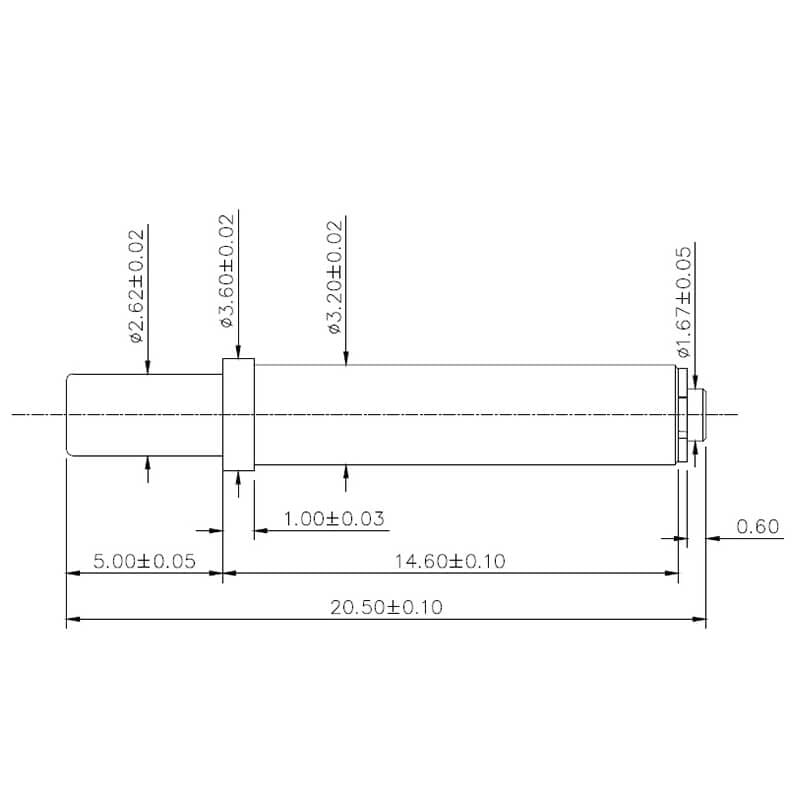

8.0A, 20.50mm, 1 Pin, 3.00mm Working Height, C1652-01

  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • C1652-01
  • 20.50 mm
  • 3.00 mm
  • 750 gf
  • Au 2 u”
  • 8.0 A

2D

3D

10A, 40.00mm, 1 Pin, 13.00mm Working Height, C4042-01PC

  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • C4042-01PC
  • 40.00 mm
  • 13.00 mm
  • 300 gf
  • Pd 10u” CuZn 40u”
  • 10.0 A

2D

3D

10A, 24.00mm, 1 Pin, 21.00mm Working Height, C700-01

HIGH CURRENT POGO PIN C700-01
  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • C700-01
  • 5.00 mm
  • 1.00 mm
  • 700 gf
  • Au 5u”
  • 10.0 A

2D

3D

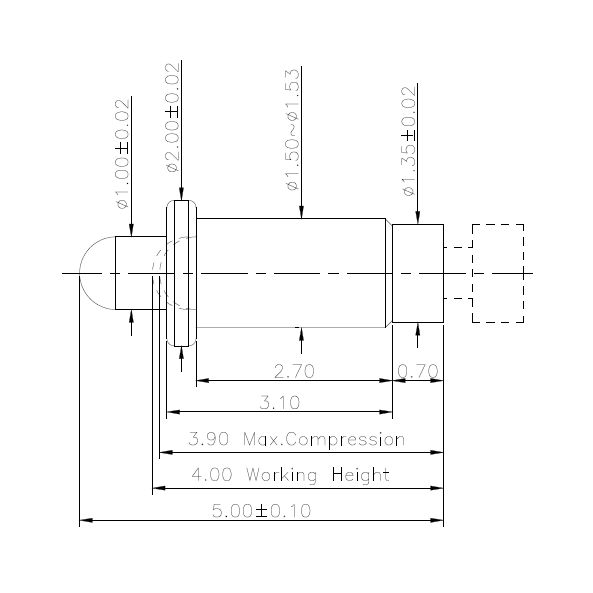

10A, 5.00mm, 1 Pin, 1.00mm Working Height, NC4629-01PA

HIGH CURRENT POGO PIN NC4629-01PA
  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC4629-01PA
  • 5.00 mm
  • 1.00 mm
  • 70 gf
  • Au 5u”
  • 10.0 A

2D

3D

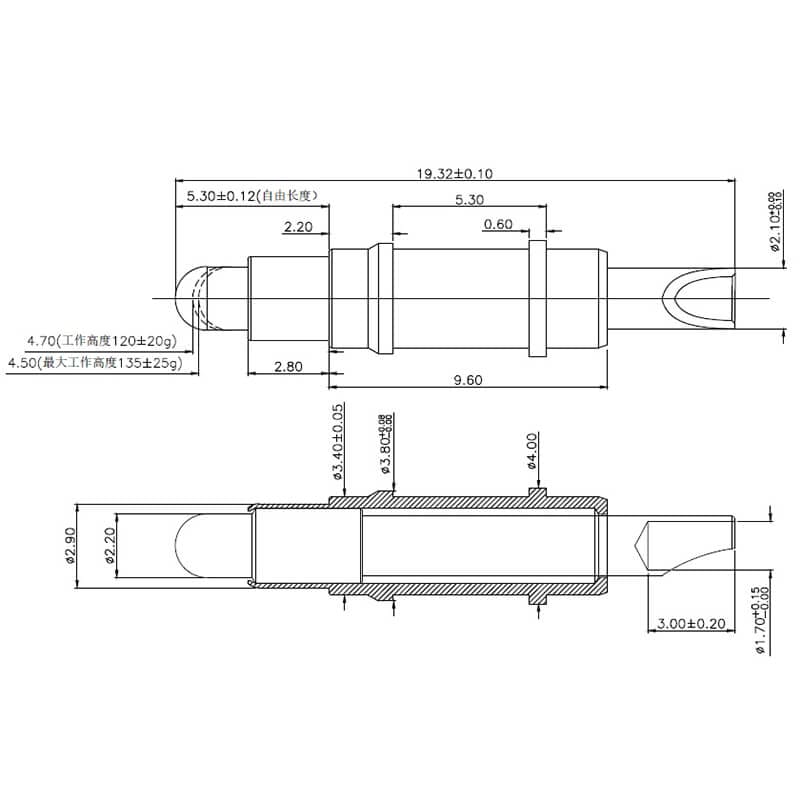

15.0A 19.32mm, 1 Pin, 14.30mm Working Height, C3246-01PA

  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • C3246-01PA
  • 19.32 mm
  • 14.30 mm
  • 120 gf
  • Au 20 u”
  • 15.0 A

2D

3D

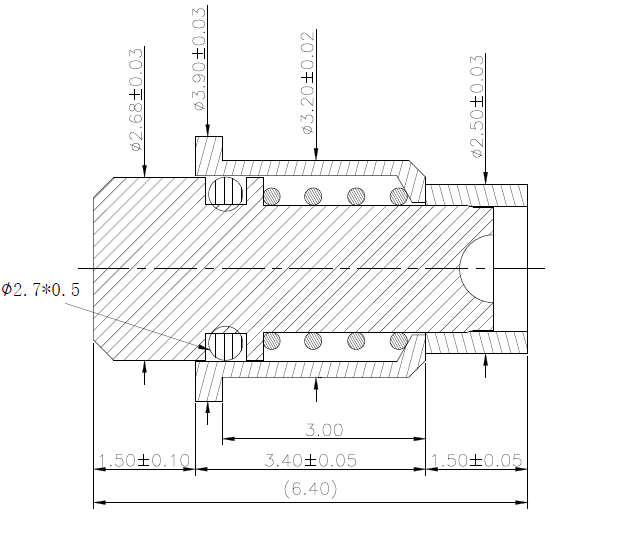

18.0A 6.40mm, 1 Pin, 1.00mm Working Height, NC3602-01PA

  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC3602-01PA
  • 6.40 mm
  • 1.00 mm
  • 150 gf
  • Au 5 u”
  • 15.0 A

2D

3D

PS:Please swipe left and right to turn the page to view

If you do not find the desired model, please contact us. We have professional engineers to solve your problems.
