Spring probes, also known as spring contact probes, are specialized connectors designed to provide reliable electrical connections in various applications, particularly in harsh environments.

At Promax Pogo Pin manufacturer, we offer high-performance Spring Probes, designed to meet the needs of industries such as telecommunications, automotive, medical, and electronics. Our spring probes are expertly crafted to provide consistent, reliable connections, even in the most challenging conditions.

GET QUOTE

MORE SELECTION

SIZE

DiameterΦ:≥0.7mm, full stroke ≥0.2mm, working stroke ≥0.05mm

SHAPE

all types of customization

MATERIAL

Brass, SUS304/316F/L,CuTe,HBi59,Cu-Sn, etc

PLATING

Au, Ag, Pd, Pt, Rh, Ru, Ni, etc

MOQ

3000pcs by T&R, Tray, Tube, Box, PE bag, etc

DELIVERY

DHL, UPS, ship the sample out in 2 weeks, mass production in 3-4 weeks

Our Spring Loaded Test Probes Range

Discover our range of high-performance spring loaded test probes designed for precise measurements in various testing applications. Promax Pogo Pin offers reliable, low contact resistance, and accurate stroke capabilities to meet the demands of modern testing environments. These test probes ensure excellent durability and high current ratings for optimal performance.

Φ0.26, JD-SX026-064 Test Pin

Compact test pin with reliable spring force and low contact resistance.


AttributeValue
Part NumberJD-SX026-064
DiameterØ0.26mm
Length5.70mm
Full Stroke5.70mm
Work Stroke1.00mm
Spring Force0.50N
Contact Resistance150 mΩ
Rated Current0.5A

GET QUOTE

Φ0.26, JD-SX026-113 Test Pin

Reliable 2-pin test pin with precise stroke and low contact resistance.


AttributeValue
Part NumberJD-SX026-113
DiameterØ0.26mm
Length5.70mm
Full Stroke5.70mm
Work Stroke1.00mm
Spring Force0.50N
Contact Resistance25mΩ
Rated Current1.0A

GET QUOTE

Φ0.38, JD-SX038-115 Test Pin

This test pin has a high current rating and precise movement for accurate measurements.

AttributeValue
Part NumberJD-SX038-115
DiameterØ0.38mm
Length7.80mm
Full Stroke7.80mm
Work Stroke1.20mm
Spring Force1.00N
Contact Resistance35mΩ
Rated Current1.0A

GET QUOTE

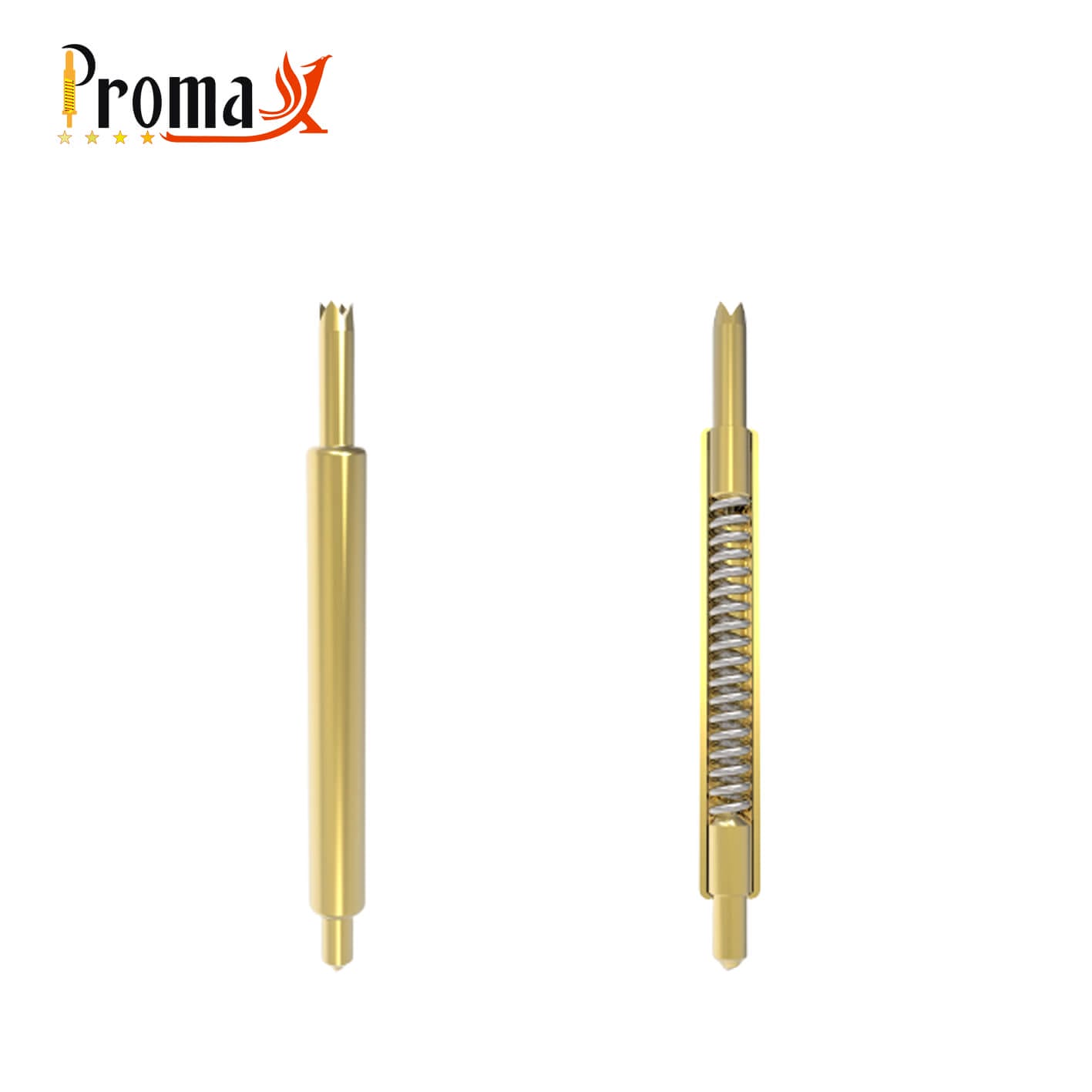

Φ0.51, JD-SX051-116 Test Pin

This pin has a precise work stroke and high current rating for testing applications.

AttributeValue
Part NumberJD-SX051-116
DiameterØ0.51mm
Length5.70mm
Full Stroke5.70mm
Work Stroke1.00mm
Spring Force0.65N
Contact Resistance100mΩ
Rated Current1.0A

GET QUOTE

Φ0.75, JD-SX075-067 Test Pin

High-performance 0.75mm pin with strong spring force and efficient testing.


AttributeValue
Part NumberJD-SX075-067
DiameterØ0.75mm
Length6.70mm
Full Stroke7.00mm
Work Stroke1.00mm
Spring Force1.00N
Contact Resistance41mΩ
Rated Current1.0A

GET QUOTE

Φ1.20, JD-SX120-111 Test Pin

1.20mm test pin with optimal spring force for precise contact resistance measurement.

AttributeValue
Part NumberJD-SX120-111
DiameterØ1.20mm
Length6.10mm
Full Stroke6.00mm
Work Stroke1.20mm
Spring Force1.00N
Contact Resistance100mΩ
Rated Current1.0A

GET QUOTE

Φ1.50, JD-SX150-065 Test Pin

This test pin offers high durability and high current handling for accurate testing.

AttributeValue
Part NumberJD-SX150-065
DiameterØ1.50mm
Length8.10mm
Full Stroke8.10mm
Work Stroke1.80mm
Spring Force4.00N
Contact Resistance45mΩ
Rated Current1.0A

GET QUOTE

Φ3.50, JD-SX350-066 Test Pin

Large diameter test pin offering high spring force and excellent electrical contact.

AttributeValue
Part NumberJD-SX350-066
DiameterØ3.50mm
Length16.40mm
Full Stroke16.40mm
Work Stroke4.50mm
Spring Force4.00N
Contact Resistance100mΩ
Rated Current1.0A

GET QUOTE

Φ3.50, JD-SX350-110 Test Pin

Heavy-duty test pin with high spring force and excellent current handling capacity.


AttributeValue
Part NumberJD-SX350-110
DiameterØ3.50mm
Length18.00mm
Full Stroke18.00mm
Work Stroke4.50mm
Spring Force4.00N
Contact Resistance100mΩ
Rated Current1.0A

GET QUOTE

Spring Probe: Design and Functionality

Spring Probe: Performance Characteristics

Electrical Performance: Spring probes are known for their low contact resistance, typically less than 10 mΩ, which is crucial for maintaining signal integrity in both analog and digital applications. They can handle high frequencies, with capabilities of up to 20 GHz and data rates of 12 Gb/s

Current Rating: Depending on the specific design, spring probes can support various current ratings, with some capable of handling up to 30 Amps

Temperature Range: These probes can operate effectively across a wide temperature range, typically from -55°C to 250°C, with some materials allowing for even more extreme conditions

R&D of through hole pogo pin connector

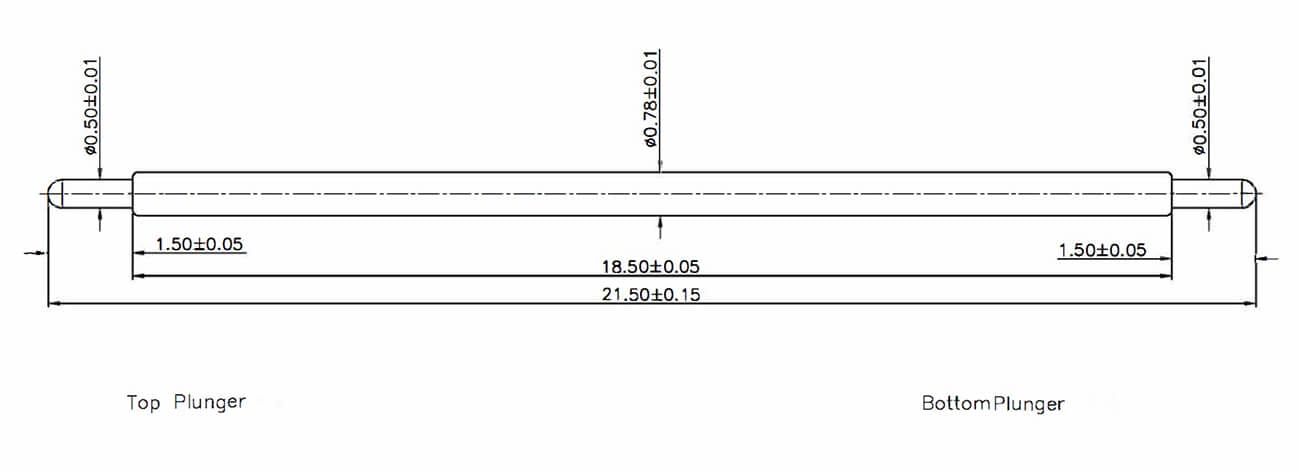

spring probe drawing

Spring Probes Common Applications

  • Harsh Environments: Spring probes are ideal for applications in industries such as aerospace, military, automotive, and industrial automation, where they can withstand extreme conditions. Their durability and reliable performance make them comparable to advanced solutions like waterproof pogo pin connectors, which are specifically designed to maintain functionality in harsh environments.
  • Modular Components: They are often used in modular designs where quick disconnects are necessary, allowing for easy maintenance and replacement of components.
  • Blind Mate Applications: The unique design of spring probes allows for blind mating, where the connector can engage without direct line of sight, making them particularly useful in compact or difficult-to-access spaces.

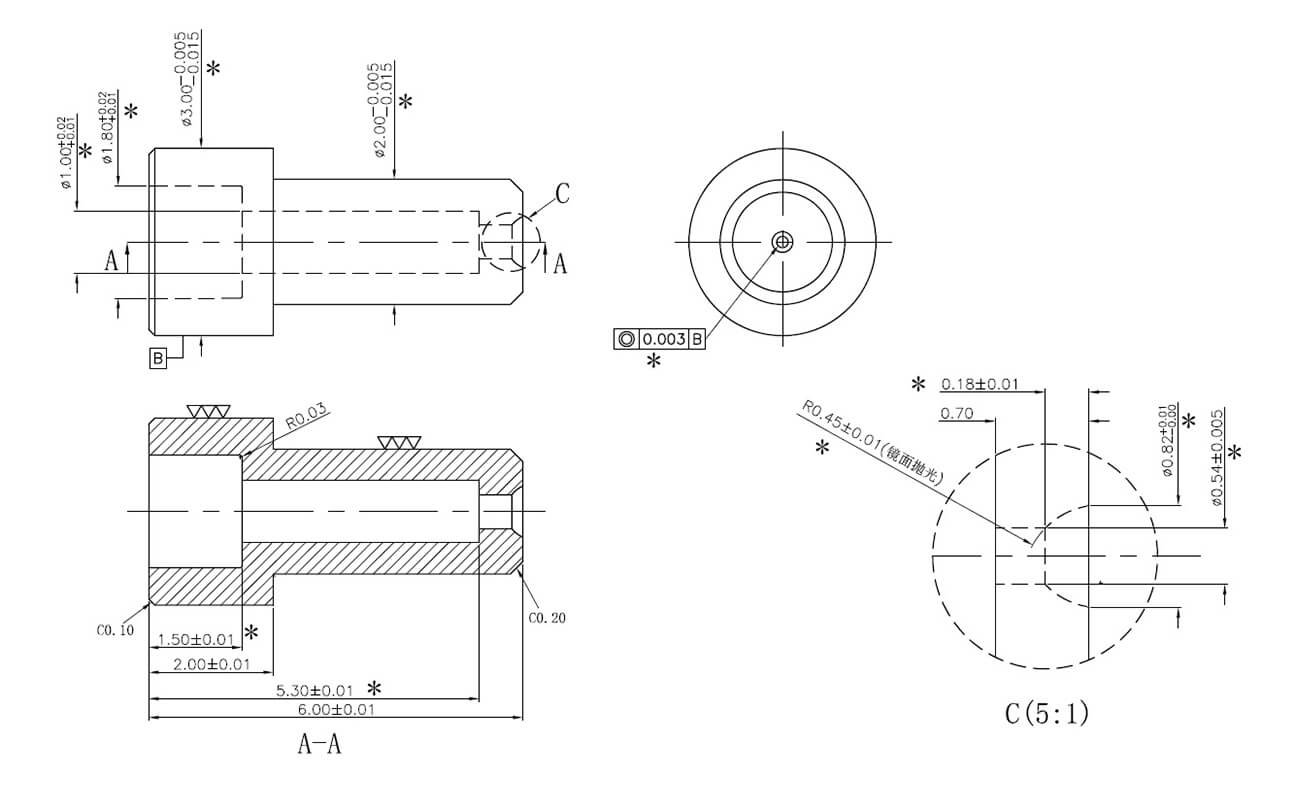

spring probe socket drawing

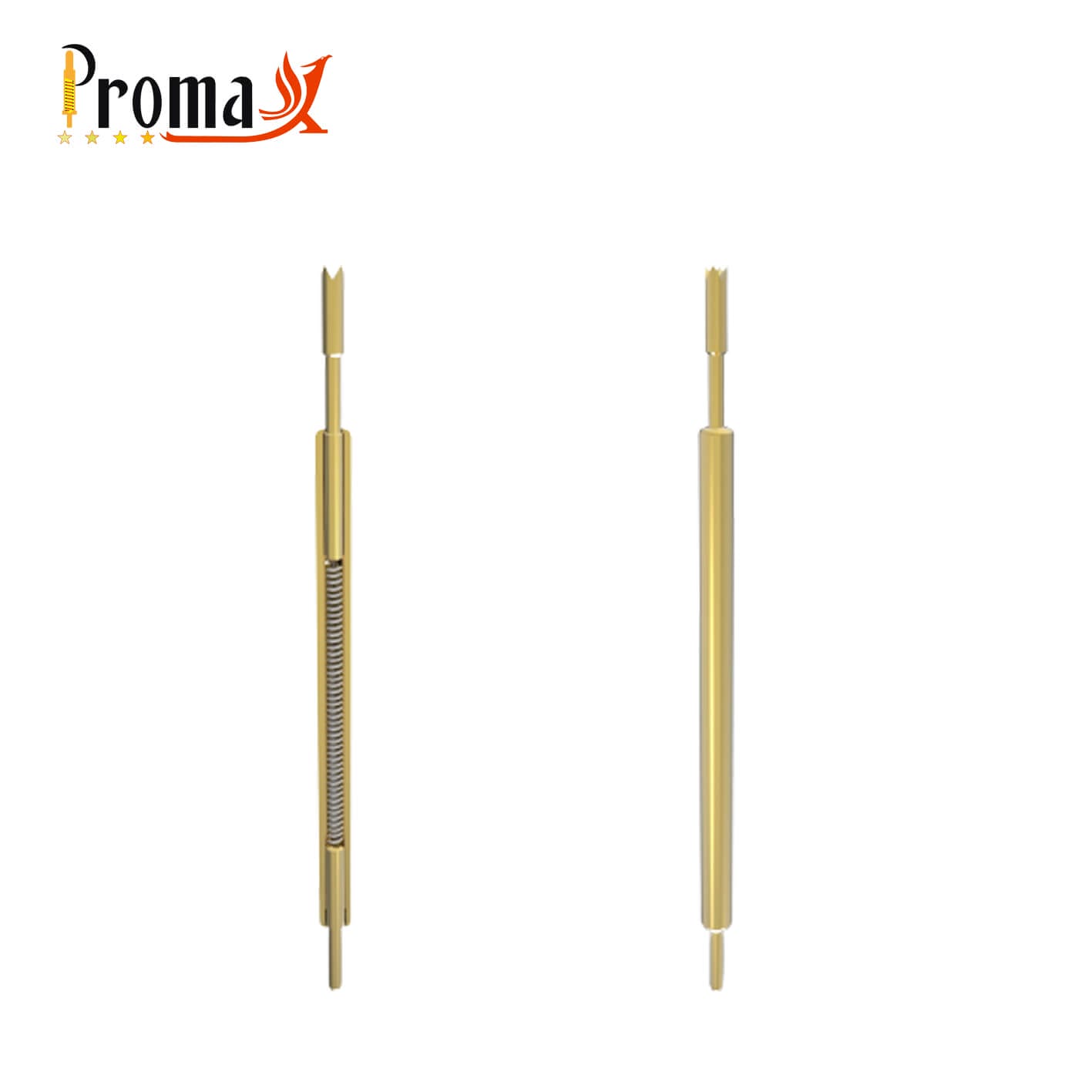

spring probe 026

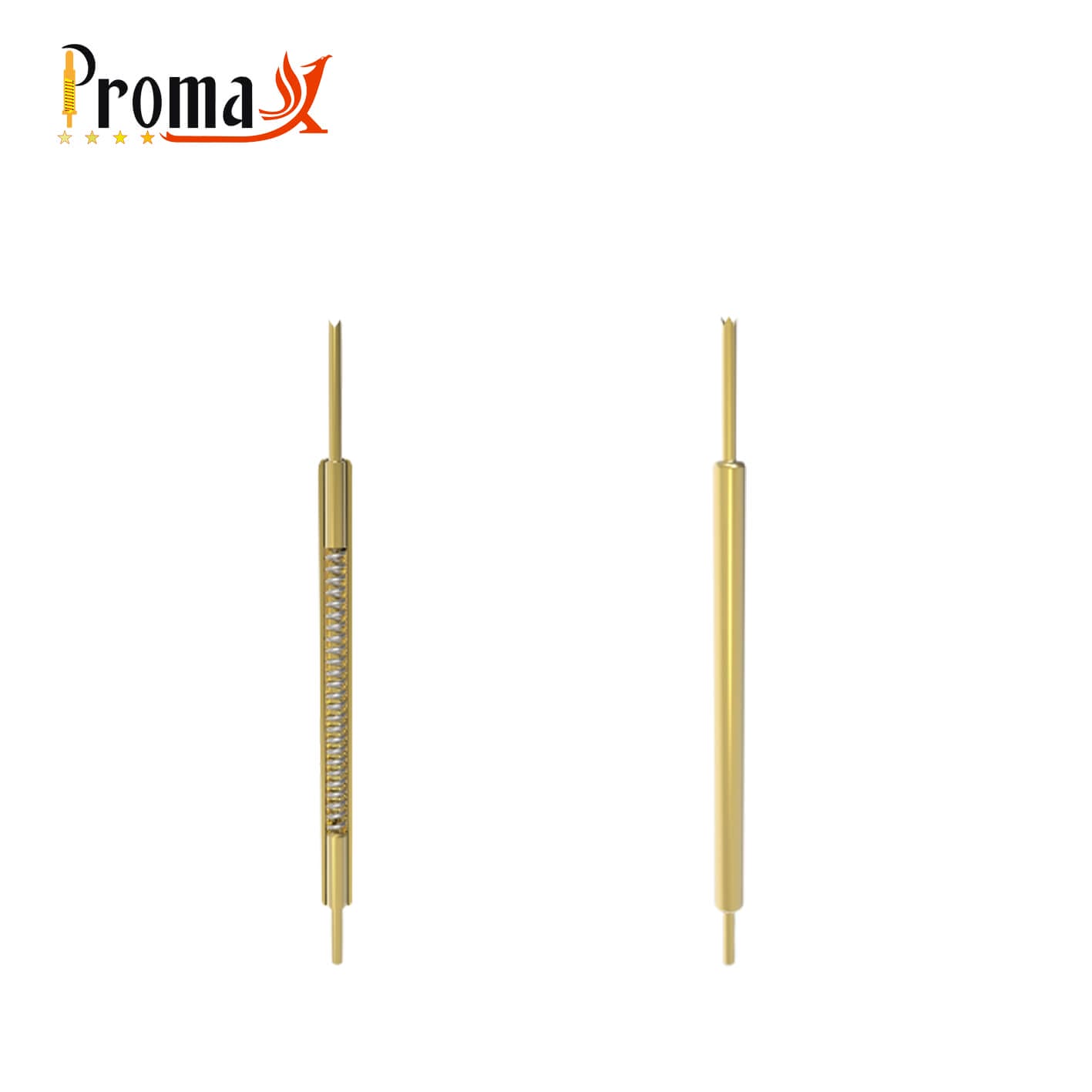

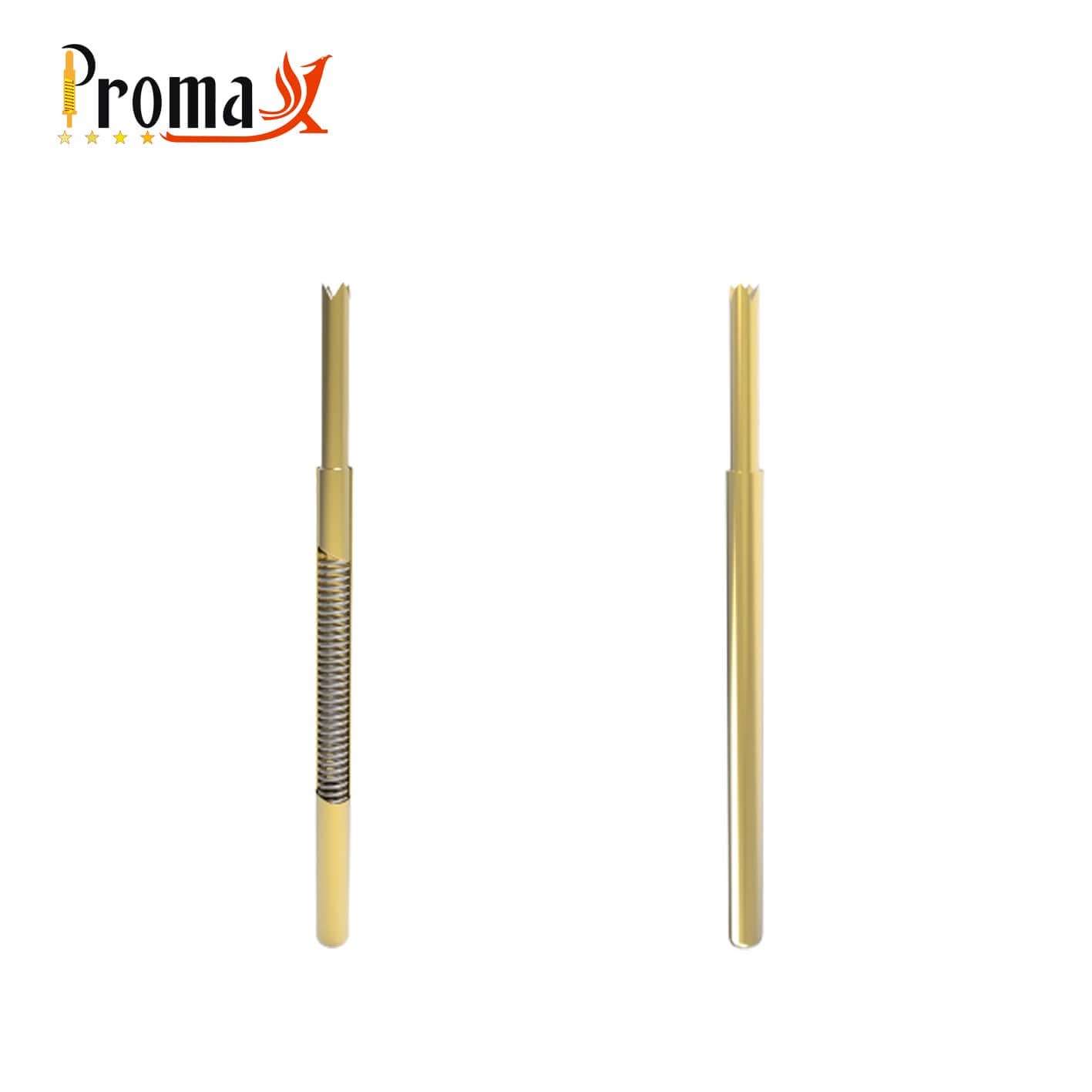

What is Spring Probe’s Structure?

The spring probe is the contact medium for electrical testing and is a high-end precision electronic hardware component. It mainly consists of three parts: spring, plunger, and barrel.
