Pogo Test Pin

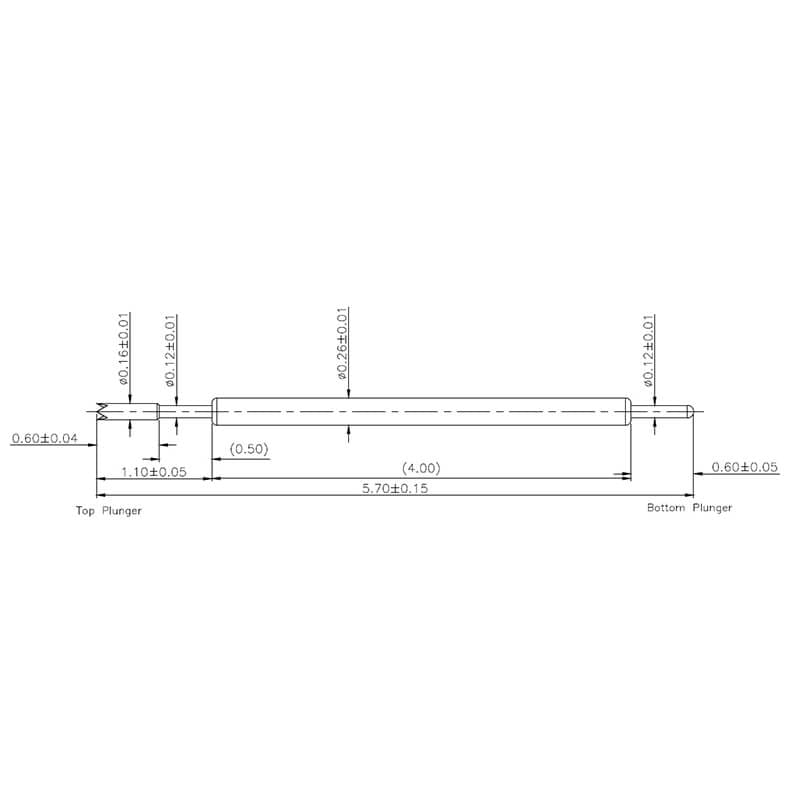

Φ0.26, 5.70mm, Double end double move, 0.50mm work stroke, JD-SX026-064

  • Part Number
  • Diameter
  • Length
  • Full stroke
  • Work stroke
  • Spring force
  • Contact resistance
  • Rated Current
  • JD-SX026-064
  • Φ0.26 mm
  • 5.70 mm
  • 1.00 mm
  • 0.50 mm
  • 15 gf
  • 150 mΩ
  • 0.5 A

2D

3D

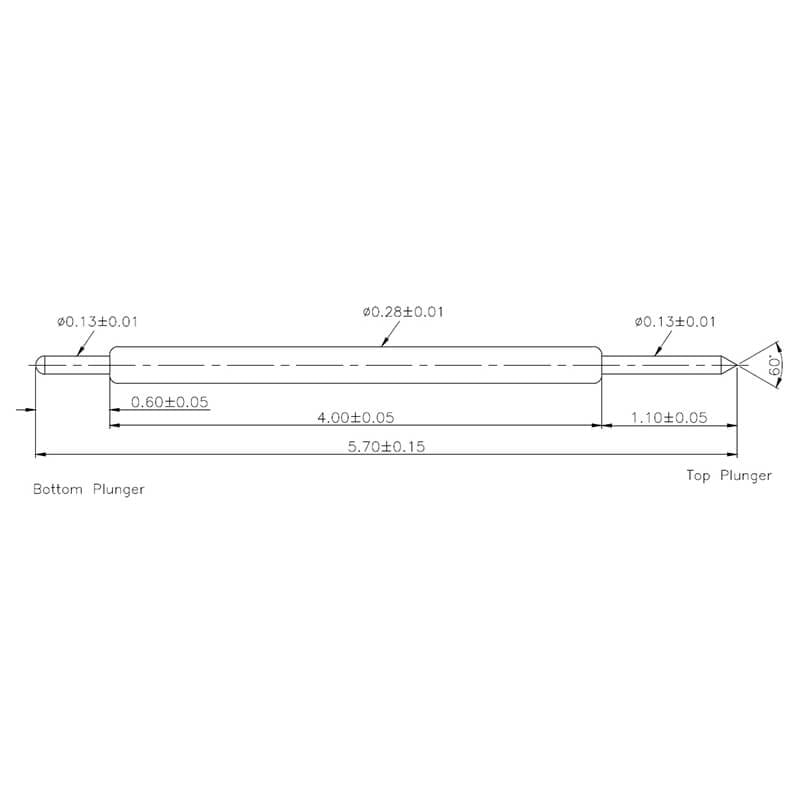

Φ0.28, 5.70mm, Double end double move, 0.65mm work stroke, JD-SX028-113

  • Part Number
  • Diameter
  • Length
  • Full stroke
  • Work stroke
  • Spring force
  • Contact resistance
  • Rated Current
  • JD-SX028-113
  • Φ0.28 mm
  • 5.70 mm
  • 1.00 mm
  • 0.65 mm
  • 25 gf
  • 100 mΩ
  • 1.0 A

2D

3D

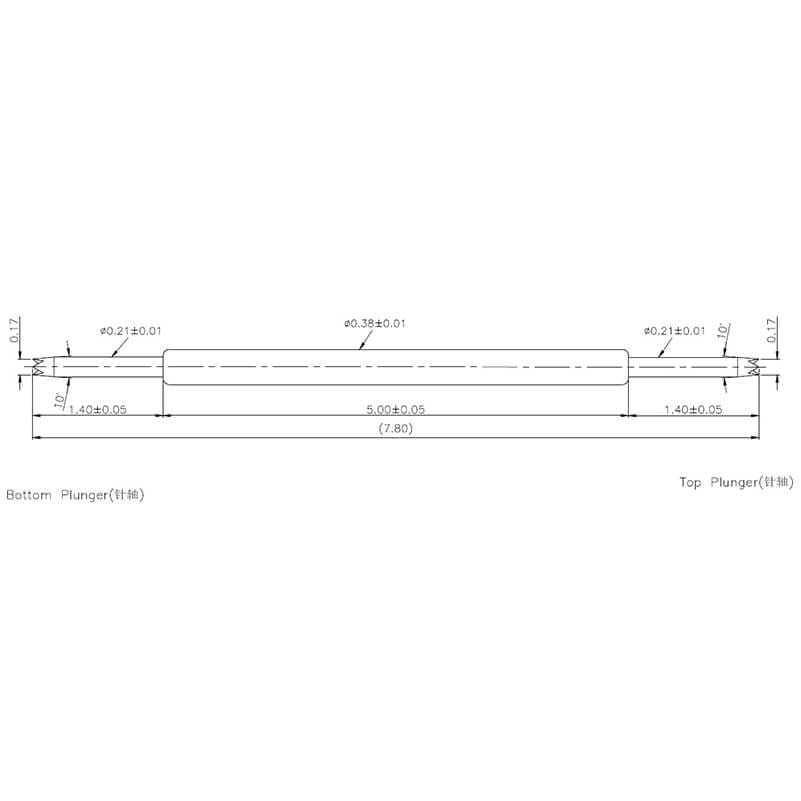

Φ0.38, 7.80mm, Double end double move, 1.00mm work stroke, JD-SX038-115

  • Part Number
  • Diameter
  • Length
  • Full stroke
  • Work stroke
  • Spring force
  • Contact resistance
  • Rated Current
  • JD-SX038-115
  • Φ0.38 mm
  • 7.80 mm
  • 1.20 mm
  • 1.00 mm
  • 35 gf
  • 100 mΩ
  • 1.0 A

2D

3D

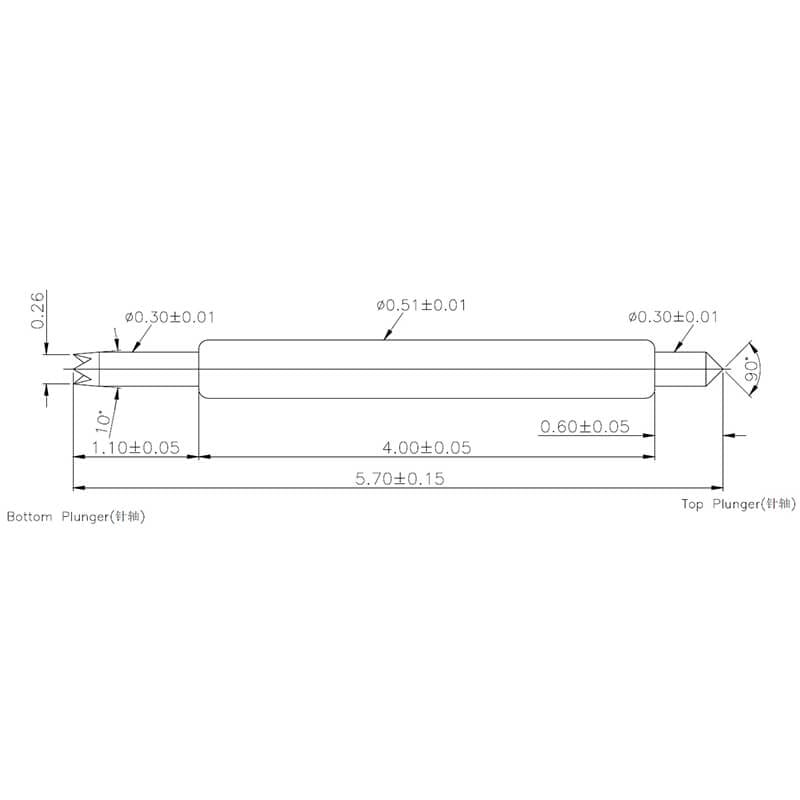

Φ0.51, 5.70mm, Double end double move, 0.65mm work stroke, JD-SX051-116

  • Part Number
  • Diameter
  • Length
  • Full stroke
  • Work stroke
  • Spring force
  • Contact resistance
  • Rated Current
  • JD-SX051-116
  • Φ0.51 mm
  • 5.70 mm
  • 1.00 mm
  • 0.65 mm
  • 35 gf
  • 100 mΩ
  • 1.0 A

2D

3D

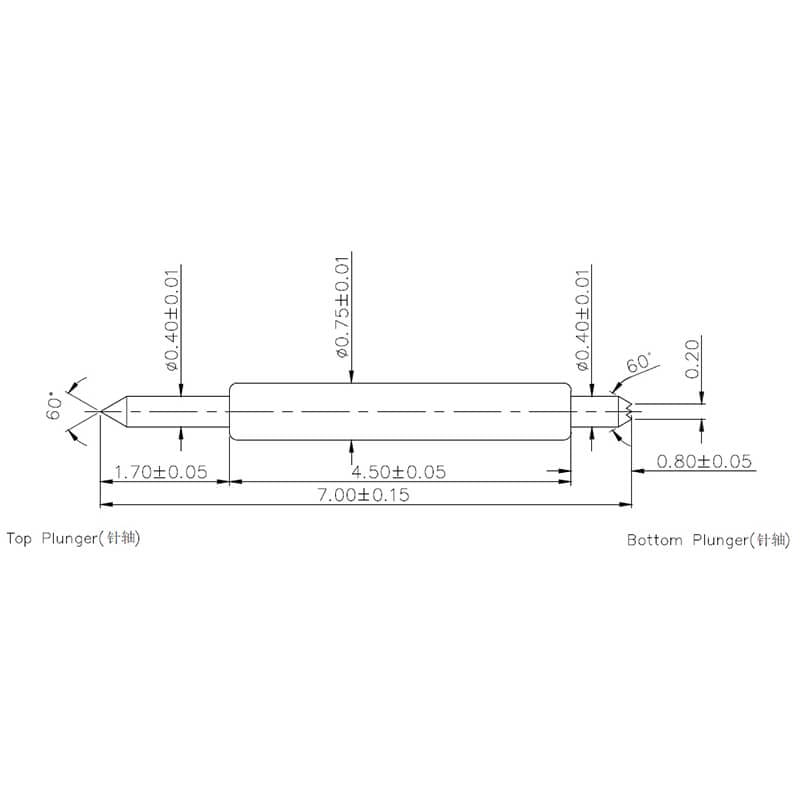

Φ0.75, 7.00mm, Double end double move, 1.00mm work stroke, JD-SX075-067

  • Part Number
  • Diameter
  • Length
  • Full stroke
  • Work stroke
  • Spring force
  • Contact resistance
  • Rated Current
  • JD-SX075-067
  • Φ0.75 mm
  • 7.00 mm
  • 1.60 mm
  • 1.00 mm
  • 41 gf
  • 100 mΩ
  • 1.0 A

2D

3D

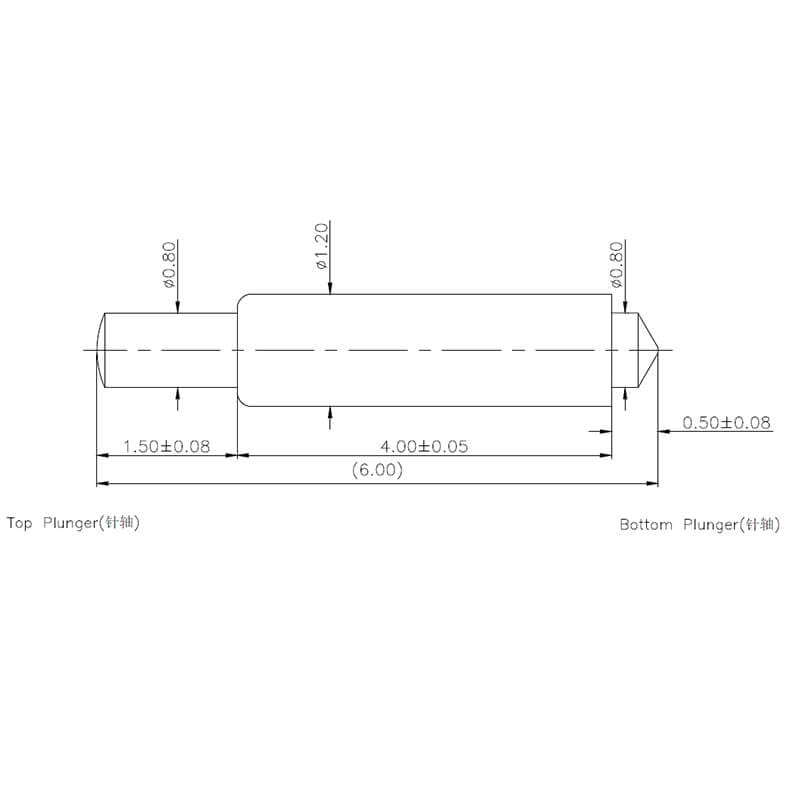

Φ1.20, 6.00mm, Double end double move, 1.00mm work stroke, JD-SX120-111

  • Part Number
  • Diameter
  • Length
  • Full stroke
  • Work stroke
  • Spring force
  • Contact resistance
  • Rated Current
  • JD-SX120-111
  • Φ1.20 mm
  • 6.00 mm
  • 1.20 mm
  • 1.00 mm
  • 55 gf
  • 100 mΩ
  • 1.0 A

2D

3D

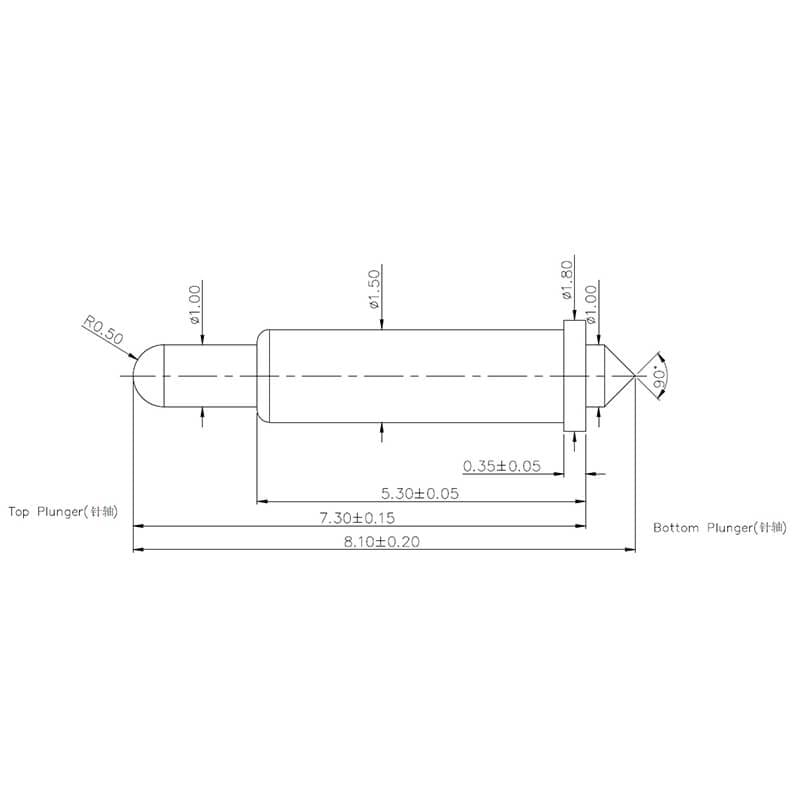

Φ1.50, 8.10mm, Double end double move, 1.80mm work stroke, JD-SX150-065

  • Part Number
  • Diameter
  • Length
  • Full stroke
  • Work stroke
  • Spring force
  • Contact resistance
  • Rated Current
  • JD-SX150-065
  • Φ1.50 mm
  • 8.10 mm
  • 2.80 mm
  • 1.80 mm
  • 45 gf
  • 100 mΩ
  • 1.0 A

2D

3D

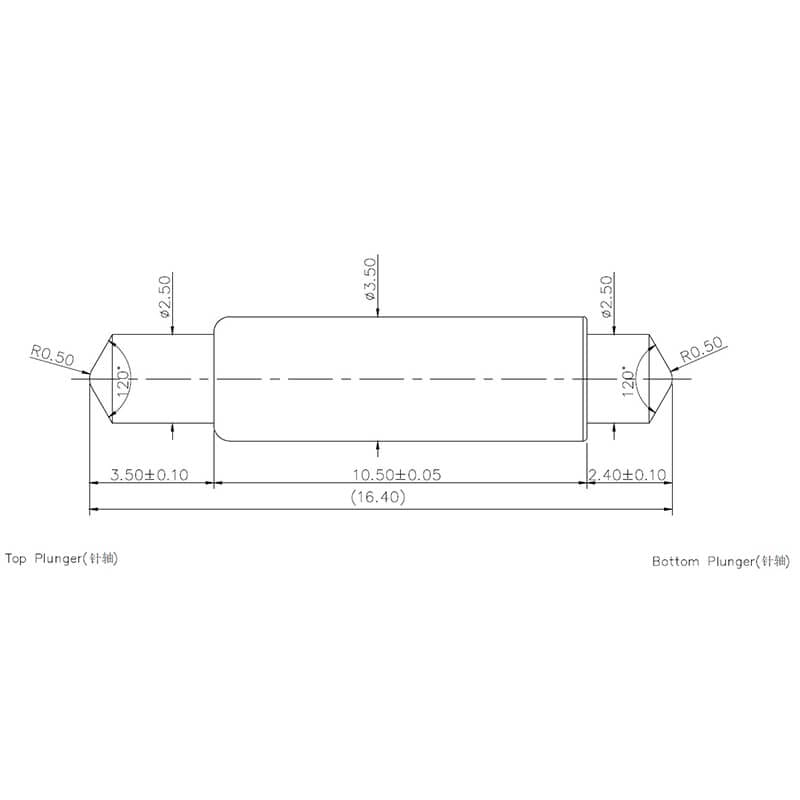

Φ3.50, 16.40mm, Double end double move, 4.00mm work stroke, JD-SX350-066

  • Part Number
  • Diameter
  • Length
  • Full stroke
  • Work stroke
  • Spring force
  • Contact resistance
  • Rated Current
  • JD-SX350-066
  • Φ3.50 mm
  • 16.40 mm
  • 4.50 mm
  • 4.00 mm
  • 110 gf
  • 100 mΩ
  • 1.0 A

2D

3D

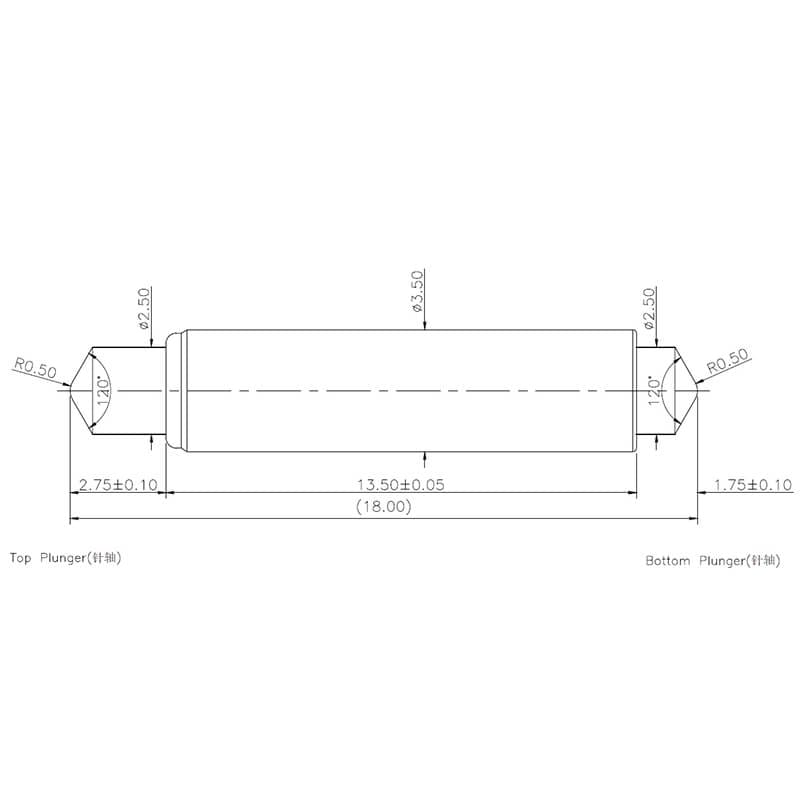

Φ3.50, 18.00mm, Double end double move, 4.00mm work stroke,JD-SX350-110

  • Part Number
  • Diameter
  • Length
  • Full stroke
  • Work stroke
  • Spring force
  • Contact resistance
  • Rated Current
  • JD-SX350-110
  • Φ3.50 mm
  • 18.00 mm
  • 4.50 mm
  • 4.00 mm
  • 180 gf
  • 100 mΩ
  • 1.0 A

2D

3D
