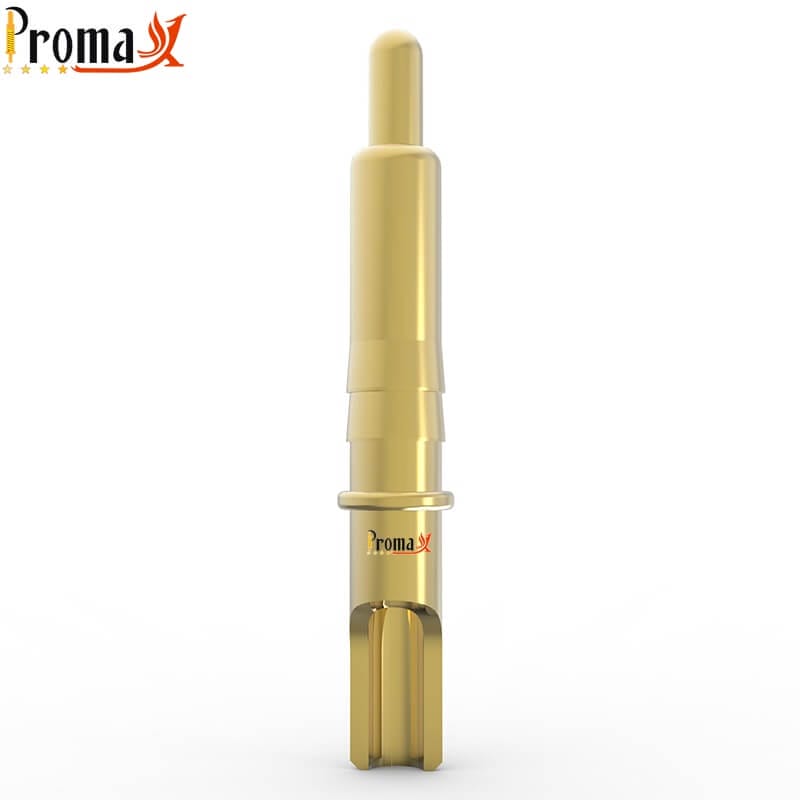

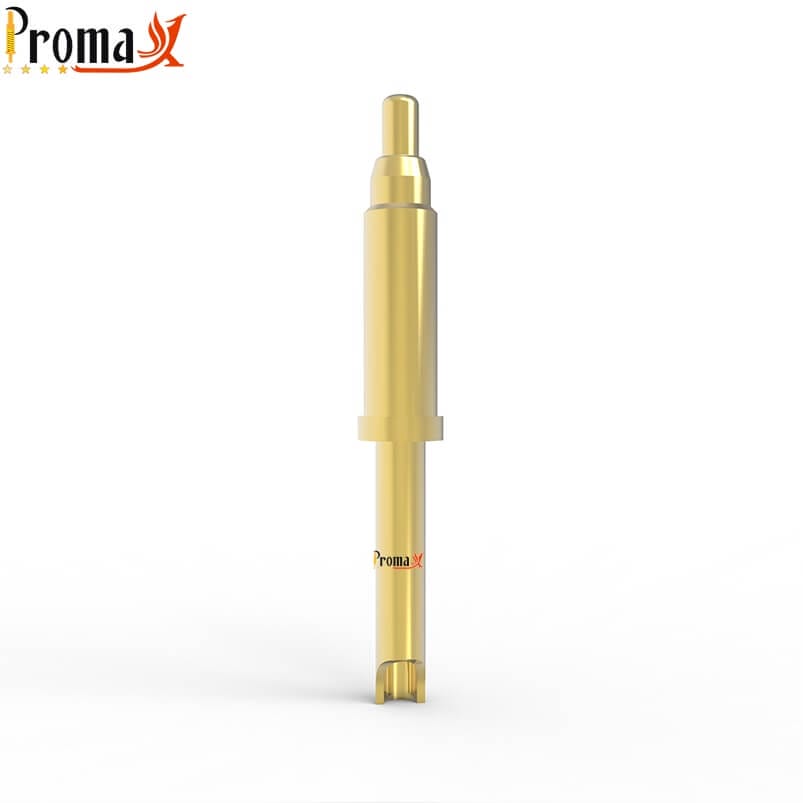

Solder Cup Pogo Pin
Are you looking for the solder cup pogo pin of the precise size? are you greatly worried about high product quality, the shortest delivery time, the lowest cost, and optimal service? Dongguan Promax is a professional pogo pin ODM Factory & Manufacturer since 2014, we believe we can provide you with the best solutions & perfect products, looking forward to win-win cooperation!
SIZE
DiameterΦ:≥0.7mm, full stroke ≥0.2mm, working stroke ≥0.05mm
SHAPE
Solder Cup, or others
MATERIAL
Brass, SUS304/316F/L,CuTe,HBi59,Cu-Sn, etc
PLATING
Au, Ag, Pd, Pt, Rh, Ru, Ni, etc
MOQ
3000pcs by T&R, Tray, Tube, Box, PE bag, etc
DELIVERY
DHL, UPS, ship the sample out in 2 weeks, mass production in 3-4 weeks
Use Case of Solder Cup Pogo Pin

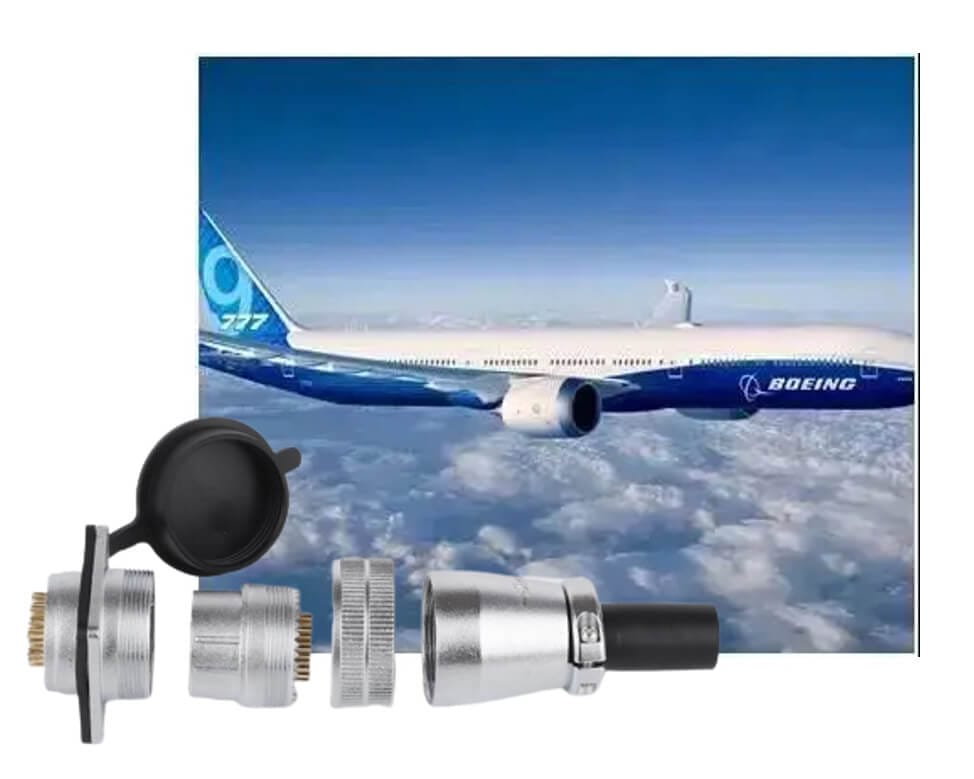

The Case was talking about the solder cup pogo pin which was used for an aviation plug and socket from an overseas customer LINEX Japan years ago. The customer’s requirement was very clear, its type was solder cup, rated voltage, and current was 12VDC, 2A, Read More ReadLessspring force was 60gf±15gf, their coating was Au and the forecast was 1,000 pcs per day. Though it was a challenge for us to assemble the finished goods at that time, We still completed the task according to quality and quantity.
Because it was a long product, the customer was worried about the uneven electroplating problems of the inner wall of the barrel, so, they asked to add a side hole in the barrel, to avoid potential or unexpected electroplating issues, that is, the electroplating solution could not flow smoothly into the inner layer of the barrel.
Our R&D Engineer’s Designs
After our trial run of various electroplating solutions and technology processes at our electroplating sub-company, we found a method to completely solve the problem and completely dispelled the concerns of our customer, that was. Read More ReadLess Found small beads enough of appropriate size when started to electroplate, and fed them into the electroplating solution, and those small beads could enter the barrel with the electroplating solution to fully electroplate! After my customer’s qualification test many times and slice analysis of multiple batches of products. no defectives were found! it was a very effective coating solution after hardworking and many studies by our R&D engineers. This solution saved a lot of cost and time for the company and customers, greatly shortened the delivery time, and improved the product quality.
How does Solder cup pogo pin work?
The PCB will have a dedicated connection port for the solder cup pogo pin, which is used to fix the Solder cup pogo pin. A solder cup pogo pin is a connector that connects the power supply and electronic components. It allows electrical connections between PCBs and electronic components. Read More ReadLess
Is Solder Cup Pogo Pin reliable?
When it comes to electrical connections, reliable contact is essential. That’s why Solder Cup Pogo Pins are such a suitable option for applications where a secure connection is needed. Read More ReadLessUnlike other types of electrical connectors, pogo pins have a stable structure. Does not come into contact with other conductors and causes a short circuit. Because of this design, the Pogo Pin creates tight connections every time it works. This makes them ideal for applications that require precise alignment of connections. Therefore, Solder Cup Pogo Pin is a highly reliable choice for a wide range of applications.
Unlike other types of electrical connectors, pogo pins have a stable structure. Read More ReadLessDoes not come into contact with other conductors and causes a short circuit. Because of this design, the Pogo Pin creates tight connections every time it works. This makes them ideal for applications that require precise alignment of connections. Therefore, pogo Pin is a highly reliable choice for a wide range of applications.
Pogo pins are commonly used in industrial applications where secure connections are required. Read More ReadLess For example, in the field of new energy vehicles, a Solder Screw pogo pin is often used in the chargers of new energy vehicles. Because of the reliability of its connection, it is being paid attention to by many emerging applications.
Pogo Pins are already widely used in the medical field. Some commonly used medical devices include blood pressure monitors, Read More ReadLessblood glucose monitors and heart rate monitors. Pogo pins are also used in pacemakers because of their safety and longevity.
It is a reliable and affordable solution
Because of their simple design, they are often used in consumer electronics, such as mobile phones, MP3 players, and other electronic devices. These pins are also used in various applications such as keycaps, switches, Read More ReadLesscomputer mice, game controllers, and many others. In addition to being small, they are also relatively cheap. Solder Cup Pogo Pin is a very handy tool that can be used to easily connect electronic components and PCBs. Their simplicity, low price, and ability to hold large loads make them ideal for use in home electronics. Thanks to their versatility and low cost, Pogo Pins are likely to continue to be a popular choice for a variety of applications in the future.
The solder cup pogo pin is easy to use
There are holes for them in the PCB, and you can insert the Solder Cup Pogo pin into this hole and solder it into place. Their simplicity of operation makes them ideal for prototyping and testing purposes. Read More ReadLessThey are often used in device chargers and portable electronic devices to physically connect a source or other device between the device and the power supply.
Solder Cup pogo pin is easy to mass production

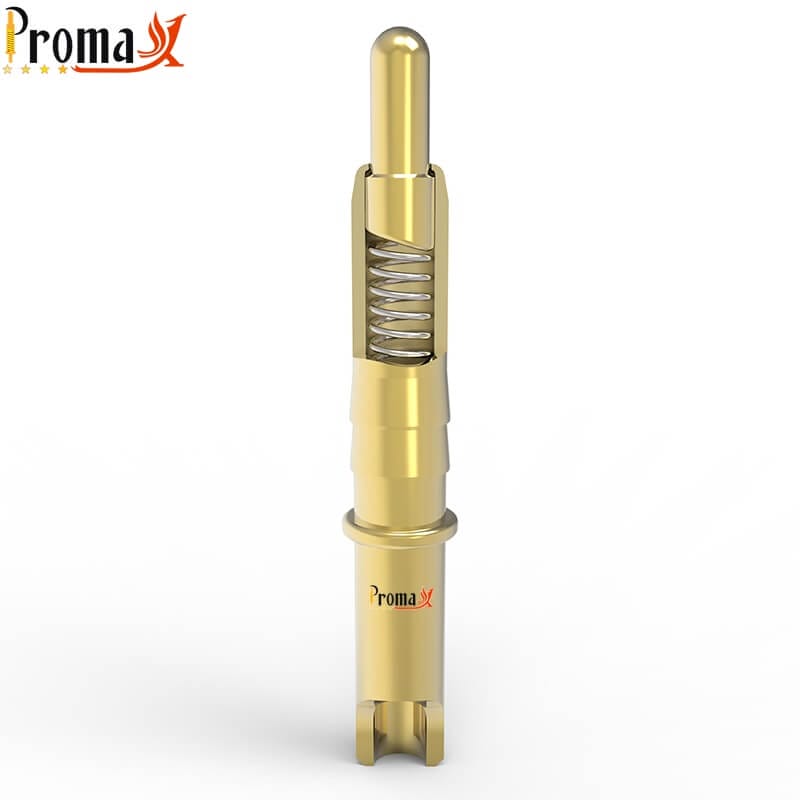

Solder cup pogo pin consists of a plunger, barrel, and spring, which can be mass production by a high-precision extrusion molding machine. The production cost is low, Read More ReadLess simple structure, and easy to assemble, so the solder cup is easy to mass production.
