Right Angle Pogo Pins
Right angle pogo pins are spring-loaded electrical connectors designed with a 90-degree angle. This design allows them to connect two circuit boards or components that are oriented perpendicularly to each other.
Looking for the perfect right angle pogo pin? Promax Pogo Pin, a trusted pogo pin manufacturer since 2014, offers high-quality products, fast delivery, and competitive prices.
SIZE
DiameterΦ:≥0.7mm, full stroke ≥0.2mm, working stroke ≥0.05mm
SHAPE
Right Angle, or others
MATERIAL
Brass, SUS304/316F/L,CuTe,HBi59,Cu-Sn, etc
PLATING
Au, Ag, Pd, Pt, Rh, Ru, Ni, etc
MOQ
3000pcs by T&R, Tray, Tube, Box, PE bag, etc
DELIVERY
DHL, UPS, ship the sample out in 2 weeks, mass production in 3-4 weeks
Use Case of Right Angle Pogo Pin
The case was a very simple one from a famous German customer in Feb. 2022, however, it was a long-term proposal and finalized on Mar. 9 for up to 25 days, My customer wanted a Right Angle Pogo Pin,
Read More
its requirement was very simple, the unloaded length was 5.3mm, working length was 4.3mm, tail height was 2.1mm, the center pitch was 0.95mm, the package was Tape & Reel, basically, it was OK to produce based on the drawing below.
ReadLess

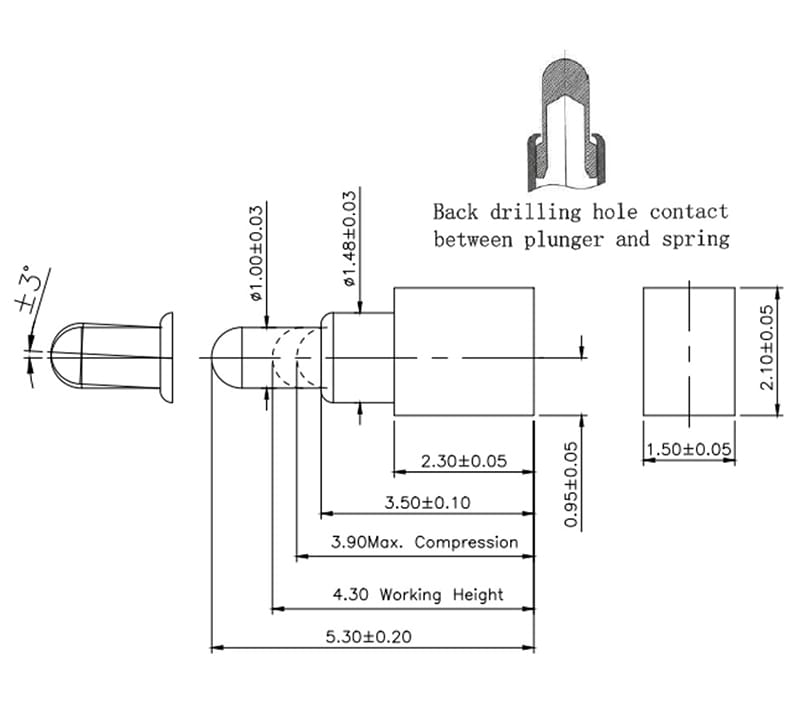

Based on the requirement, our R&D engineer worked out the solution with the structure of back drilling, and sent it to my customer soon,
Read More
at the same time, attached our suggested drawing in an e-mail: if or not to change the height of 0.95mm to 1.05mm with detail reason as below:
- The tail height was 2.1mm, its center pitch was 1.05mm, and the gap was 0.1mm.
- Because the package of tape & Reel was required, Poke Yoke was needed to place the product with complete uniformity, per our study, the complete uniformity was potentially unnecessary.
ReadLess
So, we proposed our suggestion to the customer for confirmation!
After receiving our e-mail about 2 proposal drawings, my customer looked into our proposal, had a long internal discussion and pretty many e-mails internal communication, and replied to us about the customer’s conclusions:
- Accepted our suggestion and agreed to change the central pitch
- Furthermore, changed the tail height from 2.1mm to 2.3mm
What is Its Structure?

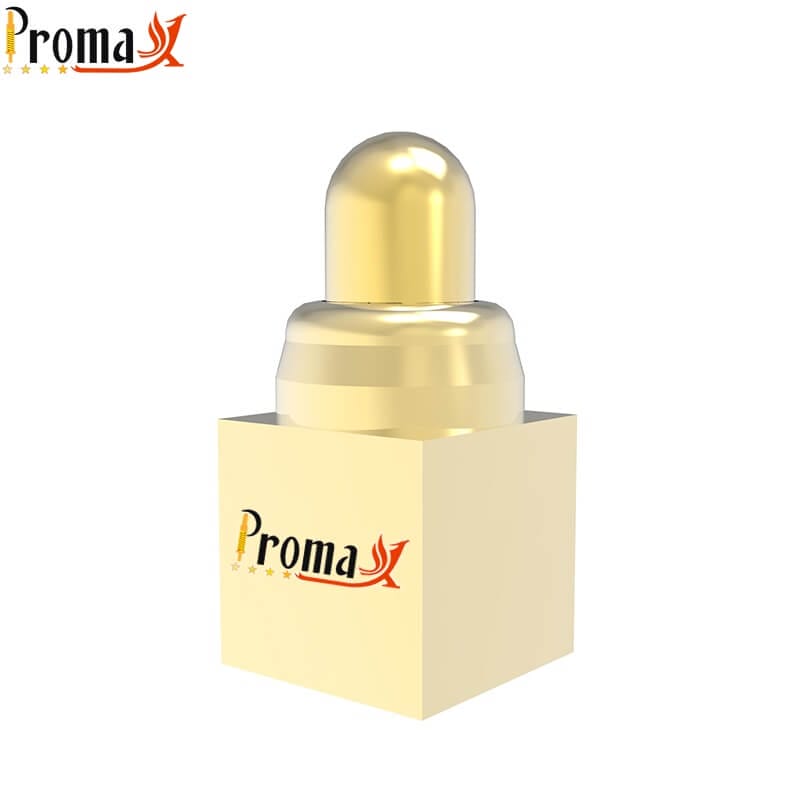

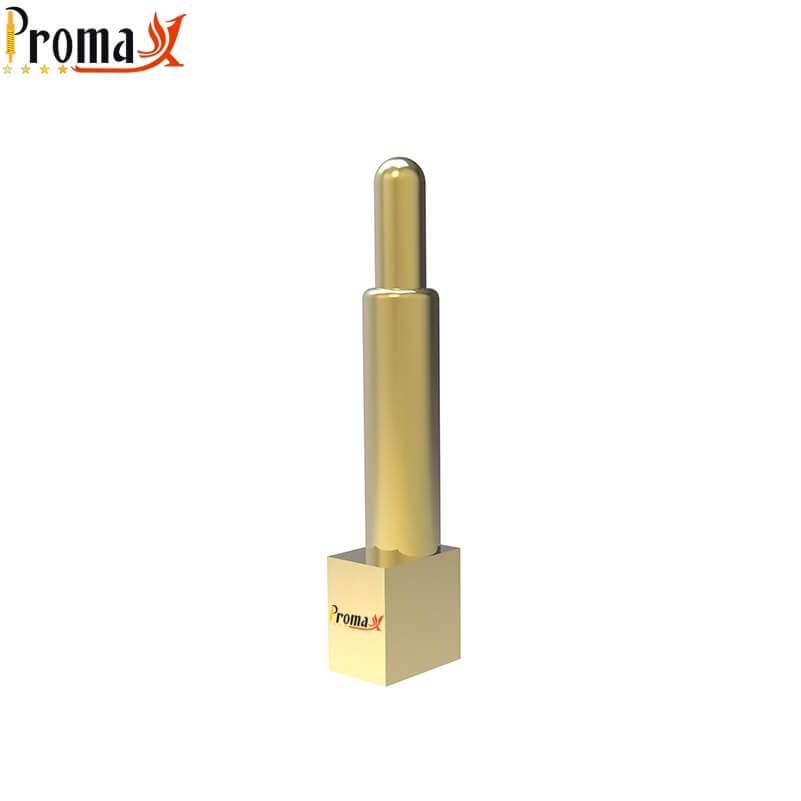

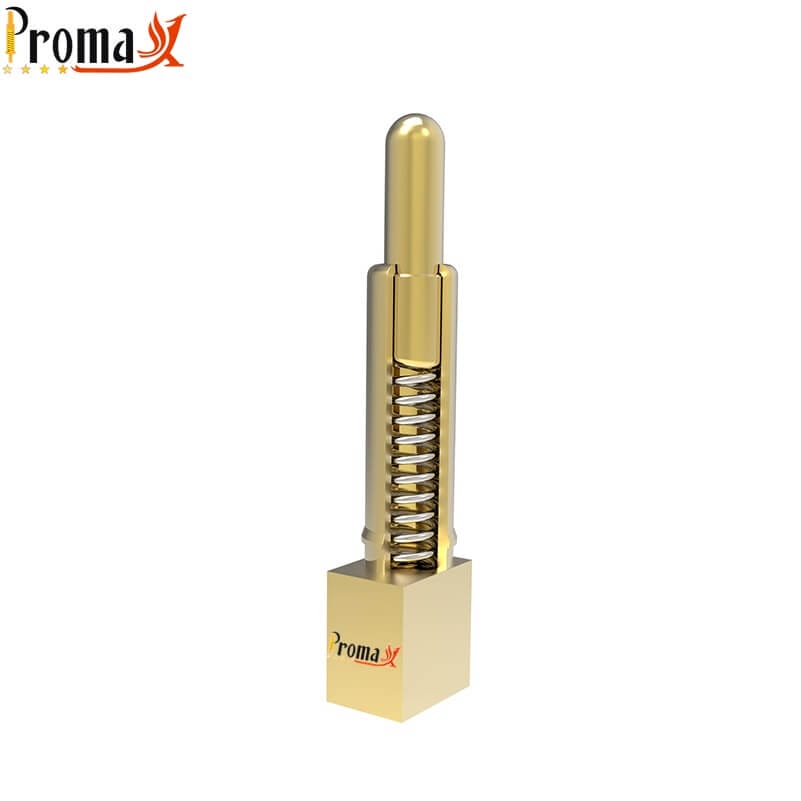

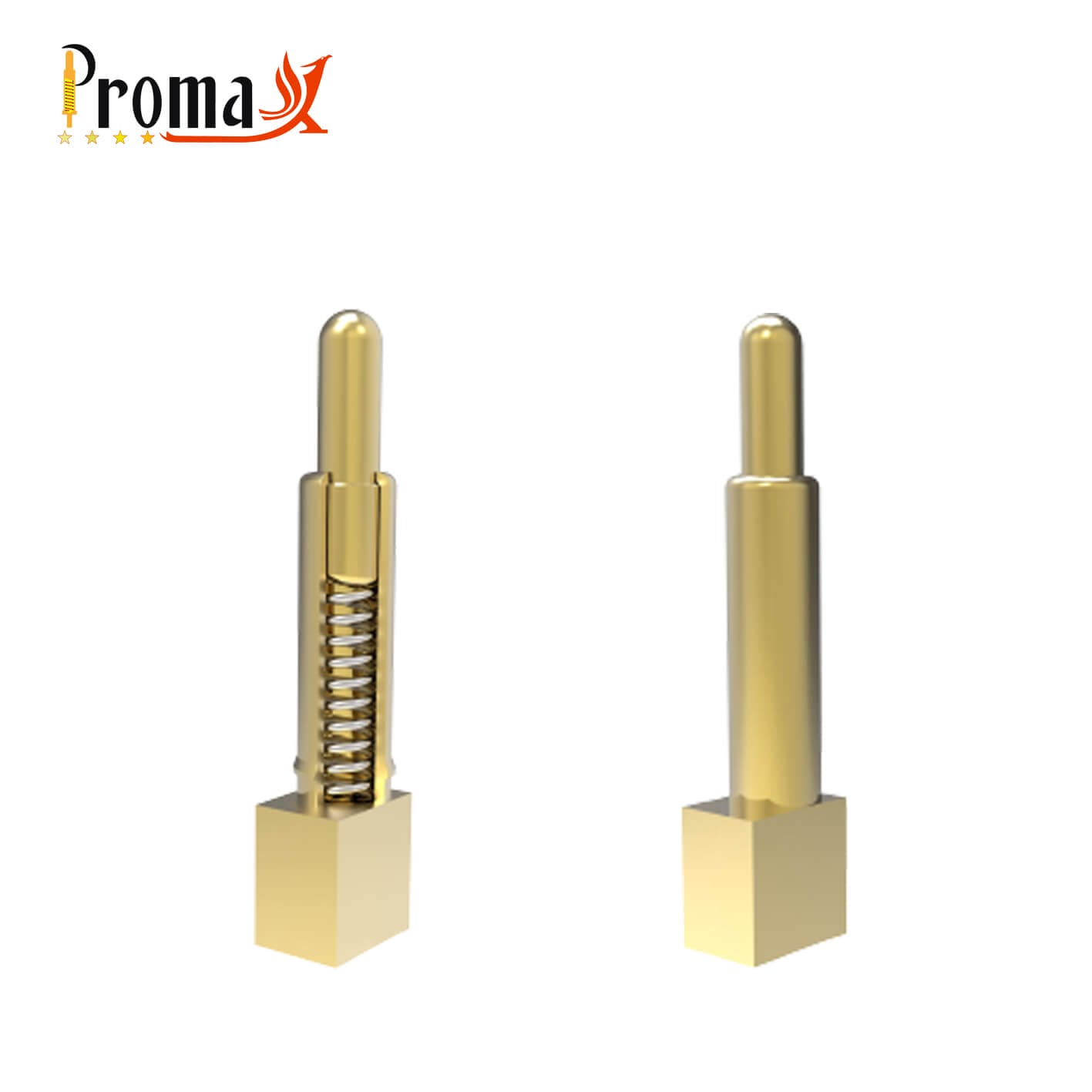

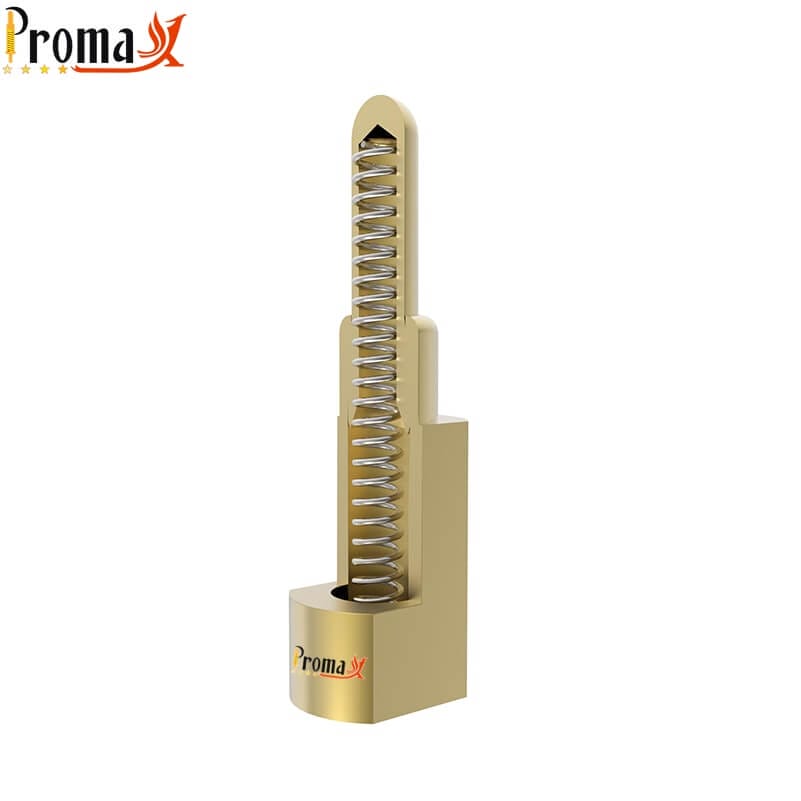

pogo pin consists of a plunger, barrel, and spring. But the barrel is special, it uses a minimal spatial structure while ensuring the connection of electronic components. Barrels are usually right angles. Read More ReadLessThe barrel is made of a special material, which effectively reduces the size of electronic components. Because the right angle pogo pin has a right angle, it can easily connect electronic components. Because of customers’ different applications, different design concepts are required, including Bias Tail, Back Drilling, Ball, T-pin type, or Coaxial. Of 4 designs, designs of T-pin/Ball/Coaxial can meet the requirement of high current, up to 15A or upper, and its resistance is ＜30mΩ.
Are there different types of right angle pogo pins?
Right angle pogo pins come in various types and configurations, each designed to meet specific application needs. Design variations include plunger shape (flat, rounded, or countersunk tips), barrel length and diameter, and spring type (helical or cantilever), which all influence the pin’s contact quality and performance. Read More ReadLess Connection strategies range from single pin connections to array configurations and high-density pogo towers, commonly used in automatic test equipment. These pins handle different signal types, including analog, digital, and high-frequency signals, with specialized designs to maintain signal integrity. Additionally, right angle pogo pins are available in various voltage and amperage ratings, suitable for both low-power consumer electronics and high-power industrial applications.
FAQs about Right Angle Pogo Pins
Can right angle pogo pins be used for permanent connections?
While right angle pogo pins are primarily designed for temporary connections, they can also be used in applications requiring more permanent connections, such as in certain high-performance electronic devices
What is a Right Angle Pogo Pin Connector?
Right angle pogo pin connectors are specialized electrical connectors that feature pogo pins arranged at a 90-degree angle. These connectors are designed to facilitate efficient and reliable connections between two circuit boards or components, especially in space-constrained applications. Promax Pogo Pins offers high-quality right angle pogo pin connectors, engineered for optimal performance in various industries and applications.
Some Common Applications:
- Cellular phones
- Laptops
- Tablets
- Digital cameras
- Camcorders
- Printers
- Scanners
- Automotive electronics
Industrial applications:
Pogo Pins are often used in industrial applications where a secure connection is needed. They are commonly used in assembly line testing, product inspection, and quality control. Pogo Pins are also used in a variety of automotive applications, such as engine control modules and infotainment systems.GET QUOTE
Medical applications:

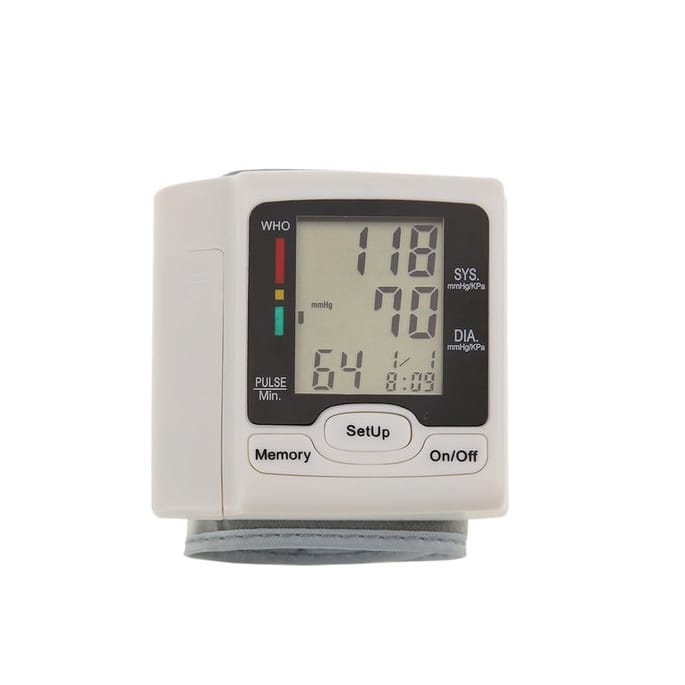

Pogo Pins are also used in a variety of medical applications. They are commonly used in blood pressure monitors, glucose meters, and heart rate monitors. Pogo Pins are also used in many implantable devices, such as pacemakers and defibrillators.
