PCB Pins Connector

Are you looking for a PCB Pins connector of the right size? Are you greatly worried about how to find high-quality products, the shortest delivery time, the lowest cost, and optimal services? Dongguan Promax is the best, as a professional PCB Pins connector ODM Factory & Manufacturer since 2014, we believe we can provide you with the best solutions & perfect products, looking forward to win-win cooperation!


DiameterΦ:≥0.7mm, full stroke ≥0.2mm


Any, whatever


Brass, SUS304/316F/L,CuTe,HBi59,Cu-Sn, etc


Au, Ag, Pd, Pt, Rh, Ru, Ni, etc


3000pcs by T&R, Tray, Tube, Box, PE bag, etc


DHL, UPS, ship the sample out in 2 weeks, mass production in 3-4 weeks

Use Case of PCB Pins Connector

Studied Customer Requirements

Based on the customer’s requirements, our R&D engineer finalized the 7-pins structure of the precise turning part connector, and, it was made of 7 solid pins and 1 housing. The material of the solid pin was lead-free brass, its coating was Au 10U” min over 50-120U” Ni. the material of the housing was HTN, UL94 V-0. the shape of the precise PCB Pin was right angle type.

RD Engineer of small turned parts

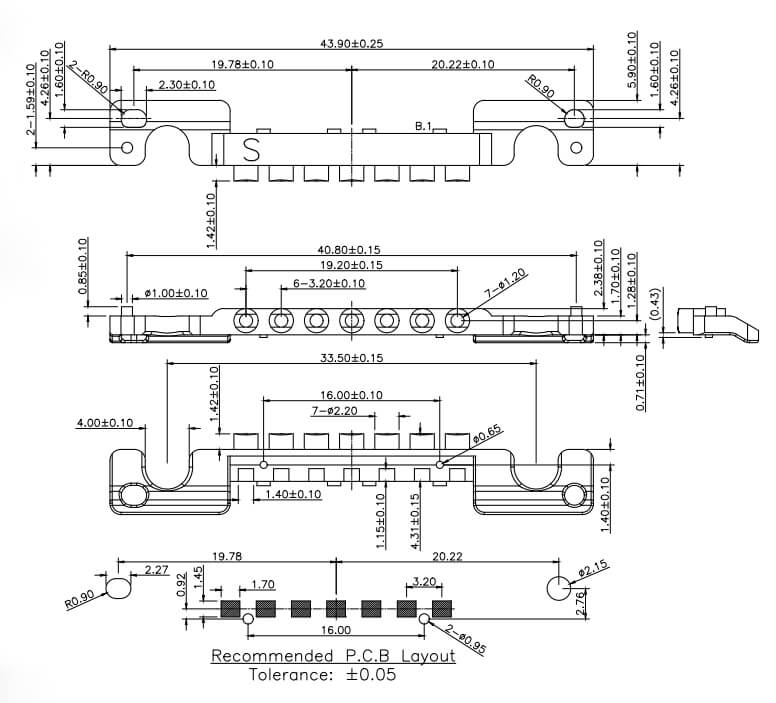

small turned parts drawing
small turned parts-7
small turned parts-8

What is the material for the PCB Pins?

Brass and stainless steel are ideal materials for PCB Pins. They have low weight and high strength characteristics and can be precision machined to customer specifications. It also has excellent electrical conductivity and good corrosion resistance.

Read More



small turned parts-9

Machining Process of PCB Pins Connector:

The process of turning can be divided into four steps: turning, polishing, electroplating, and assembly.

  • First, the material is cut out of the desired shape using a CNC machine, usually leaving an error of 0.01 mm.
  • Secondly, polishing is carried out to polish the PCB pins to the required surface finish.

Read More

  • Then, the electroplating material and film thickness are selected according to their function.
  • Finally, housing is used to assemble PCB Pins into the connectors.


What are The Characteristics of Them?

Substantial reduction in the number of parts and processing of complex-shaped PCB Pins without the need for multiple parts to be used with each other. Stable processing quality and high precision,

Read More

which can adapt to the processing requirements of flying chess.High production efficiency in the case of multi-variety and small batch production. The ability to reduce production preparation, machine tool adjustment, and other processes. Processing of PCB Pins does not require mold opening, effectively reducing production costs.



Application of PCB Pins Connector

The shape of PCB Pins is complex and suitable for various high-precision equipment. For example, computers, mobile phones, electronic cigarettes, and other consumer electronics.

Read More

Electronic medical equipment and aerospace need the application of a small turned parts connector.



How to Choose The Right One?

It is important to select a qualified PCB Pin. You need to choose from the precision after processing, usually qualified turning parts error will be 0.02 mm.

Read More

It can be said that the precision of the turning piece determines whether it is qualified. Second is the processing process, polishing, and electroplating after turning parts are in line with the application function.



small turned parts-10

Why Dongguan Promax?

When it comes to precision machining, few companies can match the level of skill and expertise exhibited by Dongguan Promax. With over 15 years of experience in the field, Dongguan Promax has perfected the art of PCB Pins with extreme accuracy and precision. No other company can provide the same level of quality and reliability when it comes to precision turning parts. Dongguan Promax is a trustworthy PCB Pins connector manufacturer.
