Right Angle Pogo Pins

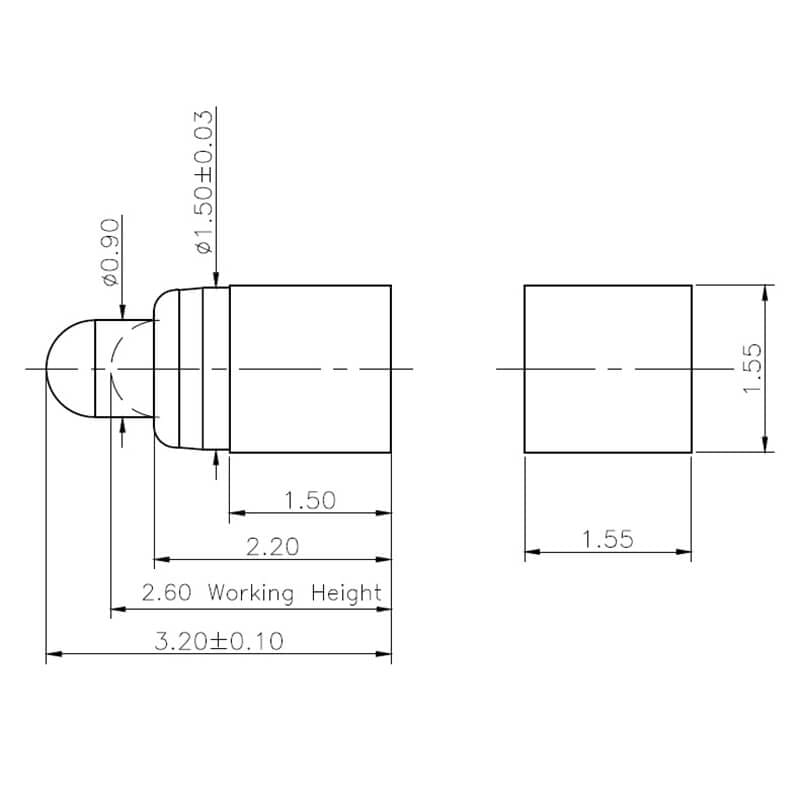

3.20mm, 1 Pin, 2.60mm Working Height, NC2959-01RA

  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC2959-01RA
  • 3.20 mm
  • 2.60 mm
  • 40 gf
  • Au 5 u”
  • 1.5 A

2D

3D

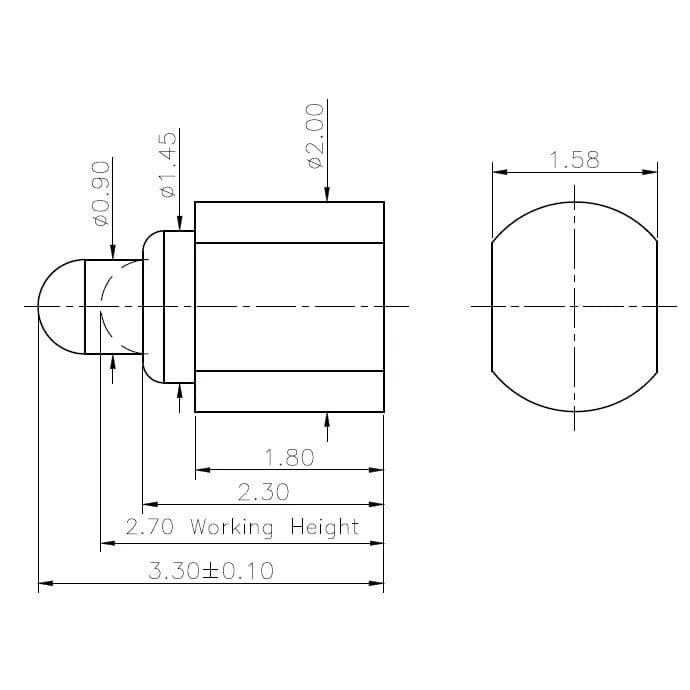

3.30mm, 1 Pin, 2.70mm Working Height, C2151-01

C2151_01_drawing
  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • C2151-01
  • 3.30 mm
  • 2.70 mm
  • 20 gf
  • Au 3 u”
  • 1.0 A

2D

3D

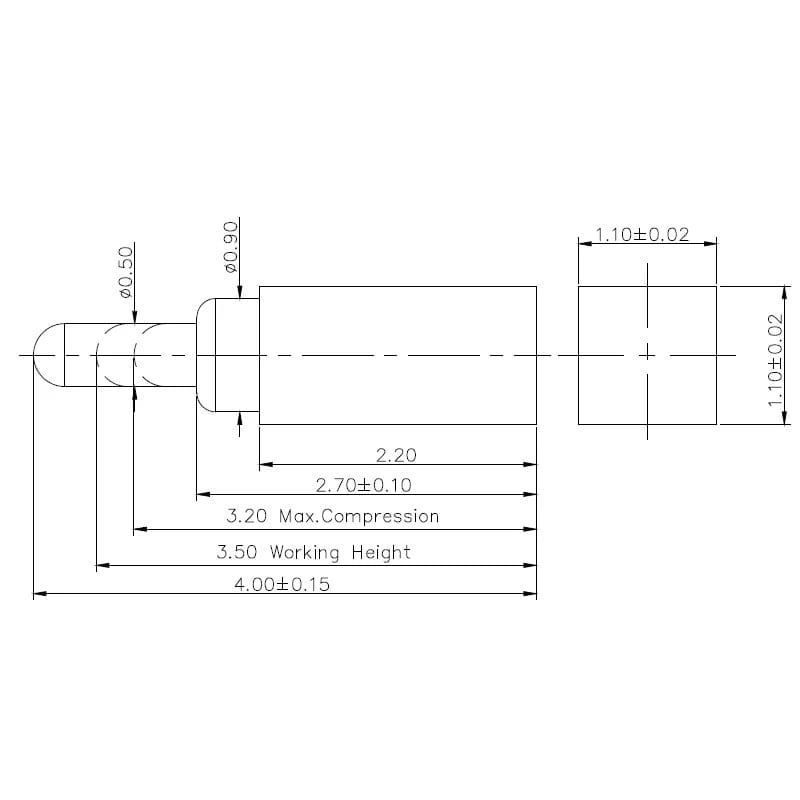

4.00mm, 1 Pin, 3.50mm Working Height, C1322-01

C1322_01_drawing
  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • C1322-01
  • 4.00 mm
  • 3.50 mm
  • 30 gf
  • Au 16 u”
  • 1.0 A

2D

3D

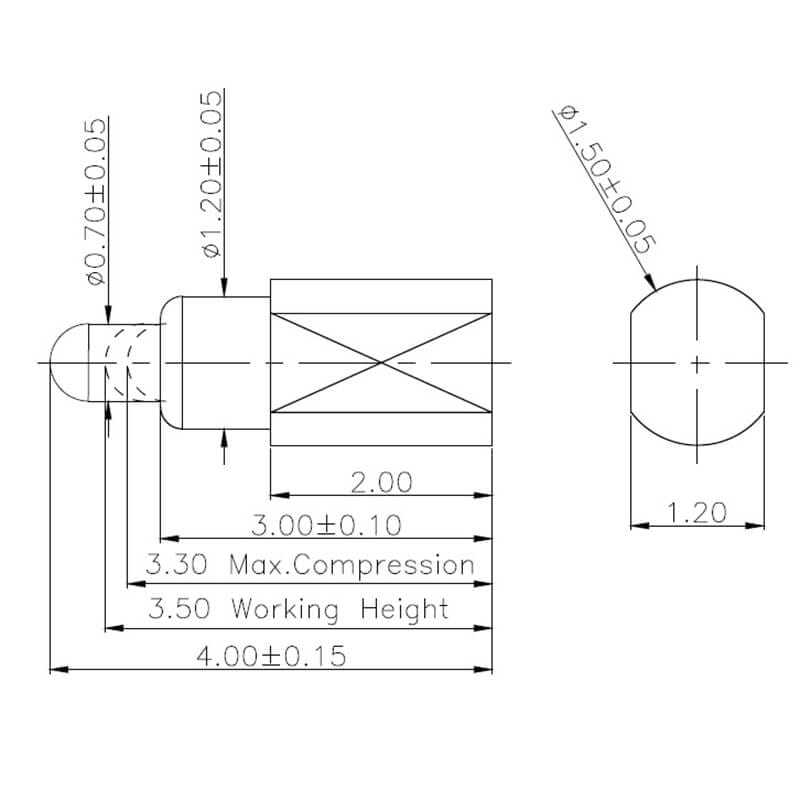

4.00mm, 1 Pin, 3.50mm Working Height, NC3733-01RA

  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC3733-01RA
  • 4.00 mm
  • 3.50 mm
  • 70 gf
  • Au 5 u”
  • 1.0 A

2D

3D

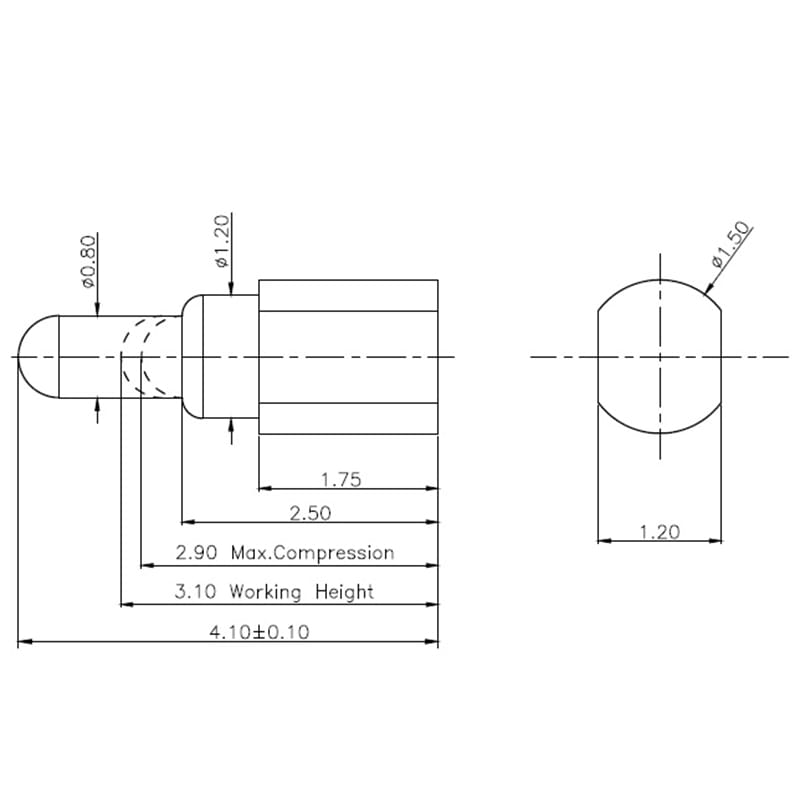

4.10mm, 1 Pin, 3.10mm Working Height, NC3010-01A

  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC3010-01A
  • 4.10 mm
  • 3.10 mm
  • 45 gf
  • Au 5 u”
  • 1.0 A

2D

3D

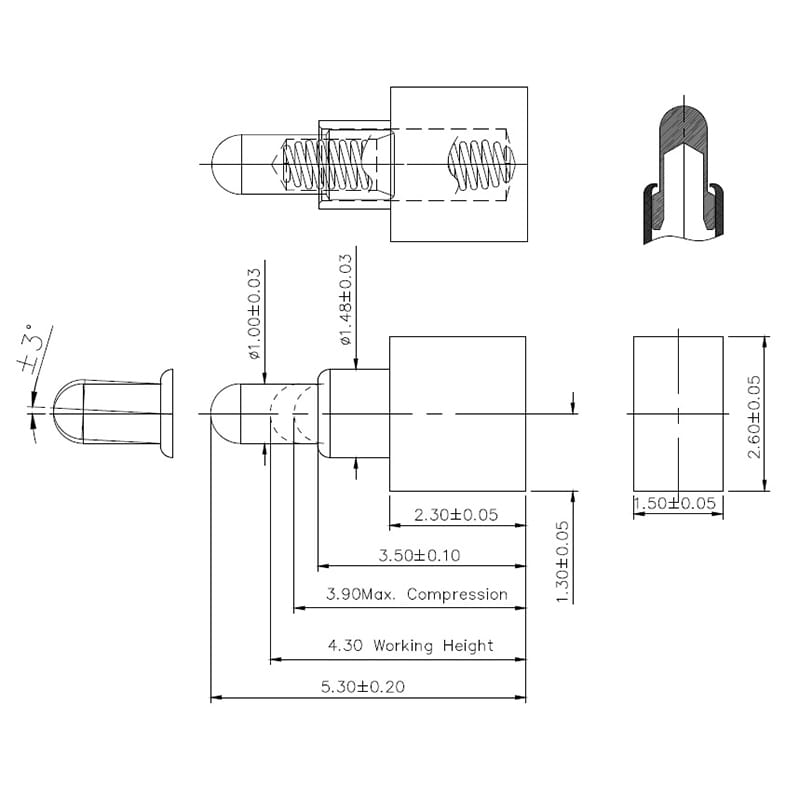

5.30mm, 1 Pin, 4.30mm Working Height, NC4425-01PA

  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC4425-01PA
  • 5.30 mm
  • 4.30 mm
  • 120 gf
  • Au 10 u”
  • 1.0 A

2D

3D

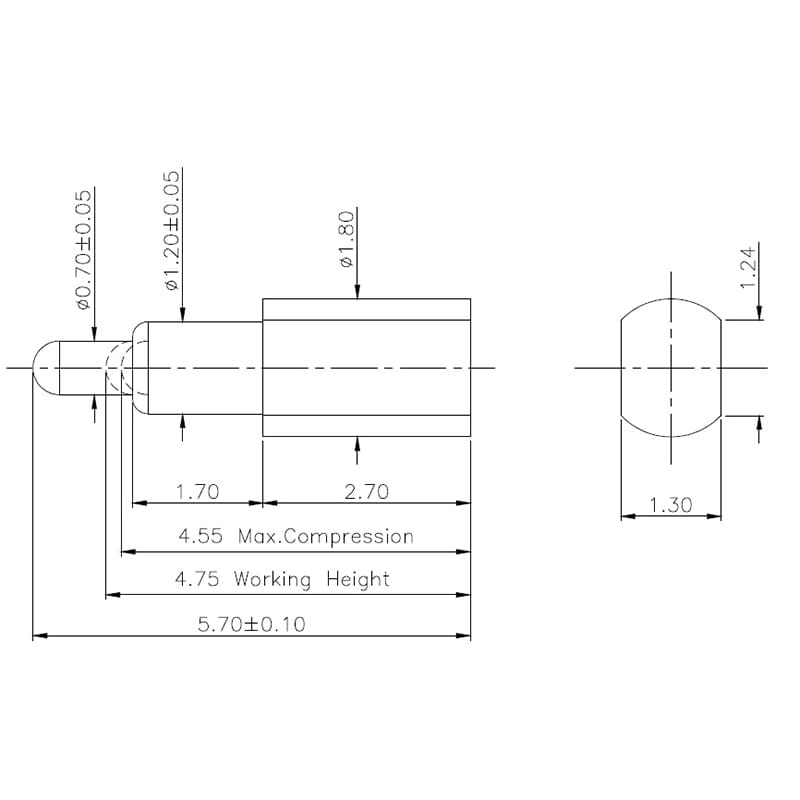

5.70mm, 1 Pin, 4.75mm Working Height, NC3616-01RA

  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC3616-01RA
  • 5.70 mm
  • 4.75 mm
  • 35 gf
  • Au 23 u”
  • 1.0 A

2D

3D

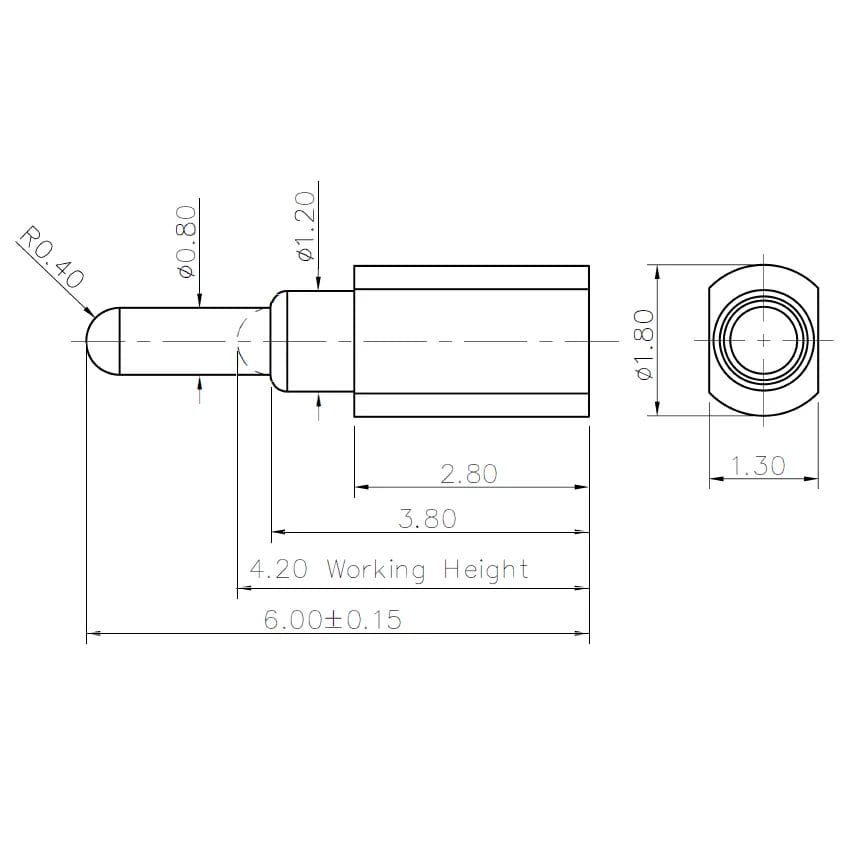

6.00mm, 1 Pin, 4.20mm Working Height, C425-01

  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • C425-01
  • 6.00 mm
  • 4.20 mm
  • 90 gf
  • Au 10 u”
  • 2.0 A

2D

3D

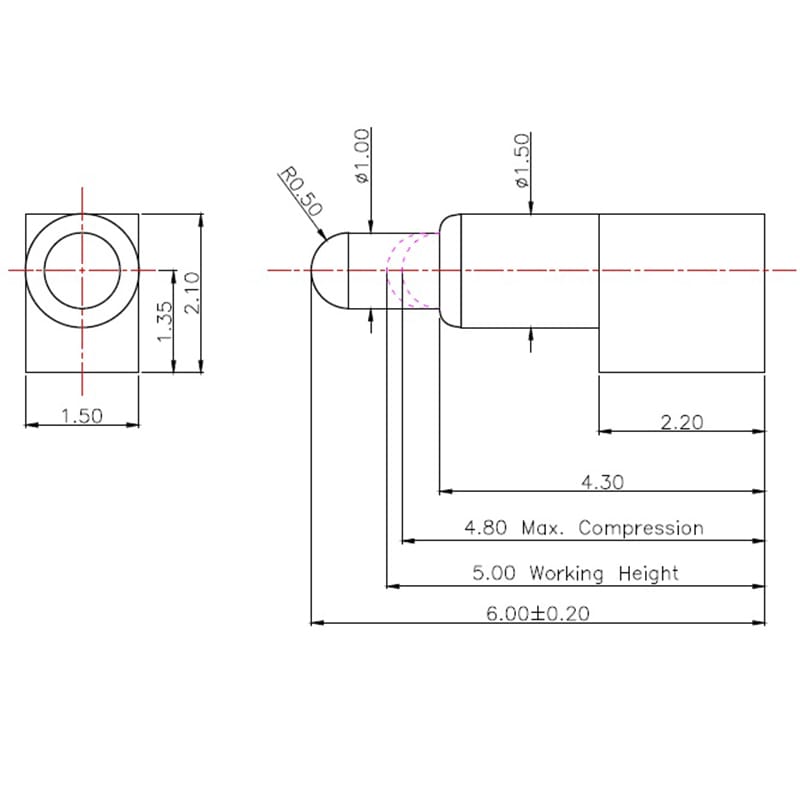

6.00mm, 1 Pin, 5.00mm Working Height, C090-01

  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • C090-01
  • 6.00 mm
  • 5.00 mm
  • 110 gf
  • Au 10 u”
  • 2.0 A

2D

3D

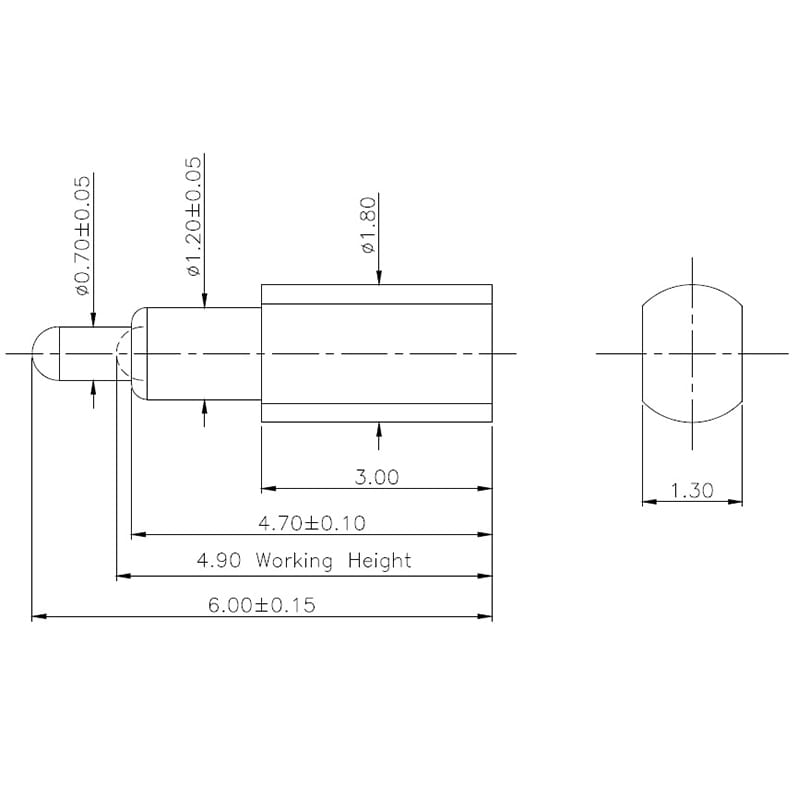

6.00mm, 1 Pin, 4.90mm Working Height, NC2355-01R

  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC2355-01R
  • 6.00 mm
  • 4.90 mm
  • 20 gf
  • Au 23 u”
  • 1.0 A

2D

3D

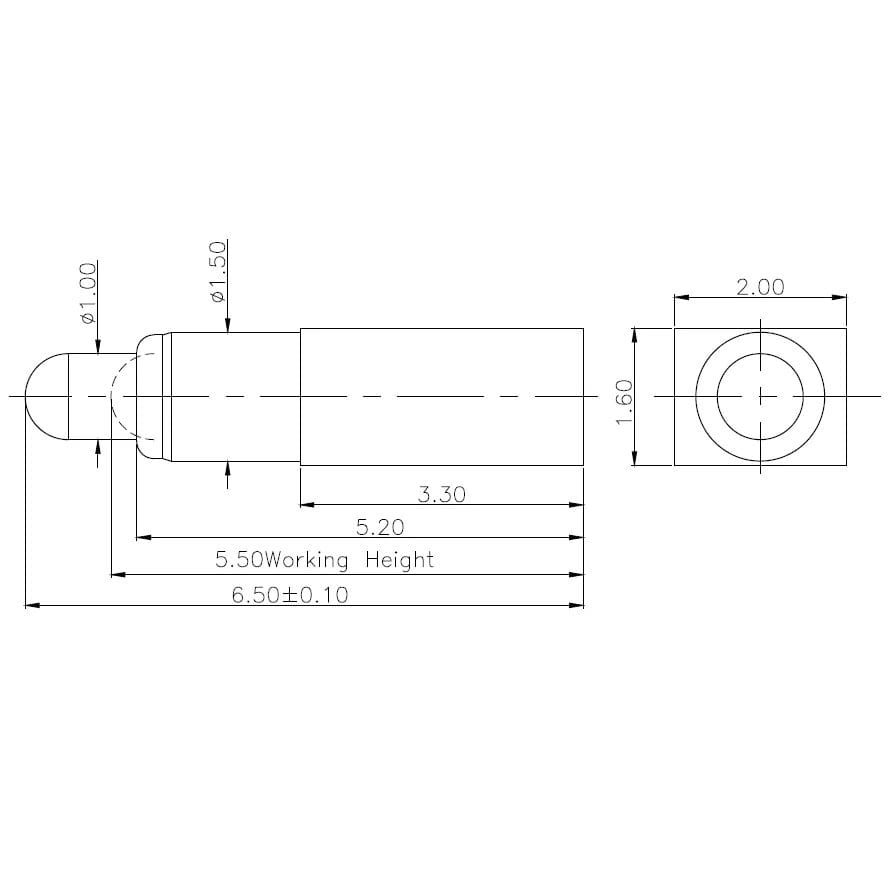

6.50mm, 1 Pin, 5.50mm Working Height, C1903-01

  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • C1903-01
  • 6.50 mm
  • 5.50 mm
  • 90 gf
  • Au 5 u”
  • 3.0 A

2D

3D

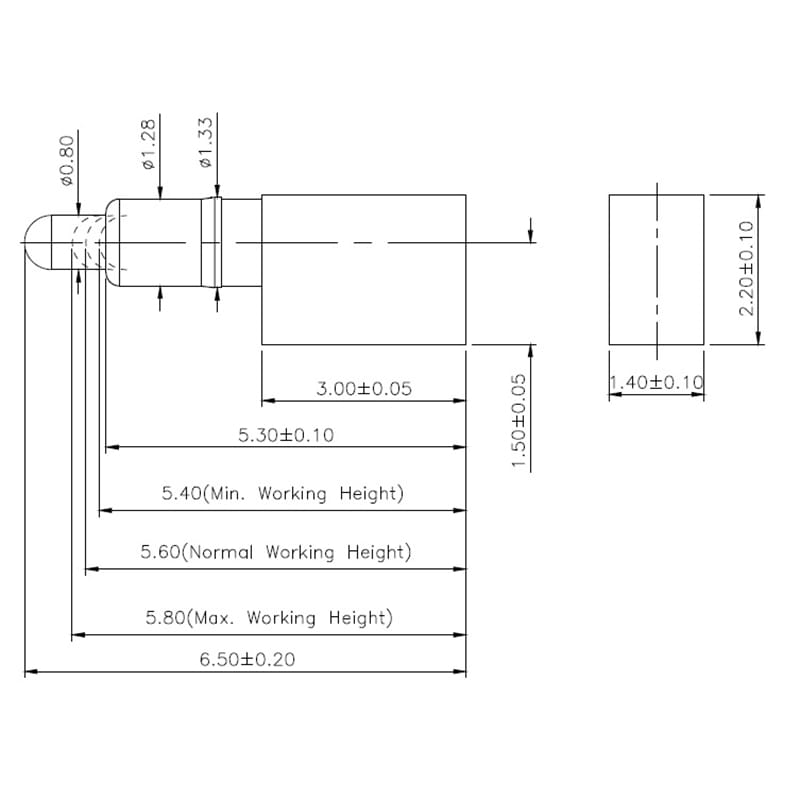

6.50mm, 1 Pin, 5.60mm Working Height, NC4390-01PA

  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC4390-01PA
  • 6.50 mm
  • 5.60 mm
  • 150 gf
  • Au 10 u”
  • 2.0 A

2D

3D

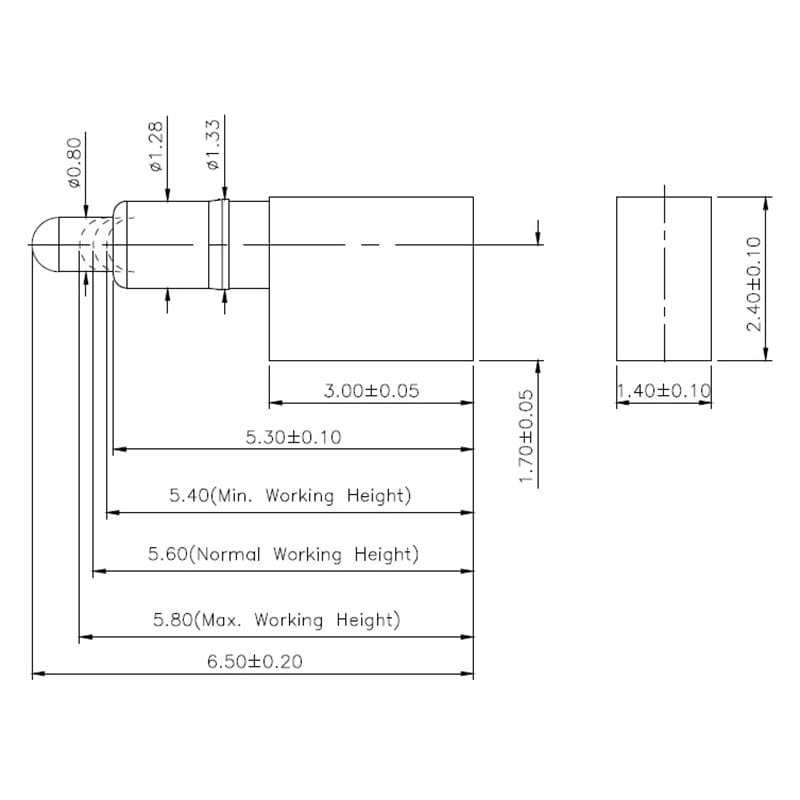

6.50mm, 1 Pin, 5.60mm Working Height, NC4411-01PA

  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC4411-01PA
  • 6.50 mm
  • 5.60 mm
  • 150 gf
  • Au 40 u”
  • 2.0 A

2D

3D

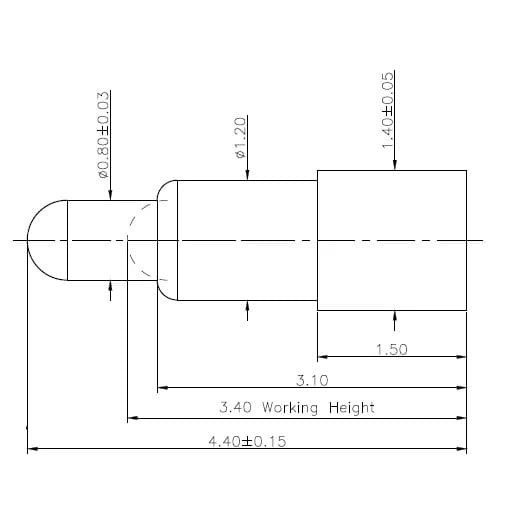

4.40mm, 1 Pin, 3.40mm Working Height, NC4909-01RA

NC4909_01RA
  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC4909-01RA
  • 4.40 mm
  • 3.40 mm
  • 30 gf
  • Au 10 u”
  • 1.0 A

2D

3D

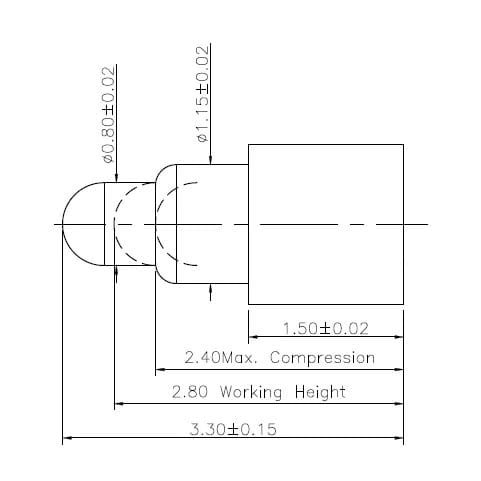

3.30mm, 1 Pin, 2.80mm Working Height, NC4815-01RA

  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC4815-01RA
  • 3.30 mm
  • 2.80 mm
  • 60 gf
  • Au 3 u”
  • 1.0 A

2D

3D

If you do not find the desired model, please contact us. We have professional engineers to solve your problems.
