When you’re working on a home improvement project, there are bound to be moments when you need to connect two pieces of metal. If you’re using copper wire, one way to do this is by using a ground wire connector.Ground wires play an important role in electrical safety, and it’s important to ensure they are properly connected. These connectors are incredibly simple and can be found at most hardware stores. In this post, we’ll show you how to use a ground wire connector and give you tips on choosing the right one. Let’s get started!
What Is a Ground Wire?
A ground wire is a conductor that provides a path for electrical current to flow to the earth. This helps protect people and equipment from dangerous electrical shocks. Ground wires are required in most electrical systems, and they must be properly connected to work correctly.
What Is a Ground Wire Connector?
A ground wire connector is a device that is used to connect two pieces of wire together. These connectors are simple and easy to use, and they can be found at most hardware stores. There are many different types of ground wire connectors, so it’s important to choose the right one for your needs.

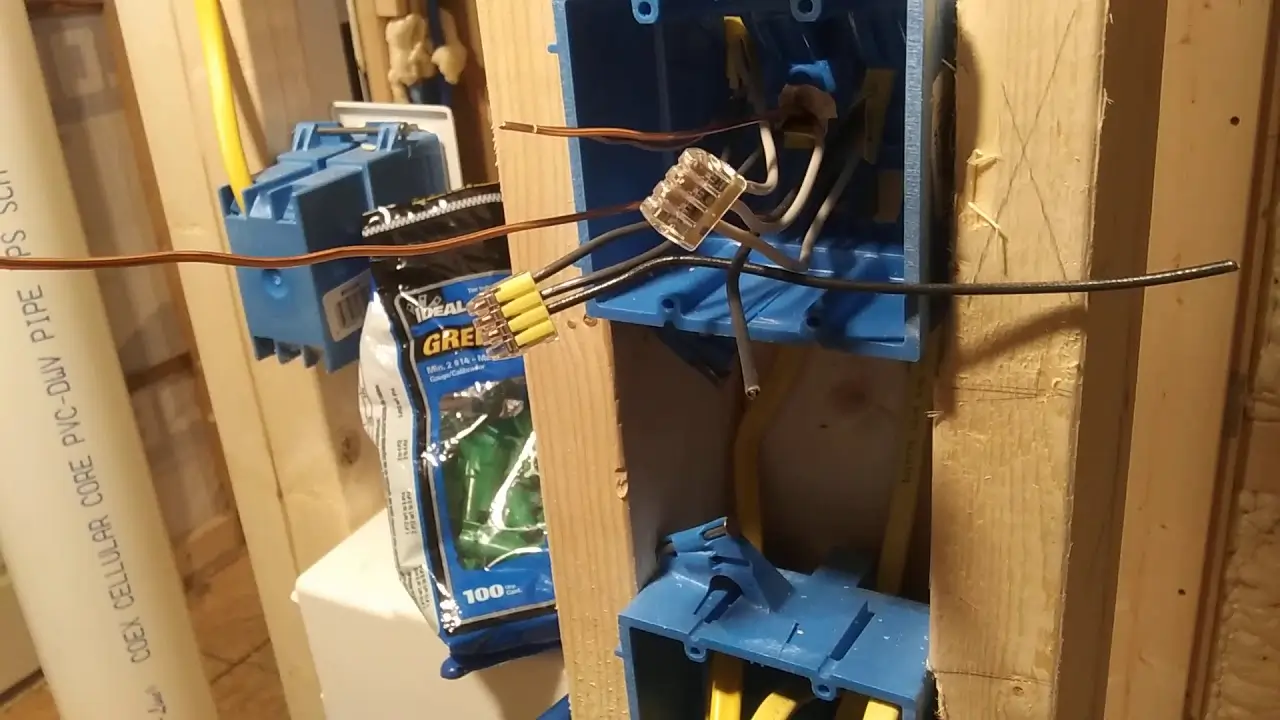

How To Use a Ground Wire Connector?
Step 1: Strip about ½ inch of insulation from each end of the wires that will be connected.
Step 2: Twist the strands of wire together so that they form a solid connection.
Step 3: Place the connector over the twisted wires and make sure it is fully seated.
Step 4: Use pliers to crimp the connector shut.
Be careful not to pinch your fingers!
Tips For Choosing A Ground Wire Connector
When choosing a ground wire connector, there are a few things to keep in mind. The connector’s amperage rating must first be confirmed for your electrical system. Second, make sure the connector you choose is constructed with high-quality components. Finally, ensure sure the connector is simple to install and operate.
What are The Types of Ground Wire Connectors?
There are many different types of ground wire connectors, so it’s important to choose the right one for your needs.
split-bolt connector
clamp-type connector
The most common type of connector is the split-bolt connector, which is used for connecting two pieces of wire together.Another common type of connector is the clamp-type connector, which is used for connecting a ground wire to a metal surface.
What Factors Should You Consider While Choosing a Ground Wire Connector?
When choosing a ground wire connector, you need to consider the size and type of wire you’re using. Most connectors will work with either stranded or solid wire, but some only work with one or the other. You also need to make sure the connector is rated for the amperage of your circuit. Lastly, take a look at the environment where the connector will be used – some are not meant for outdoor use.
Is It OK Not To Connect The Ground Wire?
The ground wire is not a component of the conducting channel that delivers electricity to the device. Therefore, it will still function normally without it. In fact, you won’t typically be able to detect the difference if the grounding wire is cut or broken. But there can be a shock risk if the high voltage has come into contact with the case.
In the absence of the ground wire, shock hazard circumstances typically won’t cause the breaker to trip unless the circuit has a ground fault interrupter. By providing a way to ground in the event that a “hot” wire makes contact with the appliance’s metal housing, the ground wire helps to push the breaker to trip.
What Do You Know About The Ground Wire Connector Adapter?
If you need to connect a ground wire to an appliance that doesn’t have one, you can use a ground wire connector adapter. These adapters are simple devices that allow you to connect a ground wire to any appliance.
How To Connect Multiple Ground Wires?
If you need to connect multiple ground wires, you can use a pigtail connector. A pigtail connector is a short length of wire with multiple connectors on it. This allows you to connect multiple ground wires to one appliance.
What Is The Difference Between A Green And Bare Ground Wire?
The difference between a green and a bare ground wire is that a green ground wire is insulated, while a bare ground wire is not. An insulated ground wire will have a green jacket around it, while a bare ground wire will not. Both types of wires serve the same purpose, but an insulated ground wire is less likely to cause electrical shocks.
What Do You Know About Underground Wire Connectors?
An underground wire connector is a type of connector that is used to connect two pieces of wire together while they are buried underground. This type of connector is typically made from high-quality materials and is easy to use.
Why Do I Need A Ground Wire?
In the event of a short circuit, a ground wire offers a conduit for electricity to flow. Without a ground wire, electricity would have nowhere to go and could potentially cause damage to your home or electrical appliances.
How Do I Install A Ground Wire?
To install a ground wire, you will need to connect it to a metal rod that has been driven into the ground. Once the rod is in place, you can attach the ground wire to it using a clamp-type connector. Finally, you will need to connect the other end of the ground wire to your electrical panel.
How Do I Test A Ground Wire?
To test a ground wire, you can use a multimeter. Set the multimeter’s “resistance” setting first. Once that is done, connect one of the probes to the ground wire and the other to a metal surface. If the multimeter beeps or shows zero reading, then the ground wire is functioning properly.
