The Ultimate Guide To Pogo Pins For Electronic Cigarettes

electronic cigarette

Last Updated on July 24, 2023 by Tony

In this ever-evolving landscape of electronic cigarettes, pogo pins have risen prominently as a pivotal force driving the electronic cigarette revolution.

Whether you’re a seasoned vaping enthusiast, a curious newcomer, or a seasoned industry professional seeking to deepen your expertise, this all-encompassing guide is your ultimate resource for mastering, employing, and optimizing pogo pins in electronic cigarettes.

We will explore core functionality, versatile applications, remarkable advantages, and essential considerations of pogo pins for electronic cigarettes.

We aim to equip you with the knowledge to skillfully decide, develop cutting-edge devices, and ensure electronic cigarettes’ reliability and performance.

Whether you’re a vaping enthusiast perfecting your setup or an innovative engineer leading the charge in the e-cigarette industry, let’s explore the incredible potential of pogo pins for e-cigarettes. Ready? Let’s delve in!

Pogo Pins For E-Cigarettes

Pogo pins are vital in e-cigarettes, playing a crucial role. These spring-loaded connectors transfer power and data between different parts of the device.

Functionality

Battery Connection

They ensure a reliable connection between the e-cigarette’s battery and internal circuitry, enabling easy installation and removal for quick and secure contact.

Charging Mechanism

Rechargeable e-cigarettes use pogo pins to create a stable connection between the charging port and battery. They ensure a smooth flow of electrical current during charging.

Control Board Connectivity

Ensuring precise regulation of functions like temperature and power output, pogo pins allow smooth communication between an e-cigarette’s control board and other components.

Cartridge or Atomizer Connection

Pogo pins help connect the e-liquid cartridge or atomizer to the device. It enables the heating of the e-liquid, producing the inhaled vapor.

Designs and Characteristics of Pogo Pins For E-Cigarettes

Pogo pins used in electronic cigarettes come in various designs and configuration to meet specific requirements. Some key characteristics and design variations include:

Spring Force

Balancing strong force for stability and gentle force to protect contact points is crucial. The spring force of a pogo pin sets the contact pressure.

Plunger Length

The length of the plunger, the part of the pogo pin that extends and compresses the spring, varies across different models. Proper plunger length helps create reliable and consistent connections.

Current Rating

Pogo pins are rated for maximum current capacity. Manufacturers choose ones that match the e-cigarette’s power needs, ensuring they can handle the load without overheating or compromising performance.

Durability and Lifespan

As e-cigarettes are frequently assembled and disassembled, the durability of pogo pins is required. High-quality materials and precision engineering guarantee extended lifespans and reliability.

Plating Materials

Plated with gold or nickel, pogo pins improve conductivity and corrosion resistance. The choice of plating material considers cost, environmental factors, and intended use.

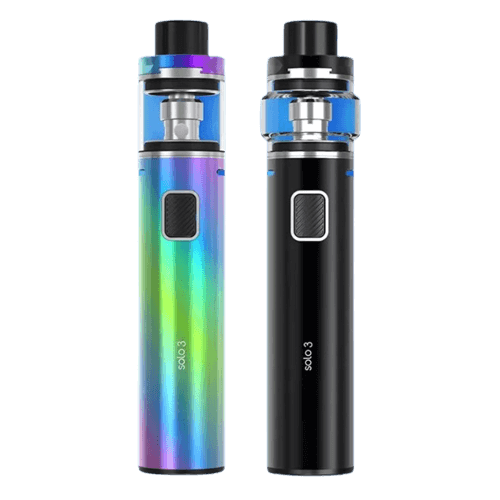

electronic cigarette

Types Of Pogo Pins Used In Electronic Cigarettes

Various types of pogo pins are used in e-cigarettes, each designed to meet specific device requirements. Here are the common types:

Vertical Pogo Pins

Vertical pogo pins, also called through-hole pogo pins, are the traditional and widely used type in e-cigarettes. They are installed vertically on the PCB, featuring a plunger inside a cylindrical housing for a spring-loaded connection.

What They Are For?

  • Stable and secure connection due to the vertical mounting
  • Easy to solder onto the PCB, ensuring a strong attachment
  • Suitable for applications where space on the PCB is not a limiting factor

Through Hole Pogo Pins

Plug-in pogo pins are inserted into mating sockets for temporary connections, offering a solder-free solution. They are commonly used in charging docks or cradles for e-cigarettes.

What They Are For?

  • Quick and easy connection and disconnection without soldering
  • Ideal for devices that require frequent charging or docking

Magnetic Pogo Pins

Magnetic pogo pins use magnets to improve the connection with mating sockets, which is quite helpful when alignment is problematic. The magnetic force guides and secures the pins for a reliable connection.

What They Are For?

  • Easy alignment, reducing the risk of misalignment during connection
  • Secure attachment due to the added magnetic force

Integrated Pogo Pins

Integrated pogo pins combine pins and sockets into a compact unit, streamlining assembly and ensuring a reliable and durable connection between components.

What They Are For?

  • Streamlined design and reduced space requirements
  • Enhanced durability due to the integrated structure
electronic cigarette-01

Importance Of Pogo Pins In E-Cigarettes

Connection Between Battery And Atomizer

Pogo pins are essential for connecting the battery and atomizer in electronic cigarettes, ensuring efficient power transfer.

  • Their spring-loaded design maintains constant pressure, providing a reliable electrical connection and consistent power delivery during vaping.
  • Additionally, pogo pins enable easy and secure battery replacement, ensuring uninterrupted usage.
  • Moreover, they enhance safety by reducing the risk of short circuits or loose connections, promoting safer vaping experiences with minimized potential for accidents or device damage.

Impact On Performance And User Experience

High-quality pogo pins significantly influence electronic cigarette performance and user experience.

  • They ensure consistent vapor production, precise temperature control, and responsive firing for a smoother vaping experience.
  • Additionally, pogo pins simplify assembly, disassembly, cleaning, and customization, enhancing user convenience.

Durability And Reliability Factors

High-quality pogo pins with durable materials and precision engineering offer longevity, withstanding frequent use in daily devices.

  • Their spring-loaded design ensures resistance to wear and tear, maintaining a reliable connection over time.
  • Pogo pins with corrosion-resistant plating materials like gold or nickel are vital for e-cigarette devices in contact with e-liquids.
  • Consistent contact pressure minimizes the risk of intermittent connections, providing a seamless vaping experience.

How To Choose the Right Pogo Pins For Electronic Cigarettes?

Here are essential considerations for choosing the best pogo pins for your e-cigarettes.

  1. Select pogo pins with the suited current and voltage ratings for your e-cigarette’s electrical load to ensure safety and optimal performance. Avoid overheating or voltage drop issues by choosing appropriately rated Pogo pins.
  2. Choose the ideal pogo pin type for your device’s design: vertical for stability (soldered onto PCB) or a plug-in for easy connection without soldering. Ensure the plunger length allows proper contact between the battery and atomizer, avoiding loose connections.
  3. Opt for high-quality pogo pins made from beryllium copper for excellent conductivity and durability. Choose gold plating for superior conductivity and corrosion resistance or nickel plating for a cost-effective alternative.
  4. Check the pogo pins’ cycle life for prolonged device usability. Ensure they resist environmental factors like moisture and temperature variations, required for e-cigarettes exposed to diverse conditions during use.
  5. Buy pogo pins from reputable manufacturers known for high-quality components, ensuring consistent performance. Verify if they meet industry standards and certifications for safety and performance compliance.
  6. Seek manufacturers offering customizable pogo pin solutions if your e-cigarette has specific design requirements. Carefully consider these factors for the proper pogo pins, ensuring a seamless vaping experience.

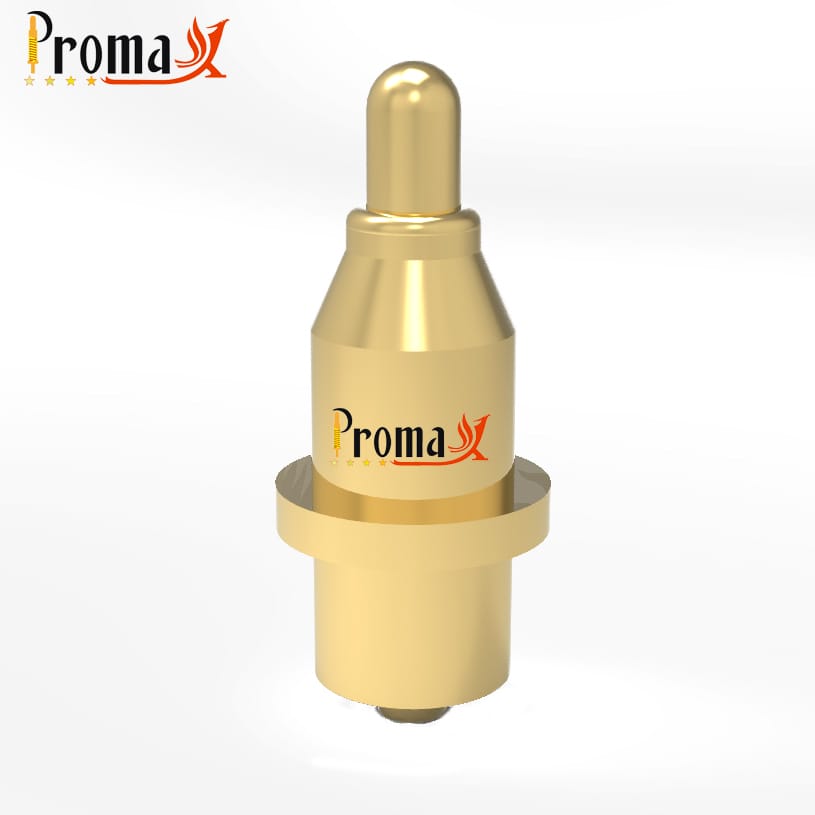

NC5125-01PA

Best Practices For Designing Electronic Cigarette Devices With Pogo Pins

Incorporating pogo pins into e-cigarette designs demands thoughtful practices for optimal performance, reliability, and user experience.

  • Thorough Electrical Design

Perform a thorough electrical design to determine power requirements and current ratings for Pogo pins. It ensures their ability to handle the load safely and maintain performance. Implement voltage regulation and protection circuits to safeguard against fluctuations and assure a safer vaping experience for users.

  • Optimal Placement of Pogo Pins

Strategically position pogo pins for secure connections between the battery, atomizer, and control board. Ensure proper alignment and contact pressure for consistent conductivity. Consider user access for easy battery replacement and device assembly/disassembly.

  • Material Selection and Plating

Select high-quality materials like beryllium copper for pogo pins to ensure durability during repeated cycles. Use gold or nickel plating for improved conductivity and corrosion resistance on the contact points.

  • Mechanical Considerations

Design the pogo pin assembly with proper clearance and tolerance to accommodate device variations for consistent connections. Include a mechanical retention mechanism to secure the pogo pins, preventing unintended dislodging or misalignment.

  • Environmental Resilience

Consider environmental factors like moisture, temperature variations, and e-liquid contact. Choose pogo pins with enough protection to maintain performance under such conditions. Ensure the design offers a seal against contaminants for reliable electrical connections over time.

  • Testing and Quality Control

Rigorously test and control the quality of pogo pins during design and manufacturing to meet specifications and performance standards. Validate durability, electrical performance, and resistance to environmental factors for suitability in long-term e-cigarette use.

  • User-Centric Design

Prioritize user experience with easy-to-use pogo pins, enabling simple battery replacement and maintenance. Consider aesthetics and ergonomics to create an appealing and comfortable device, enhancing user satisfaction.

Innovations And Advancements In Pogo Pin Technology For E-Cigarettes

Pogo pins in electronic cigarettes have seen significant advancements, making them more durable and efficient.

  1. One key innovation is gold plating, which prevents corrosion and ensures good electrical contact.
  2. Another significant advancement is using spring-loaded pins to prevent accidental disconnections and enhance safety.
  3. Additionally, pogo pins have become more compact due to smaller, powerful batteries in e-cigarettes, resulting in a more streamlined design.
  4. Other notable innovations include carbon fiber pogo pins for strength and lightness, micro-pogo pins for even smaller designs, and multi-contact pogo pins for secure connections.
  5. Some pogo pins now also feature built-in sensors for automatic charging initiation.

These advancements are making e-cigarettes safer, more reliable, and more convenient, with the potential for further improvements.

through hole pogo pin-01

FAQs

Can pogo pins be used in e-cigarettes with temperature control features?

Yes, Pogo pins enable temperature control in electronic cigarettes. Their reliable electrical connection provides accurate temperature readings and adjustments, providing a customized vaping experience.

Do magnetic pogo pins affect the performance of electronic cigarettes?

Magnetic pogo pins improve the connection between the pins and sockets by using magnetic attraction. They enhance alignment and secure electrical contact in electronic cigarettes without affecting their performance.

Are there specific maintenance practices for pogo pins in electronic cigarettes?

Regularly clean pogo pin contact points for electronic cigarettes using gentle agents to avoid damage. Inspect for wear or corrosion regularly, replacing damaged pins to maintain optimal performance.

Can pogo pins be used in disposable e-cigarettes?

Pogo pins are typical in rechargeable e-cigarettes, but soldered or plug-in connectors are more suitable for disposables with non-replaceable batteries due to their one-time use.

Conclusion

Incorporating pogo pins in electronic cigarette designs can revolutionize your vaping experience. These spring-loaded connectors ensure seamless connections, efficient power transfer, and consistent vapor production.

User-centric design and regular maintenance prolong your e-cigarette’s lifespan. Ensure easy assembly, battery replacement, and hassle-free cleaning for a delightful vaping journey.

Adopt the power of pogo pins to craft an e-cigarette with superior functionality, convenience, and user satisfaction. Enjoy a vaping experience that stands out with seamless performance.
