A high speed connector is a device that facilitates fast data transmission. It is crucial for modern electronics, supporting high-speed data transfer in various applications. High speed connectors are essential in devices like computers and servers. At Promax Pogo Pin, we specialize in providing reliable high-speed connectors.

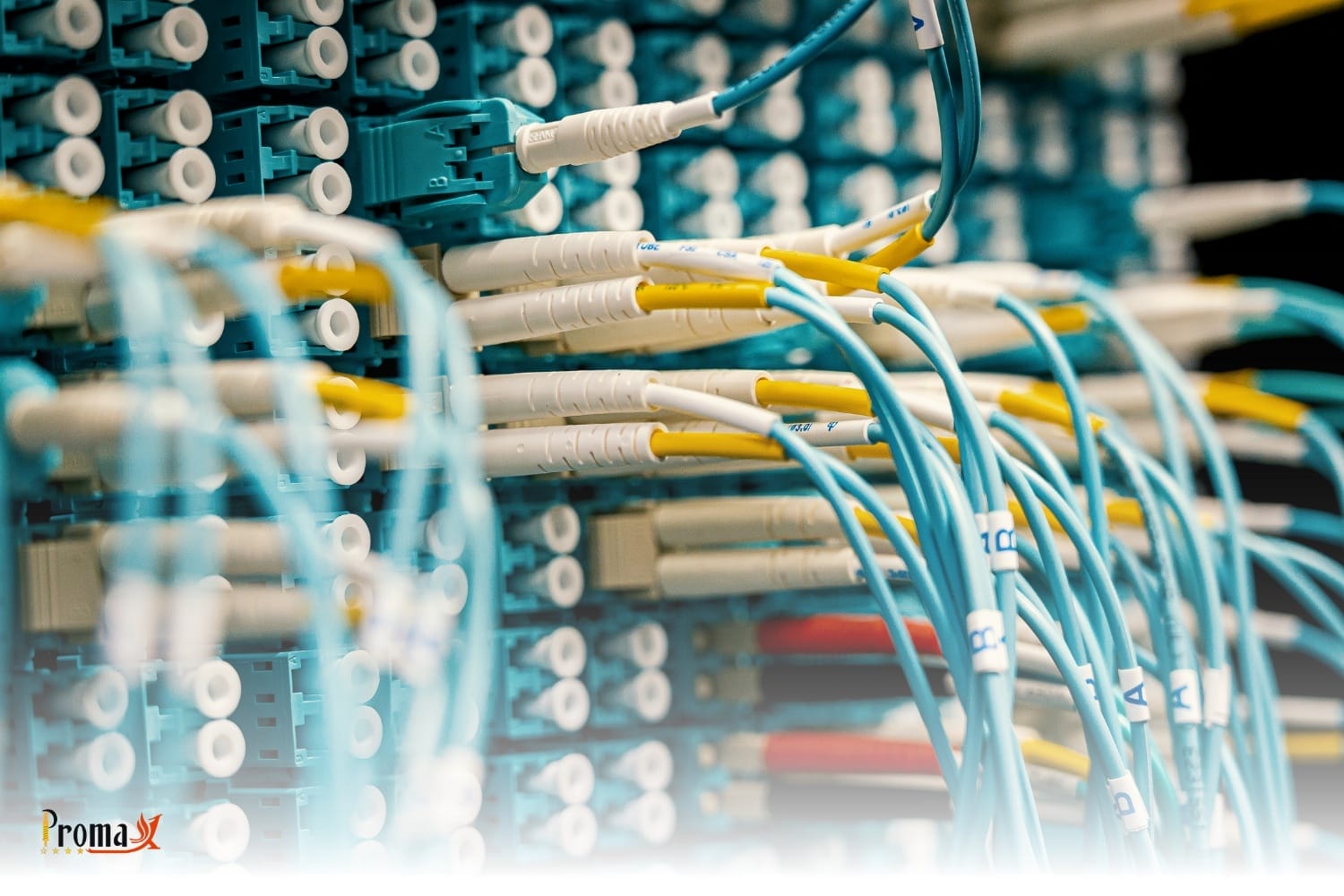

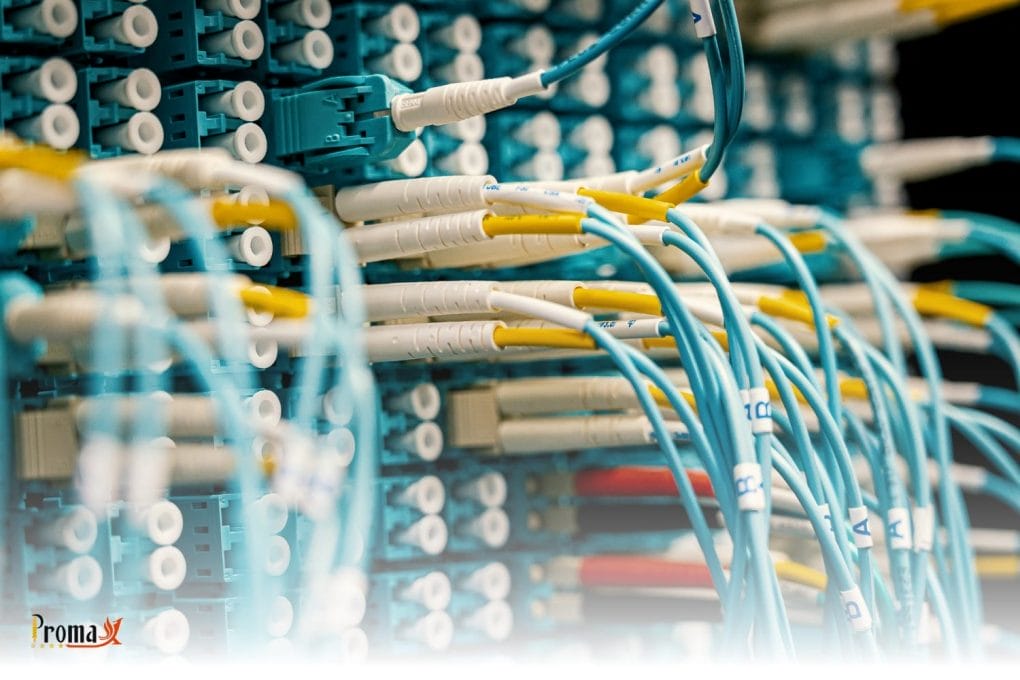

What are High Speed Connectors?
High speed connectors are components used to connect electronic devices, enabling fast data transmission. They are designed to handle high-speed signals, ensuring reliable communication between devices. These connectors are vital in applications requiring rapid data exchange, such as in computer servers and telecom systems.
High speed connectors come in various forms, including backplane and board-to-board connectors. They are engineered to optimize signal integrity, reducing interference and crosstalk. This ensures that data is transmitted accurately and efficiently, meeting the increasing bandwidth demands of modern technology.
Features of High Current Connectors
High current connectors are designed for robust performance and reliability, with features like powerful current capacity. Here are some key features:
| Feature | Value |
|---|---|
| Current Capacity | Up to 10 A |
| Contact Resistance | Less than 10 mΩ |
| Operating Temperature | -40 °C to 125 °C |
| Pitch | 0.5 mm to 2.54 mm |
These features make high current connectors suitable for demanding applications, providing reliable connections in environments where high power transmission is required.
Benefits of High Speed Connectors
High speed connectors offer several benefits, including reliability, flexibility, and high performance:
- Reliability: They ensure consistent data transmission, reducing errors.
- Flexibility: Available in various configurations, they adapt to different applications.
- Performance: They support high-speed serial transmission, meeting increasing bandwidth demands.
These benefits make high speed connectors essential in modern electronics.
High Speed Connector Technology
High speed connector technology focuses on optimizing signal integrity and reducing crosstalk. This involves using differential signaling and shielded designs to protect signals from interference. Technologies like PCIe and SATA leverage these connectors to achieve high-speed data transfer.
Advanced connector designs, such as those using PAM4 performance, are developed to meet the highest density and performance requirements. These technologies support applications in computing, storage, and telecom markets. At Promax Pogo Pin, our quality-certified factory ensures that our products meet stringent requirements.
High Speed Connector Materials
High speed connectors are made from materials that ensure durability and signal integrity, such as copper. Key materials include:
- Copper: For excellent conductivity.
- Plastics: For insulation and structural support.
- Shielding Materials: To protect against electromagnetic interference.
These materials contribute to the ruggedness and reliability of high speed connectors.

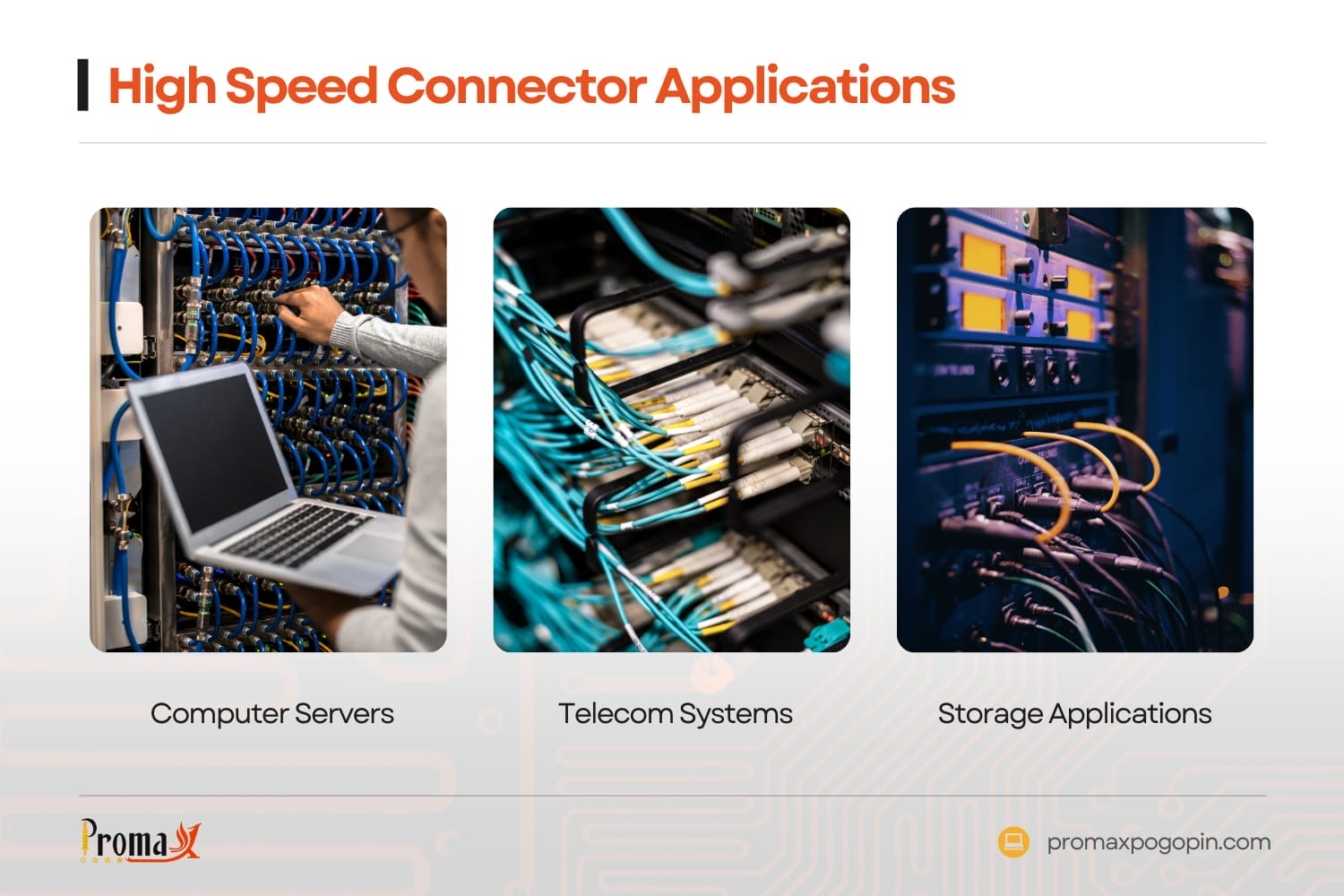

High Speed Connector Applications
High speed connectors are used in various applications, including computer servers and storage applications:
- Computer Servers: For high-density backplane systems.
- Telecom Systems: To support high-speed data transmission.
- Storage Applications: Enabling fast data access and transfer.
These applications benefit from the high reliability and performance of high speed connectors.
Promax Pogo Pin: Premium High Speed Connectors
At Promax Pogo Pin, we offer premium high speed connectors designed to meet the demands of modern electronics. Our connectors are engineered for high-density applications, providing unmatched performance and reliability. Whether the priority is signal integrity or design flexibility, our products enable design engineers to achieve their performance targets.
Our range of products includes modular and customizable solutions, supporting a broad range of applications from board-to-board to backplane systems. With a focus on rugged high-speed connectors, we provide real-world solutions for increasing bandwidth demands in the computer server and telecom markets. Contact us for more information on our products!
Our Partner Said
“Promax Pogo Pin has helped us with many field issues. I have to say their engineers are so experienced and can quickly help me solve the problem. The problem was high temperature caused by excessive current.”
Paul Jelloy
Buyer from the UK
High Speed Connector FAQs
Do high performance spark plug wires make a difference?
High-performance spark plug wires improve conductivity, ensuring efficient energy transfer in rugged high-speed connectors. Using rugged connectors enhances durability and reliability in harsh automotive environments. A ruggedized connector with proper shielding minimizes signal loss and interference during high-speed applications. Proper interconnect design with shielded high-speed connectors ensures consistent performance and longevity.
Which high speed internet connection allows the most concurrent users?
Fiber-optic internet allows the most concurrent users due to its high-speed backplane capabilities. Shielded high-speed connectors in backplane connectors ensure stable data transmission with minimal interference. A high-speed connector is a mid-game component that optimizes network scalability and efficiency. Proper mating of connectors enhances performance, preventing data loss in demanding environments.
