Automation Connectors

Your factory runs 24/7, so every connector needs to work perfectly. When an industrial connector fails, your entire production line stops. This costs thousands of dollars every hour, which is just not sustainable.

We make pogo pin automation connectors that don’t fail. Our industrial automation connectors work for 50,000+ connections, while most other connectors only last 10,000 connections. That’s five times longer, so you get less downtime and more profits with Promax!

What are the Most Reliable Automation Connectors for Industrial Applications?

Automation connectors are electrical devices that connect machines in factories. They carry power and data between robots, sensors, and control systems. Our pogo pin connector technology uses springs inside to make better contact than regular connectors.

The spring pushes the metal contact against the other part. This creates a strong electrical connection. Regular connectors just press two flat pieces together. Our spring system works better.

When machines vibrate, regular connectors can lose contact. Pogo pins stay connected because the spring keeps pushing. This means your signals don’t get interrupted.

Key Device Benefits of Pogo Pin Technology

• Self-cleaning action – Each connection wipes away dirt and corrosion
• Vibration resistance – Springs maintain contact under movement
• Long lifecycle – 50,000+ mating cycles vs 10,000 for standard connectors
• Low maintenance – No lubrication or adjustment required

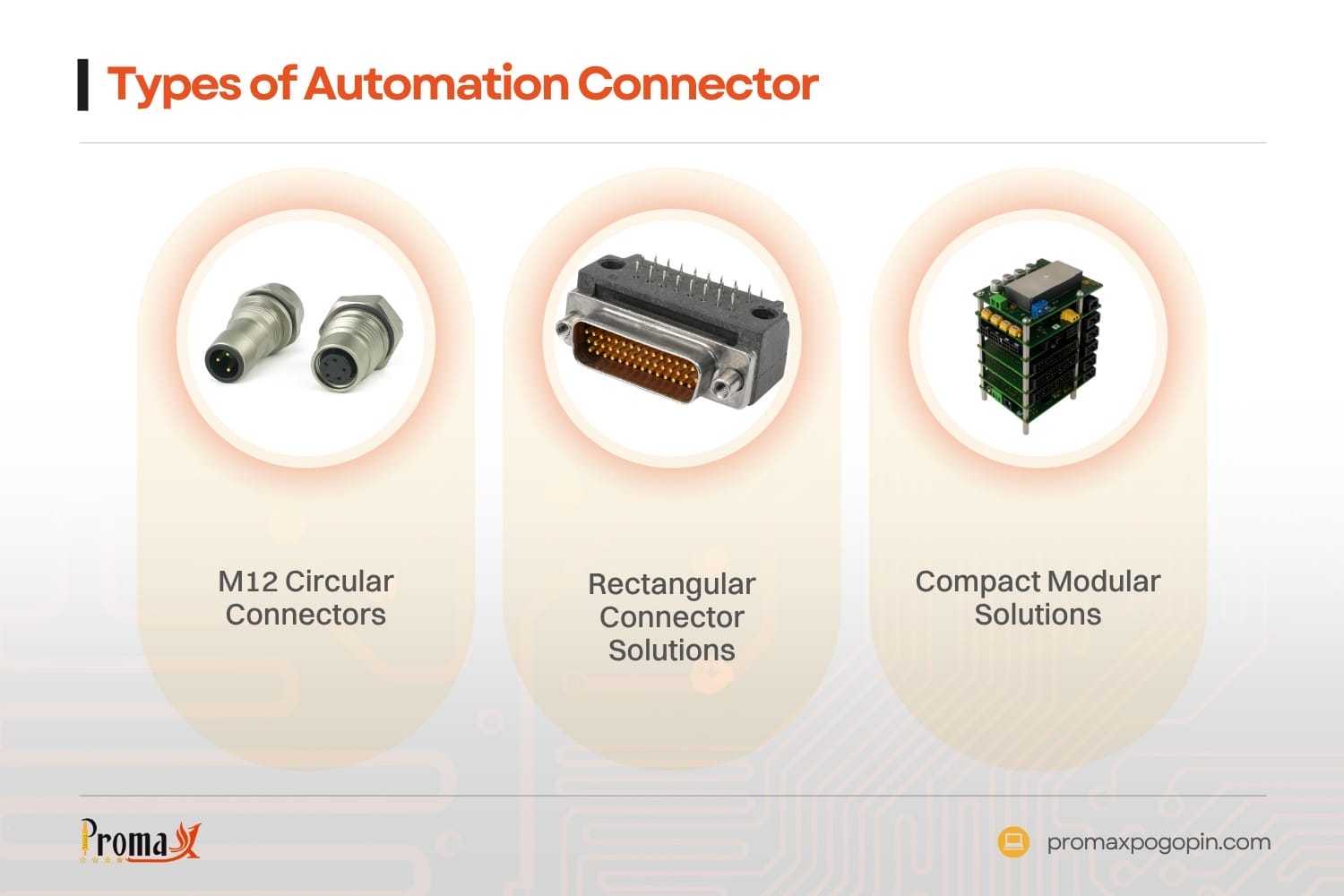

Which Automation Connector Types Handle the Harshest Industrial Environments?

M12 circular connectors, rectangular HAN-style housings, and compact modular designs provide maximum protection against dust, moisture, vibration, and extreme temperatures.

M12 Circular Connectors

M12 circular connectors provide IP67 and IP68 protection against dust and moisture. The threaded coupling mechanism creates a watertight seal and resists vibration. Temperature rating extends from -40 °C to +125 °C for extreme industrial environments.

Rectangular Connector Solutions

HAN-style rectangular connector housing combines power and signal in one robust assembly. Metal housing withstands mechanical stress, while pogo pins maintain electrical performance. Multiple contact configuration options support various voltage and current requirements.

Compact Modular Solutions

Miniaturized connector systems save 70% space compared to traditional designs. Full functionality in tight spaces makes them ideal for dense control panels and robotic equipment.

How do Pogo Pin Connectors Outperform Traditional Industrial Automation Equipment?

Pogo pin connectors eliminate the three main failure modes of traditional connectors through spring-loaded design, self-cleaning action, and superior vibration resistance.

Failure Mode Elimination in Manufacturing

Traditional connectors fail from contact wear, dirt buildup, and loose connections. Our connector system eliminates these problems through spring-loaded design and self-cleaning action that automate maintenance tasks.

Contact Resistance Performance for Data Transmission

• Initial resistance: <10 milliohms
• After 50,000 cycles: <20 milliohms
• Traditional connectors: Start at 20 milliohms, increase over time

Vibration and Shock Resistance for Mobile Applications

The spring mechanism maintains contact pressure during movement. Standard connectors can lose contact under vibration, causing system failures. Our technology stays connected in vehicle and machinery applications.

What Industries Rely on Our Automation Connectors for Process Integration?

Factory automation leads with 45% of applications, followed by process control (25%), robotics (20%), and automotive manufacturing (10%).

Factory Automation (45% of applications)

• PLC interfaces for programmable logic controllers
• HMI connections for operator panels
• Sensor networks for monitoring systems
• Actuator control for motor and valve automation

Process Control (25% of applications)

• Chemical processing monitoring equipment
• Oil and gas safety systems
• Power generation controls
• Water treatment automation with fieldbus connectivity

Robotics and Motion (20% of applications)

• Robot arm connections for data connections
• End effector interfaces with power and data capability
• Collaborative robot safety systems
• High-speed pick-and-place machinery

Automotive Manufacturing (10% of applications)

• Assembly line automation equipment
• Quality control systems with Ethernet connectivity
• Test equipment interfaces
• Material handling with network integration

Which Certifications Enable Our Automation Connectors to Connect Global Systems?

UL, CE, CSA, RoHS, and IEC certifications ensure our connectors meet safety and compliance requirements for worldwide industrial applications.

Safety Certifications for Industrial Applications

• UL 94V-0: Flame resistance for industrial safety
• UL Listed: North American electrical safety compliance
• CSA Certified: Canadian Standards Association approval

International Compliance for Third-Party Integration

• CE Marking: European safety and EMC requirements
• RoHS Compliant: Restriction of hazardous substances
• IEC 61076: International connector standards

Quality Standards for Manufacturing Excellence

• ISO 9001: Manufacturing quality management
• ISO 14001: Environmental management systems

What Technical Specifications Define Our Automation Connector Performance?

Current ratings from 1A to 50A, voltage ratings up to 1000V, contact resistance under 10 milliohms, and 50,000+ mating cycles define our superior performance.

Electrical Performance for Power and Signal Transfer

• Current rating: 1A to 50A (configuration dependent)
• Voltage rating: Up to 1000V DC/AC
• Contact resistance: <10 milliohms initial, <20 milliohms at end of life
• Insulation resistance: >10^12 ohms

Mechanical Specifications for Robust Operation

• Mating cycles: 50,000+ guaranteed for reliability
• Insertion force: 2-15N per contact
• Retention force: 10-50N per contact with secure lock
• Vibration resistance: 20G per IEC 60068-2-6

Environmental Ratings for Harsh Conditions

• Operating temperature: -40 °C to +125 °C
• Storage temperature: -55 °C to +150 °C
• IP protection: IP65, IP67, IP68 available
• Salt spray resistance: 200+ hours per ASTM B117

How does Our Engineering Process Enable Superior Quality Manufacturing?

Precision CNC machining with micrometer tolerances, optimized spring design, and 100% statistical process control ensure consistent performance across all products.

Precision Manufacturing for Electronics Components

• CNC machining: Micrometer tolerances for consistent performance
• Spring optimization: Finite element analysis for optimal force curves
• Statistical process control: 100% testing of critical dimensions

Contact Plating Technology for Connectivity Excellence

• Gold plating: 0.76-2.54 micrometers for corrosion resistance
• Silver plating: High conductivity for power applications
• Platinum group metals: Ultimate performance for critical applications

Quality Control Testing with Technical Documentation

• Individual pin testing: Force, resistance, and dimensional checks
• Batch validation: Sample testing from each production run
• Accelerated lifecycle: Simulated field conditions before shipment

What Custom Engineering Services Select the Right Solution for Your Task?

Design analysis, rapid prototyping within 5 days, custom testing protocols, and complete technical documentation support ensure optimal connector solutions for your specific requirements.

Design and Analysis Services for Installation Optimization

Our technical engineers analyze your electrical, mechanical, and environmental requirements. We create custom solutions using advanced CAD software and simulation tools. Prototypes ship within 5 days for validation testing with complete functionality overview.

Testing and Validation for Protocol Compliance

• Accelerated lifecycle testing: Simulates years of operation
• Environmental simulation: Temperature, humidity, vibration, shock
• EMI/RFI testing: Compliance with IEC 61000 standards for electronics
• Custom test protocols: Application-specific validation with software integration

Documentation Support for Assembly and Wiring

Complete technical packages include CAD files, test certificates, and installation guides. We provide compliance documentation for UL, CE, and RoHS requirements with field level specifications.

What Makes Our Supply Chain Enable Efficient Transfer of Power and Data?

China-based manufacturing with 10 million monthly contact production, real-time inventory tracking, and global technical support ensure rapid delivery and reliable service.

Manufacturing Advantage with Hybrid Automation

Based in China with advanced automation equipment, we control quality and costs. Our facility produces 10 million contacts monthly with consistent specifications and combines efficiency with precision manufacturing.

Inventory Management for One Connector Solution

Real-time tracking provides accurate delivery commitments. Standard products ship within 2–4 weeks. Emergency shipments available for critical applications requiring immediate component delivery.

Global Support Network for System Integration

Technical support in multiple time zones ensures rapid response. Our engineers provide application assistance and troubleshooting throughout the product lifecycle with comprehensive monitoring capabilities.

How do Our Automation Connectors Integrate with Modern Industrial Networks?

Our connectors integrate seamlessly with PROFINET networks, Microsoft Azure cloud platforms, and equipment from major automation brands for complete system compatibility.

PROFINET and Industrial Ethernet Compatibility

Our automation connectors integrate seamlessly with PROFINET networks for real-time industrial communication. Unlike traditional cables and connectors that require multiple components, our single connector solution supports high-speed Ethernet data transmission. This integration enables direct connection to programmable logic controllers and distributed I/O systems.

Cloud Platform Integration Support

Modern automation systems integrate with Microsoft Azure cloud platforms for remote monitoring and predictive maintenance. Our connectors provide the reliable data connections necessary for IoT sensor networks that feed information to azure-based analytics systems. This cloud integration enables real-time monitoring and automated decision-making.

Compatibility with Major Automation Brands

Our connectors work alongside equipment from leading manufacturers, including Lumberg Automation and other industrial connector suppliers. This compatibility ensures seamless integration into existing automation infrastructure without requiring complete system replacement. The standardized designs enable easy retrofitting and expansion of current installations.

Get Reliable Automation Connectors Today

Stop worrying about connector failures in your industrial automation systems. Our pogo pin technology delivers 50,000+ connections with 99.9% reliability. Your production stays running while competitors deal with downtime and filter through unreliable solutions.

Contact our technical team now for a free consultation. We’ll analyze your requirements and provide a custom quote within 24 hours. Experience the Promax Pogo Pin difference in your automation systems and automate tasks with confidence.
