PCB Pins

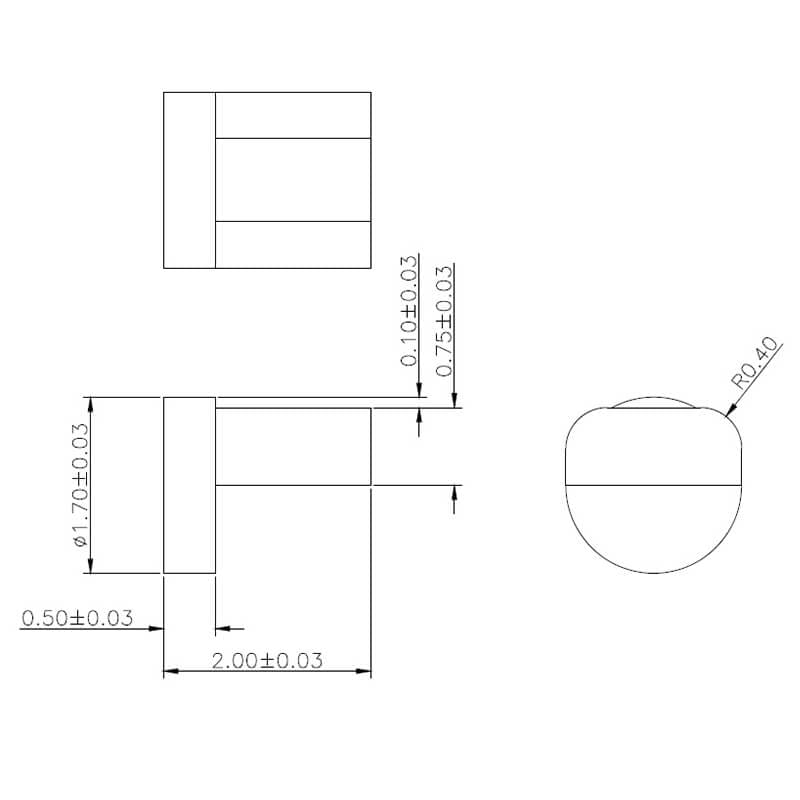

2.00mm, 1 Pin, 1.70mm Width, NF3730-01RA
- Part Number
- Length
- Width
- Height
- Plated
- Rated Current
- NF3730-01RA
- 2.00 mm
- 1.70 mm
- 2.00 mm
- Au 4 u”
- 1.0 A
2D
3D

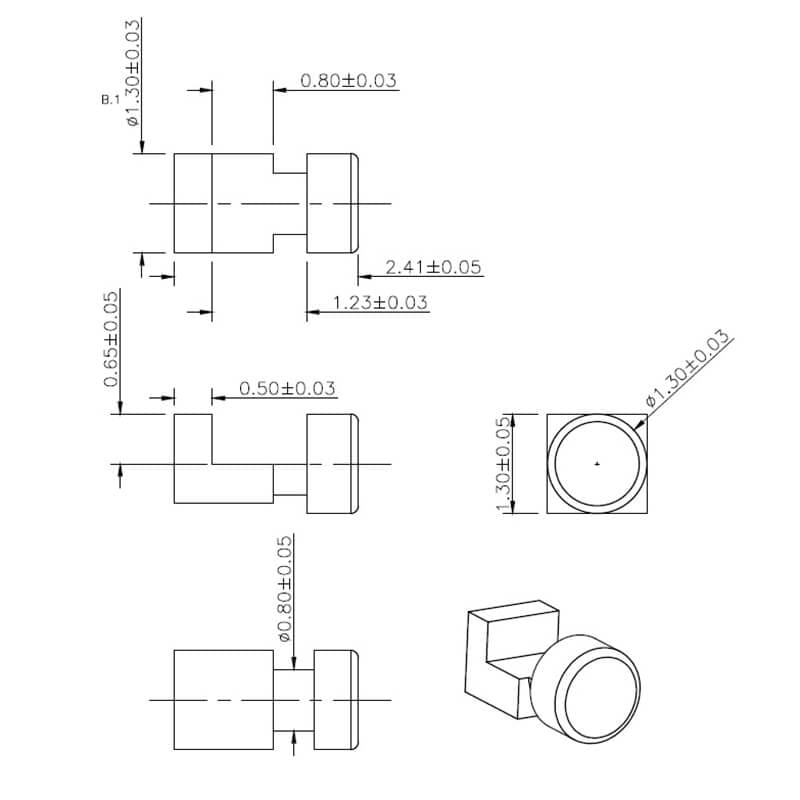

2.41mm, 1 Pin, Φ1.30mm, NF2805-01RA
- Part Number
- Length
- Width
- Height
- Plated
- Rated Current
- NF2805-01RA
- 2.41 mm
- Φ1.30 mm
- 1.30 mm
- Au 4 u”
- 1.0 A
2D
3D

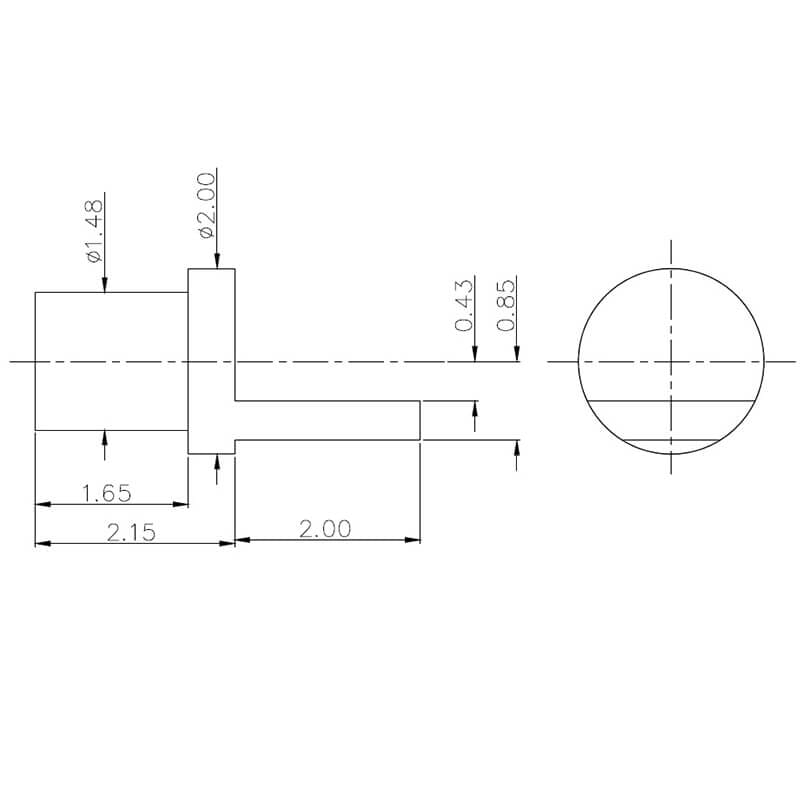

4.15mm, 1 Pin, Φ2.00mm, NF1982-01RB
- Part Number
- Length
- Width
- Height
- Plated
- Rated Current
- NF1982-01RB
- 4.15 mm
- Φ2.00 mm
- 2.00 mm
- Au 4 u”
- 1.0 A
2D
3D

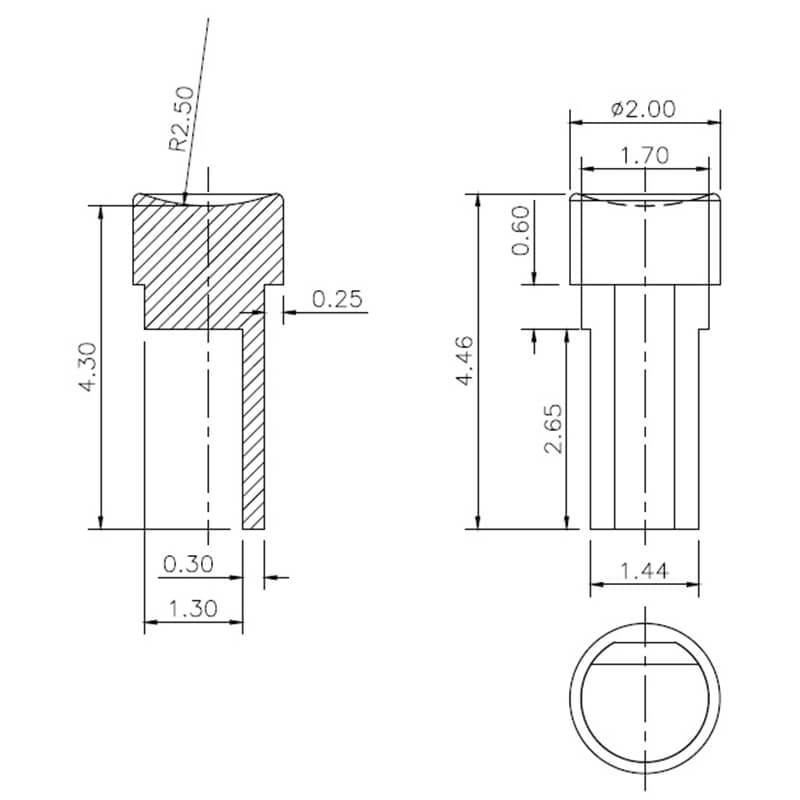

4.46mm, 1 Pin, Φ2.00mm, NF4209-01RA
- Part Number
- Length
- Width
- Height
- Plated
- Rated Current
- NF4209-01RA
- 4.46 mm
- Φ2.00 mm
- 4.46 mm
- Au 5 u”
- 1.0 A
2D
3D

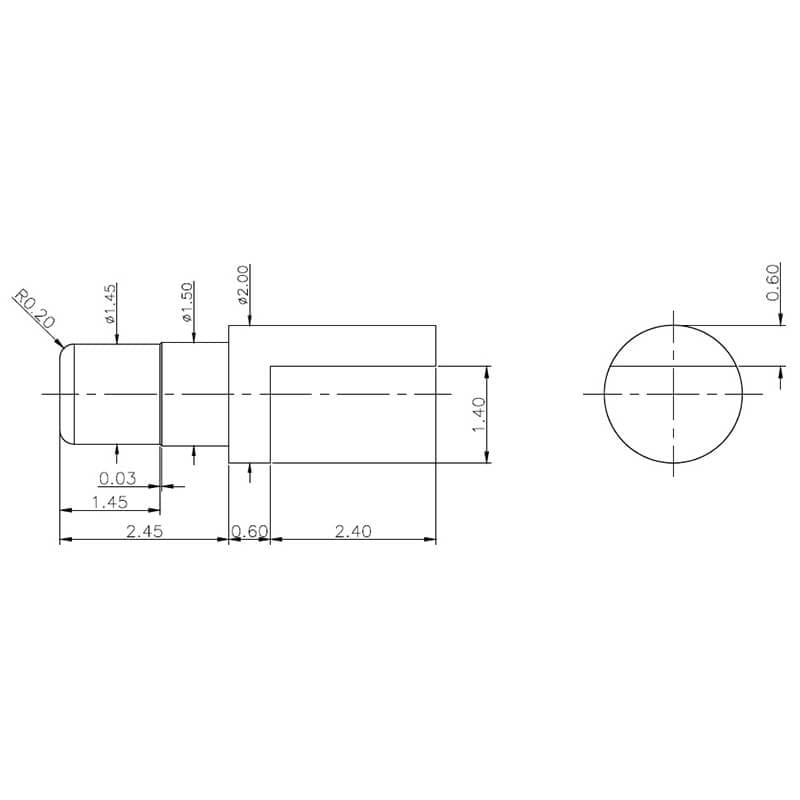

5.45mm, 1 Pin, Φ2.00mm, NF3693-01RA
- Part Number
- Length
- Width
- Height
- Plated
- Rated Current
- NF3693-01RA
- 5.45 mm
- Φ2.00 mm
- 5.45 mm
- Au 5 u”
- 1.0 A
2D
3D
6.95mm, 1 Pin, Φ1.60mm, NF4365-01PA
- Part Number
- Length
- Width
- Height
- Plated
- Rated Current
- NF4365-01PA
- 6.95 mm
- Φ1.60 mm
- 6.95 mm
- Au 2u” Pd 8u”
- 1.0 A
2D
3D

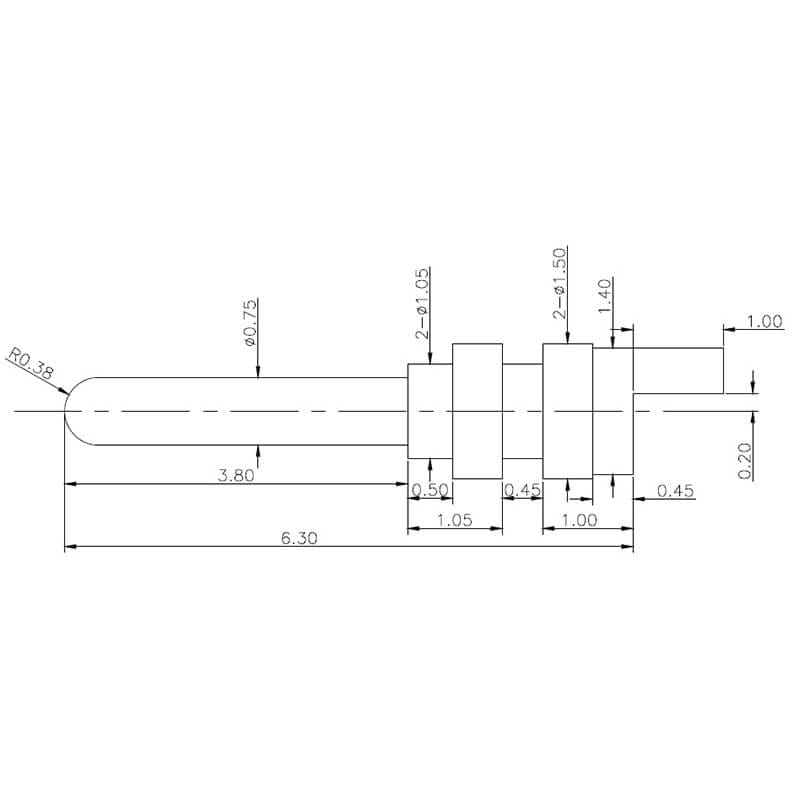

7.30mm, 1 Pin, Φ1.50mm, NF4011-01PA
- Part Number
- Length
- Width
- Height
- Plated
- Rated Current
- NF4011-01PA
- 7.30 mm
- Φ1.50 mm
- 7.30 mm
- Au 6 u”
- 1.0 A
2D
3D

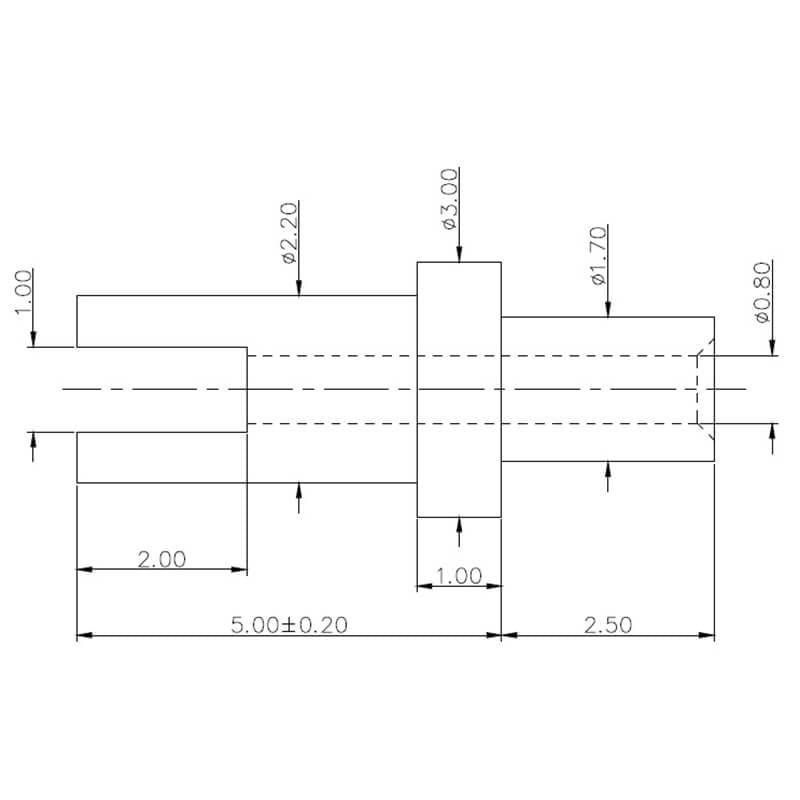

7.50mm, 1 Pin, Φ3.00mm, NF4718-01PA
- Part Number
- Length
- Width
- Height
- Plated
- Rated Current
- NF4718-01PA
- 7.50 mm
- Φ3.00 mm
- 7.50 mm
- Sn 100~150 u”
- 1.0 A
2D
3D

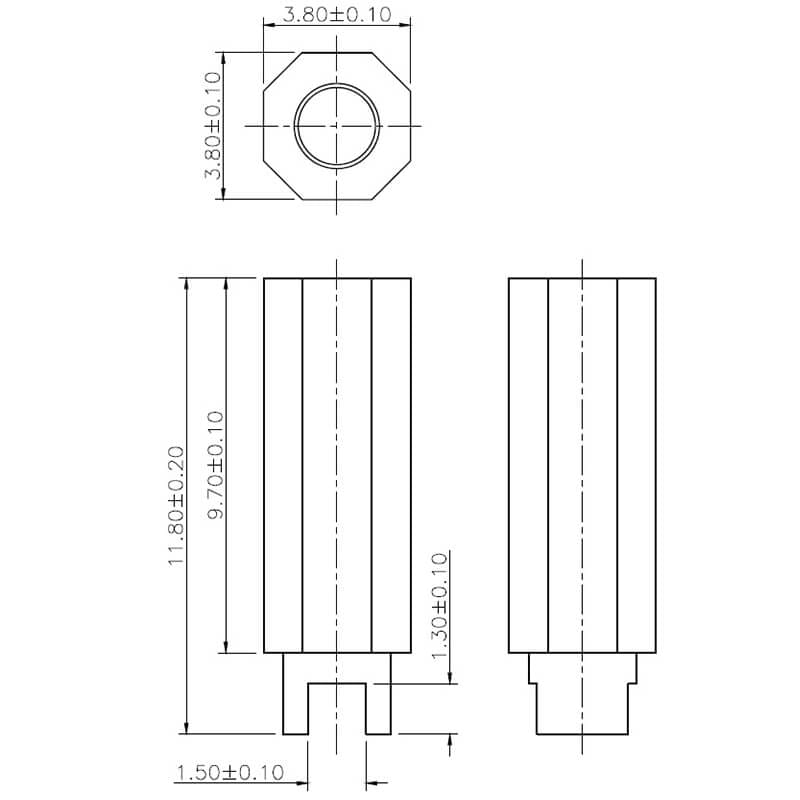

11.80mm, 1 Pin, 3.80mm Width, NF3978-01PA
- Part Number
- Length
- Width
- Height
- Plated
- Rated Current
- NF3978-01PA
- 11.80 mm
- 3.80 mm
- 11.80 mm
- Au 3 u”
- 15 A
2D
3D
