Bending Type Pogo Pin Connector

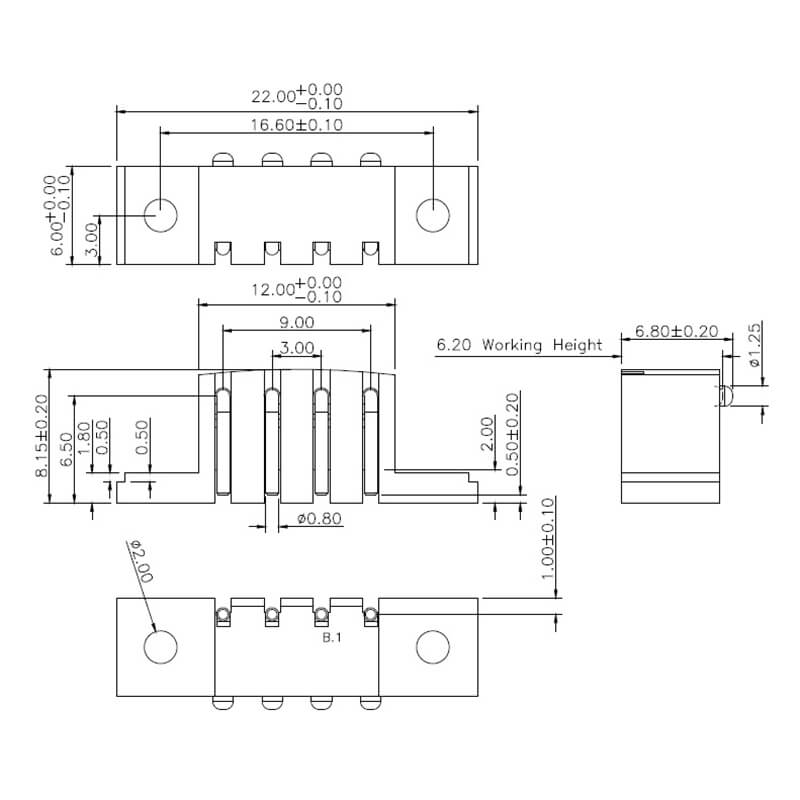

4Pin, 3.00mm Pitch, 6.20mm Working Height, C1761-04R
- Part Number
- Length
- Width
- Height
- Spring Force
- Plated
- Rated Current
- C1761-04R
- 22.00 mm
- 6.00 mm
- 28.15 mm
- 120 gf
- Au 10 u”
- 1.0 A
2D
3D

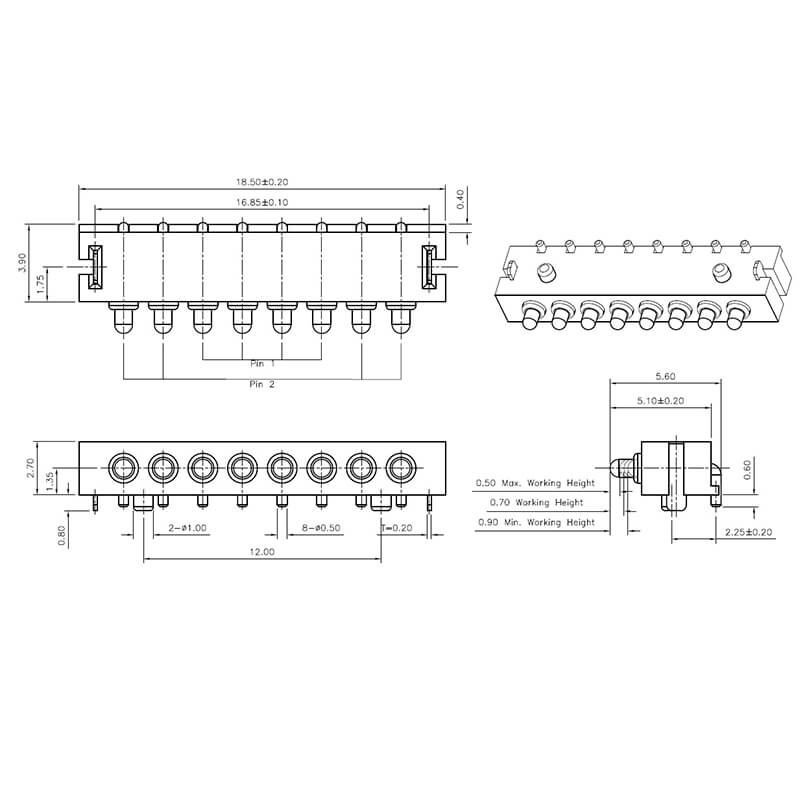

8Pin, 2.00mm Pitch, 4.90mm Working Height, C519-08
- Part Number
- Length
- Width
- Height
- Spring Force
- Plated
- Rated Current
- C519-08
- 18.50 mm
- 5.60 mm
- 2.70 mm
- 90 gf
- Au 16 u”
- 5.0 A
2D
3D
8Pin, 2.50mm Pitch, 5.00mm Working Height, C2611-08R
- Part Number
- Length
- Width
- Height
- Spring Force
- Plated
- Rated Current
- C2611-08R
- 18.50 mm
- 5.60 mm
- 2.70 mm
- 90 gf
- Au 3 u”
- 2.0 A
2D
3D

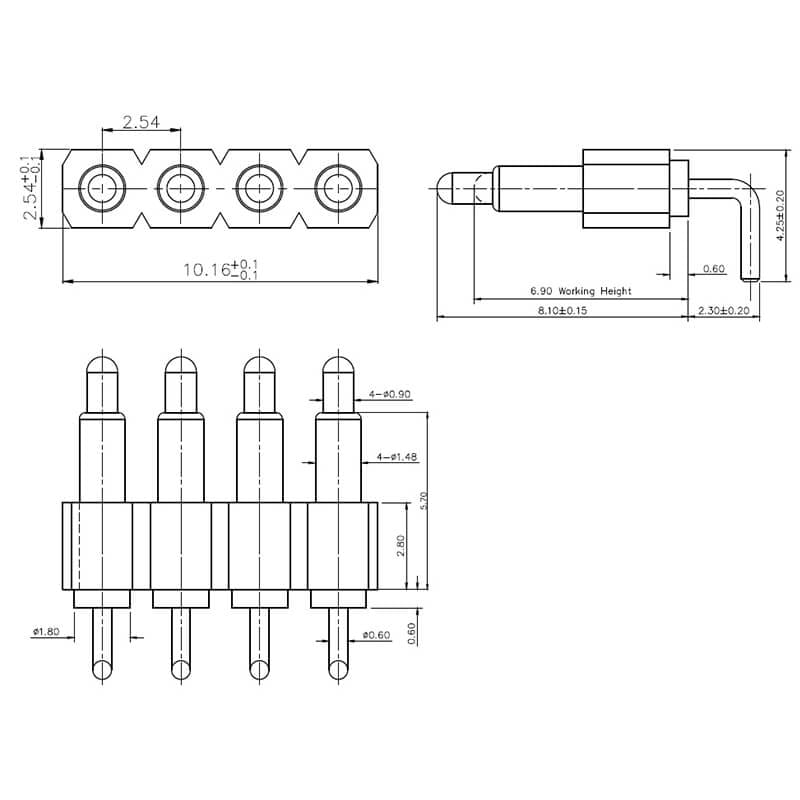

4Pin, 2.54mm Pitch, 6.90mm Working Height, NC3676-04RA
- Part Number
- Length
- Width
- Height
- Spring Force
- Plated
- Rated Current
- NC3676-04RA
- 10.40 mm
- 10.16 mm
- 2.54 mm
- 100 gf
- Au 4 u”
- 1.0 A
2D
3D

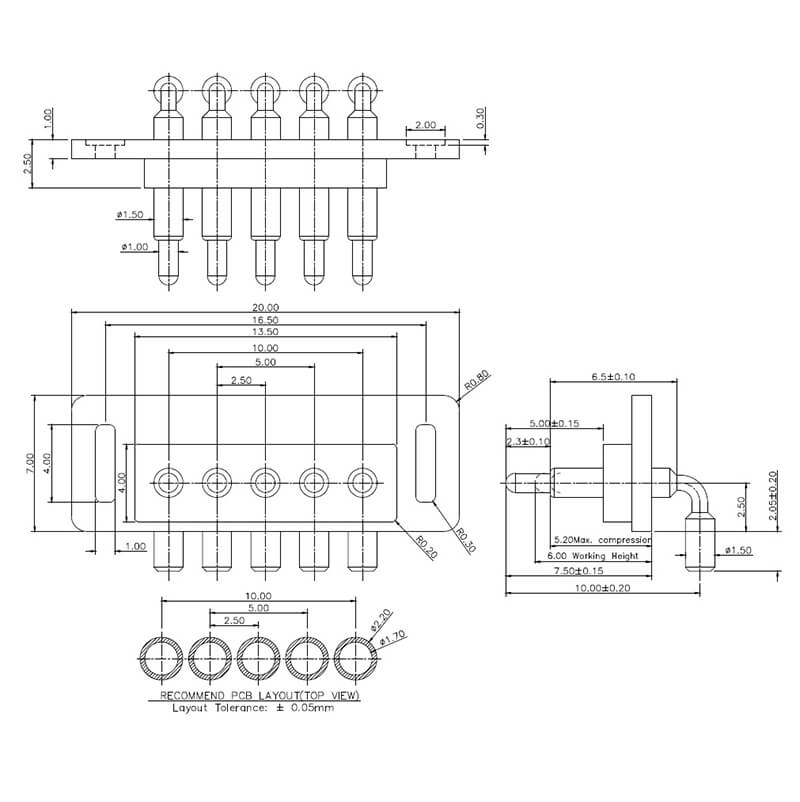

5Pin, 2.50mm Pitch, 6.00mm Working Height, NC1429-05PB
- Part Number
- Length
- Width
- Height
- Spring Force
- Plated
- Rated Current
- NC1429-05PB
- 20.00 mm
- 10.00 mm
- 7.00 mm
- 100 gf
- Au 5 u”
- 2.5 A
2D
3D

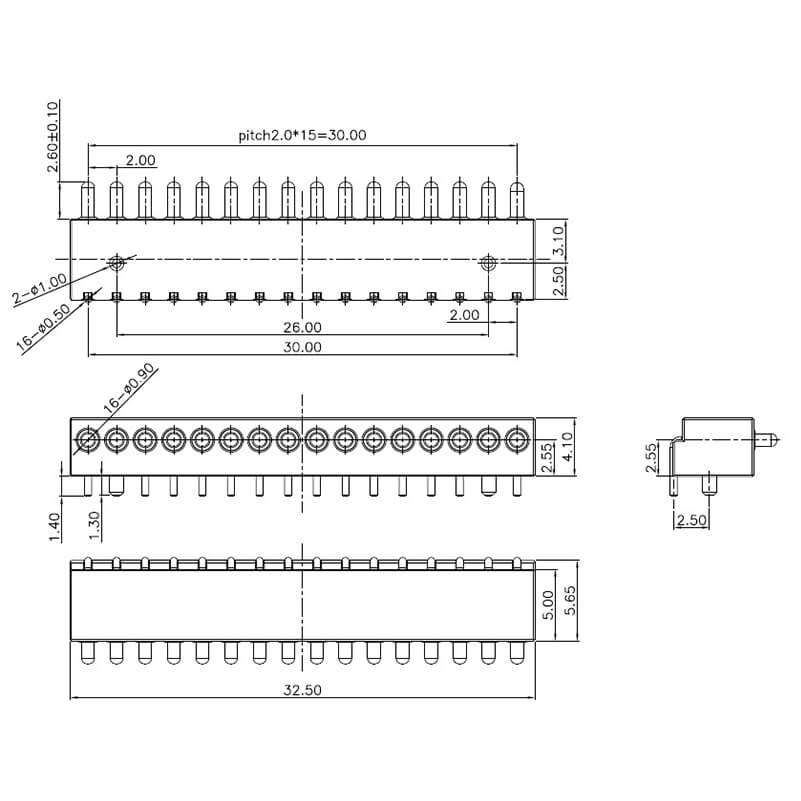

16Pin, 2.00mm Pitch, 6.10mm Working Height, C692-16P
- Part Number
- Length
- Width
- Height
- Spring Force
- Plated
- Rated Current
- C692-16P
- 32.50 mm
- 8.20 mm
- 4.10 mm
- 540 gf
- Au 10 u”
- 1.5 A
2D
3D

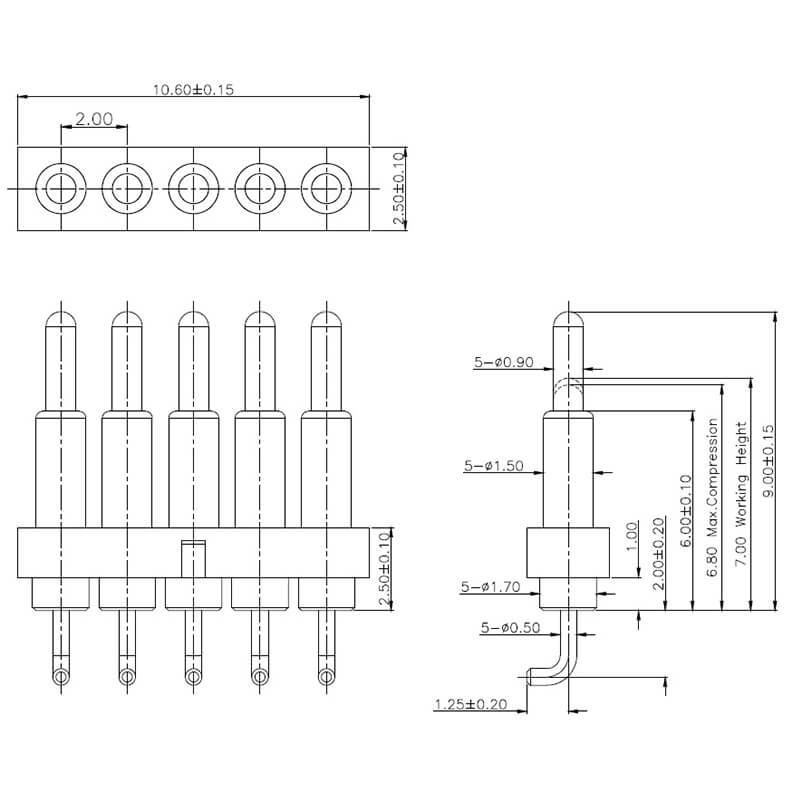

5Pin, 2.00mm Pitch, 7.00mm Working Height, NC4158-05RA
- Part Number
- Length
- Width
- Height
- Spring Force
- Plated
- Rated Current
- NC4158-05RA
- 11.00 mm
- 10.60 mm
- 2.50 mm
- 85 gf
- Au 16 u”
- 1.0 A
2D
3D

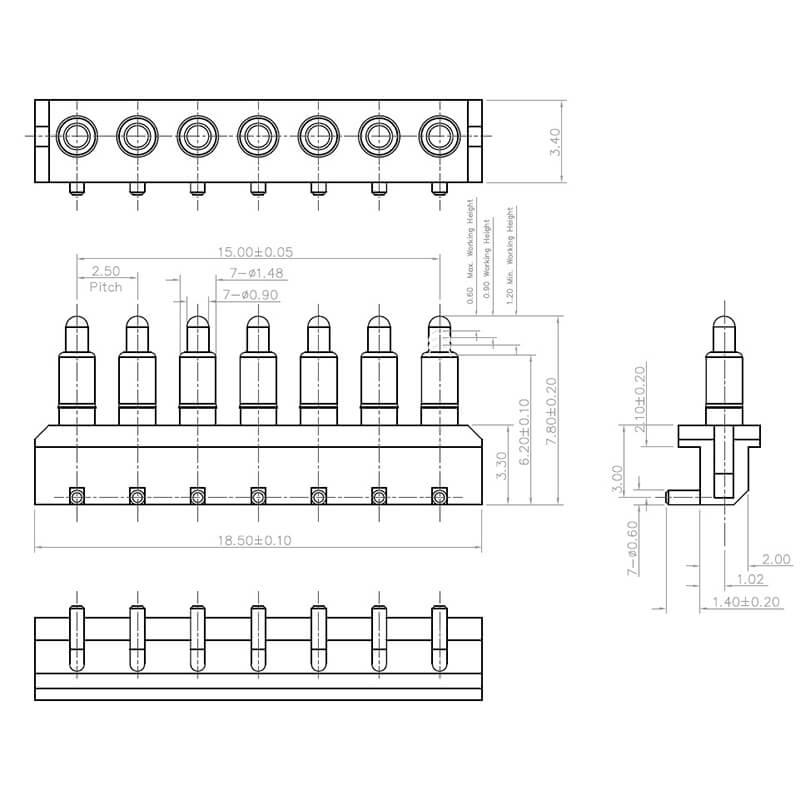

7Pin, 2.50mm Pitch, 6.90mm Working Height, C277-07P
- Part Number
- Length
- Width
- Height
- Spring Force
- Plated
- Rated Current
- C277-07P
- 18.50 mm
- 7.80 mm
- 3.40 mm
- 85 gf
- Au 10 u”
- 1.0 A
2D
3D
12Pin, 2.40mm Pitch, 7.80mm Working Height, C880-12PA
- Part Number
- Length
- Width
- Height
- Spring Force
- Plated
- Rated Current
- C880-12PA
- 32.00 mm
- 10.50 mm
- 7.50 mm
- 70 gf
- Au 3 u”
- 2.0 A
2D
3D
