High Current Pogo Pin Connector

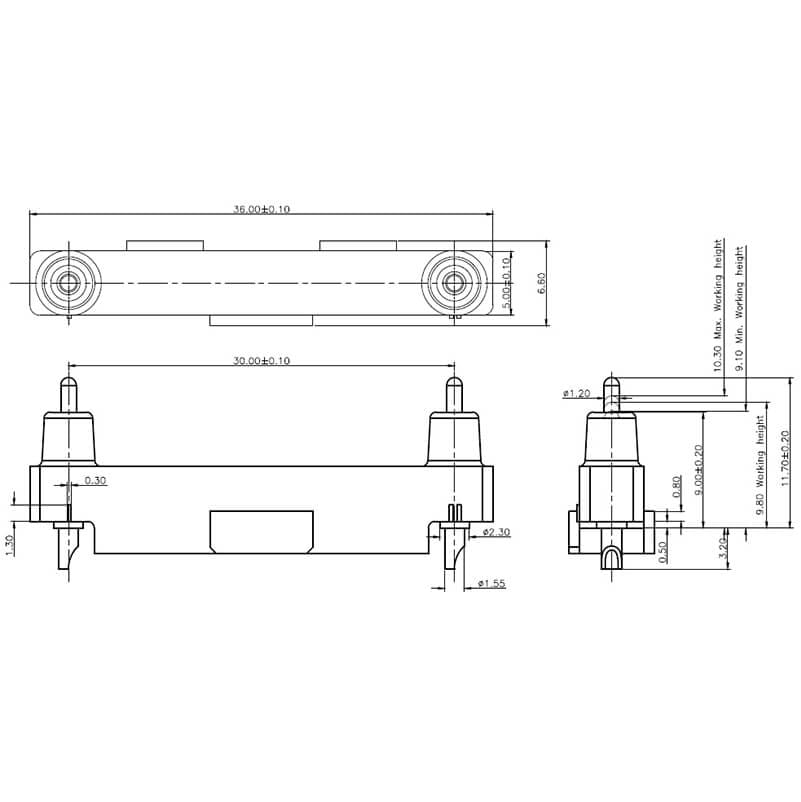

2Pin, 30.00mm Pitch, 9.80mm Working Height, C1241-02PB
- Part Number
- Length
- Width
- Height
- Spring Force
- Plated
- Rated Current
- C1241-02PB
- 36.00 mm
- 6.00 mm
- 14.9 mm
- 110 gf
- Au 10 u”
- 3.0 A
2D
3D

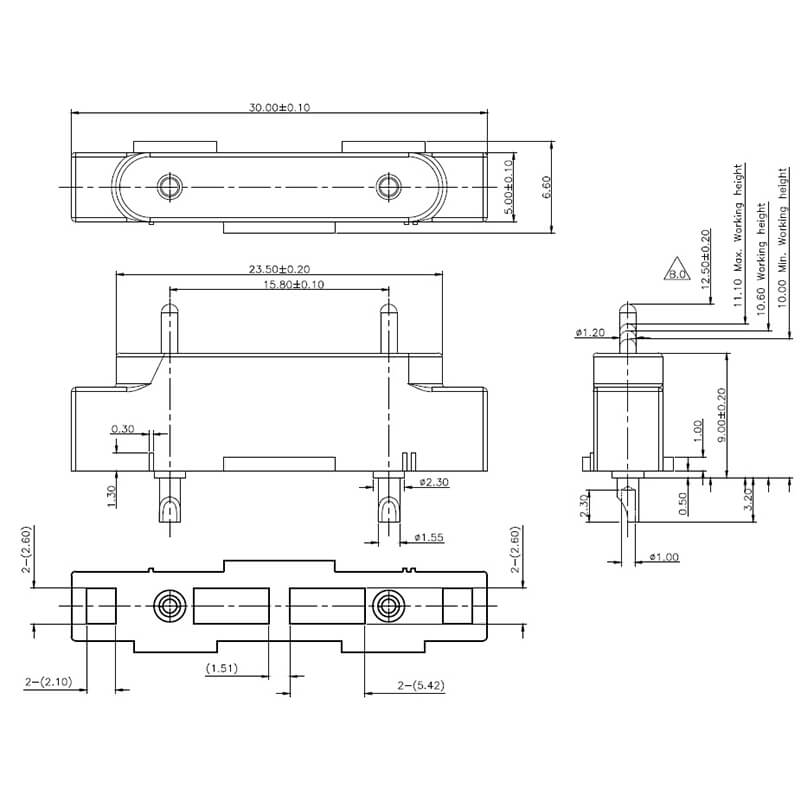

2Pin, 15.8mm Pitch, 10.60mm Working Height, C2997-02PB
- Part Number
- Length
- Width
- Height
- Spring Force
- Plated
- Rated Current
- C2997-02PB
- 30.00 mm
- 6.00 mm
- 12.50 mm
- 110 gf
- Au 10 u”
- 3.0 A
2D
3D

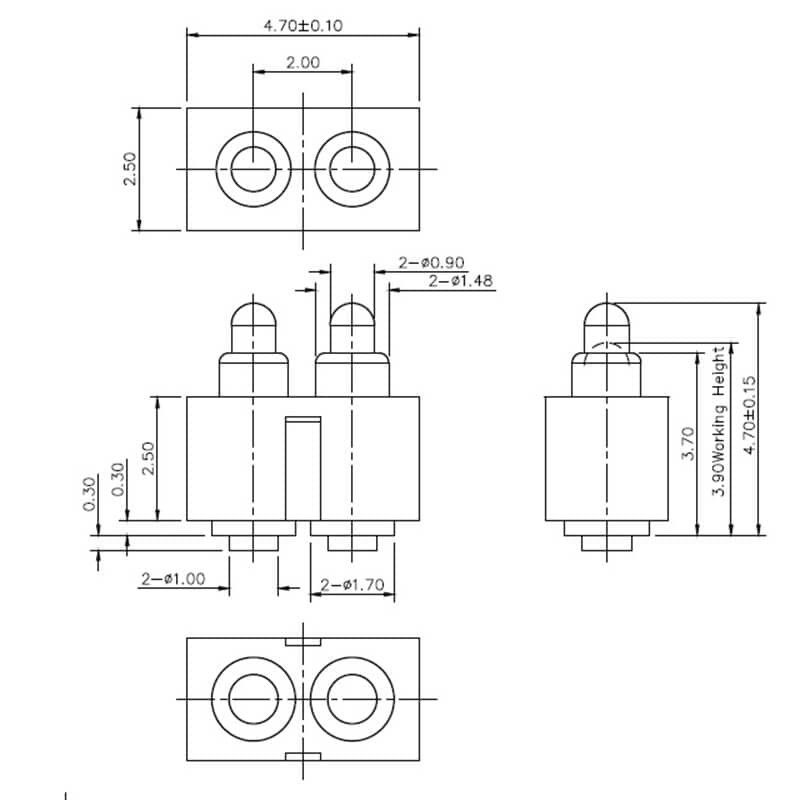

2Pin, 2.00mm Pitch, 3.90mm Working Height, NC2898-02RA
- Part Number
- Length
- Width
- Height
- Spring Force
- Plated
- Rated Current
- NC2898-02RA
- 4.70 mm
- 2.50 MM
- 4.70 mm
- 85 gf
- Au 3 u”
- 3.0 A
2D
3D

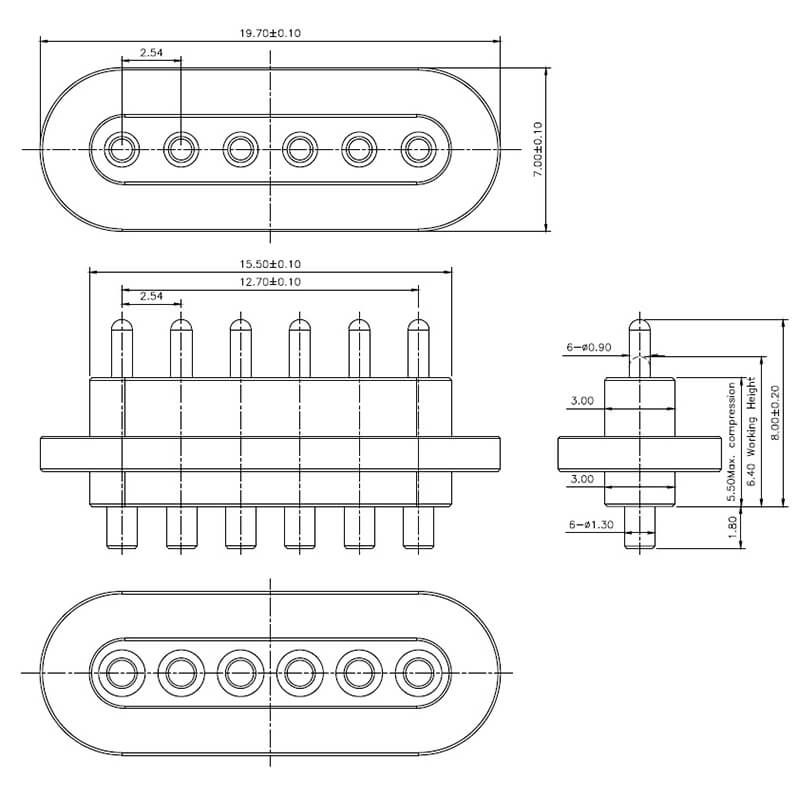

6Pin, 2.54mm Pitch, 6.40mm Working Height, C2639-06A
- Part Number
- Length
- Width
- Height
- Spring Force
- Plated
- Rated Current
- C2639-06A
- 19.70 mm
- 7.00 mm
- 870 gf
- Au 3 u”
- 3.5 A
2D
3D

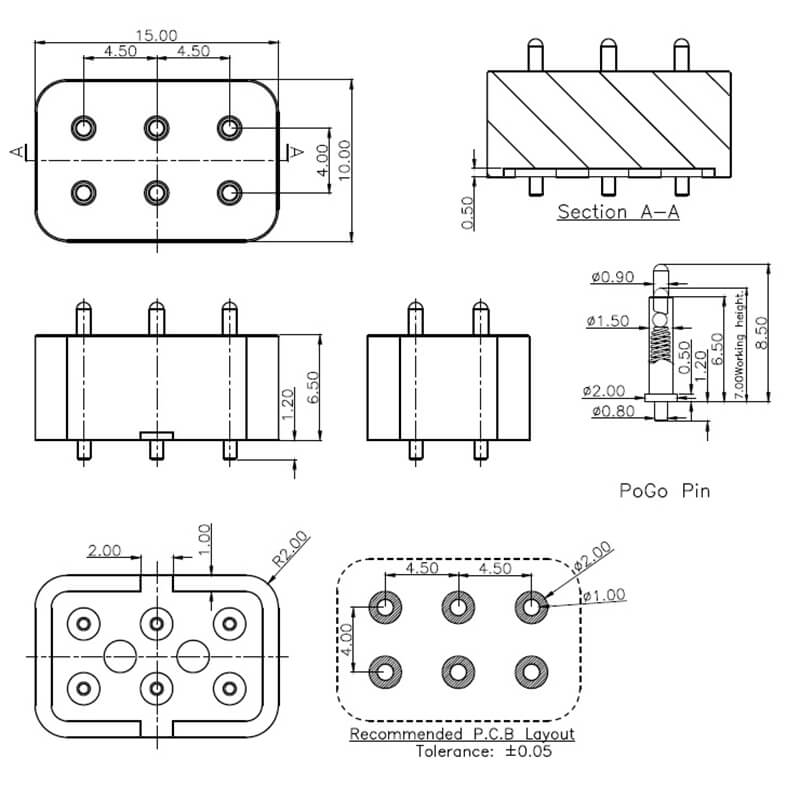

6Pin, 4.50/4.00mm Pitch, 7.00mm Working Height, C1698-06R
- Part Number
- Length
- Width
- Height
- Spring Force
- Plated
- Rated Current
- C1698-06R
- 15.00 mm
- 10.00 mm
- 8.50 mm
- 50~70 gf
- Au 10 u”
- 5.0 A
2D
3D

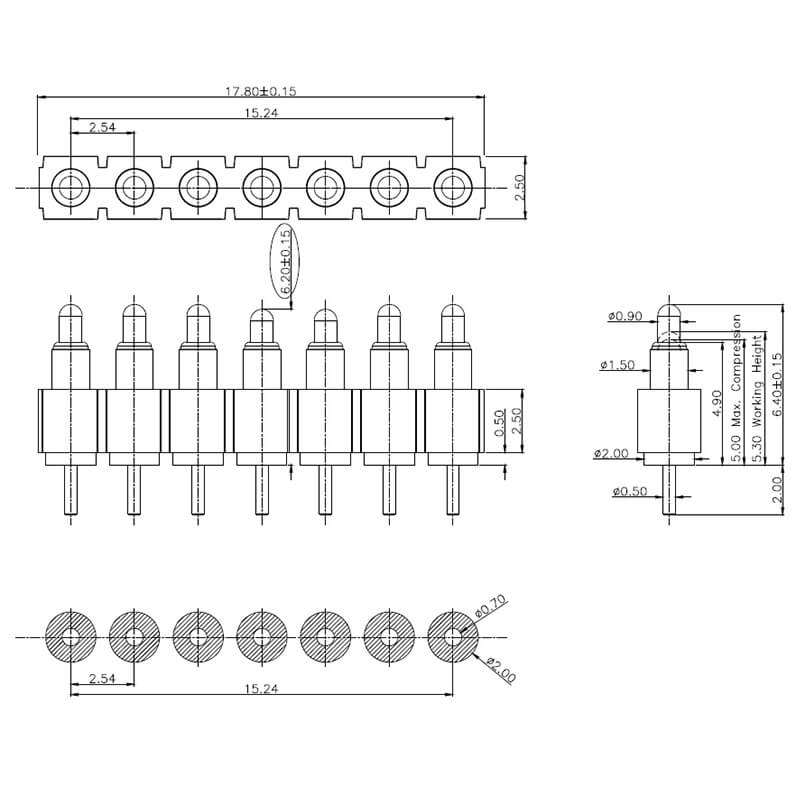

7Pin, 2.54mm Pitch, 5.30mm Working Height, C1013-07P
- Part Number
- Length
- Width
- Height
- Spring Force
- Plated
- Rated Current
- C1013-07P
- 17.80 mm
- 2.50 mm
- 6.40 mm
- 80 gf
- Au 15 u”
- 3.0 A
2D
3D
7Pin, 1.60mm Pitch, 8.75mm Working Height, NC3298-07RC
- Part Number
- Length
- Width
- Height
- Spring Force
- Plated
- Rated Current
- NC3298-07RC
- 25.00 mm
- 4.50 mm
- 9.80 mm
- 95 gf
- Au 30 u“
- 4.0 A
2D
3D

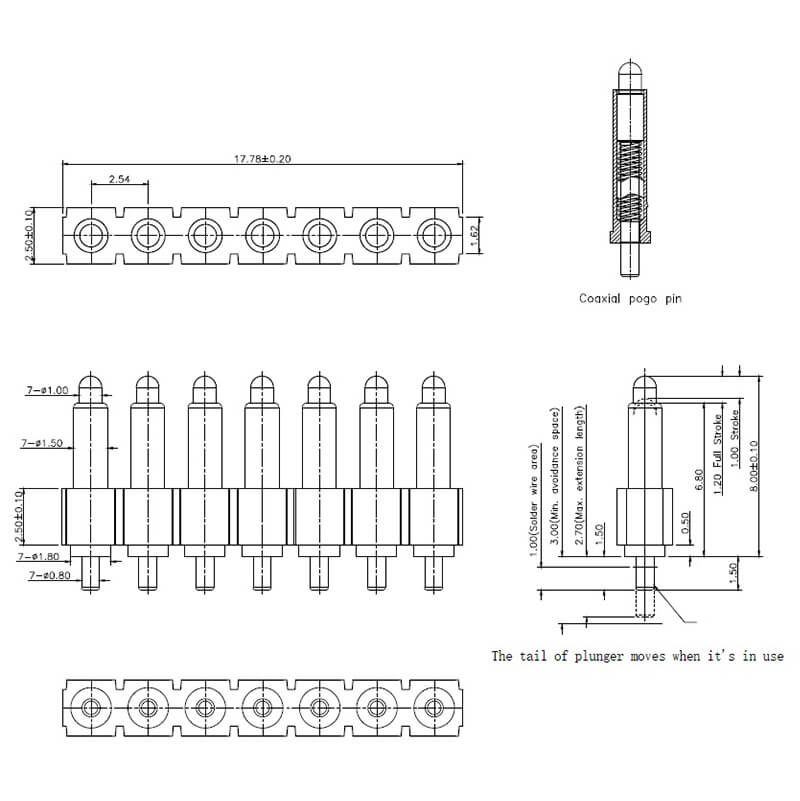

7Pin, 2.54mm Pitch, 7.00mm Working Height, NC4721-07PA
- Part Number
- Length
- Width
- Height
- Spring Force
- Plated
- Rated Current
- NC4721-07PA
- 17.78 mm
- 2.50 mm
- 8.00 mm
- 70 gf
- Au 10 u”
- 8.0 A,peak 12 A
2D
3D

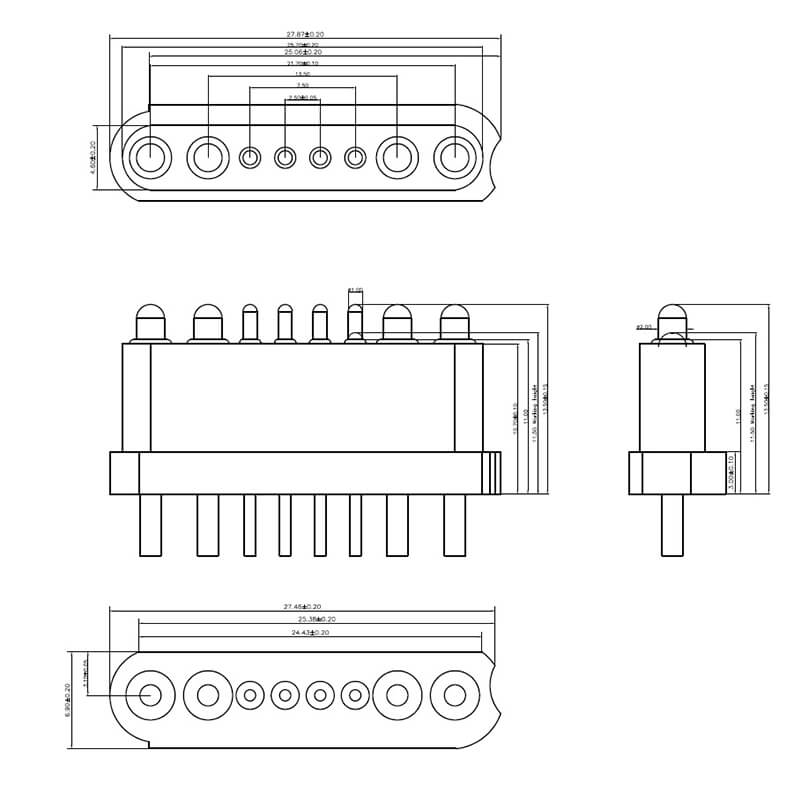

8Pin, 2.50mm Pitch, 11.50mm Working Height, NC4678-08PA
- Part Number
- Length
- Width
- Height
- Spring Force
- Plated
- Rated Current
- NC4678-08PA
- 27.87 mm
- 6.90 mm
- 13.5 mm
- 200 gf
- Au 10 u”
- 15 A
2D
3D
