SMD/SMT Pogo Pin Connector

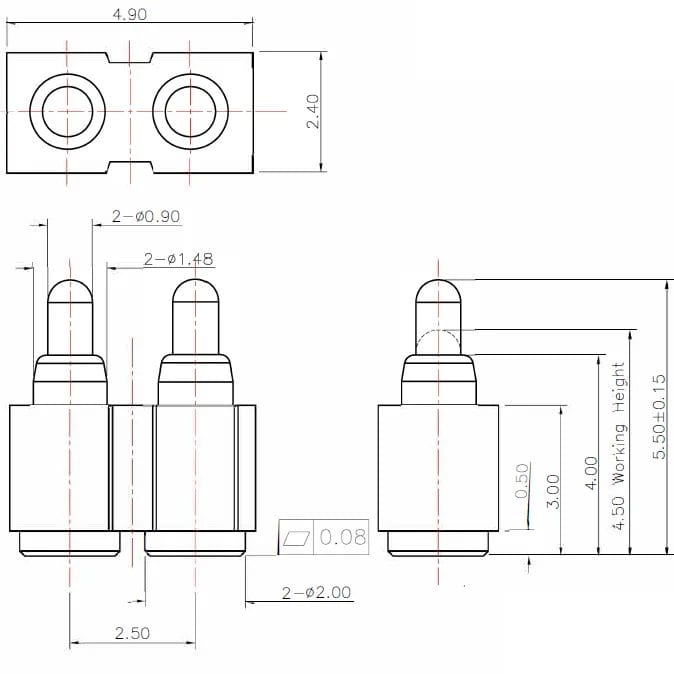

2Pin, 2.50mm Pitch, 4.50mm Working Height, NC4439-02RA

NC4439_02RA_drawing
  • Part Number
  • Housing Length
  • Housing Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • NC4439-02RA
  • 4.90 mm
  • 2.40 mm
  • 5.50 mm
  • 120 gf
  • Au 3 u”
  • 2.0 A

2D

3D

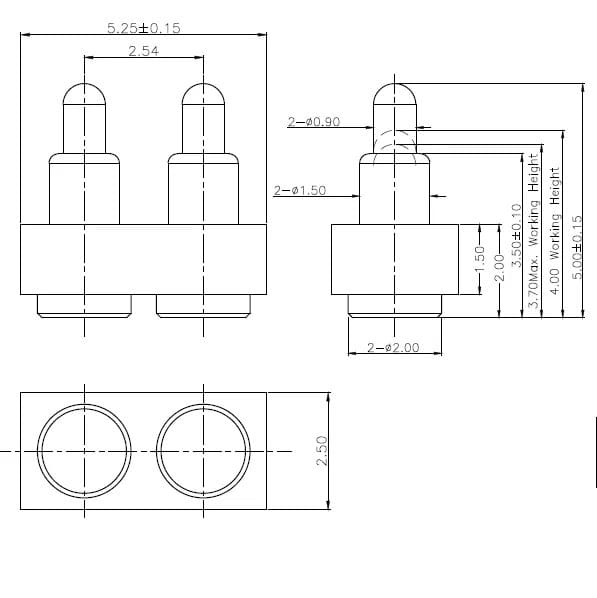

2Pin, 2.54mm Pitch, 4.00mm Working Height, C515-02RB

  • Part Number
  • Housing Length
  • Housing Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • C515-02RB
  • 5.25 mm
  • 2.50 mm
  • 5.00 mm
  • 30 gf
  • Au 5 u”
  • 1.2 A

2D

3D

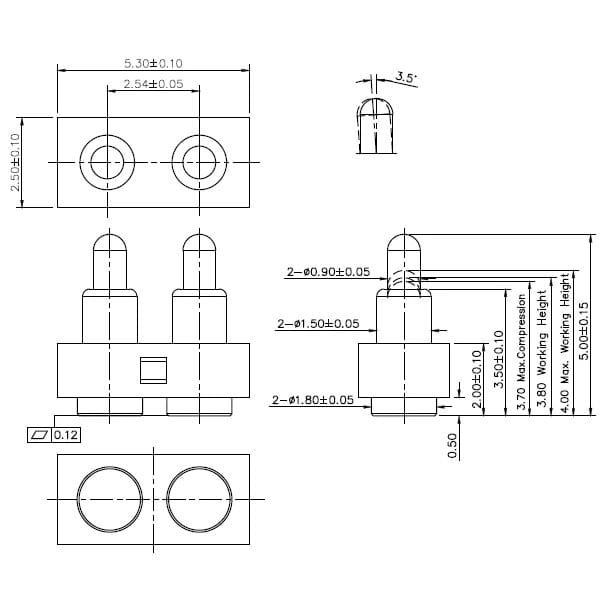

2Pin, 2.54mm Pitch, 3.80mm Working Height, NC4530-02RA

  • Part Number
  • Housing Length
  • Housing Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • NC4530-02RA
  • 5.30 mm
  • 2.50 mm
  • 1.00 mm
  • 120 gf
  • Au 3 u”
  • 2.0 A

2D

3D

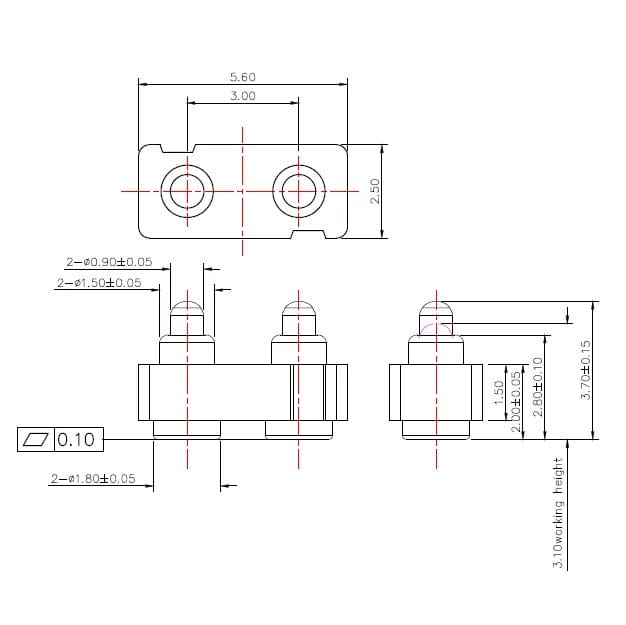

2Pin, 3.00mm Pitch, 3.10mm Working Height, C935-02

C935_02_drawing
  • Part Number
  • Housing Length
  • Housing Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • C935-02
  • 5.60 mm
  • 2.50 mm
  • 3.70 mm
  • 105 gf
  • Au 40 u”
  • 1.0 A

2D

3D

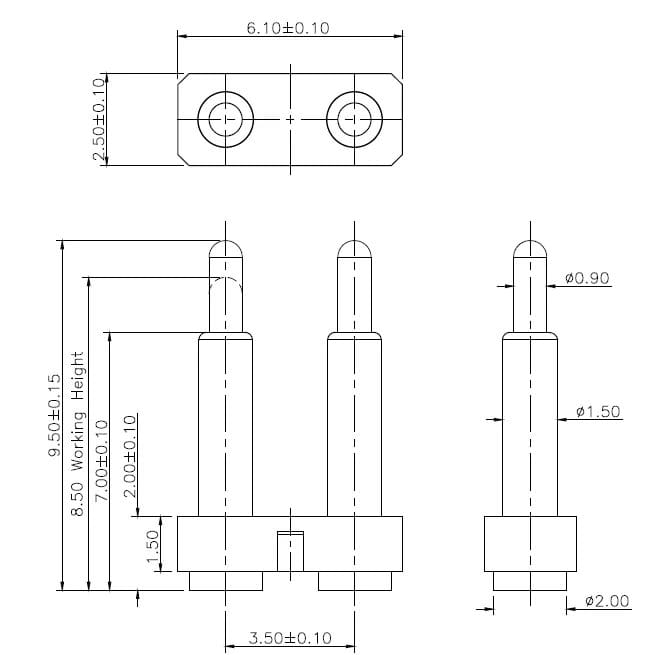

2Pin, 3.50mm Pitch, 8.50mm Working Height, NC3317-02RA

NC3317_02RA_drawing
  • Part Number
  • Housing Length
  • Housing Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • NC3317-02RA
  • 6.10 mm
  • 2.50 mm
  • 9.50 mm
  • 80 gf
  • Au 10 u”
  • 1.0 A

2D

3D

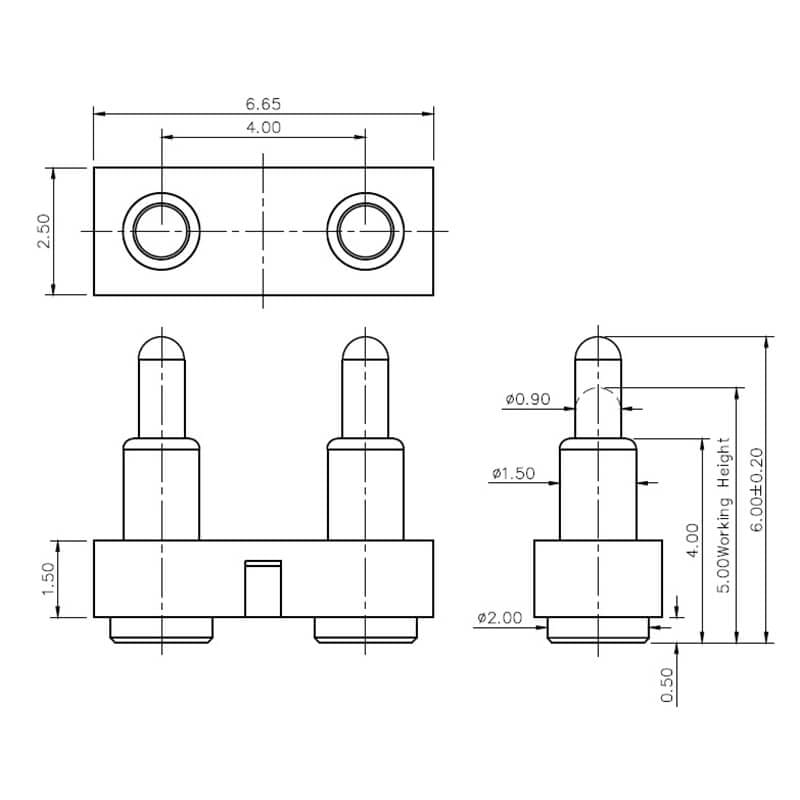

2Pin, 4.00mm Pitch, 5.00mm Working Height, NC2921-02RA

  • Part Number
  • Housing Length
  • Housing Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • NC2921-02RA
  • 6.65 mm
  • 2.50 mm
  • 6.00 mm
  • 60 gf
  • Au 3 u”
  • 1.0 A

2D

3D

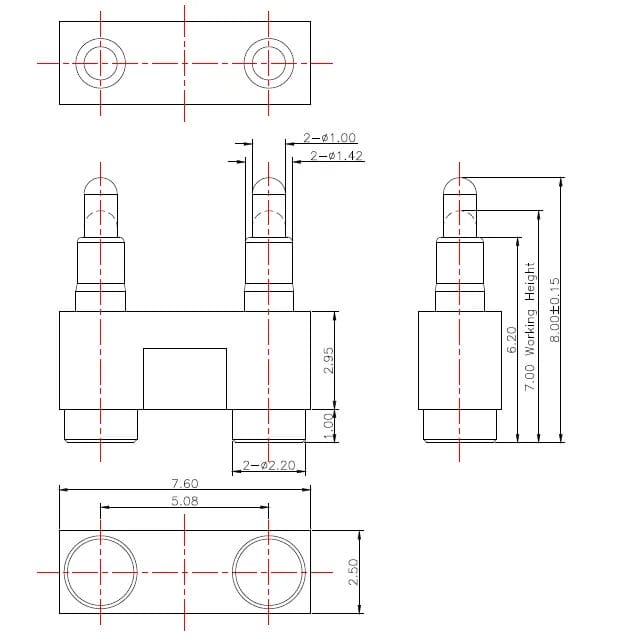

2Pin, 5.08mm Pitch, 7.00mm Working Height, C083-02R

  • Part Number
  • Housing Length
  • Housing Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • C083-02R
  • 7.60 mm
  • 2.95 mm
  • 8.00 mm
  • 100 gf
  • Au 10 u”
  • 2.0 A

2D

3D

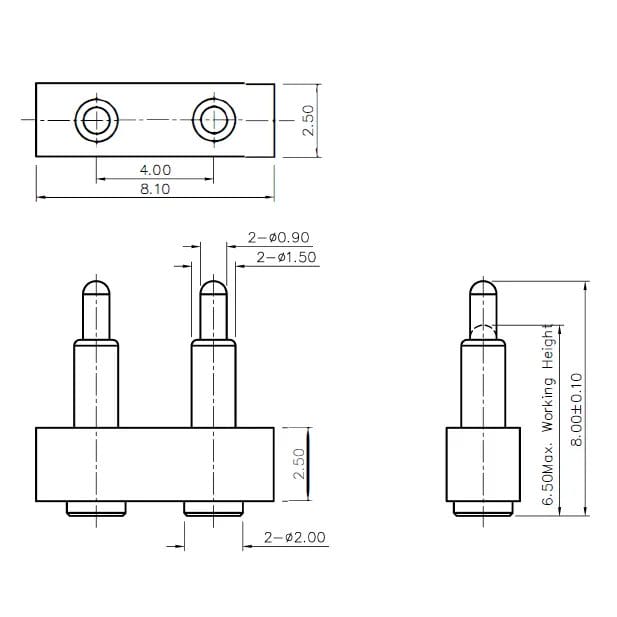

2Pin, 4.00mm Pitch, 6.50mm Working Height, C071-02

C071_02_drawing
  • Part Number
  • Housing Length
  • Housing Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • C071-02
  • 8.10 mm
  • 2.50 mm
  • 8.00 mm
  • 100 gf
  • Au 10 u”
  • 2.0 A

2D

3D

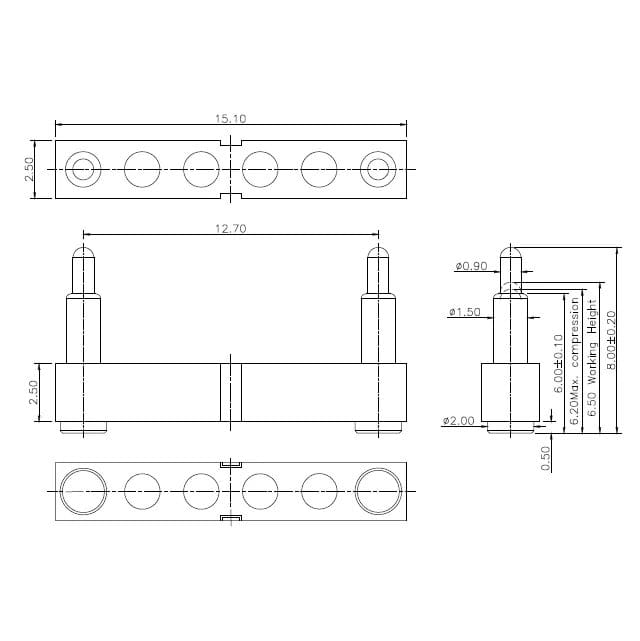

2Pin, 12.70mm Pitch, 6.50mm Working Height, NC2747-02RA

NC2747_02RA_drawing
  • Part Number
  • Housing Length
  • Housing Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • NC2747-02RA
  • 15.10 mm
  • 2.50 mm
  • 8.00 mm
  • 100 gf
  • Au 3 u”
  • 5.0 A

2D

3D

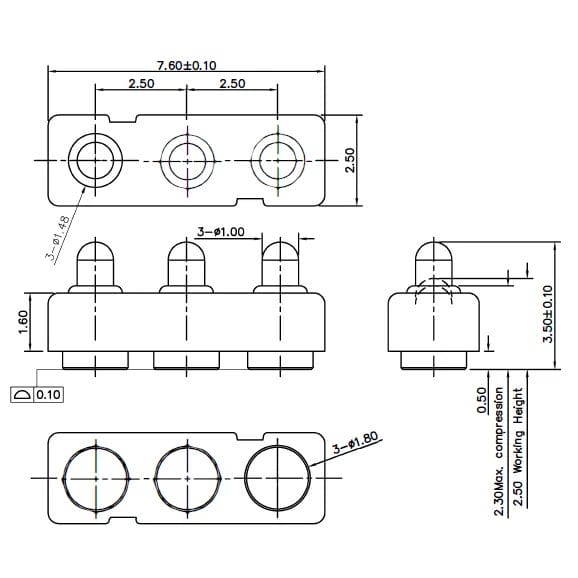

3Pin, 2.50mm Pitch, 2.50mm Working Height, NC3623-03RA

NC3623_03RA_drawing
  • Part Number
  • Housing Length
  • Housing Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • NC3623-03RA
  • 7.60 mm
  • 2.50 mm
  • 3.50 mm
  • 45 gf
  • Au 10 u”
  • 1.0 A

2D

3D

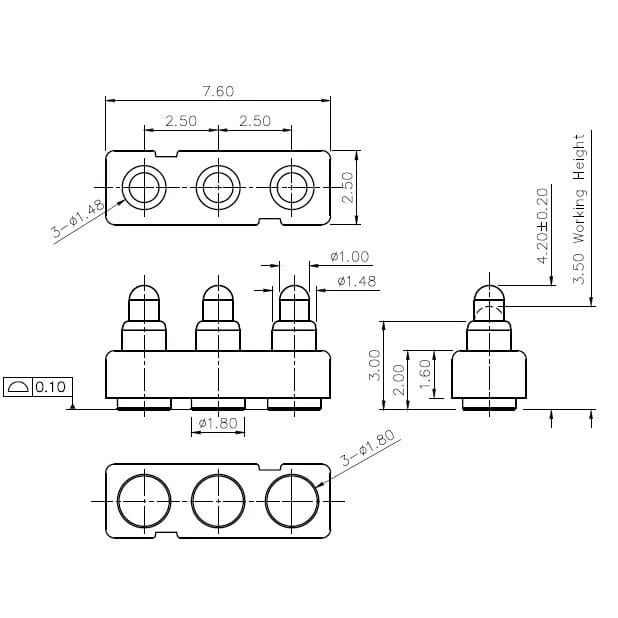

3Pin, 2.50mm Pitch, 3.50mm Working Height, C1925-03R

  • Part Number
  • Housing Length
  • Housing Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • C1925-03R
  • 7.60 mm
  • 2.50 mm
  • 4.20 mm
  • 25 gf
  • Au 3 u”
  • 1.0 A

2D

3D

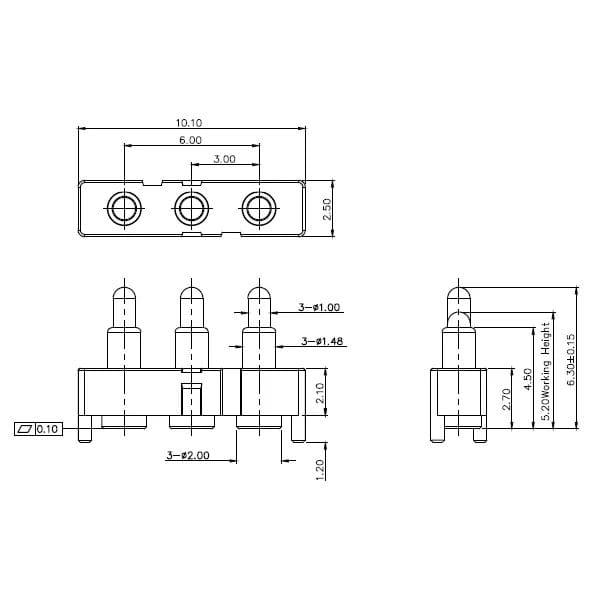

3Pin, 3.00mm Pitch, 5.20mm Working Height, C1174-03

  • Part Number
  • Housing Length
  • Housing Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • C1174-03
  • 10.10 mm
  • 2.50 mm
  • 6.30 mm
  • 110 gf
  • Au 10 u”
  • 1.0 A

2D

3D

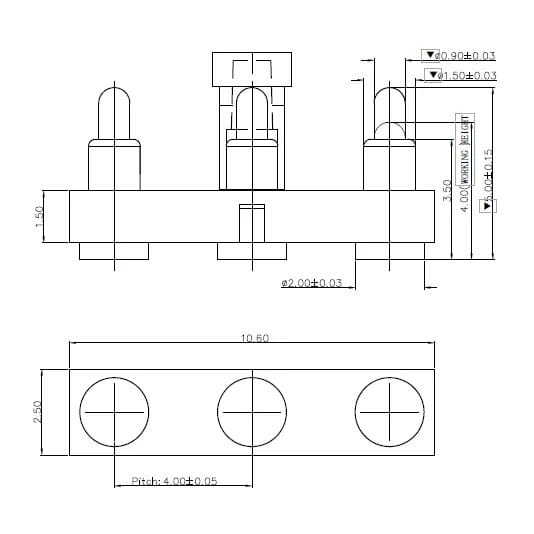

3Pin, 4.00mm Pitch, 4.00mm Working Height, NC4623-03RA

NC4623_03RA_drawing
  • Part Number
  • Housing Length
  • Housing Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • NC4623-03RA
  • 10.60 mm
  • 2.50 mm
  • 5.00 mm
  • 60 gf
  • Au 3 u”
  • 1.5 A

2D

3D

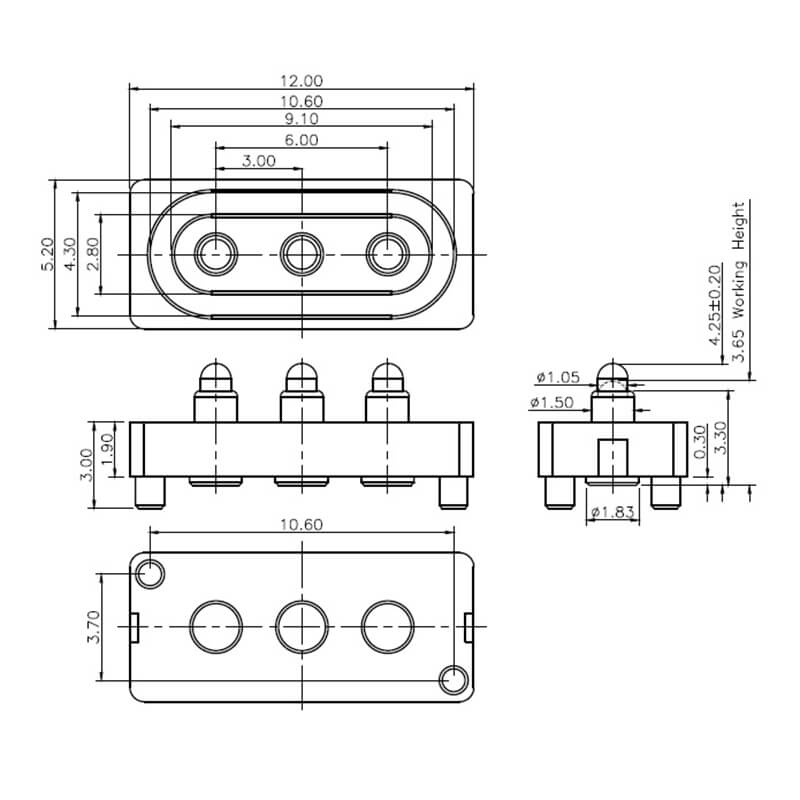

3Pin, 3.00mm Pitch, 3.65mm Working Height, NC3557-03RA

  • Part Number
  • Housing Length
  • Housing Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • NC3557-03RA
  • 12.00 mm
  • 5.20 mm
  • 4.25 mm
  • 50 gf
  • Au 10 u”
  • 2.0 A

2D

3D

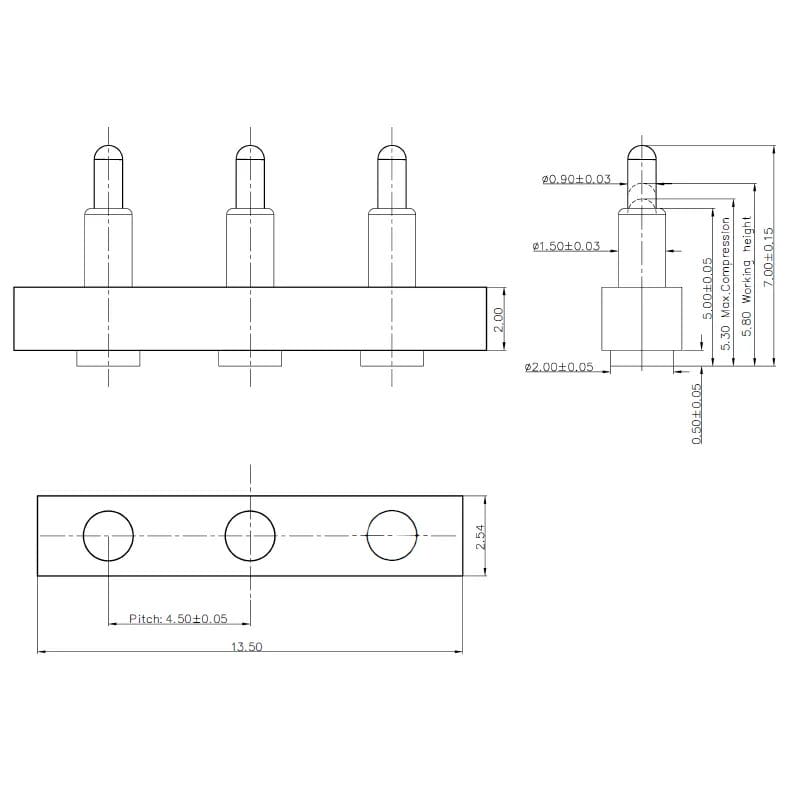

3Pin, 4.50mm Pitch, 5.80mm Working Height, NC4638-03RA

NC4638_03RA_drawing
  • Part Number
  • Housing Length
  • Housing Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • NC4638-03RA
  • 13.50 mm
  • 2.54 mm
  • 7.00 mm
  • 80 gf
  • Au 3 u”
  • 1.0 A

2D

3D

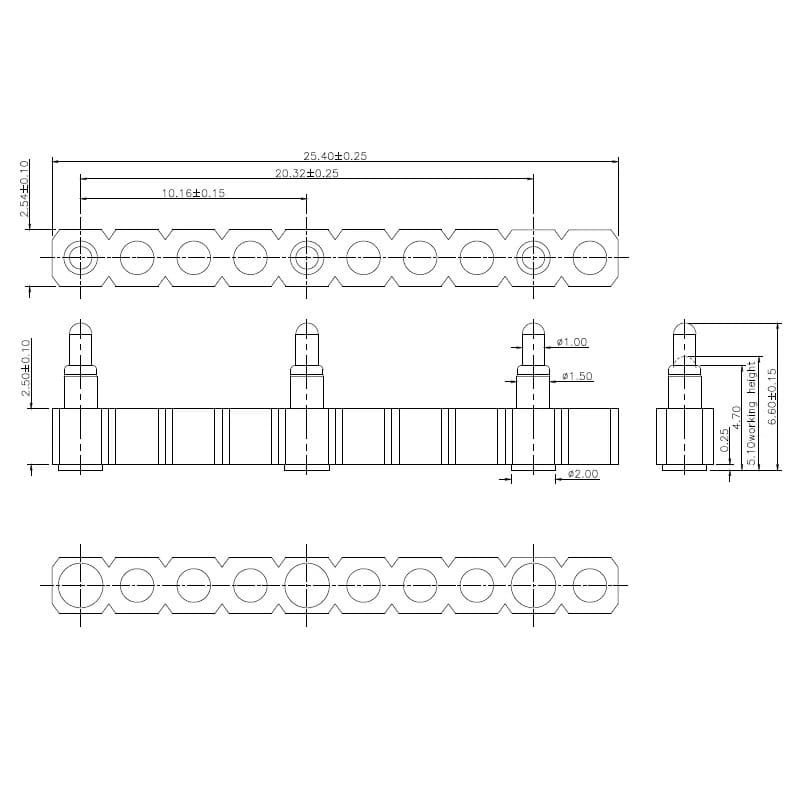

3Pin, 10.16mm Pitch, 5.10mm Working Height, C2281-03

C2281_03_drawing
  • Part Number
  • Housing Length
  • Housing Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • C2281-03
  • 25.40 mm
  • 2.54 mm
  • 6.60 mm
  • 50 gf
  • Au 3 u”
  • 2.0 A

2D

3D

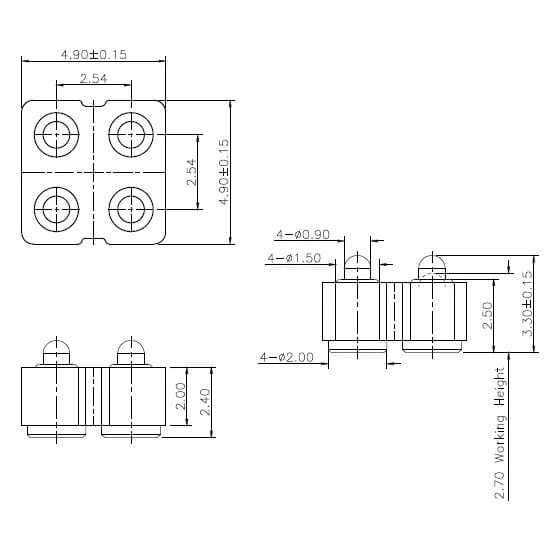

4Pin, 2.54mm Pitch, 2.70mm Working Height, NC3569-04RA

NC3569_04RA_drawing
  • Part Number
  • Housing Length
  • Housing Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • NC3569-04RA
  • 4.90 mm
  • 4.90 mm
  • 3.30 mm
  • 110 gf
  • Au 10 u”
  • 1.0 A

2D

3D

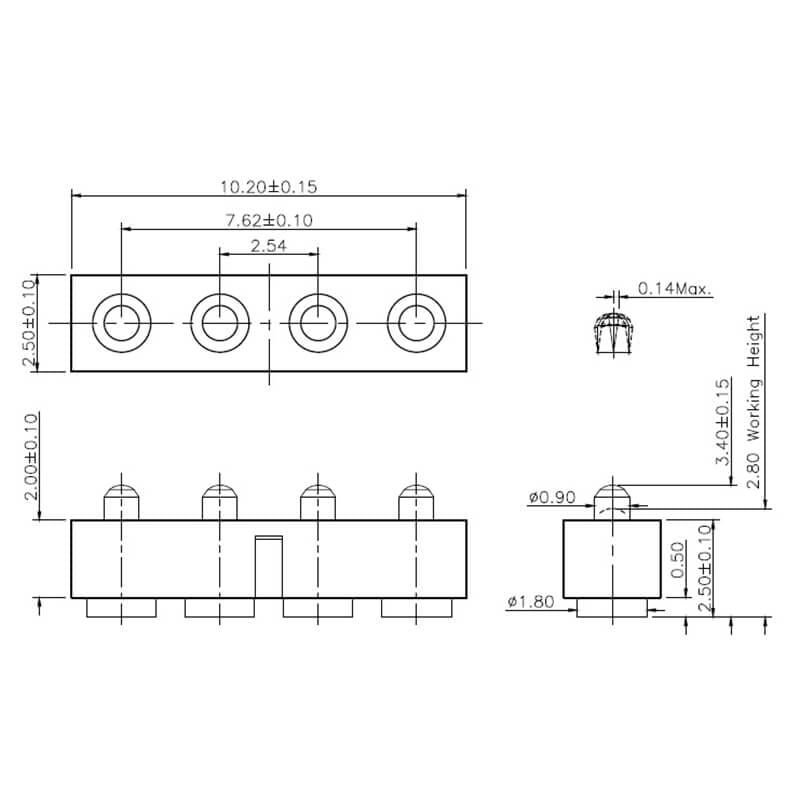

4Pin, 2.54mm Pitch, 2.80mm Working Height, NC3457-04RA

  • Part Number
  • Length
  • Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • NC3457-04RA
  • 3.40 mm
  • 0.90 mm
  • 0.60 mm
  • 0.9 N
  • Au 40 u”
  • 1.0 A

2D

3D

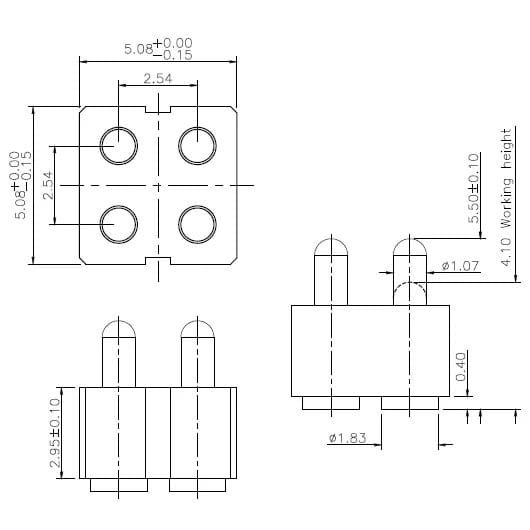

4Pin, 2.54mm Pitch, 4.10mm Working Height, NC4202-04RA

NC4202_04RA_drawing
  • Part Number
  • Housing Length
  • Housing Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • NC4202-04RA
  • 5.08 mm
  • 5.08 mm
  • 5.50 mm
  • 0.25 N
  • Au 10 u”
  • 1.0 A

2D

3D

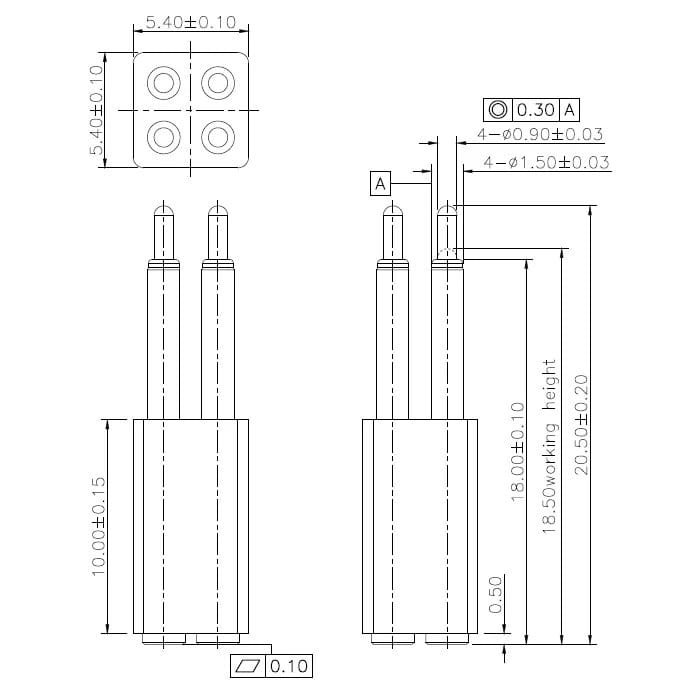

4Pin, 2.54mm Pitch, 18.50mm Working Height, C2111-04

C2111_04_drawing
  • Part Number
  • Housing Length
  • Housing Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • C2111-04
  • 5.40 mm
  • 5.40 mm
  • 20.50 mm
  • 110 gf
  • Au 10 u”
  • 2.0 A

2D

3D

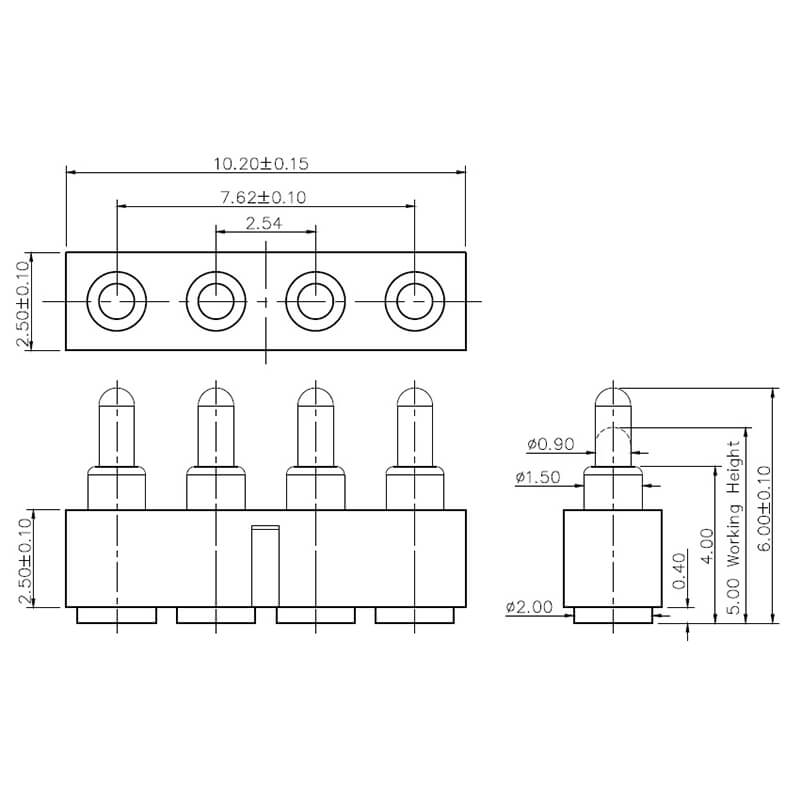

4Pin, 2.54mm Pitch, 5.00mm Working Height, NC3260-04RA

  • Part Number
  • Length
  • Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • NC3260-04RA
  • 6.00 mm
  • 1.40 mm
  • 1.00 mm
  • 50 gf
  • Au 5 u”
  • 3.0 A

2D

3D

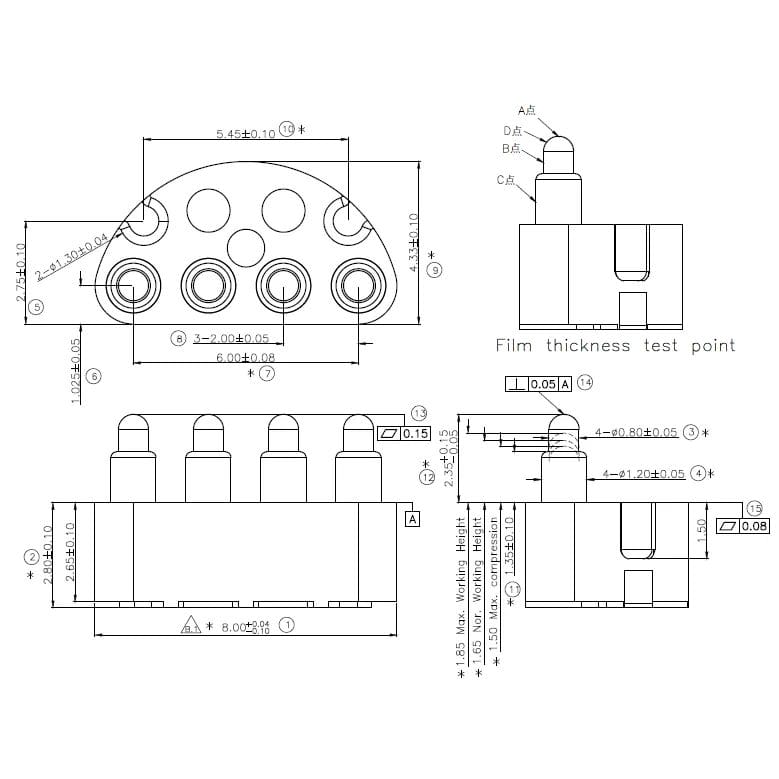

4Pin, 2.00mm Pitch, 1.70mm Working Height, NC2180-04PA

  • Part Number
  • Housing Length
  • Housing Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • NC2180-04PA
  • 8.00 mm
  • 4.33 mm
  • 5.15 mm
  • 90 gf
  • Au 30 u”
  • 3.0 A

2D

3D

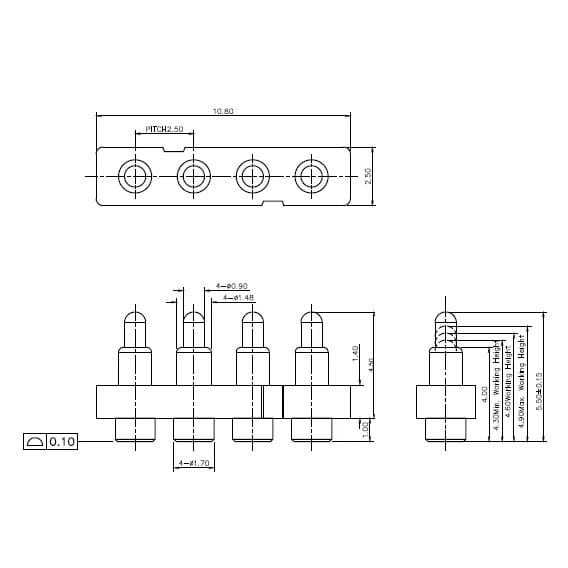

4Pin, 2.50mm Pitch, 4.60mm Working Height, C158-04R

C518_04R_drawing
  • Part Number
  • Housing Length
  • Housing Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • C158-04R
  • 10.80 mm
  • 2.50 mm
  • 5.50 mm
  • 85 gf
  • Au 3 u”
  • 1.0 A

2D

3D

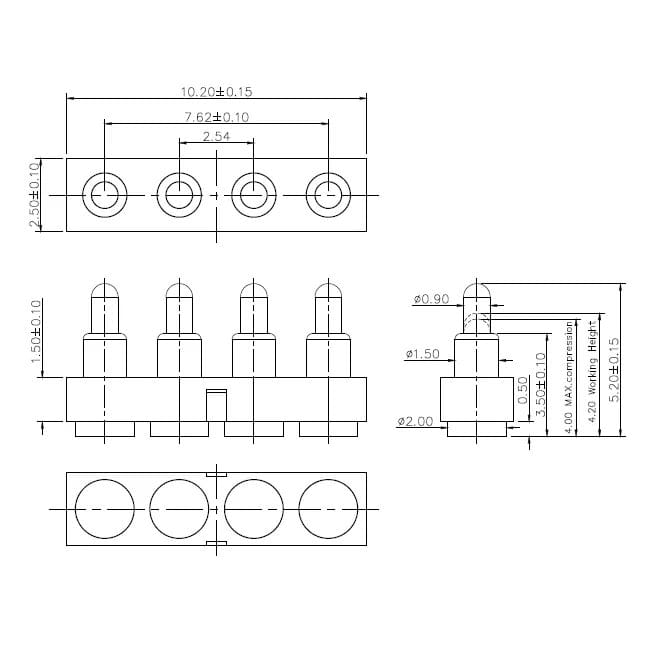

4Pin, 2.54mm Pitch, 4.20mm Working Height, NC3846-04PA

  • Part Number
  • Housing Length
  • Housing Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • NC3846-04PA
  • 10.20 mm
  • 2.50 mm
  • 5.20 mm
  • 120 gf
  • Au 5 u”
  • 2.0 A

2D

3D

4Pin, 2.50mm Pitch, 2.50mm Working Height, C1608-04R

C1608_04R_drawing
  • Part Number
  • Housing Length
  • Housing Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • C1608-04R
  • 10.80 mm
  • 2.50 mm
  • 3.20 mm
  • 45 gf
  • Au 10 u”
  • 1.0 A

2D

3D

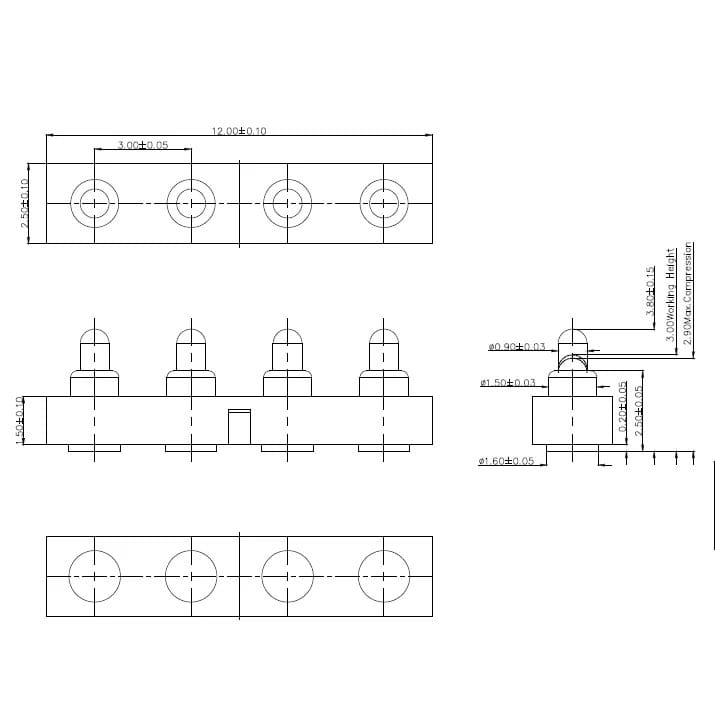

4Pin, 3.00mm Pitch, 3.00mm Working Height, NC4528-04PA

NC4528_04RA_drawing
  • Part Number
  • Housing Length
  • Housing Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • NC4528-04PA
  • 12.00 mm
  • 2.50 mm
  • 3.80 mm
  • 150 gf
  • Au 5 u”
  • 1.0 A

2D

3D

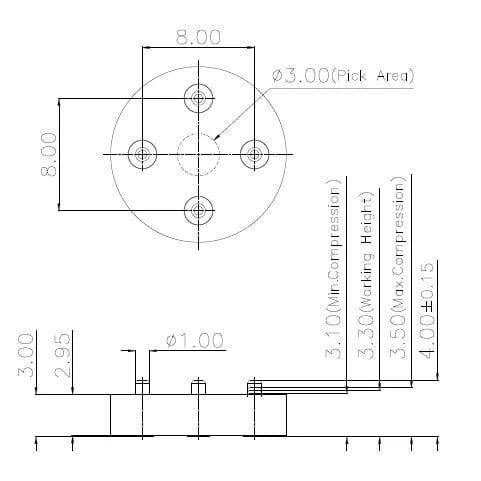

4Pin, 8.00mm Pitch, 3.30mm Working Height, NC4583-04RA

NC4583_04RA_drawing
  • Part Number
  • Housing Length
  • Housing Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • NC4528-04PA
  • 12.50 mm
  • 12.50 mm
  • 4.00 mm
  • 40 gf
  • Au 5 u”
  • 2.0 A

2D

3D

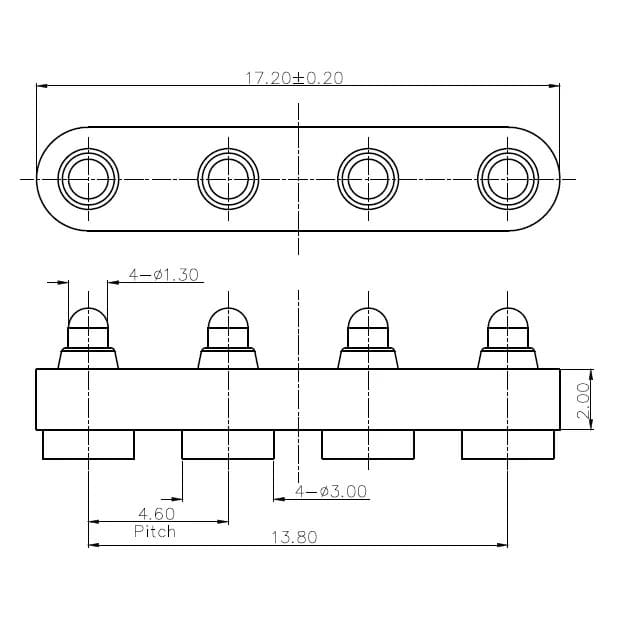

4Pin, 4.60mm Pitch, 3.95mm Working Height, C107-04P

C107_04P_drawing
  • Part Number
  • Housing Length
  • Housing Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • C107-04P
  • 17.20 mm
  • 3.40 mm
  • 4.95 mm
  • 120 g
  • Au 5 u”
  • 1.0 A

2D

3D

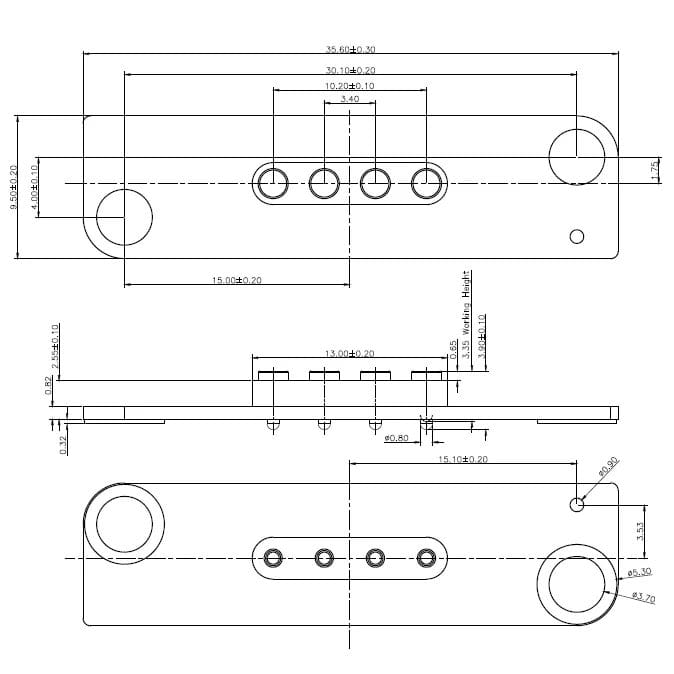

4Pin, 3.40mm Pitch, 3.35mm Working Height, NC4423-04PA

NC4423_04PA_drawing
  • Part Number
  • Housing Length
  • Housing Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • NC4423-04PA
  • 35.60 mm
  • 9.50 mm
  • 3.90 mm
  • 0.9 N
  • Au 20 u”
  • 1.0 A

2D

3D

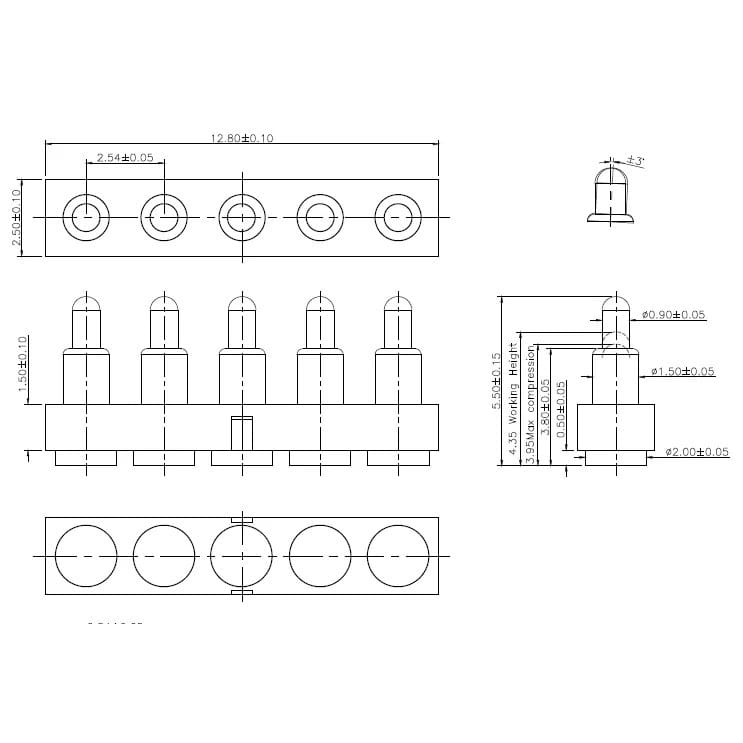

5Pin, 2.54mm Pitch, 4.35mm Working Height, NC4486-05RA

NC4486_05RA_drawing
  • Part Number
  • Housing Length
  • Housing Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • NC4486-05RA
  • 12.80 mm
  • 2.50 mm
  • 5.50 mm
  • 50 gf
  • Au 3 u”
  • 2.0 A

2D

3D

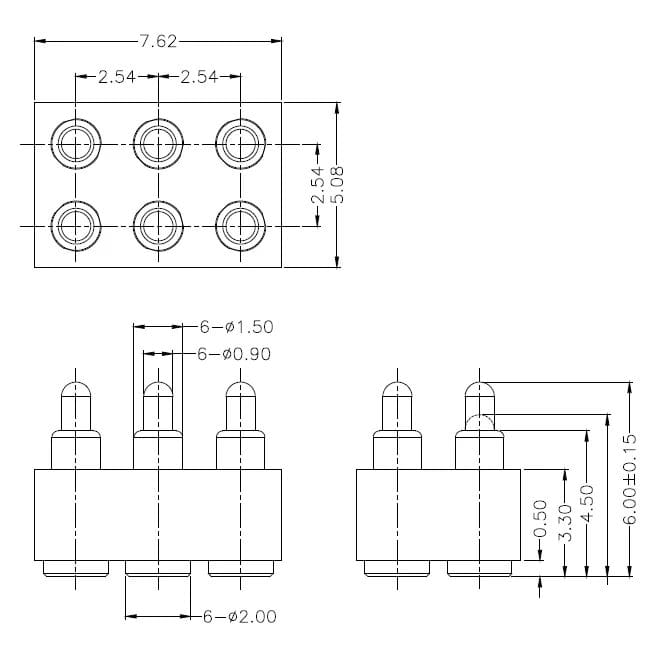

6Pin, 2.54mm Pitch, 5.00mm Working Height, C1358-06R

C1358_06R_drawing
  • Part Number
  • Housing Length
  • Housing Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • C1358-06R
  • 7.62 mm
  • 5.08 mm
  • 6.00 mm
  • 90 gf
  • Au 5 u”
  • 1.0 A

2D

3D

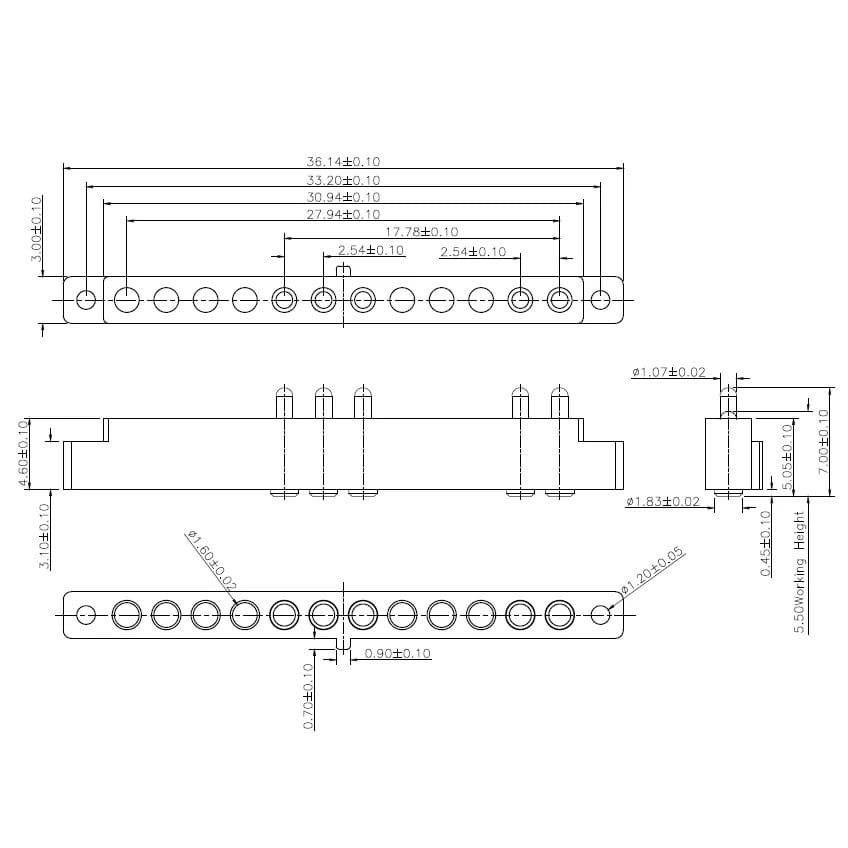

5Pin, 2.54mm Pitch, 5.50mm Working Height, NC4165-05PA

  • Part Number
  • Housing Length
  • Housing Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • NC4165-05PA
  • 36.14 mm
  • 3.00 mm
  • 7.00 mm
  • 70 gf
  • Au 5 u”
  • 1.0 A

2D

3D

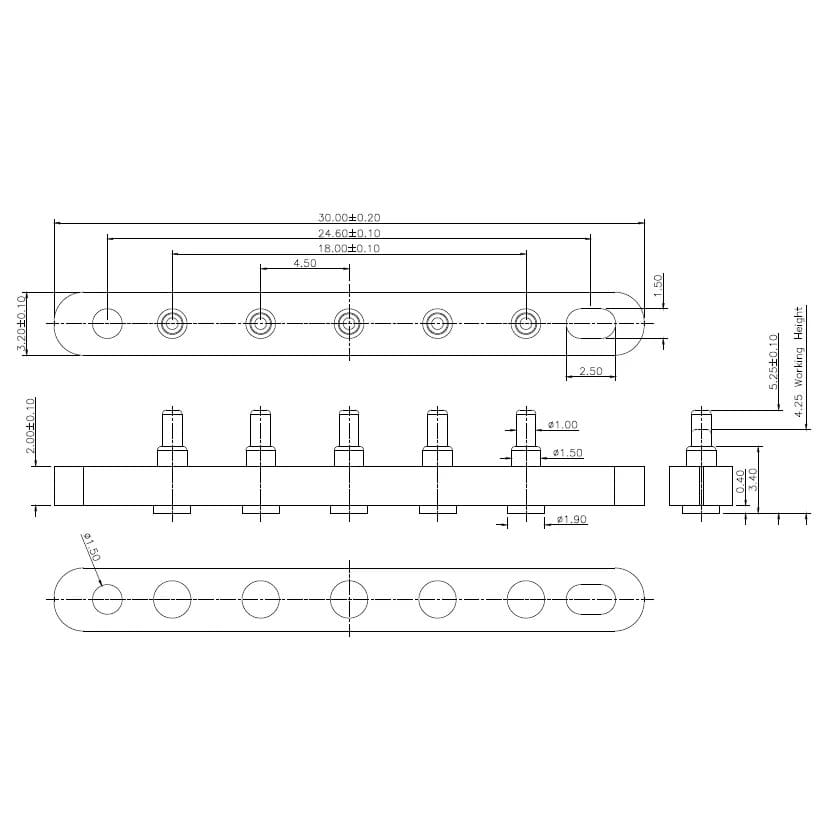

5Pin, 4.50mm Pitch, 4.25mm Working Height, NC3640-05RA

NC3640_05RA_drawing
  • Part Number
  • Housing Length
  • Housing Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • NC3640-05RA
  • 30.00 mm
  • 3.20 mm
  • 5.25 mm
  • 80 gf
  • Au 10 u”
  • 1.0 A

2D

3D

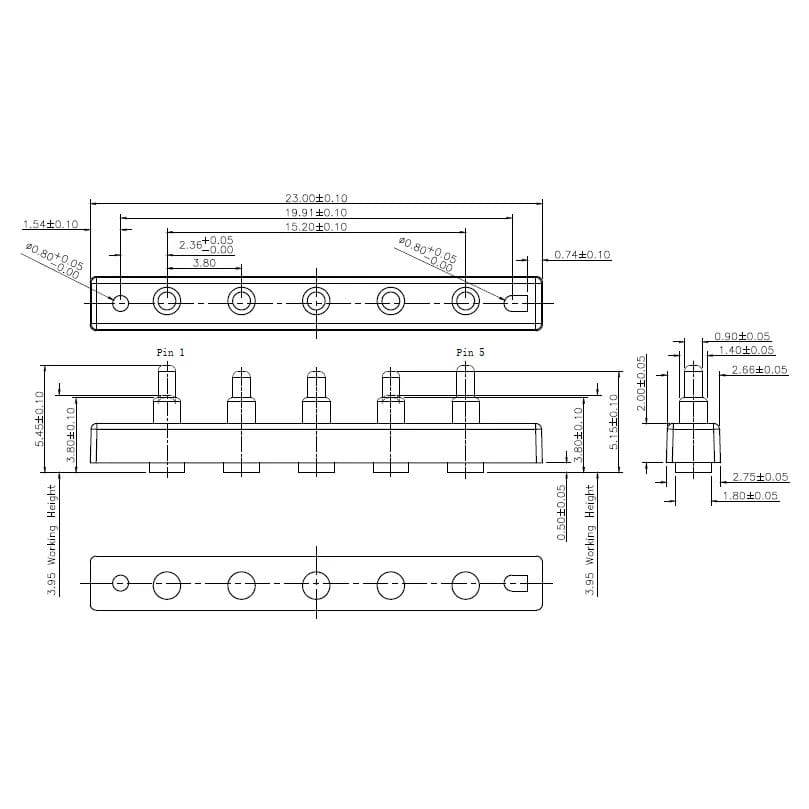

5Pin, 3.80mm Pitch, 3.95mm Working Height, NC3605-05PA

NC3605_05PA_drawing
  • Part Number
  • Housing Length
  • Housing Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • NC3605-05PA
  • 23.00 mm
  • 3.08 mm
  • 5.45 mm
  • 70 gf
  • Au 40 u”
  • 2.0 A

2D

3D

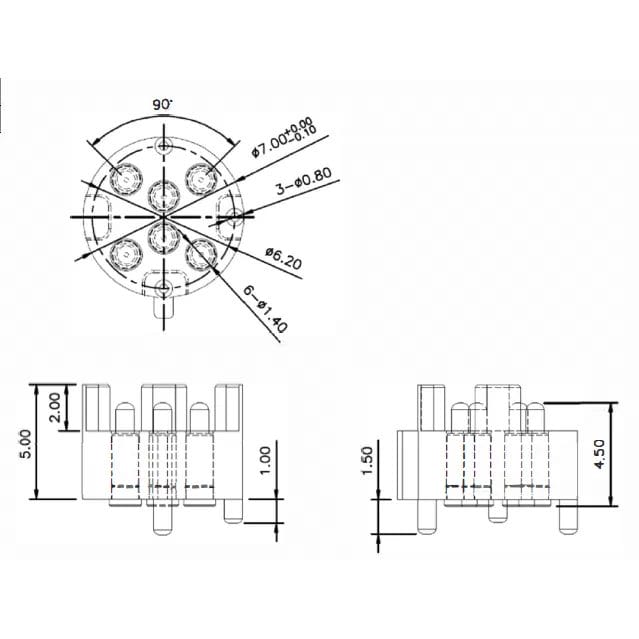

6Pin, 1.80mm Pitch, 2.00mm Working Height, C360-06P

  • Part Number
  • Housing Length
  • Housing Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • C360-06P
  • 7.00 mm
  • 7.00 mm
  • 6.00 mm
  • 70 gf
  • Au 5 u”
  • 1.0 A

2D

3D

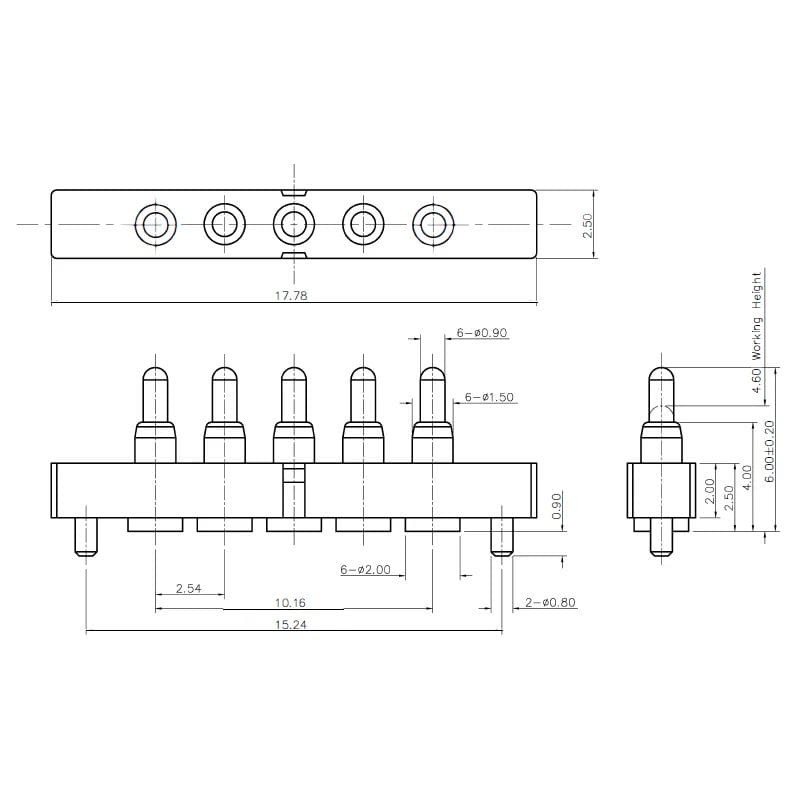

5Pin, 2.54mm Pitch, 4.60mm Working Height, C231-05P

  • Part Number
  • Housing Length
  • Housing Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • C231-05P
  • 17.78 mm
  • 2.50 mm
  • 6.00 mm
  • 60 gf
  • Au 15 u”
  • 2.0 A

2D

3D

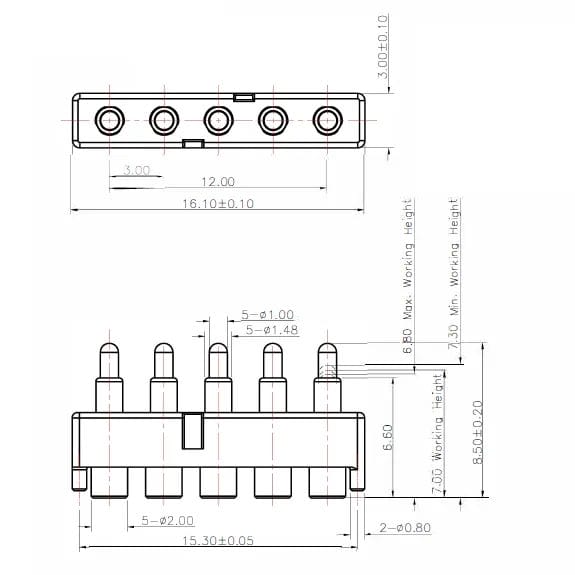

5Pin, 3.00mm Pitch, 7.00mm Working Height, C1056-05P

  • Part Number
  • Housing Length
  • Housing Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • C1056-05P
  • 16.10 mm
  • 3.00 mm
  • 8.50 mm
  • 80 gf
  • Au 3 u”
  • 2.0 A

2D

3D

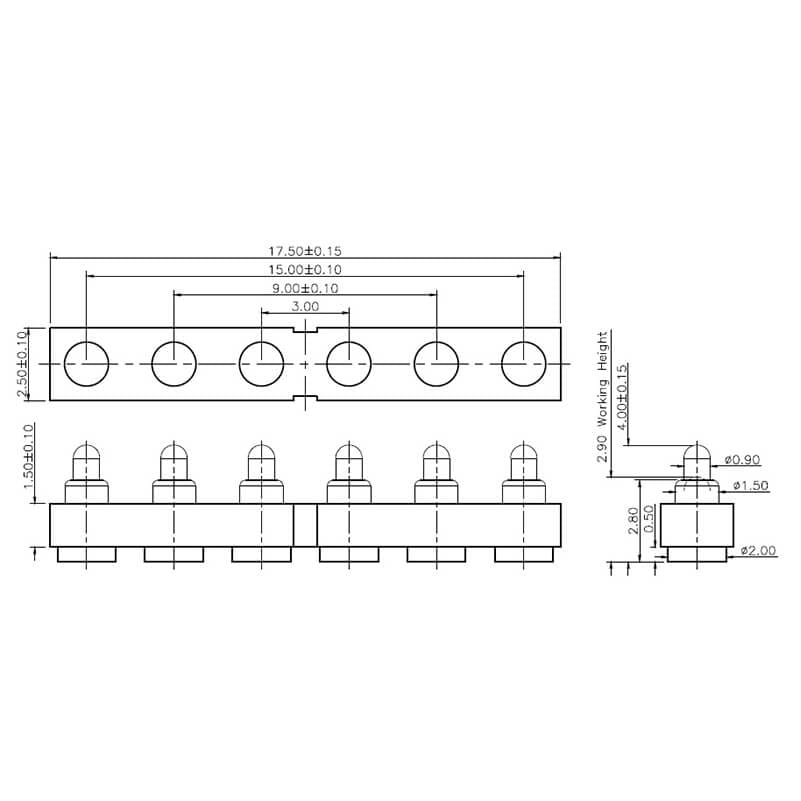

6Pin, 3.00mm Pitch, 2.90mm Working Height, NC3243-06RA

  • Part Number
  • Housing Length
  • Housing Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • NC3243-06RA
  • 17.50 mm
  • 2.50 mm
  • 4.00 mm
  • 120 gf
  • Au 3 u”
  • 1.0 A

2D

3D

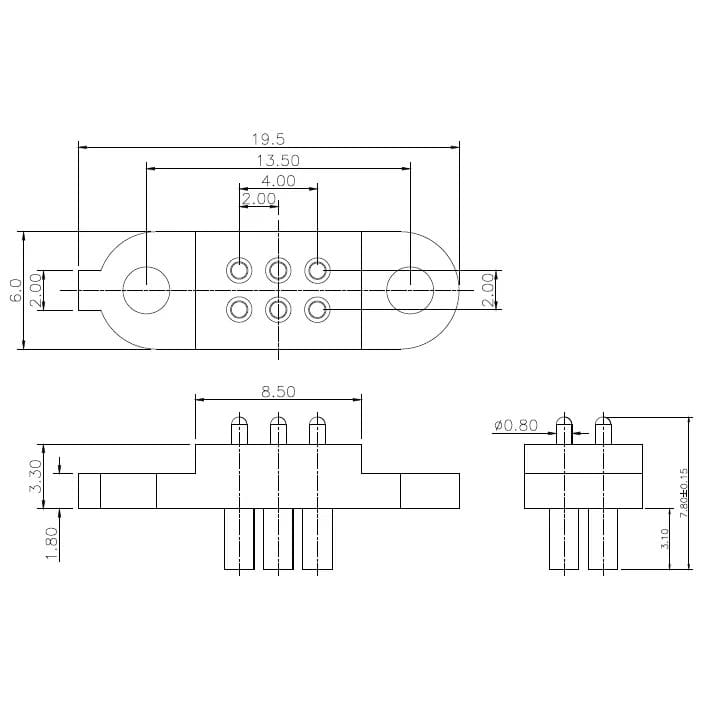

6Pin, 2.00mm Pitch, 1.40mm Working Height, NC3087-06RA

  • Part Number
  • Housing Length
  • Housing Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • NC3087-06RA
  • 19.50 mm
  • 6.00 mm
  • 7.80 mm
  • 100 gf
  • Au 10 u”
  • 1.0 A

2D

3D

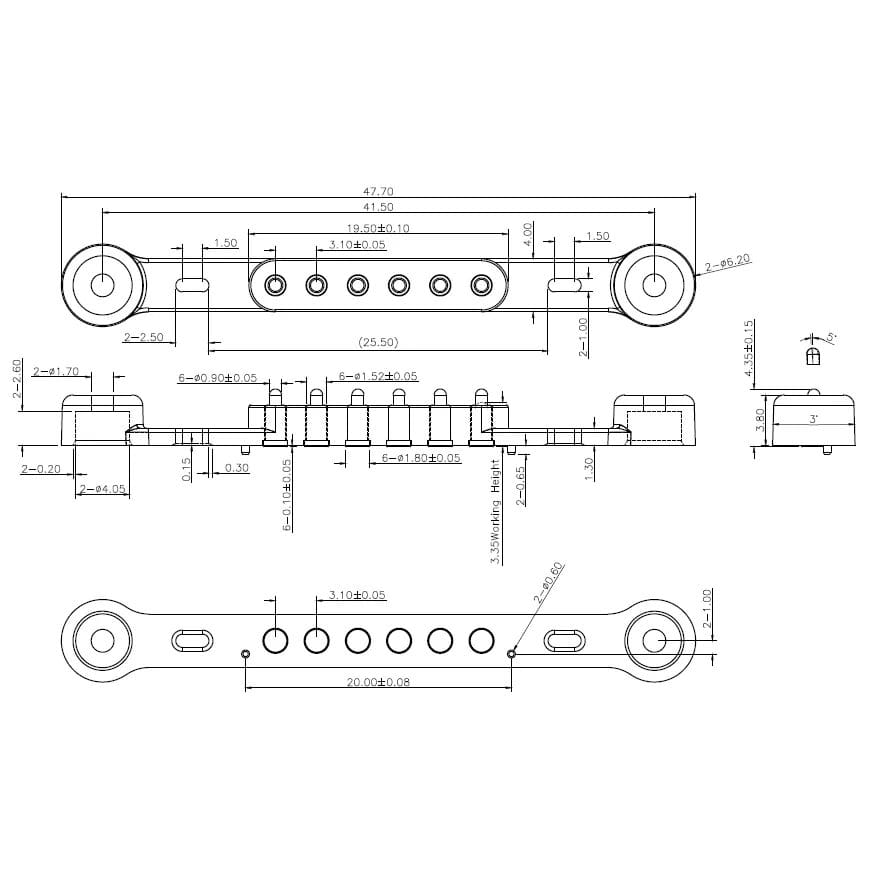

6Pin, 3.10mm Pitch, 3.35mm Working Height, NC3972-06PA

  • Part Number
  • Housing Length
  • Housing Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • NC3973-06PA
  • 47.70 mm
  • 6.20 mm
  • 5.00 mm
  • 60 gf
  • Au 5 u”
  • 1.5 A

2D

3D

6Pin, 3.10mm Pitch, 4.55mm Working Height, NC3973-06PA

NC3973_06PA_drawing
  • Part Number
  • Housing Length
  • Housing Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • NC3973-06PA
  • 31.40 mm
  • 5.90 mm
  • 6.75 mm
  • 60 gf
  • Au 5 u”
  • 3.0 A

2D

3D

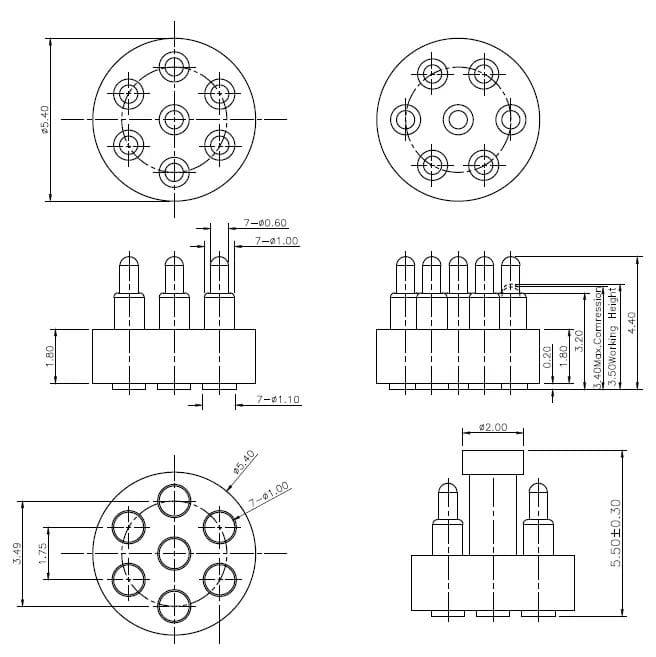

7Pin, 1.75mm Pitch, 3.50mm Working Height, NC3167-07RA

NC3167_07RA_drawing
  • Part Number
  • Housing Length
  • Housing Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • NC3167-07RA
  • 5.40 mm
  • 5.40 mm
  • 5.50 mm
  • 30 gf
  • Au 5 u”
  • 1.0 A

2D

3D

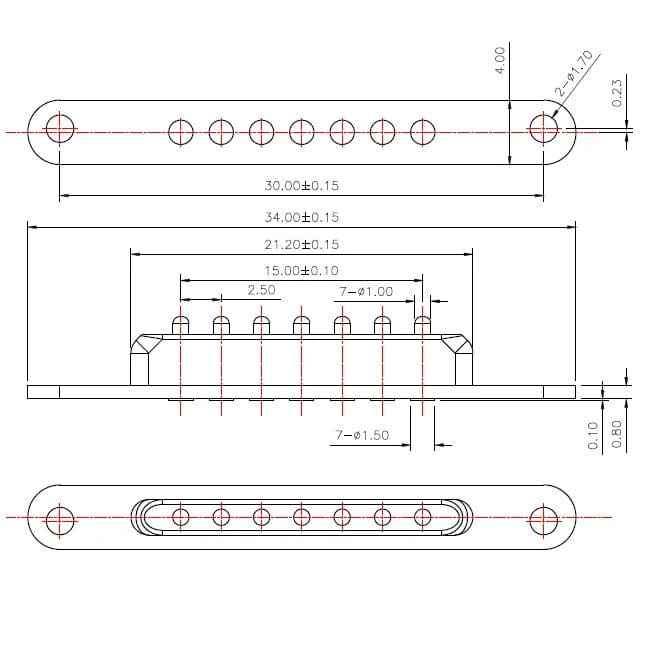

7Pin, 2.50mm Pitch, 4.20mm Working Height, NC856-07P

C856_07P_drawing
  • Part Number
  • Housing Length
  • Housing Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • C856-07P
  • 34.00 mm
  • 4.00 mm
  • 5.20 mm
  • 100 gf
  • Au 5 u”
  • 2.0 A

2D

3D

8Pin, 2.54mm Pitch, 9.60mm Working Height, NC4476-08RA

  • Part Number
  • Housing Length
  • Housing Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • NC4476-08RA
  • 10.16 mm
  • 5.08 mm
  • 13.50 mm
  • 60 gf
  • Au 3 u”
  • 1.0 A

2D

3D

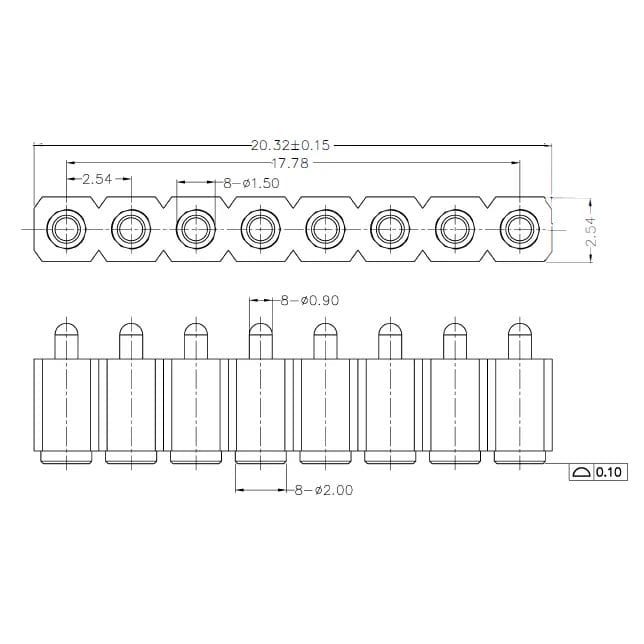

8Pin, 2.54mm Pitch, 4.50mm Working Height, C512-08R

C512_08R_drawing
  • Part Number
  • Housing Length
  • Housing Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • C512-08R
  • 20.32 mm
  • 2.54 mm
  • 5.50 mm
  • 120 gf
  • Au 16 u”
  • 2.0 A

2D

3D

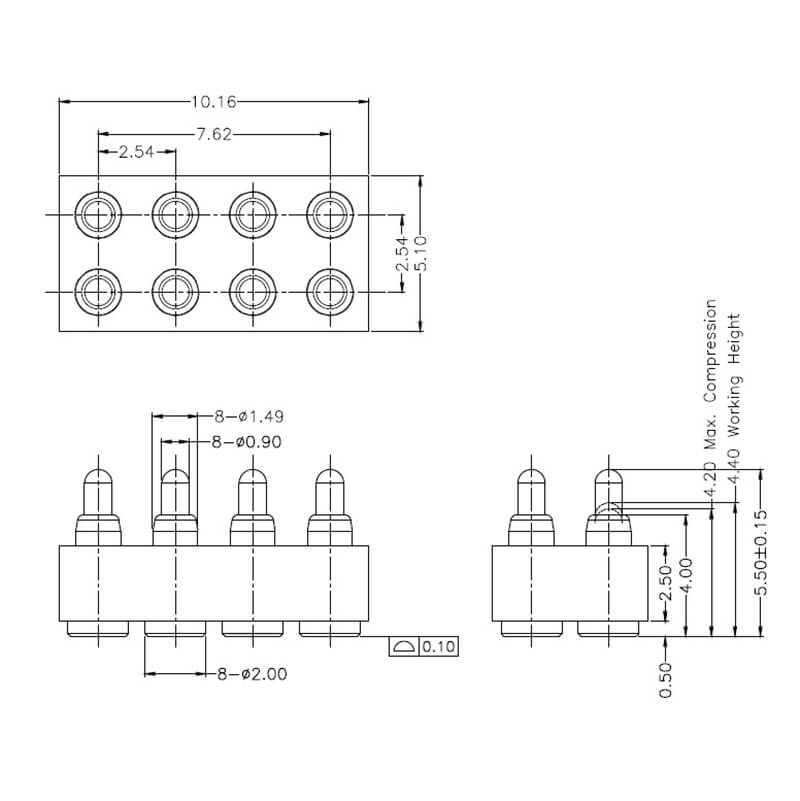

8Pin, 2.54mm Pitch, 4.40mm Working Height, NC691-08RB

  • Part Number
  • Housing Length
  • Housing Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • NC691-08RB
  • 10.16 mm
  • 5.10 mm
  • 5.50 mm
  • 120 gf
  • Au 3 u”
  • 2.0 A

2D

3D

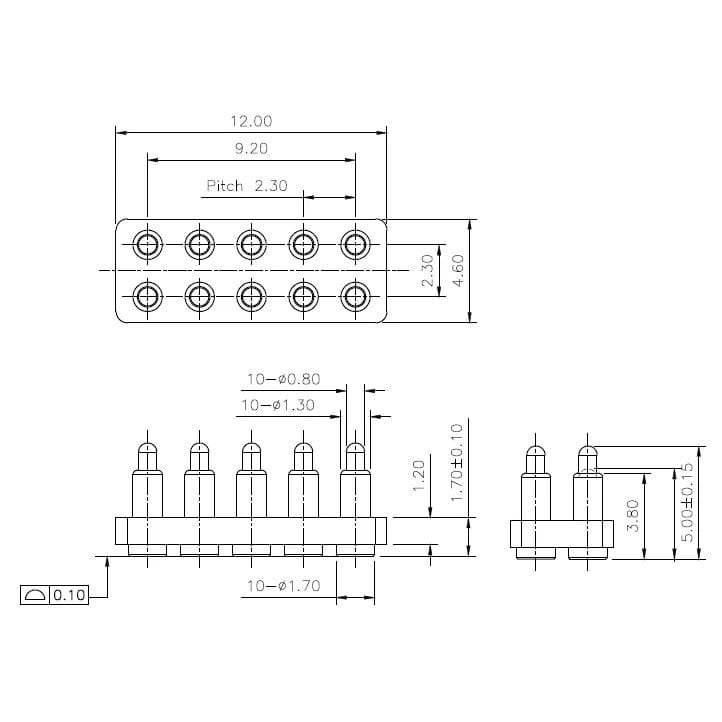

10Pin, 2.30mm Pitch, 4.00mm Working Height, C031-10

  • Part Number
  • Housing Length
  • Housing Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • C031-10
  • 12.00 mm
  • 4.60 mm
  • 5.00 mm
  • 100 gf
  • Au 3 u”
  • 1.0 A

2D

3D

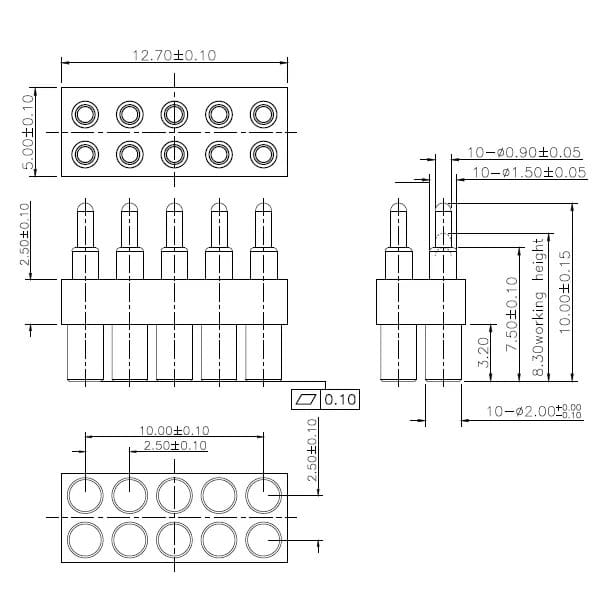

10Pin, 2.50mm Pitch, 8.30mm Working Height, NC3166-10RA

  • Part Number
  • Housing Length
  • Housing Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • NC3166-10RA
  • 12.70 mm
  • 5.00 mm
  • 10.00 mm
  • 80 gf
  • Au 40 u”
  • 2.0 A

2D

3D

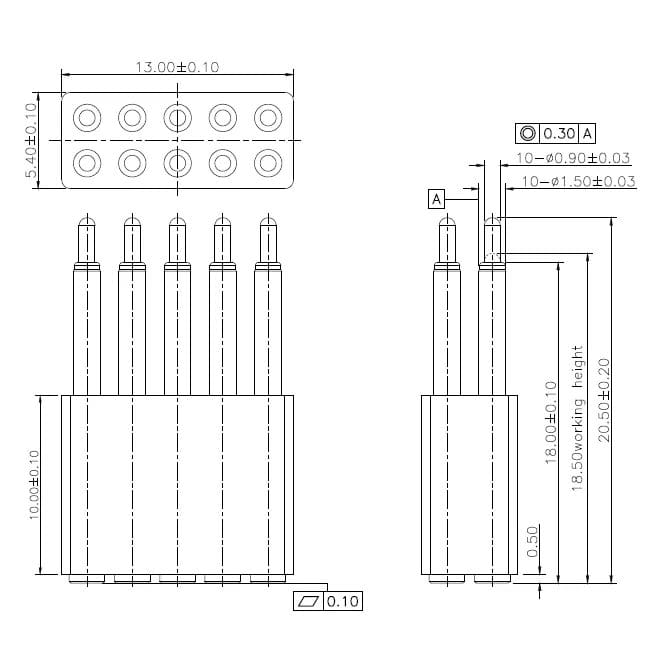

10Pin, 2.54mm Pitch, 18.50mm Working Height, C2111-10

  • Part Number
  • Housing Length
  • Housing Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • C2111-10
  • 13.00 mm
  • 5.40 mm
  • 20.50 mm
  • 110 gf
  • Au 10 u”
  • 2.0 A

2D

3D

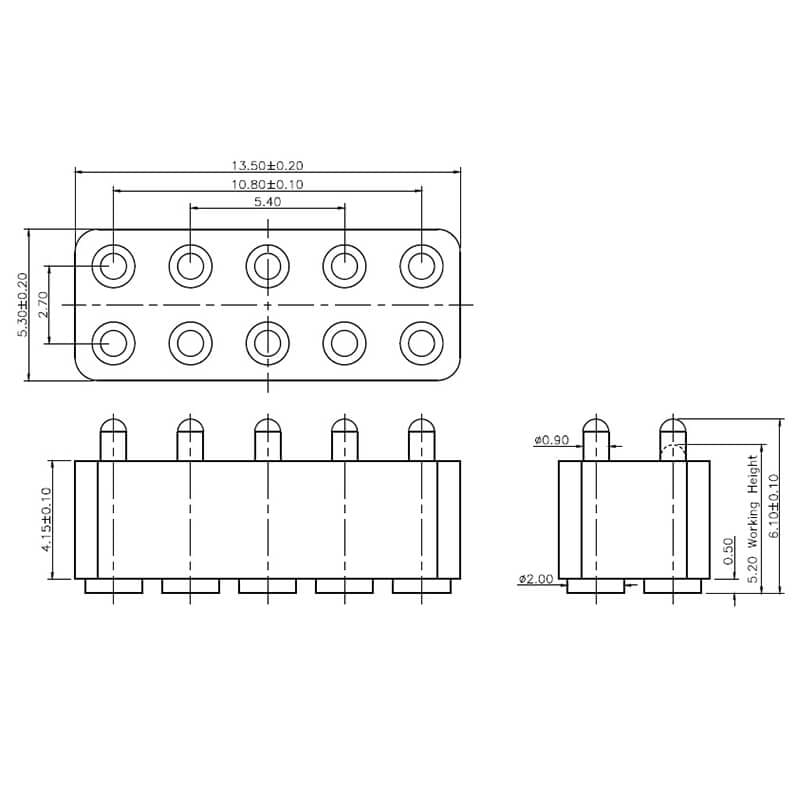

10Pin, 2.70mm Pitch, 5.20mm Working Height, NC2970-10A

  • Part Number
  • Housing Length
  • Housing Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • NC2970-10A
  • 13.50 mm
  • 5.30 mm
  • 6.10 mm
  • 80 gf
  • Au 40 u”
  • 1.0 A

2D

3D

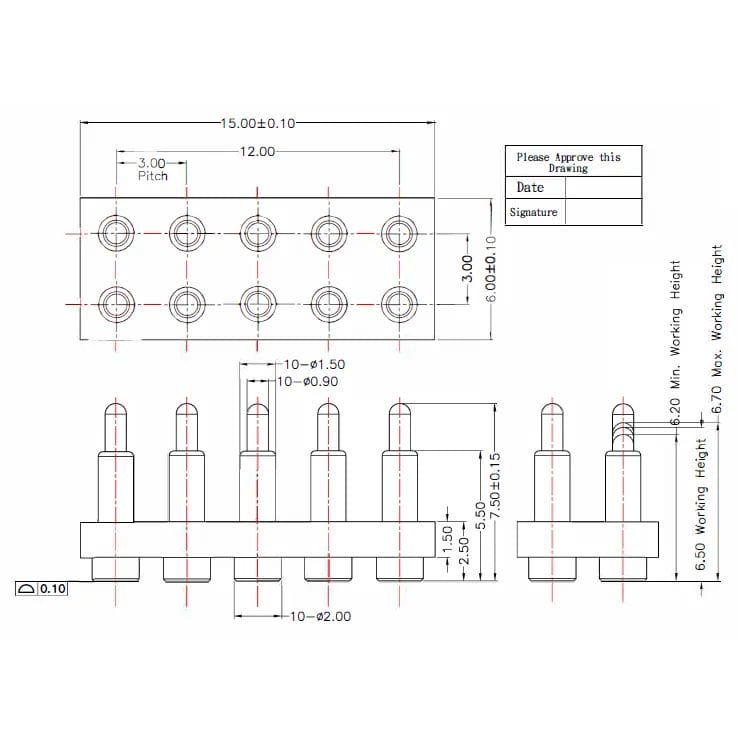

10Pin, 3.00mm Pitch, 6.50mm Working Height, C969-10R

C969_10R_drawing
  • Part Number
  • Housing Length
  • Housing Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • C969-10R
  • 15.00 mm
  • 6.00 mm
  • 7.50 mm
  • 60 gf
  • Au 3 u”
  • 2.0 A

2D

3D

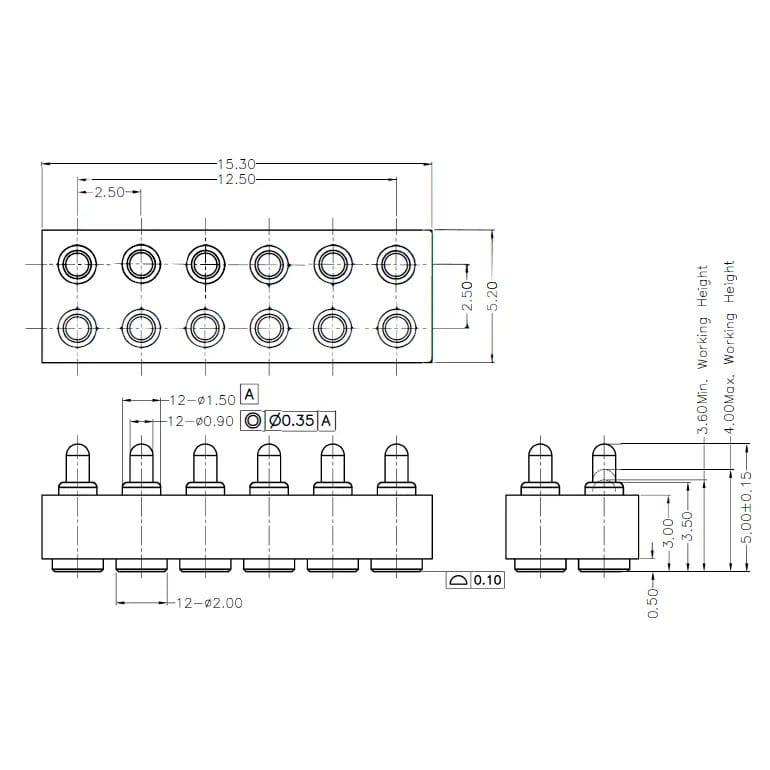

12Pin, 2.50mm Pitch, 3.80mm Working Height, C501-12R

  • Part Number
  • Housing Length
  • Housing Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • C501-12R
  • 15.30 mm
  • 5.20 mm
  • 5.00 mm
  • 130 gf
  • Au 16 u”
  • 2.5 A

2D

3D

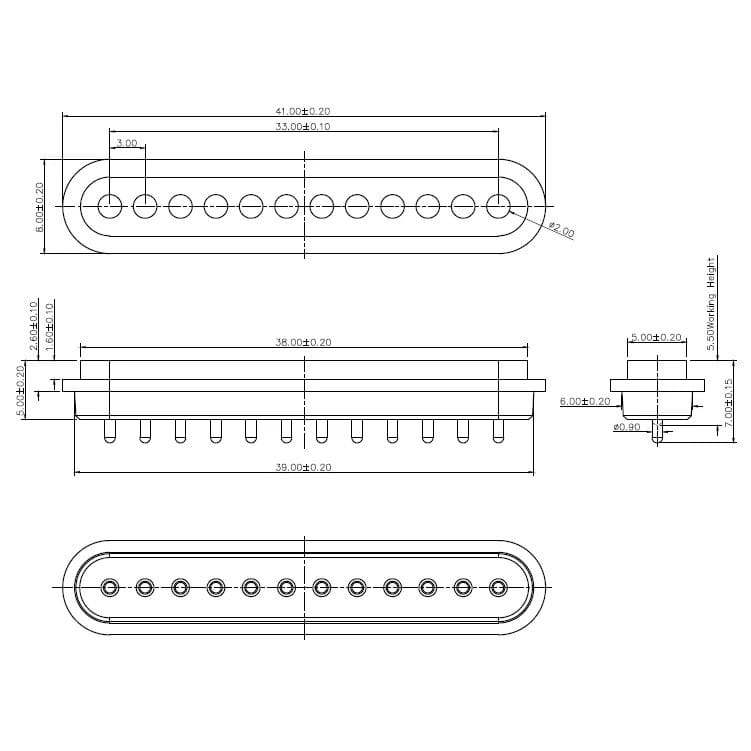

12Pin, 3.00mm Pitch, 5.50mm Working Height, NC3503-12PA

  • Part Number
  • Housing Length
  • Housing Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • NC3503-12RA
  • 41.00 mm
  • 8.00 mm
  • 7.00 mm
  • 100 gf
  • Au 5 u”
  • 1.0 A

2D

3D

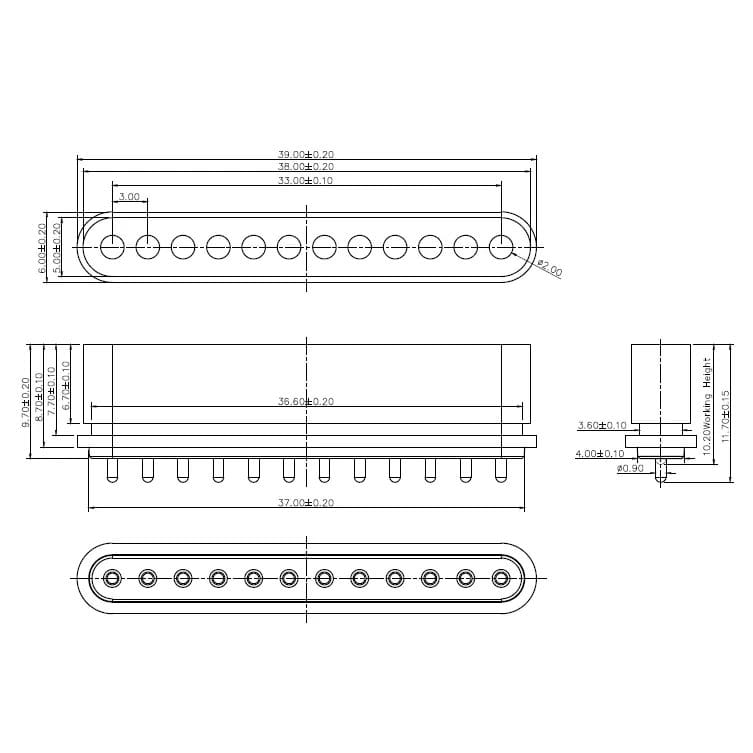

12Pin, 3.00mm Pitch, 10.20mm Working Height, NC3505-12PA

NC3505_12PA_drawing
  • Part Number
  • Housing Length
  • Housing Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • NC3505-12RA
  • 39.00 mm
  • 6.00 mm
  • 11.70 mm
  • 100 gf
  • Au 5 u”
  • 1.0 A

2D

3D

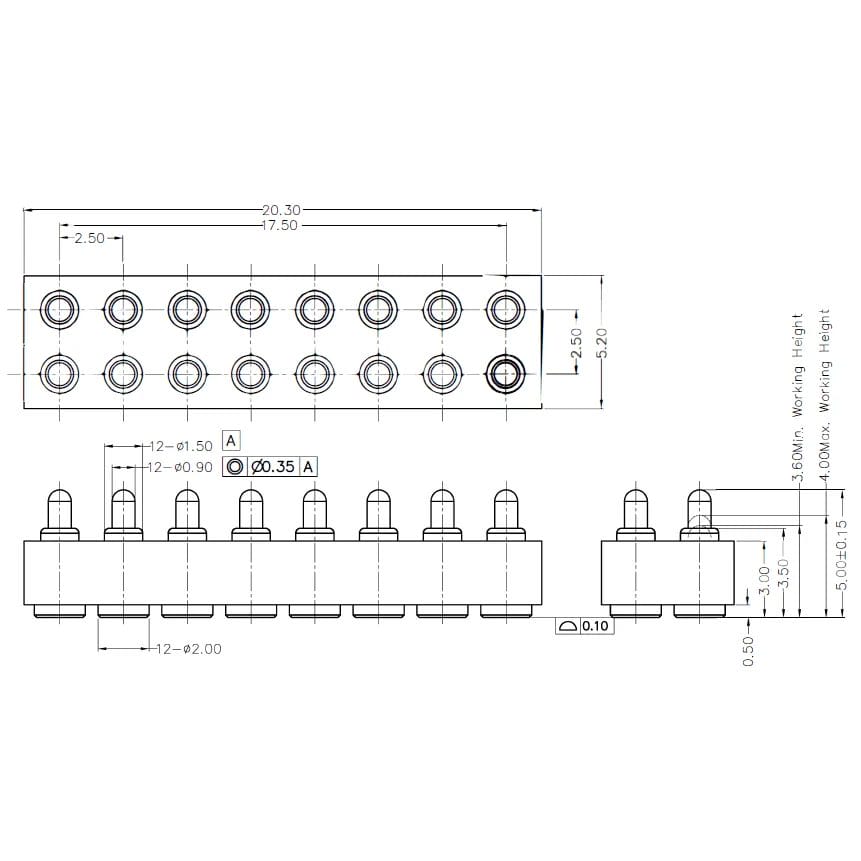

16Pin, 2.50mm Pitch, 3.80mm Working Height, C616-16R

C616_16R_drawing
  • Part Number
  • Housing Length
  • Housing Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • C616-16R
  • 20.30 mm
  • 5.20 mm
  • 5.00 mm
  • 130 gf
  • Au 16 u”
  • 2.5 A

2D

3D

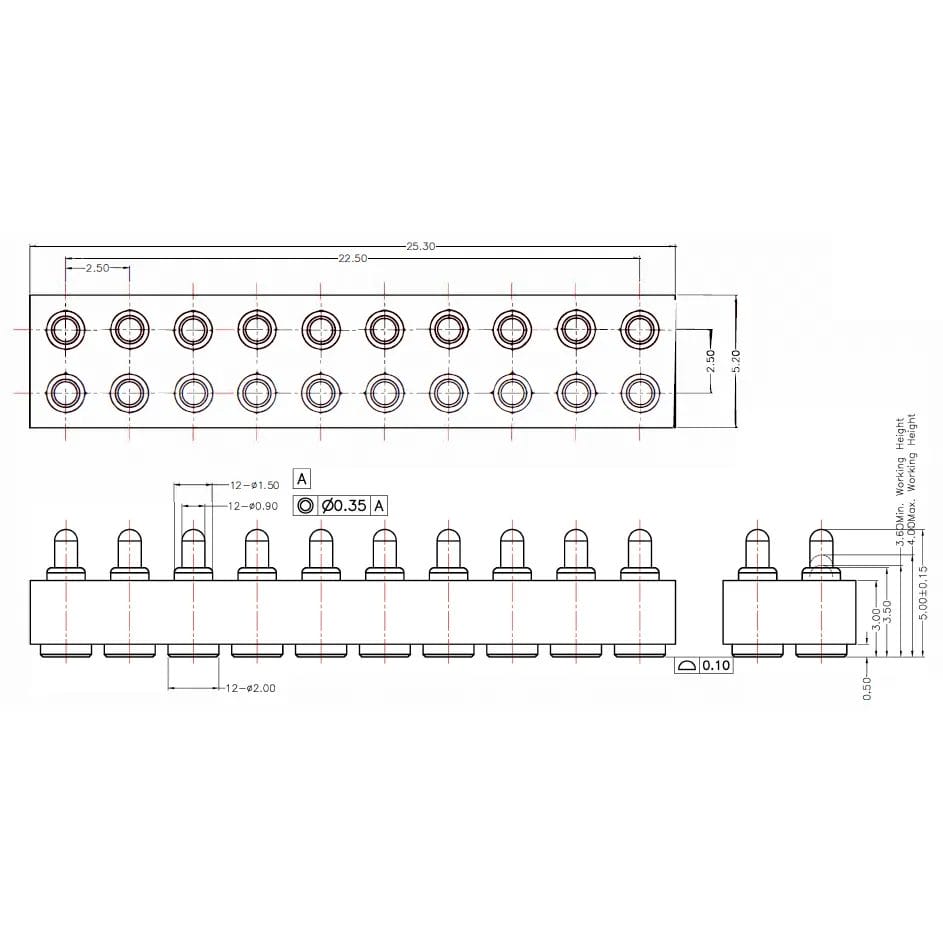

20Pin, 2.50mm Pitch, 3.80mm Working Height, C652-20R

C652_20R_drawing
  • Part Number
  • Housing Length
  • Housing Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • C652-20R
  • 25.30 mm
  • 5.20 mm
  • 5.00 mm
  • 130 gf
  • Au 16 u”
  • 2.5 A

2D

3D

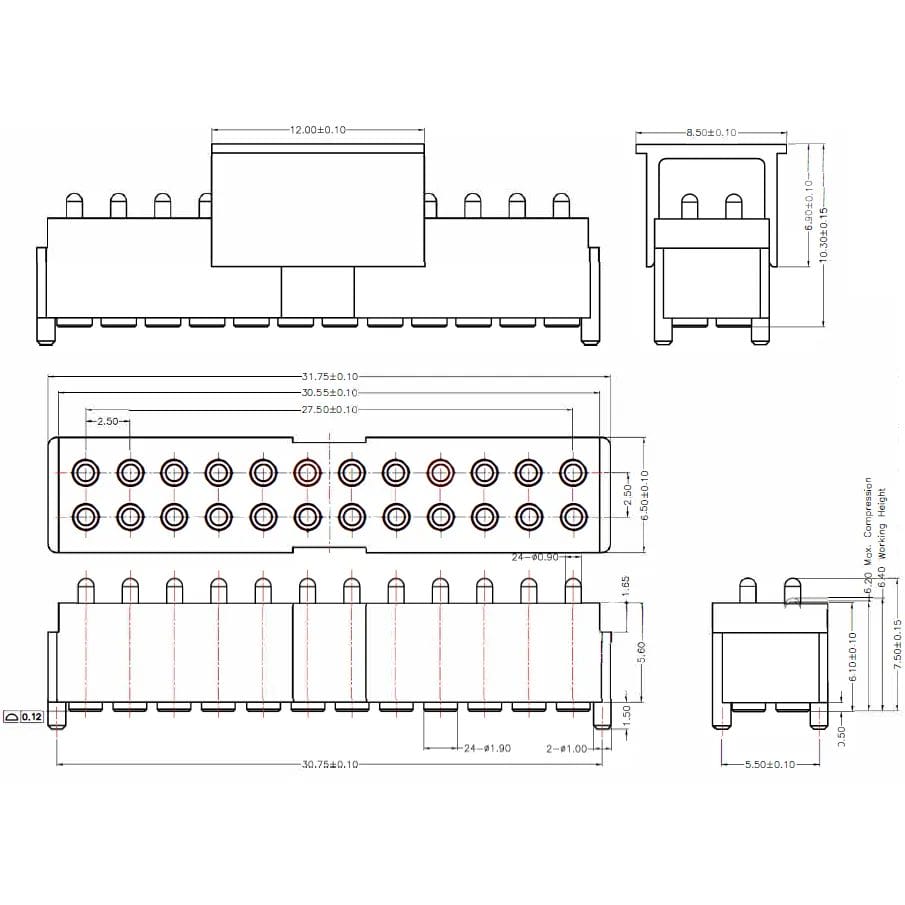

24Pin, 2.50mm Pitch, 6.40mm Working Height, C715-24R

  • Part Number
  • Housing Length
  • Housing Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • C715-24R
  • 31.75 mm
  • 6.50 mm
  • 10.30 mm
  • 120 gf
  • Au 10 u”
  • 2.0 A

2D

3D

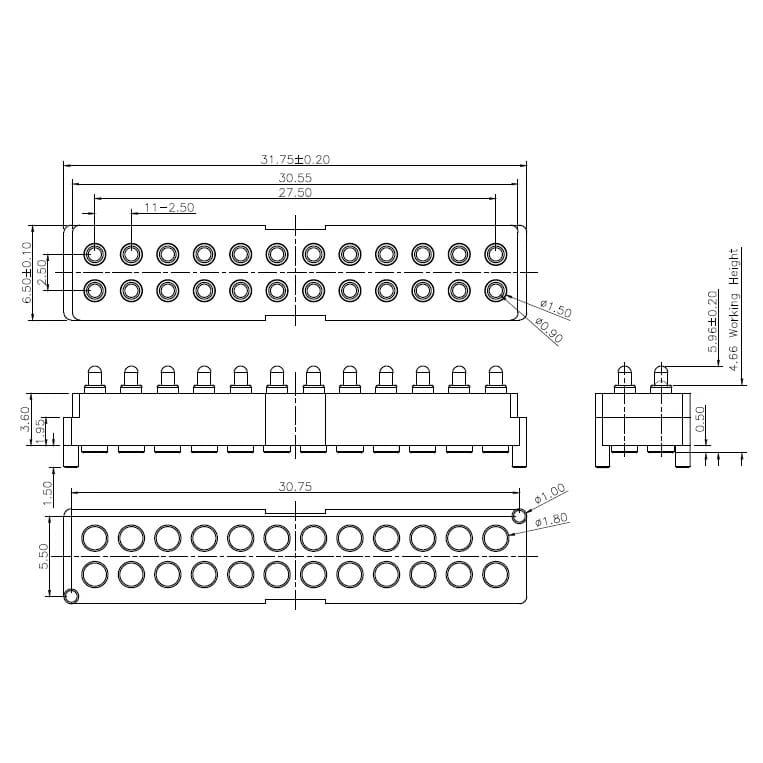

24Pin, 2.50mm Pitch, 4.66mm Working Height, NC3552-24RA

NC3552_24RA_drawing
  • Part Number
  • Housing Length
  • Housing Width
  • Height
  • Spring Force
  • Plated
  • Rated Current
  • NC3552-24RA
  • 31.75 mm
  • 6.50 mm
  • 4.66 mm
  • 100 gf
  • Au 5 u”
  • 1.0 A

2D

3D

PS: Please swipe left and right to turn the page to view

If you do not find the desired model, please contact us. We have professional engineers to solve your problems.
