Right Angle Pogo Pin Connector

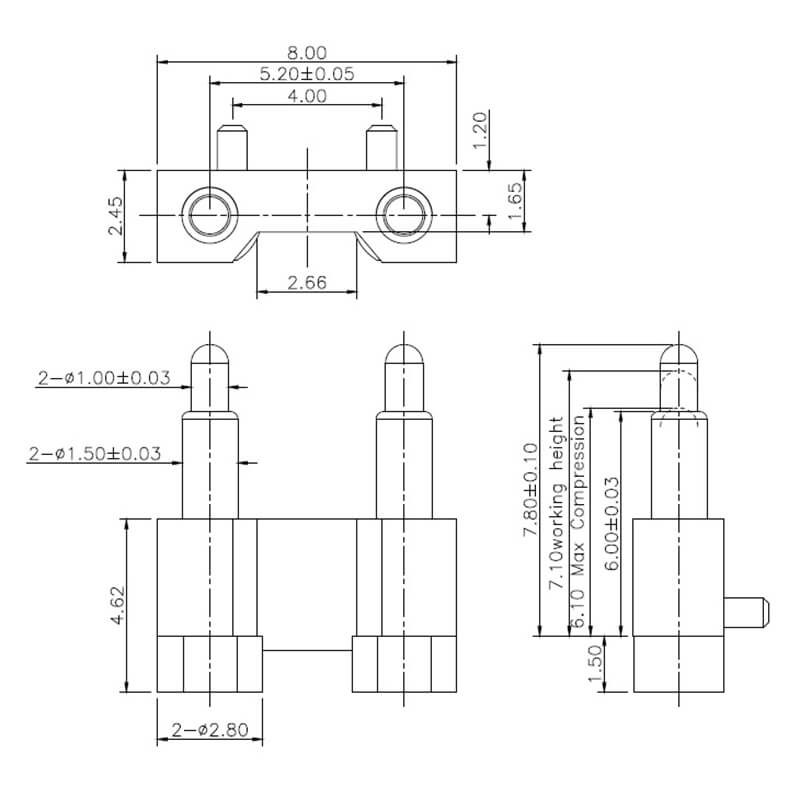

2Pin, 4.00mm Pitch, 7.10mm Working Height, NC2455-02RC
- Part Number
- Length
- Width
- Height
- Spring Force
- Plated
- Rated Current
- NC2455-02RC
- 9.30 mm
- 8.00 mm
- 2.45 mm
- 53 gf
- Au 5 u”
- 5.0 A
2D
3D

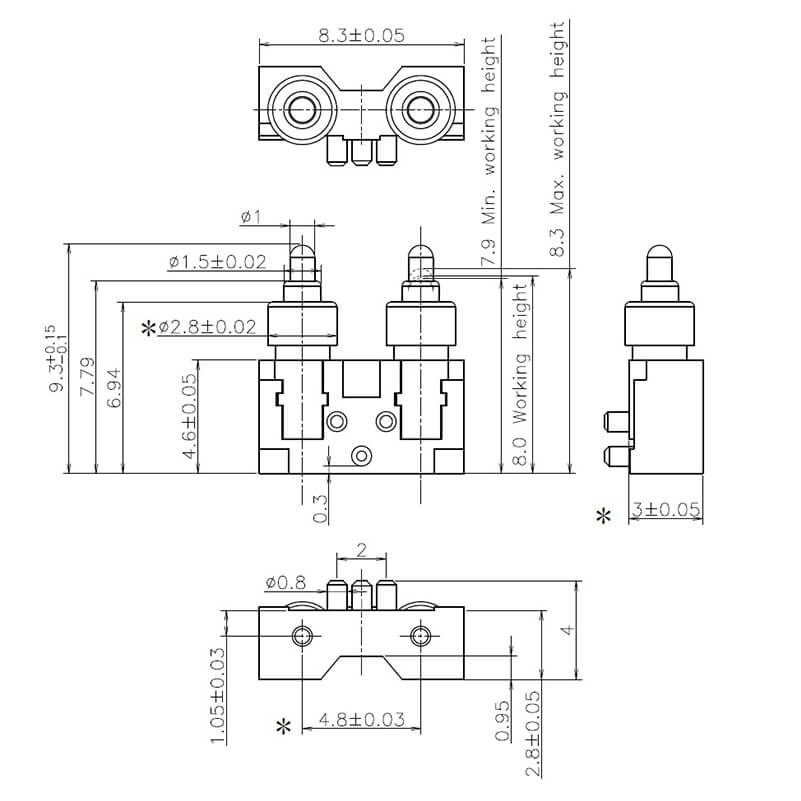

2Pin, 4.80mm Pitch, 8.00mm Working Height, NC2625-02AR
- Part Number
- Length
- Width
- Height
- Spring Force
- Plated
- Rated Current
- NC2625-02AR
- 9.30 mm
- 8.30 mm
- 2.80 mm
- 65 gf
- Au 5 u”
- 5.0 A
2D
3D
3Pin, 2.50mm Pitch, 6.80mm Working Height, NC4687-02PA
- Part Number
- Length
- Width
- Height
- Spring Force
- Plated
- Rated Current
- NC4687-02PA
- 8.00 mm
- 5.40 mm
- 2.50 mm
- 60 gf
- Au 10 u”
- 3.0 A
2D
3D

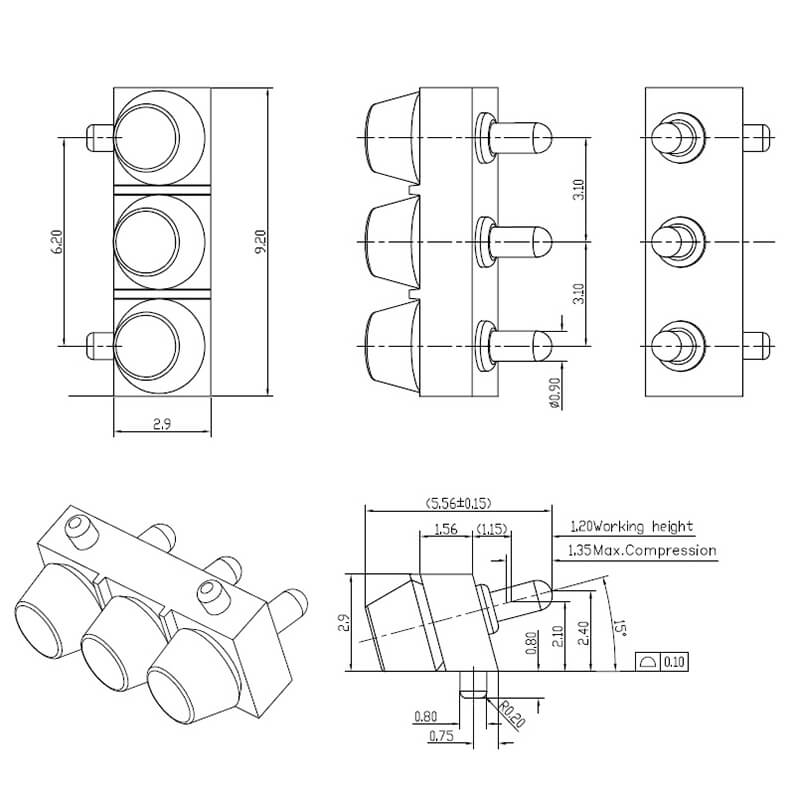

3Pin, 3.10mm Pitch, 1.20mm Working Height, NC4695-03RA
- Part Number
- Length
- Width
- Height
- Spring Force
- Plated
- Rated Current
- NC4695-03RA
- 9.20 mm
- 5.56 mm
- 2.90 mm
- 45 gf
- Au 16 u”
- 1.0 A
2D
3D

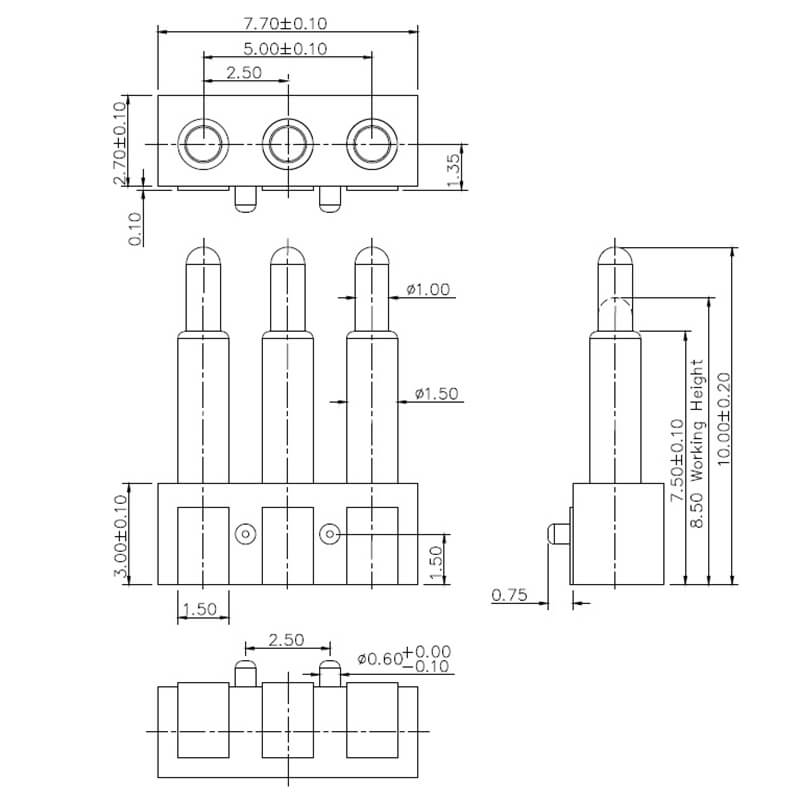

3Pin, 2.50mm Pitch, 8.50mm Working Height, C2512-03R
- Part Number
- Length
- Width
- Height
- Spring Force
- Plated
- Rated Current
- C2512-03R
- 10.00 mm
- 7.70 mm
- 12.70 mm
- 100 gf
- Au 3 u”
- 1.0 A
2D
3D

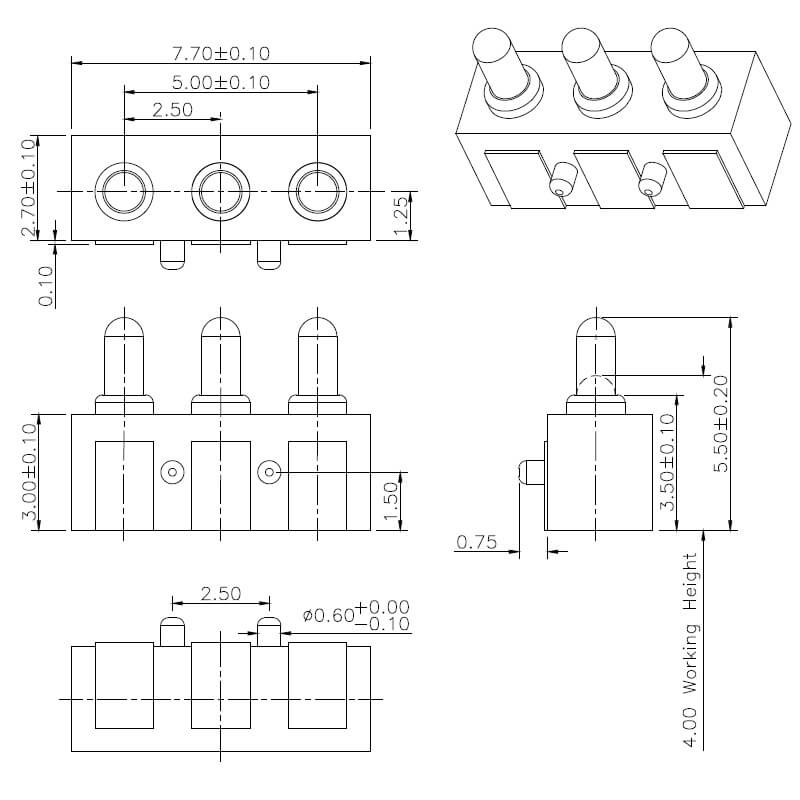

3Pin, 2.50mm Pitch, 4.00mm Working Height, C2519-03R
- Part Number
- Length
- Width
- Height
- Spring Force
- Plated
- Rated Current
- C2519-03R
- 7.70 mm
- 5.50 mm
- 2.70 mm
- 100 gf
- Au 3 u”
- 1.0 A
2D
3D

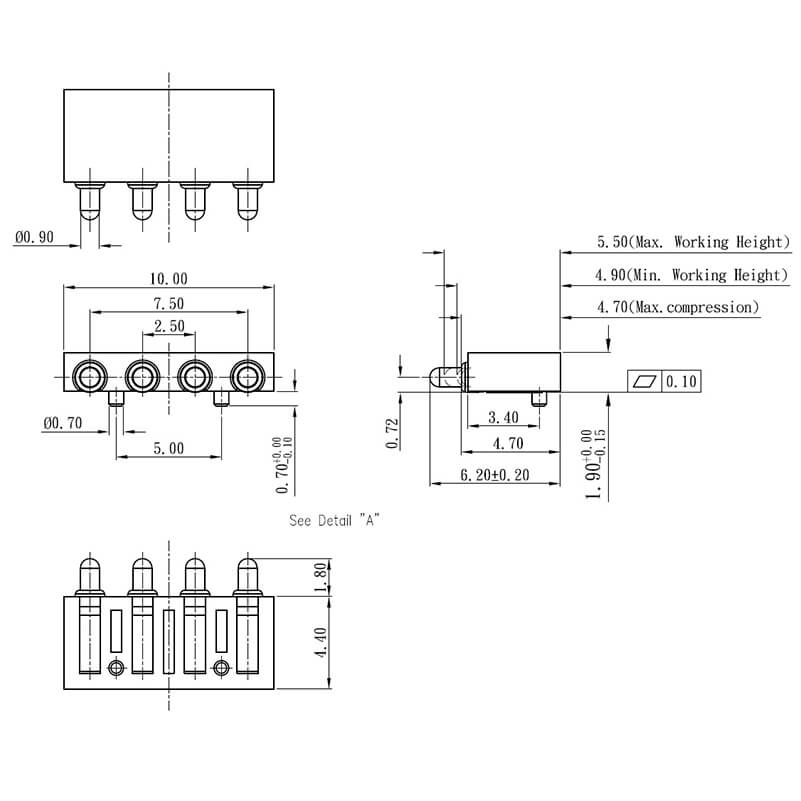

4Pin, 2.540mm Pitch, 4.90mm Working Height, C147-04R
- Part Number
- Length
- Width
- Height
- Spring Force
- Plated
- Rated Current
- C147-04R
- 10.00 mm
- 6.20 mm
- 1.90 mm
- 70 gf
- Au 10 u”
- 1.0 A
2D
3D

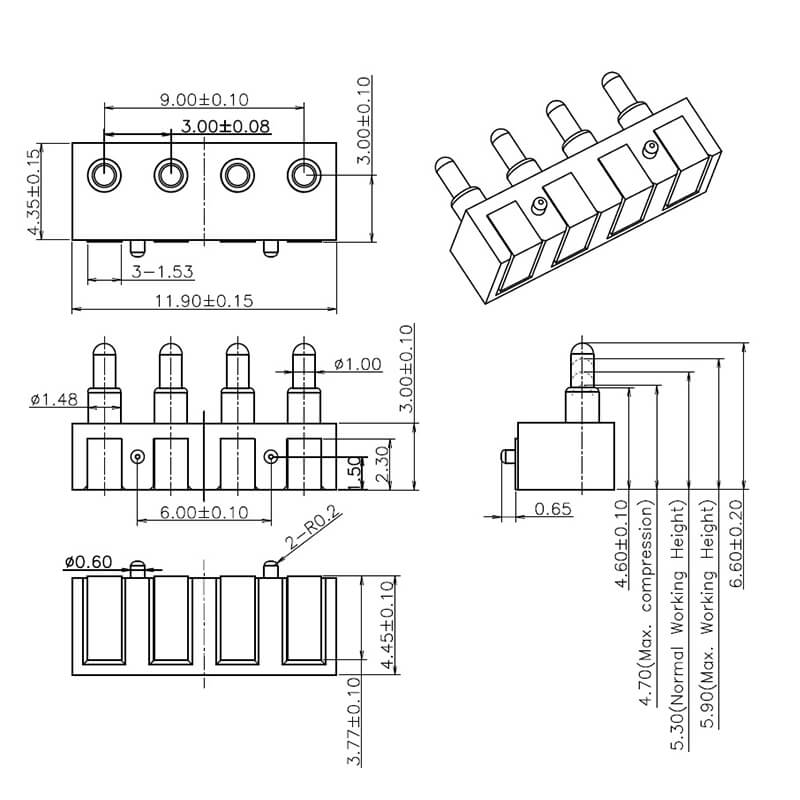

4Pin, 3.00mm Pitch, 5.30mm Working Height, NC3872-04RA
- Part Number
- Length
- Width
- Height
- Spring Force
- Plated
- Rated Current
- NC3872-04RA
- 11.90 mm
- 6.60 mm
- 4.35 mm
- 90 gf
- Au 10 u”
- 1.0 A
2D
3D

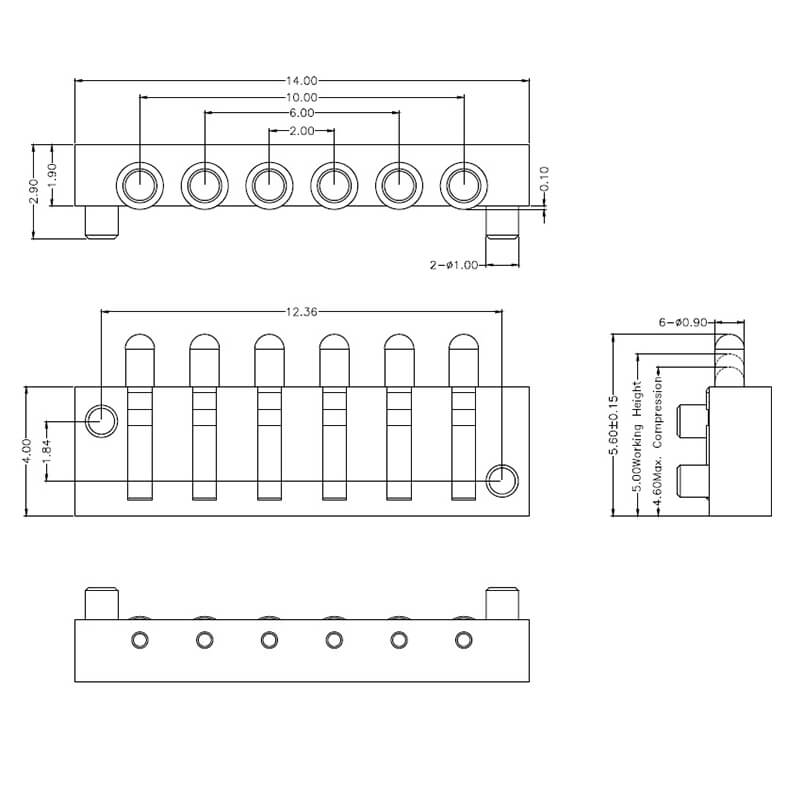

6Pin, 2.00mm Pitch, 5.00mm Working Height, C1312-06R
- Part Number
- Length
- Width
- Height
- Spring Force
- Plated
- Rated Current
- C1312-06R
- 14.00 mm
- 5.60 mm
- 2.90 mm
- 50 gf
- Au 5 u”
- 2.0 A
2D
3D
