Double Ended Pogo Pins

3.20mm, 1 Pin, 2.60mm Working Height, C1675-01

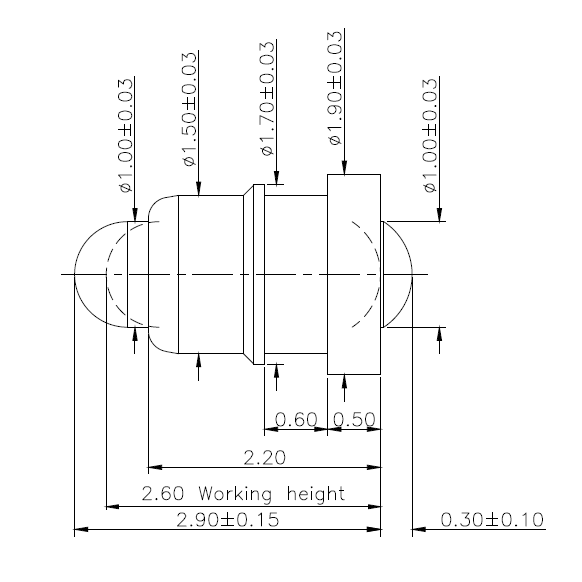

DOUBLE ENDED POGO PIN C1675-01
  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC3910-01PA
  • 3.20 mm
  • 2.60 mm
  • 60 gf
  • Au 3 u”
  • 1.0 A

2D

3D

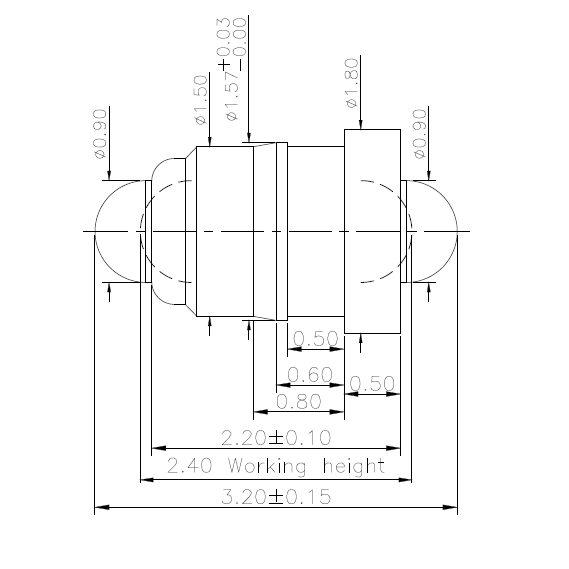

3.20mm, 1 Pin, 2.40mm Working Height, C2268-01

DOUBLE ENDED POGO PIN C2268-01
  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • C2268-01
  • 3.20 mm
  • 2.40 mm
  • 60 gf
  • Au 3 u”
  • 1.0 A

2D

3D

3.80mm, 1 Pin, 3.20mm Working Height, C1771-01

DOUBLE ENDED POGO PIN C1771-01
  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • C1771-01
  • 3.80 mm
  • 3.20 mm
  • 110 gf
  • Au 3 u”
  • 1.0 A

2D

3D

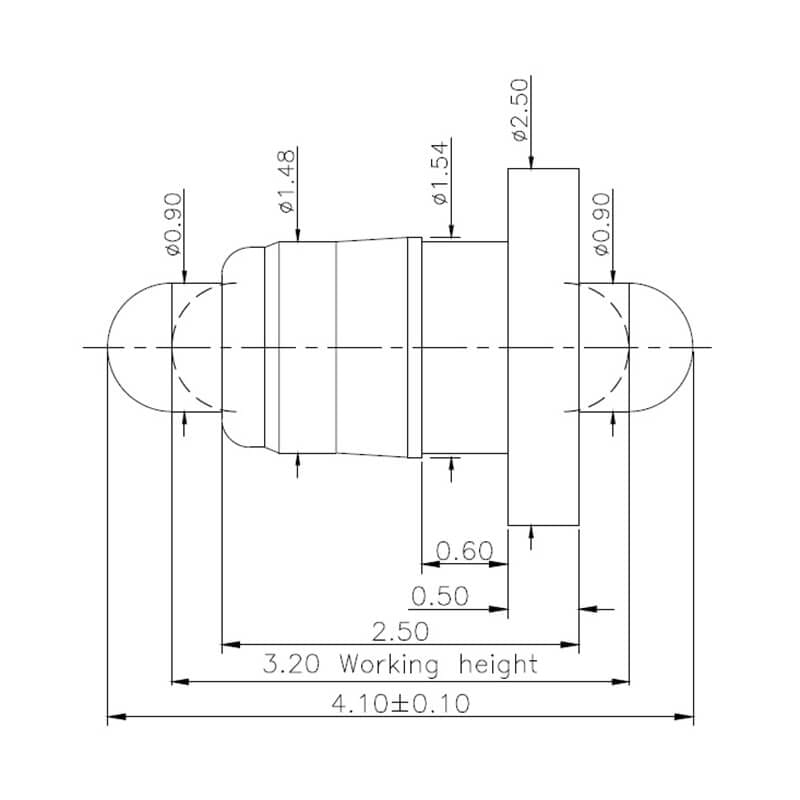

4.10mm, 1 Pin, 3.20mm Working Height, NC3910-01PA

  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC3910-01PA
  • 4.10 mm
  • 3.20 mm
  • 100 gf
  • Au 3 u”
  • 1.0 A

2D

3D

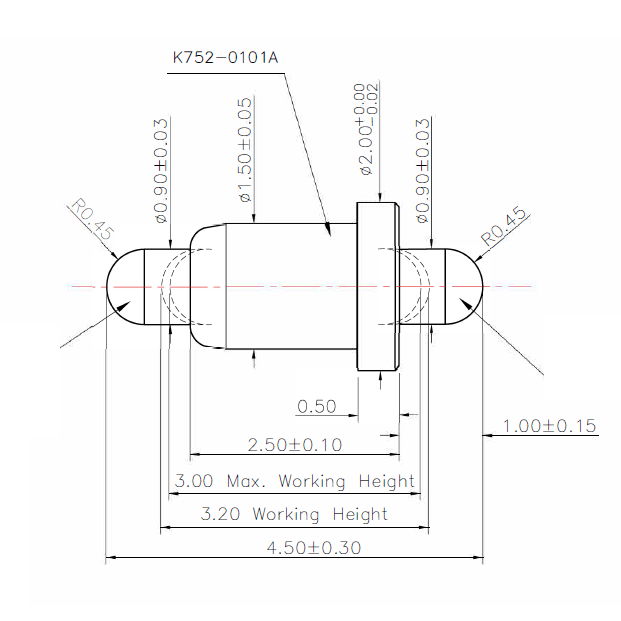

4.50mm, 1 Pin, 3.20mm Working Height, C752-01

DOUBLE ENDED POGO PIN C752-01
  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • C752-01
  • 4.50 mm
  • 3.20 mm
  • 70 gf
  • Au 1 u”
  • 1.0 A

2D

3D

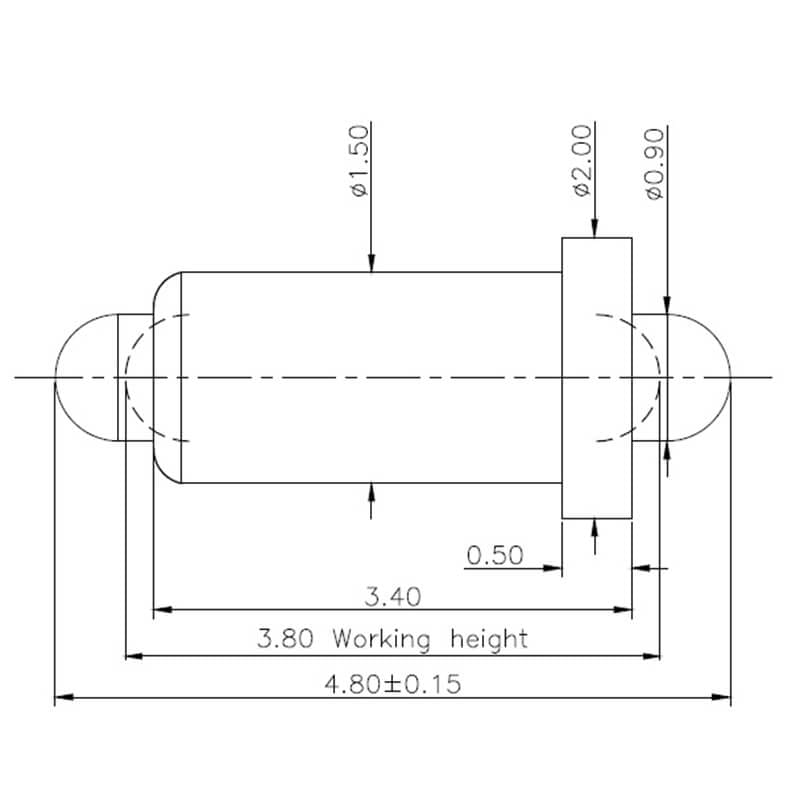

4.80mm, 1 Pin, 3.80mm Working Height, NC3500-01PA

  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC3500-01PA
  • 4.80 mm
  • 3.80 mm
  • 50 gf
  • Au 3 u”
  • 1.0 A

2D

3D

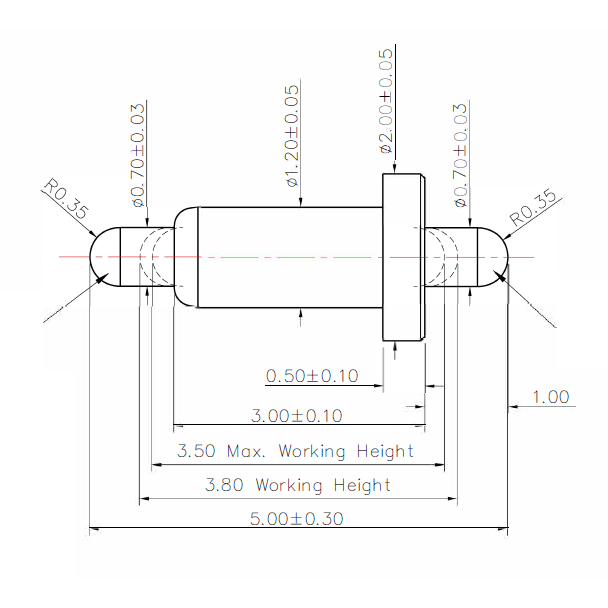

5.00mm, 1 Pin, 3.80mm Working Height, C756-01

DOUBLE ENDED POGO PIN C756-01
  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • C756-01
  • 5.00 mm
  • 3.80 mm
  • 70 gf
  • Au 1 u”
  • 1.0 A

2D

3D

5.50mm, 1 Pin, 4.80mm Working Height, C245-01

DOUBLE ENDED POGO PIN C245-01
  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • C245-01
  • 5.50 mm
  • 4.80 mm
  • 75 gf
  • Au 3 u”
  • 1.0 A

2D

3D

6.00mm, 1 Pin, 4.30mm Working Height, C411-01

DOUBLE ENDED POGO PIN C411-01
  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • C411-01
  • 6.00 mm
  • 4.30 mm
  • 70 gf
  • Au 30 u”
  • 1.0 A

2D

3D

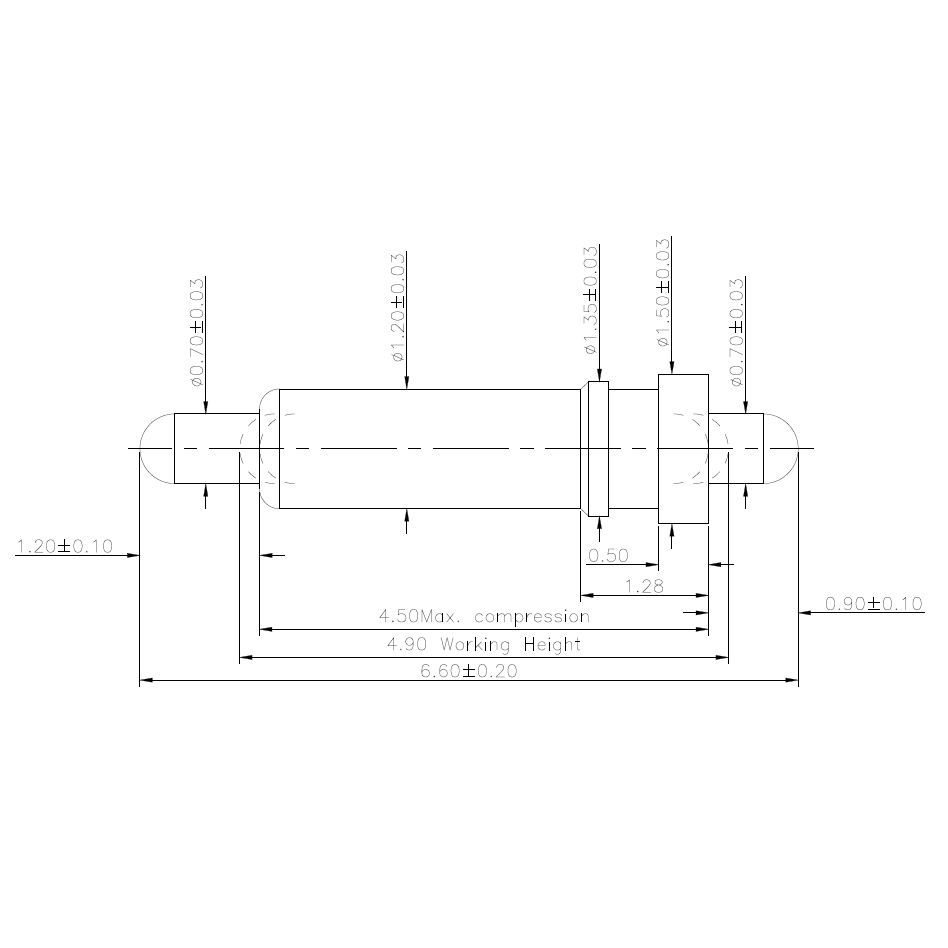

6.60mm, 1 Pin, 4.90mm Working Height, NC3546-01PA

DOUBLE ENDED POGO PIN NC3546-01PA
  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC3546-01PA
  • 6.60 mm
  • 4.90 mm
  • 50 gf
  • Au 3 u”
  • 1.5 A

2D

3D

7.20mm, 1 Pin, 4.30mm Working Height, NC3467-01PA

DOUBLE ENDED POGO PIN NC3467-01PA
  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC3467-01PA
  • 7.20 mm
  • 4.30 mm
  • 100 gf
  • Au 3 u”
  • 2.0 A

2D

3D

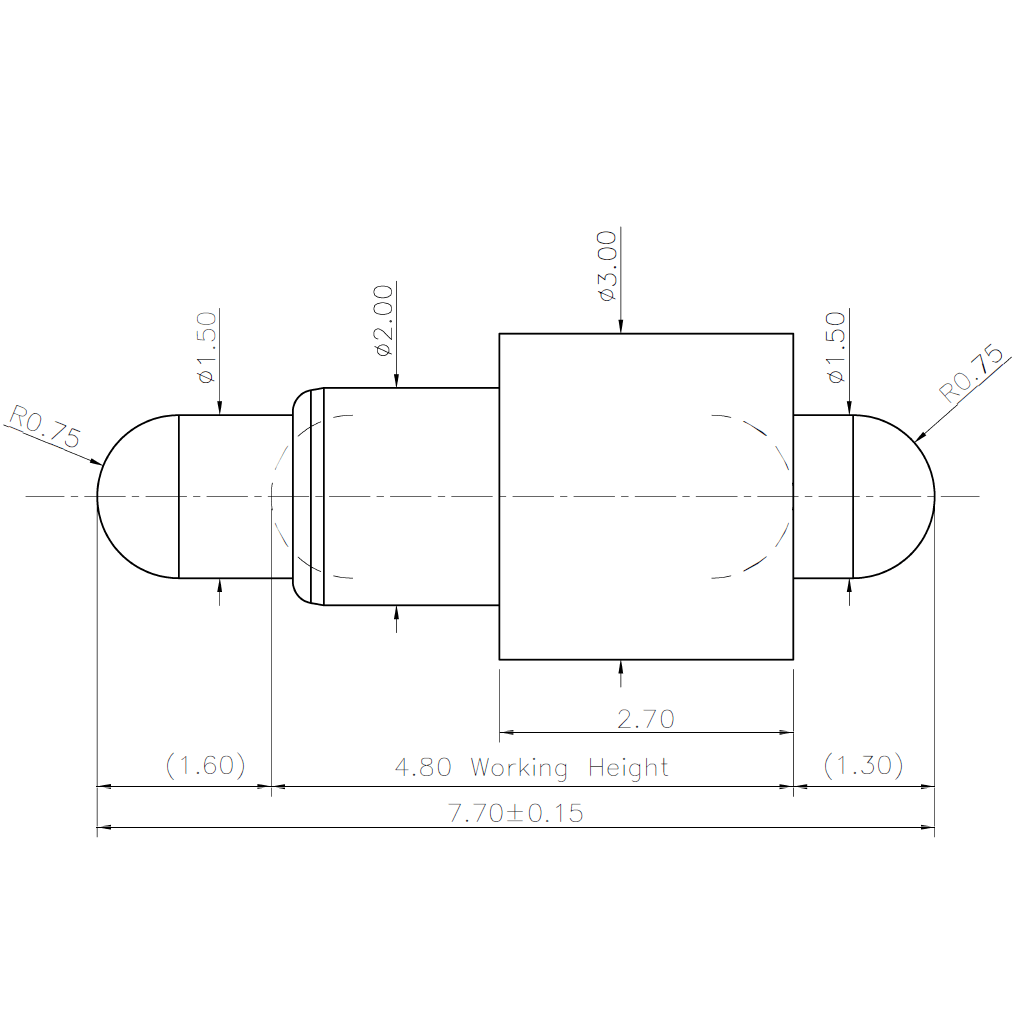

7.70mm, 1 Pin, 4.80mm Working Height, C409-01

DOUBLE ENDED POGO PIN C409-01
  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • C409-01
  • 7.70 mm
  • 4.80 mm
  • 450 gf
  • Au 3 u”
  • 2.0 A

2D

3D

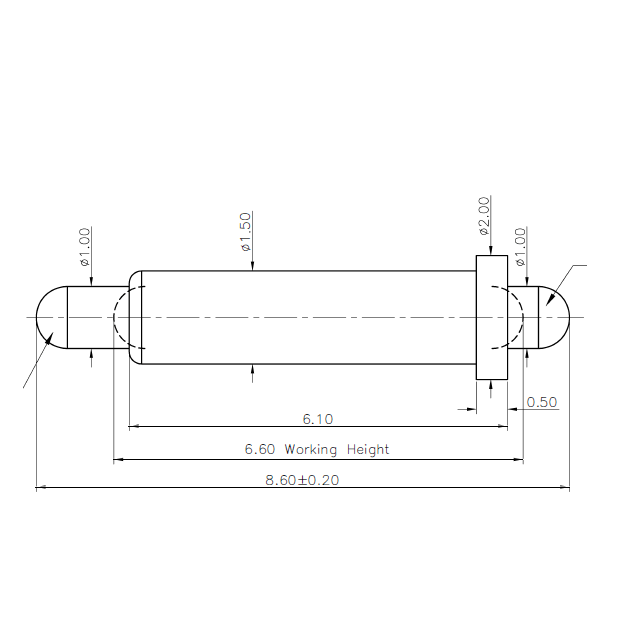

8.60mm, 1 Pin, 6.60mm Working Height, C1060-01

  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • C1060-01
  • 8.60 mm
  • 6.60 mm
  • 90 gf
  • Au 10 u”
  • 2.0 A

2D

3D

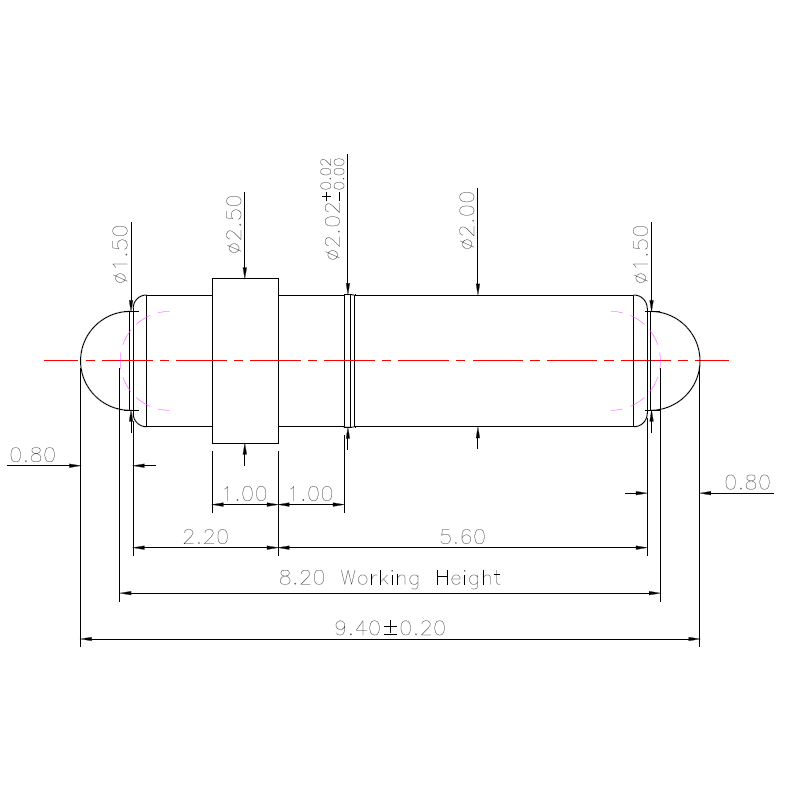

9.40mm, 1 Pin, 8.20mm Working Height, C839-01

DOUBLE ENDED POGO PIN C839-01
  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • C839-01
  • 9.40 mm
  • 8.20 mm
  • 200 gf
  • Au 30 u”
  • 10.0 A

2D

3D

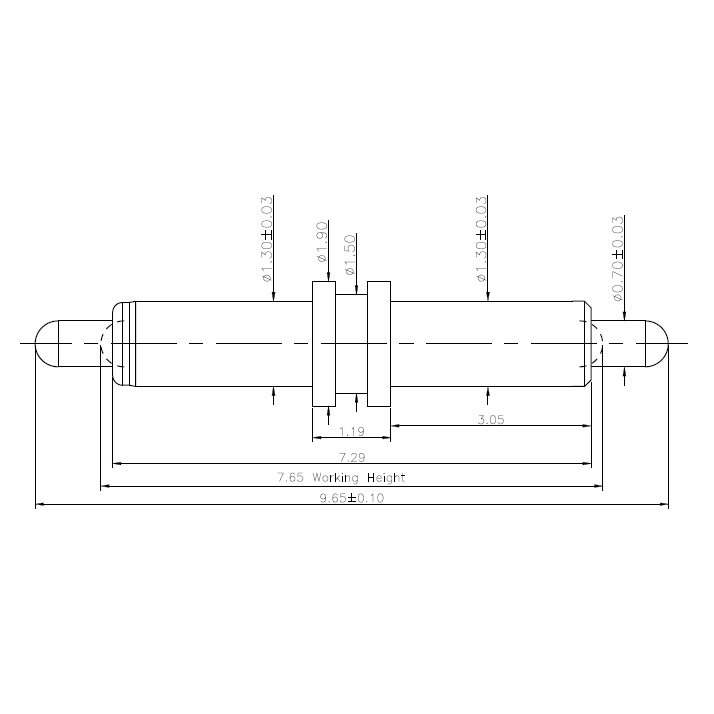

9.65mm, 1 Pin, 7.65mm Working Height, C2367-01

DOUBLE ENDED POGO PIN C2367-01
  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • C2367-01
  • 9.65 mm
  • 7.65 mm
  • 70 gf
  • Au 2 u”
  • 1.0 A

2D

3D

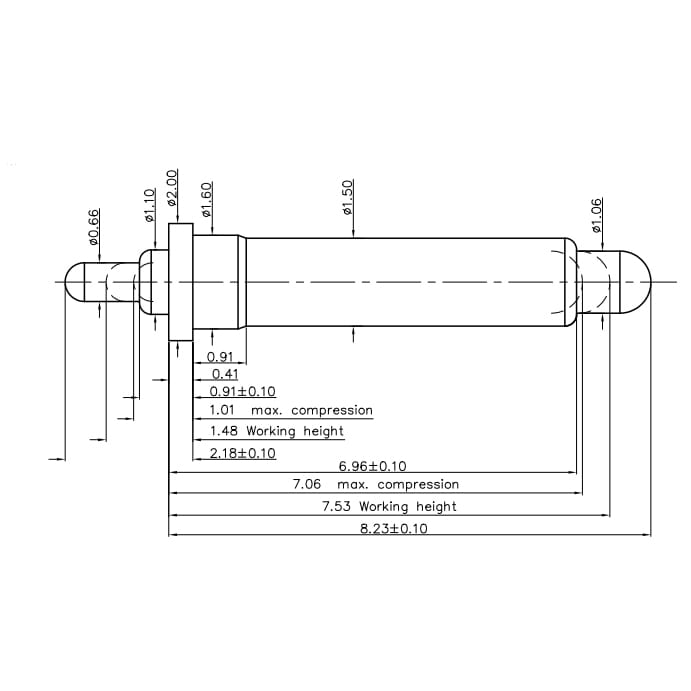

8.23mm, 1 Pin, 7.53mm Working Height, NC6212-01PA

NC6212-01PA
  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC6212-01PA
  • 8.23 mm
  • 7.53 mm
  • 90 gf
  • Au 10 u”
  • 2.0 A

2D

3D

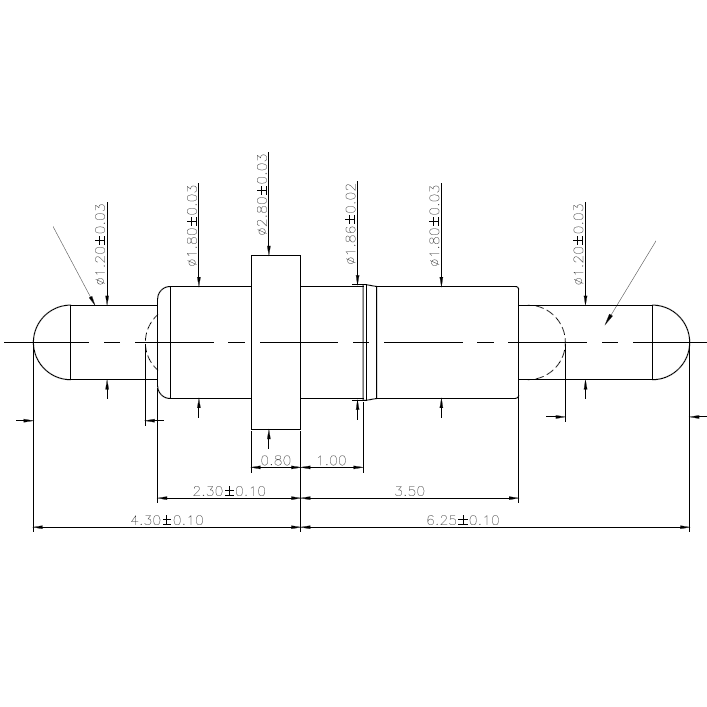

10.55mm, 1 Pin, 6.95mm Working Height, C1208-01A

  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • C1208-01A
  • 10.55 mm
  • 6.95 mm
  • 70 gf
  • Au 5 u”
  • 1.0 A

2D

3D

11.0mm, 1 Pin, 8.20mm Working Height, NC1678-01PA

  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC1678-01PA
  • 11.0 mm
  • 8.20 mm
  • 80 gf
  • Au 3 u”
  • 1.5 A

2D

3D

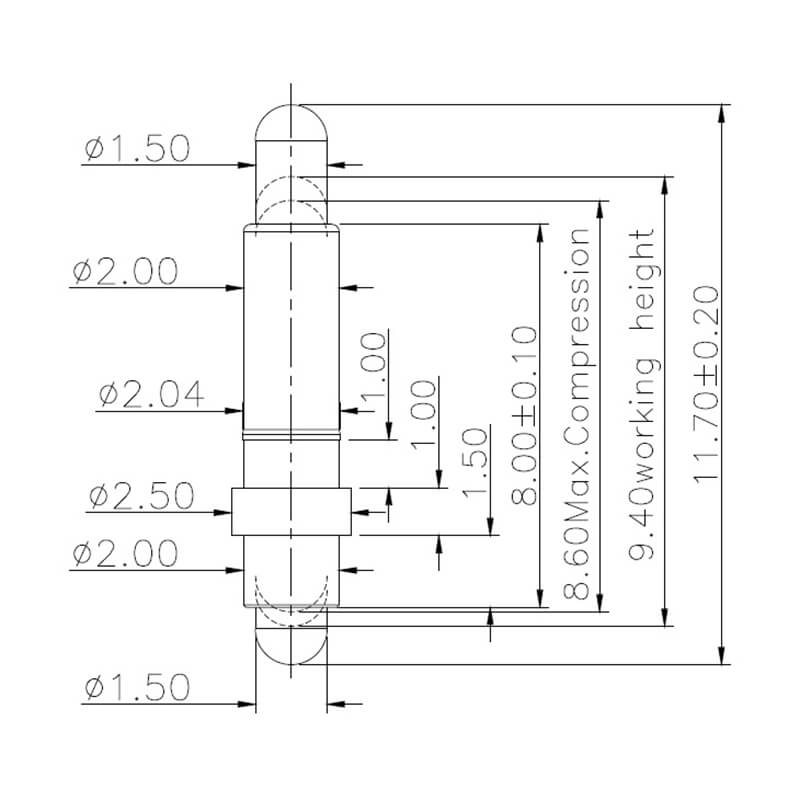

11.70mm, 1 Pin, 9.40mm Working Height, NC3838-01PA

  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC3838-01PA
  • 11.70 mm
  • 9.40 mm
  • 100 gf
  • Au 10 u”
  • 2.5 A

2D

3D

12.00mm, 1 Pin, 7.75mm Working Height, NC683-01PA

DOUBLE ENDED POGO PIN NC683-01PA
  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC683-01PA
  • 12.00 mm
  • 7.75 mm
  • 55/65 gf
  • Au 5 u”
  • 5.0 A

2D

3D

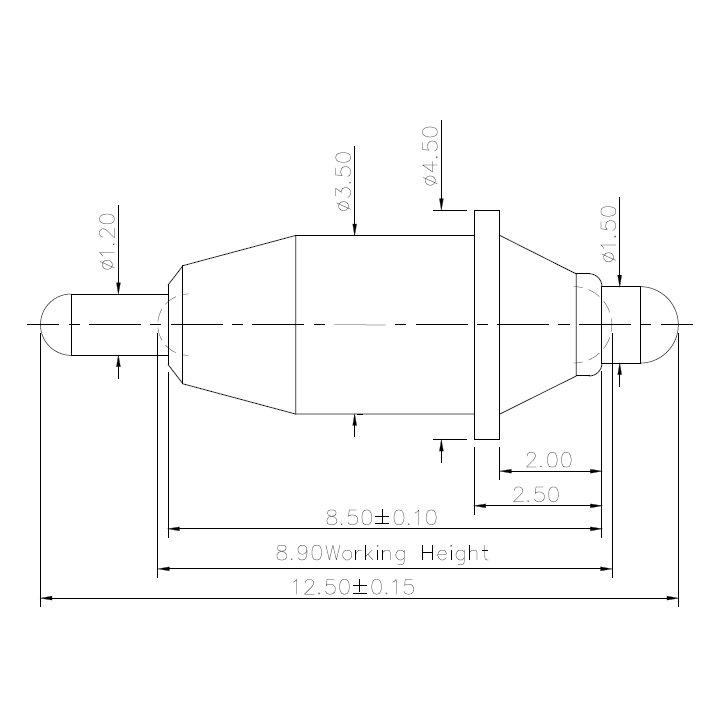

12.50mm, 1 Pin, 8.90mm Working Height, C2552-01

DOUBLE ENDED POGO PIN C2552-01
  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • C2552-01
  • 12.50 mm
  • 8.90 mm
  • 80 gf
  • Au 5 u”
  • 2.0 A

2D

3D

12.90mm, 1 Pin, 11.40mm Working Height, NC3898-01PA

  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC3898-01PA
  • 12.90 mm
  • 11.40 mm
  • 60 gf
  • Au 3 u”
  • 2.0 A

2D

3D

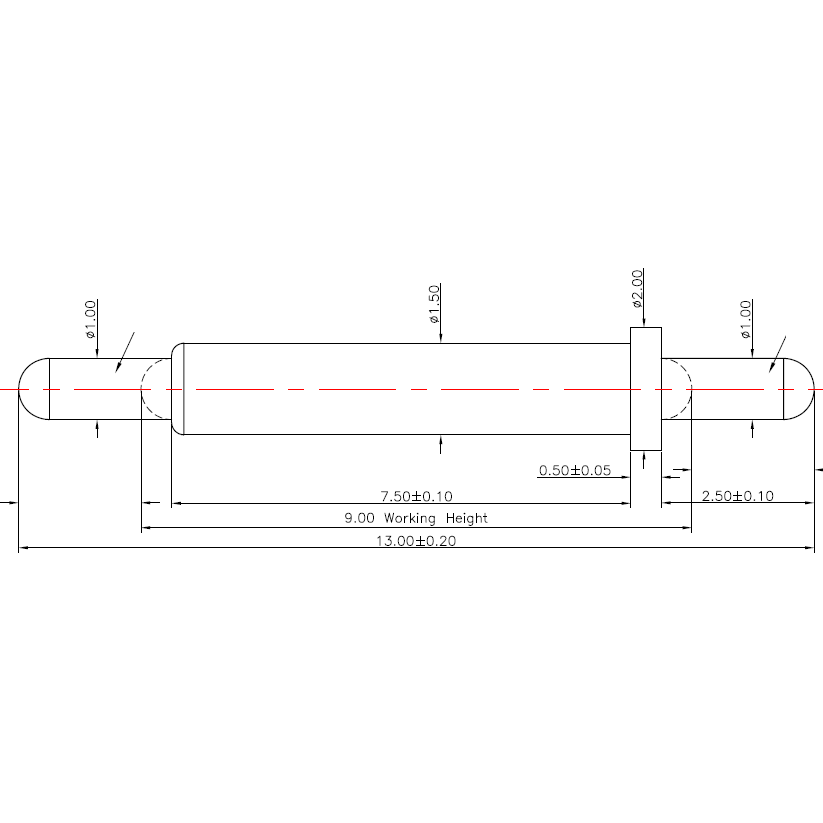

13.00mm, 1 Pin, 9.00mm Working Height, C736-01

DOUBLE ENDED POGO PIN C736-01
  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • C736-01
  • 13.00 mm
  • 9.00 mm
  • 70 gf
  • Au 10 u”
  • 2.0 A

2D

3D

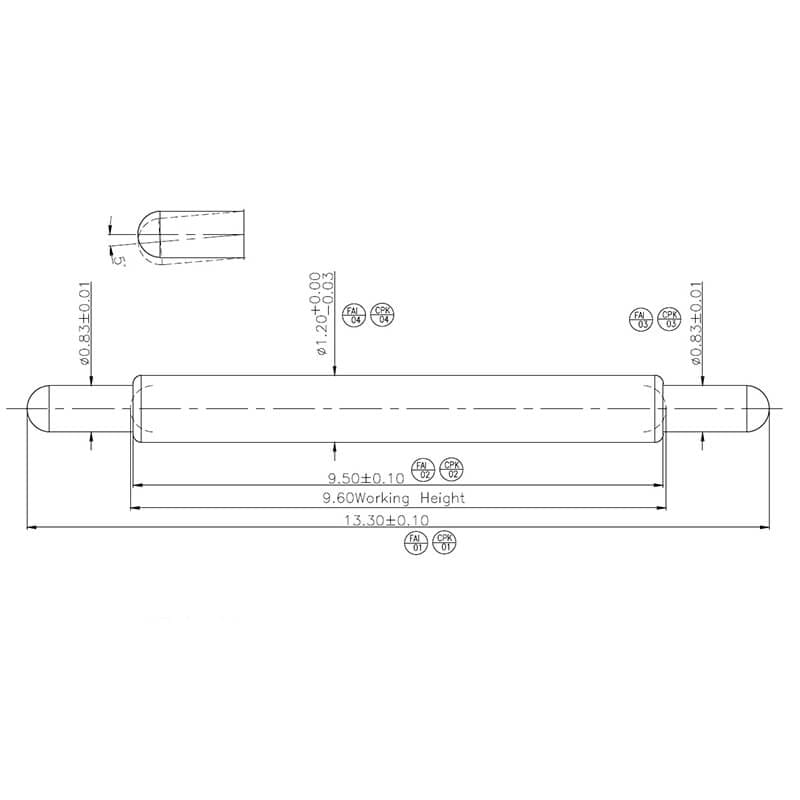

13.30mm, 1 Pin, 9.60mm Working Height, C3698-01PA

  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • C3698-01PA
  • 13.30 mm
  • 9.60 mm
  • 200 gf
  • NO on SUS304

2D

3D

14.50mm, 1 Pin, 12.50mm Working Height, NC309-01PA

DOUBLE ENDED POGO PIN NC309-01PA
  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC309-01PA
  • 14.50 mm
  • 12.50 mm
  • 120 gf
  • Au 10 u‘’
  • 1.0 A

2D

3D

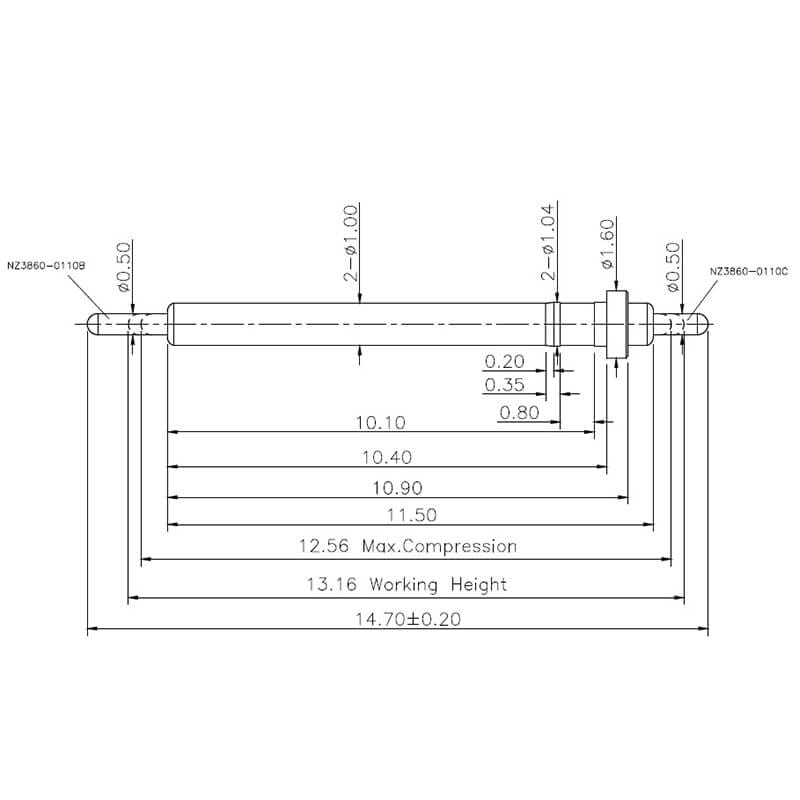

14.70mm, 1 Pin, 13.16mm Working Height, NC3860-01PB

  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC3860-01PB
  • 14.70 mm
  • 13.16 mm
  • 80 gf
  • Au 10 u”
  • 1.0 A

2D

3D

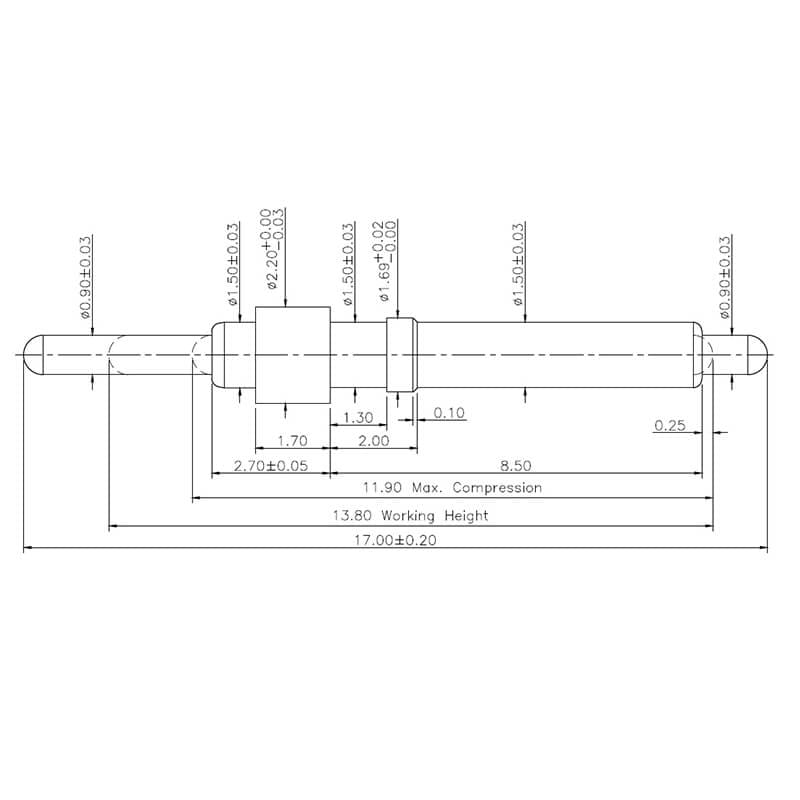

17.00mm, 1 Pin, 13.80mm Working Height, NC3937-01PA

  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC3937-01PA
  • 17.00 mm
  • 13.80 mm
  • 35 gf
  • Au 10 u”
  • 1.0 A

2D

3D

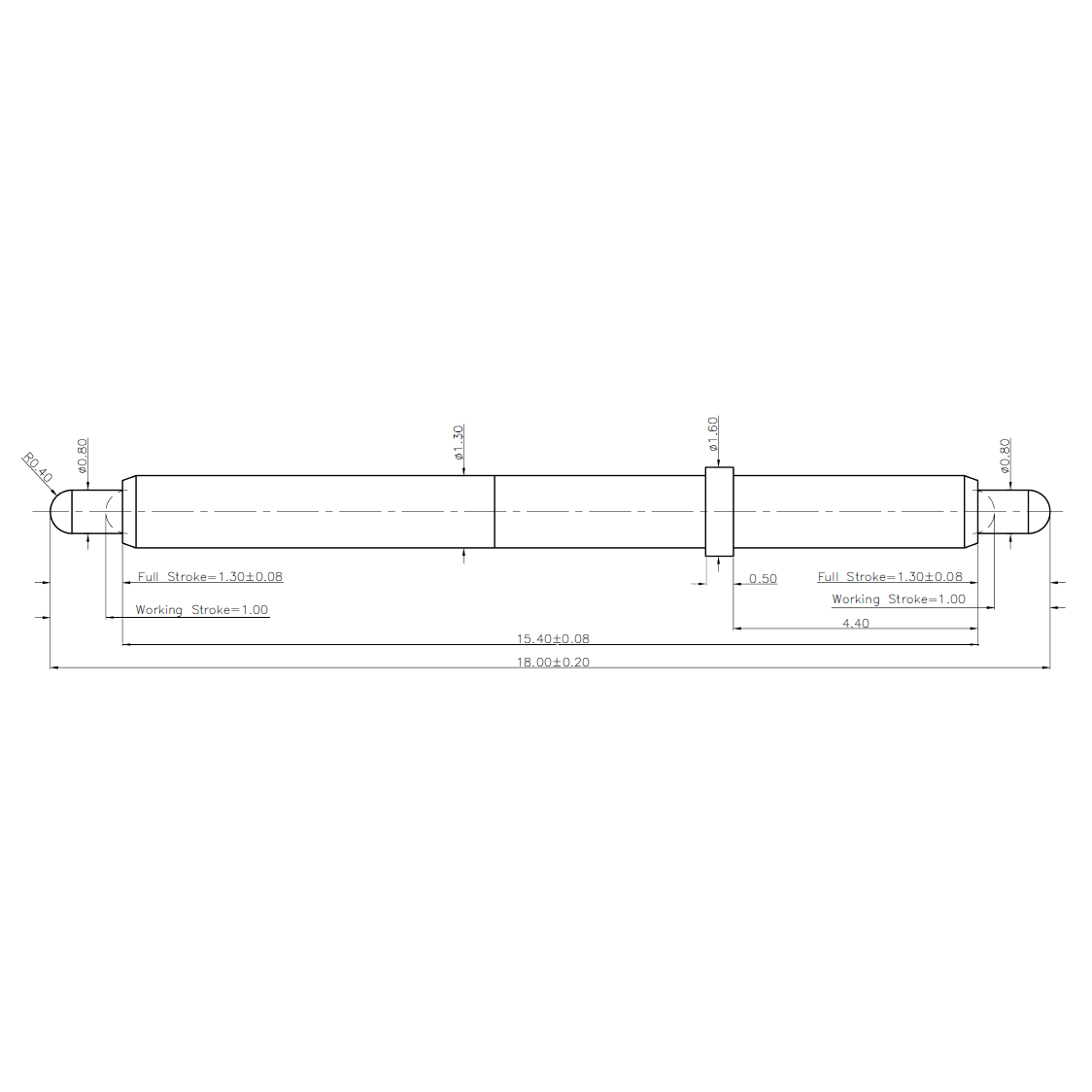

18.00mm, 1 Pin, 16.00mm Working Height, C478-01

DOUBLE ENDED POGO PIN C478-01
  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • C478-01
  • 18.00 mm
  • 16.00 mm
  • 85 gf
  • Au 4 u”
  • 2.0 A

2D

3D

19.37mm, 1 Pin, 16.37mm Working Height, C535-01

DOUBLE ENDED POGO PIN C478-01
  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • C535-01
  • 19.37 mm
  • 16.37 mm
  • 100 gf
  • Au 30 u”
  • 2.0 A

2D

3D

31.70mm, 1 Pin, 29.70mm Working Height, NC3880-01PA

  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC3880-01PA
  • 31.70 mm
  • 29.70 mm
  • 150 gf
  • Au 40 u”
  • 1.0 A

2D

3D

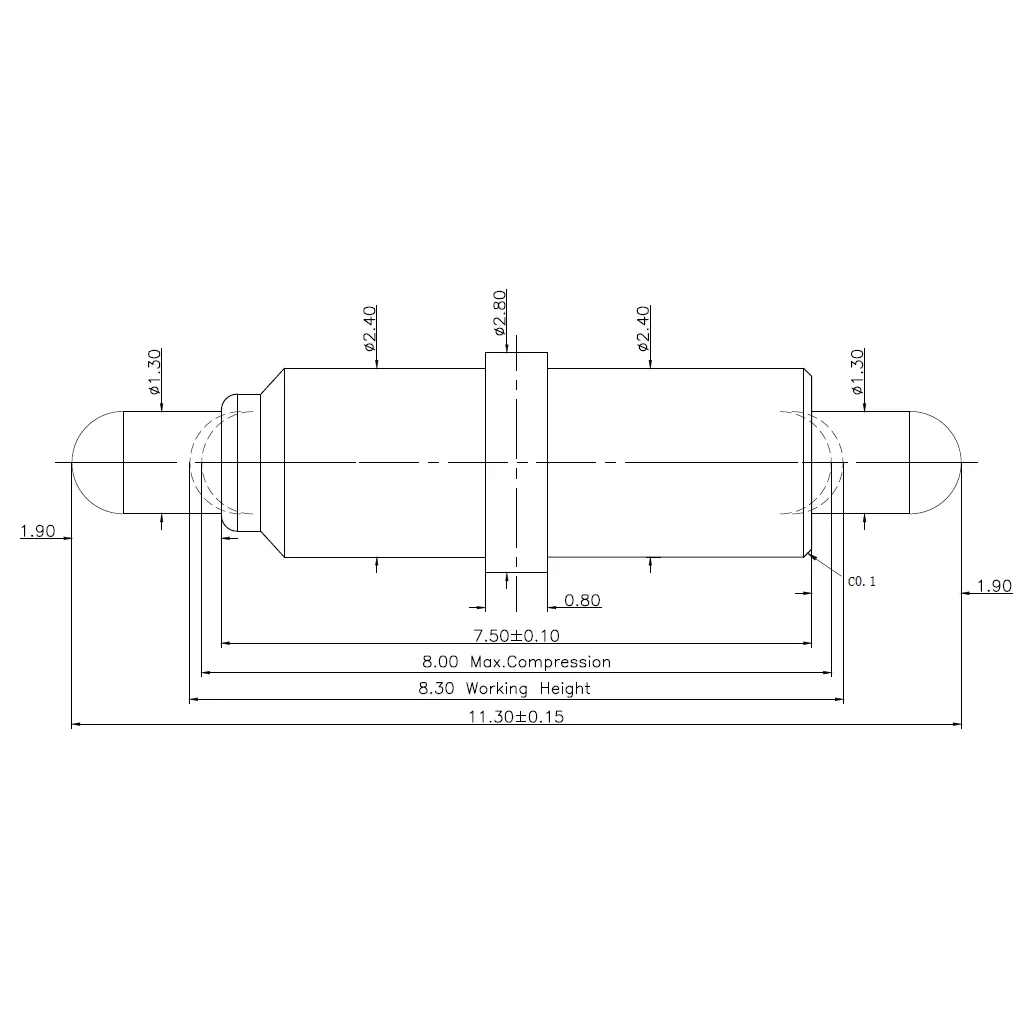

11.30mm, 1 Pin, 8.30mm Working Height, NC5118-01PA

NC5118_01PA
  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC5118-01PA
  • 11.30 mm
  • 8.30 mm
  • 50 gf
  • Au 3 u”
  • 2.0 A

2D

3D

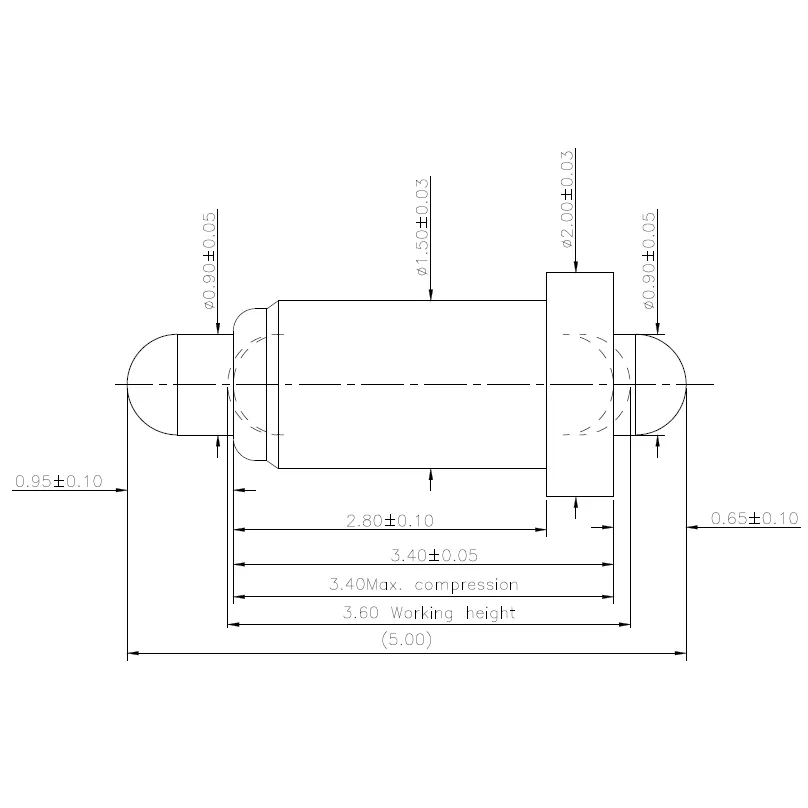

5.00mm, 1 Pin, 3.60mm Working Height, NC5059-01PA

NC5059_01PA
  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC5059-01PA
  • 5.00 mm
  • 3.60 mm
  • 50 gf
  • Au 3 u”
  • 2.0 A

2D

3D

5.00mm, 1 Pin, 4.00mm Working Height, NC4970-01PA

NC4970_01PA
  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC4970-01PA
  • 5.00 mm
  • 4.00 mm
  • 80 gf
  • Au 3 u”
  • 1.0 A

2D

3D

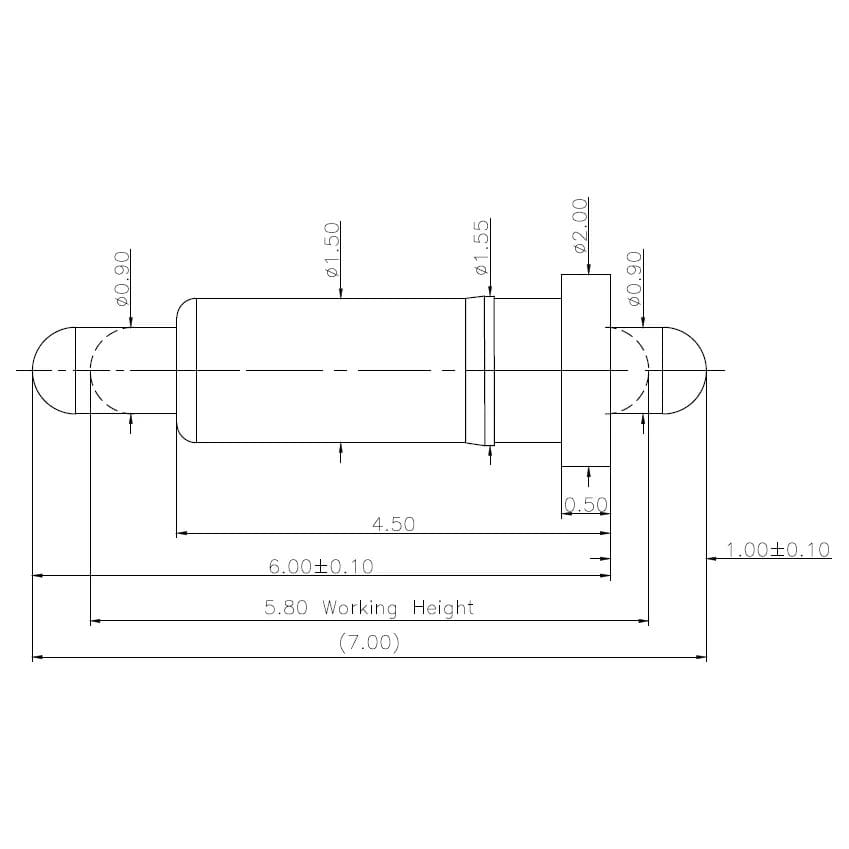

7.00mm, 1 Pin, 5.80mm Working Height, NC4969-01PA

NC4969_01PA
  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC4969-01PA
  • 7.00 mm
  • 5.80 mm
  • 70 gf
  • Au 3 u”
  • 1.0A

2D

3D

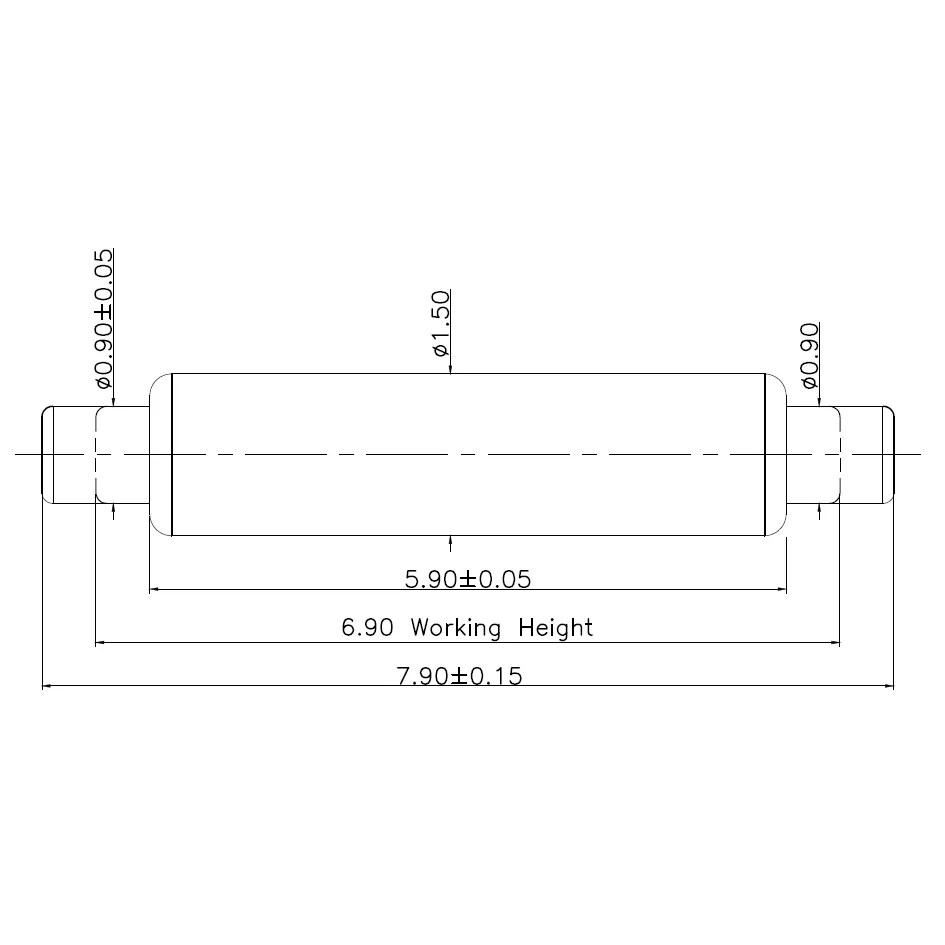

7.90mm, 1 Pin, 6.90mm Working Height, C4925-01PB

  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • C4925-01PB
  • 7.90 mm
  • 6.90 mm
  • 150 gf
  • N/A

2D

3D

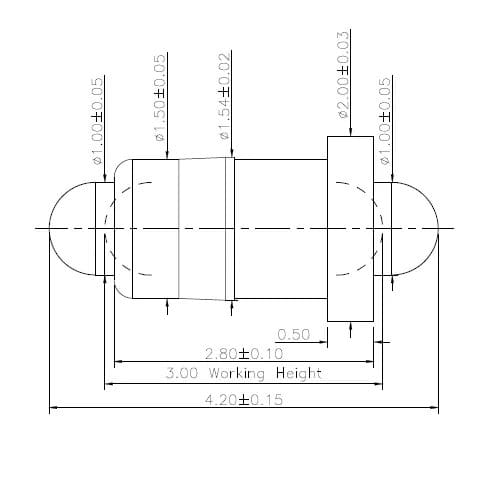

4.20mm, 1 Pin, 3.00mm Working Height, NC4873-01PA

  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC4873-01PA
  • 4.20 mm
  • 3.00 mm
  • 80 gf
  • Au 10 u”
  • 1.0 A

2D

3D

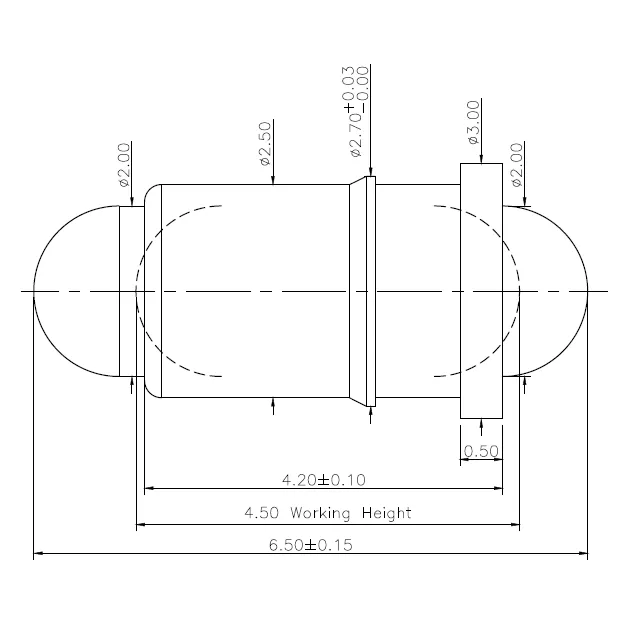

6.50mm, 1 Pin, 4.50mm Working Height, NC4872-01PA

  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC4872-01PA
  • 6.50 mm
  • 4.50 mm
  • 300 gf
  • Au 3 u”
  • 1.0 A

2D

3D

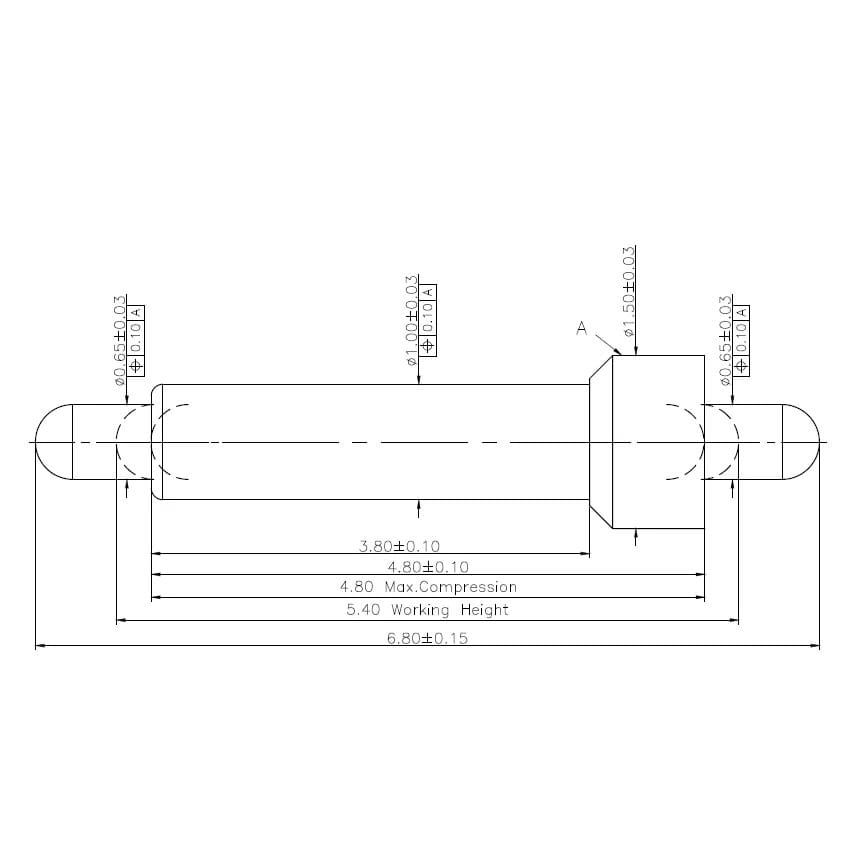

6.80mm, 1 Pin, 5.40mm Working Height, NC4848-01PA

  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC4848-01PA
  • 6.80 mm
  • 5.40 mm
  • 40 gf
  • Au 5 u”
  • 1.0 A

2D

3D

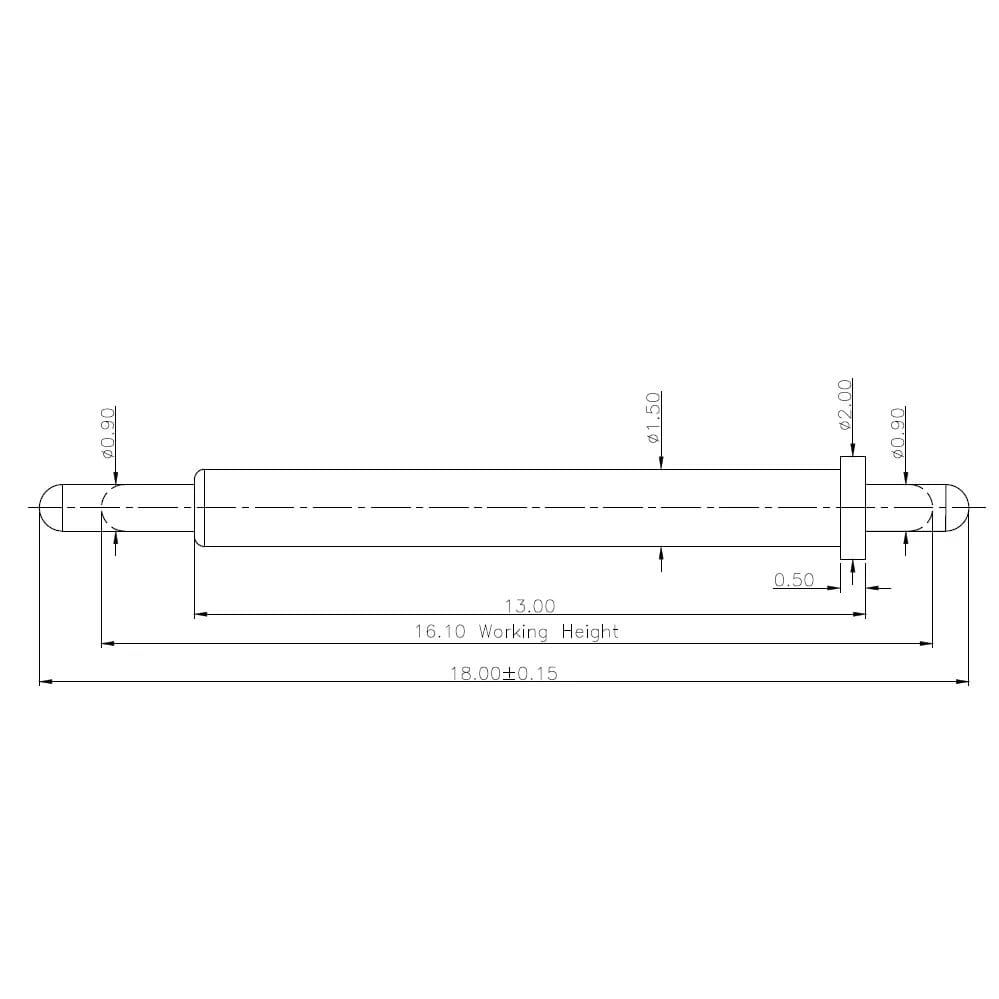

18.00mm, 1 Pin, 16.10mm Working Height, NC4743-01PA

  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC4743-01PA
  • 18.00 mm
  • 16.10 mm
  • 800 gf
  • Au 2 u”
  • 1.0 A

2D

3D

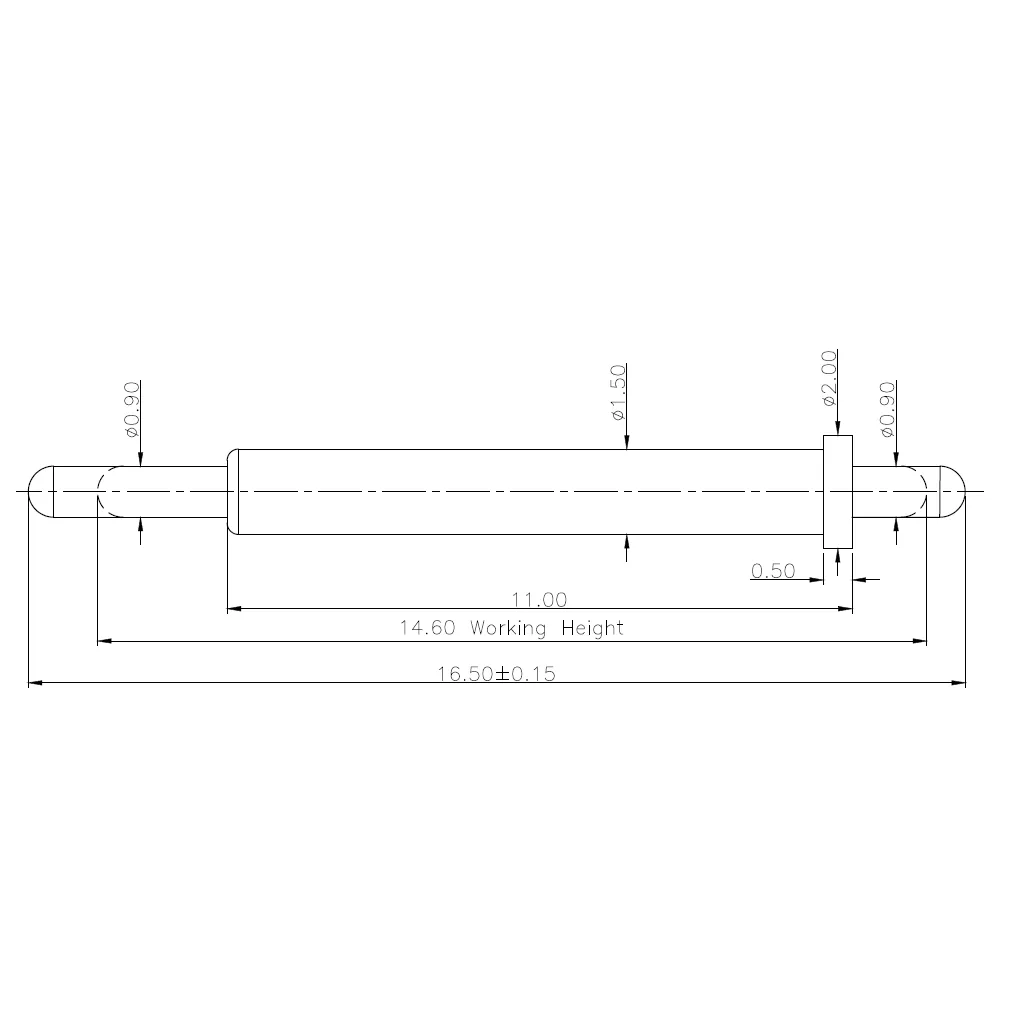

16.50mm, 1 Pin, 14.60mm Working Height, NC4742-01PA

NC4742_01PA
  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC4742-01PA
  • 16.50 mm
  • 14.60 mm
  • 70 gf
  • Au 2 u”
  • 1.0 A

2D

3D
