SMD/SMT Pogo Pins

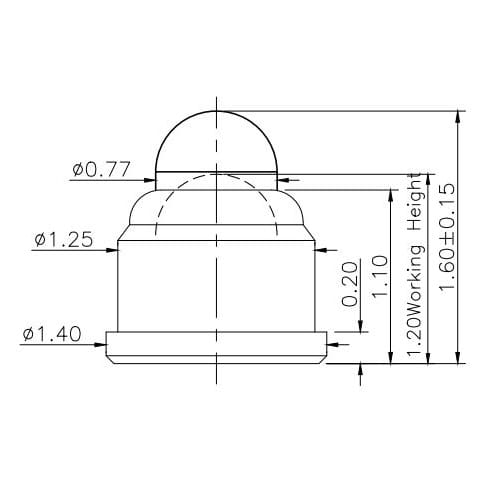

1.60mm, 1 Pin, 1.20mm Working Height, C2071-01

SMT POGO PIN-2071
  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • C2071-01
  • 1.60 mm
  • 1.20 mm
  • 60 gf
  • Au 10 u”
  • 1.0 A

2D

3D

2.00mm, 1 Pin, 1.45mm Working Height, NC2028-01

SMT POGO PIN-2028-01
  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC2028-01
  • 2.00 mm
  • 1.45 mm
  • 35 gf
  • Au 10 u”
  • 1.0 A

2D

3D

2.00mm, 1 Pin, 1.70mm Working Height, NC2746-01RA

  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC2746-01RA
  • 2.00 mm
  • 1.70 mm
  • 80 gf
  • Au 5 u”
  • 1.0 A

2D

3D

2.50mm, 1 Pin, 1.90mm Working Height, NC3281-01RA

  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC3281-01RA
  • 2.50 mm
  • 1.90 mm
  • 45 gf
  • Au 3 u”
  • 1.0 A

2D

3D

3.00mm, 1 Pin, 2.30mm Working Height, NC3008-01RA

  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC3008-01RA
  • 3.00 mm
  • 2.30 mm
  • 20 gf
  • Au 10 u”
  • 1.0 A

2D

3D

3.00mm, 1 Pin, 2.70mm Working Height, NC2896-01RA

  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC2896-01RA
  • 3.00 mm
  • 2.70 mm
  • 60 gf
  • Au 3 u”
  • 1.0 A

2D

3D

3.50mm, 1 Pin, 3.00mm Working Height, NC4115-01RA

SMT POGO PIN-4115-01PA
  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC4115-01RA
  • 3.50 mm
  • 3.00 mm
  • 75 gf
  • Au 3 u”
  • 1.0 A

2D

3D

3.50mm, 1 Pin, 3.00mm Working Height, NC3276-01RA

  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC3276-01RA
  • 3.50 mm
  • 3.00 mm
  • 35 gf
  • Au 5 u”
  • 1.5 A

2D

3D

4.00mm, 1 Pin, 3.40mm Working Height, NC2655-01RA

SMT POGO PIN-2655-01PA
  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC2655-01RA
  • 4.00 mm
  • 3.40 mm
  • 100 gf
  • Ni 10 u”
  • 1.0 A

2D

3D

4.00mm, 1 Pin, 3.50mm Working Height, NC3196-01RA

  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC3196-01RA
  • 4.00 mm
  • 3.50 mm
  • 40 gf
  • Au 10 u”
  • 2.0 A

2D

3D

4.50mm, 1 Pin, 3.60mm Working Height, NC3273-01RA

  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC3273-01RA
  • 4.50 mm
  • 3.60 mm
  • 40 gf
  • Au 5 u”
  • 1.0 A

2D

3D

4.50mm, 1 Pin, 3.80mm Working Height, NC1918-01RA

SMT POGO PIN-1918-01PA
  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC1918-01RA
  • 4.50 mm
  • 3.80 mm
  • 40 gf
  • PdNi 10 u”
  • 1.0 A

2D

3D

5.00mm, 1 Pin, 3.70mm Working Height, NC3592-01RA

  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC3592-01RA
  • 5.00 mm
  • 3.70 mm
  • 40 gf
  • Au 3 u”
  • 1.0 A

2D

3D

5.00mm, 1 Pin, 4.00mm Working Height, NC3030-01RA

SMT POGO PIN-3030-01PA
  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC3030-01RA
  • 5.00 mm
  • 4.00 mm
  • 100 gf
  • Au 3 u”
  • 3.0 A

2D

3D

5.10mm, 1 Pin, 4.30mm Working Height, NC2952-01RA

  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC2952-01RA
  • 5.10 mm
  • 4.30 mm
  • 50 gf
  • Au 10 u”
  • 1.0 A

2D

3D

5.20mm, 1 Pin, 4.20mm Working Height, NC3001-01RB

  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC3001-01RB
  • 5.20 mm
  • 4.20 mm
  • 70 gf
  • Au 4 u”
  • 1.0 A

2D

3D

5.50mm, 1 Pin, 4.50mm Working Height, NC3745-01RA

  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC3745-01RA
  • 5.50 mm
  • 4.50 mm
  • 40 gf
  • Au 5 u”
  • 1.0 A

2D

3D

6.00mm, 1 Pin, 4.90mm Working Height, NC2355-01R

SMT POGO PIN-2355R
  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC2355-01R
  • 6.00 mm
  • 4.90 mm
  • 20 gf
  • Au 23 u”
  • 1.0 A

2D

3D

6.50mm, 1 Pin, 5.50mm Working Height, NC3691-01PB

SMT POGO PIN-3691-01PA
  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC3691-01PB
  • 6.50 mm
  • 5.50 mm
  • 100 gf
  • Au 3 u”
  • 1.0 A

2D

3D

8.50mm, 1 Pin, 7.20mm Working Height, NC2652-01PA

SMT POGO PIN-2652-01
  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC2652-01
  • 8.50 mm
  • 7.20 mm
  • 120 gf
  • Au 3 u”
  • 2.0 A

2D

3D

8.80mm, 1 Pin, 7.00mm Working Height, NC4118-01PA

SMT POGO PIN-4118-01PA
  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC4118-01PA
  • 8.80 mm
  • 7.00 mm
  • 70 gf
  • Au 3 u”
  • 2.0 A

2D

3D

9.00mm, 1 Pin, 8.00mm Working Height, NC3710-01PA

SMT POGO PIN-3710-01PA
  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC3710-01PA
  • 9.00 mm
  • 8.00 mm
  • 100 gf
  • Au 10 u”
  • 2.0 A

2D

3D

9.50mm, 1 Pin, 7.20mm Working Height, NC4167-01RA

SMT POGO PIN-4167-01PA
  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC4167-01RA
  • 9.50 mm
  • 7.20 mm
  • 60 gf
  • Au 1 u”
  • 1.0 A

2D

3D

10.00mm, 1 Pin, 7.50mm Working Height, NC4156-01PA

SMT POGO PIN-4156-01PA
  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC4156-01PA
  • 10.00 mm
  • 7.50 mm
  • 150 gf
  • Au 10 u”
  • 1.0 A

2D

3D

10.50mm, 1 Pin, 8.50mm Working Height, C1888-01

SMT POGO PIN-C1888-01
  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • C1888-01
  • 10.50 mm
  • 8.50 mm
  • 150 gf
  • Au 10 u”
  • 1.0 A

2D

3D

11.30mm, 1 Pin, 9.60mm Working Height, NC3353-01PA

SMT POGO PIN-3353-01PA
  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC3353-01PA
  • 11.30 mm
  • 9.60 mm
  • 5.5-7.5 N
  • Au 10 u”
  • 5.0 A

2D

3D

11.70mm, 1 Pin, 10.10mm Working Height, NC3505-01PA

SMT POGO PIN-3505-01PA
  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC3505-01PA
  • 11.70 mm
  • 10.10 mm
  • 100 gf
  • Au 5 u”
  • 1.0 A

2D

3D

12.00mm, 1 Pin, 11.00mm Working Height, C713-01

SMT POGO PIN-C713-01
  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • C713-01
  • 12.00 mm
  • 11.00 mm
  • 60 gf
  • Au 10 u”
  • 1.0 A

2D

3D

12.70mm, 1 Pin, 10.70mm Working Height, C2205-01C

SMT POGO PIN-C2205-01
  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • C2205-01C
  • 12.70 mm
  • 10.70 mm
  • 3 N
  • Au 0 u”
  • 0.0 A

2D

3D

13.00mm, 1 Pin, 9.50mm Working Height, C2262-01

SMT POGO PIN-C2262-01
  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • C2262-01
  • 13.00 mm
  • 9.50 mm
  • 400 gf
  • Au 5 u”
  • 1.0 A

2D

3D

5.45mm, 1 Pin, 4.45mm Working Height, NC5161-01PA

NC5161_01PA
  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC5161-01PA
  • 5.45 mm
  • 4.45 mm
  • 60 gf
  • Au 3 u”
  • 1.0 A

2D

3D

2.97mm, 1 Pin, 2.39mm Working Height, NC5153-01PA

NC5153_01PA
  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC5153-01PA
  • 2.97 mm
  • 2.39 mm
  • 30 gf
  • Au 10 u”
  • 2.0 A

2D

3D

2.97mm, 1 Pin, 2.39mm Working Height, NC5150-01PA

  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC5150-01PA
  • 2.97 mm
  • 2.39 mm
  • 30 gf
  • Au 4 u”
  • 1.0 A

2D

3D

5.00mm, 1 Pin, 4.00mm Working Height, NC5130-01RA

  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC5130-01RA
  • 5.00 mm
  • 4.00 mm
  • 30 gf
  • Au 3 u”
  • 1.0 A

2D

3D

3.20mm, 1 Pin, 2.40mm Working Height, NC5109-01RA

NC5109_01RA
  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC5109-01RA
  • 3.20 mm
  • 2.40 mm
  • 120 gf
  • Au 3 u”
  • 2.0 A

2D

3D

3.00mm, 1 Pin, 2.30mm Working Height, NC5106-01RA

NC5106_01RA
  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC5106-01RA
  • 3.00 mm
  • 2.30 mm
  • 50 gf
  • Au 10 u”
  • 1.0 A

2D

3D

4.50mm, 1 Pin, 3.70mm Working Height, NC5080-01RA

NC5080_01PA
  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC5080-01RA
  • 4.50 mm
  • 3.70 mm
  • 120 gf
  • Au 10 u”
  • 1.0 A

2D

3D

12.00mm, 1 Pin, 11.00mm Working Height, C713-01

SMT POGO PIN-C713-01
  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • C713-01
  • 12.00 mm
  • 11.00 mm
  • 60 gf
  • Au 10 u”
  • 1.0 A

2D

3D

5.00mm, 1 Pin, 4.20mm Working Height, NC5079-01RA

  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC5079-01RA
  • 5.00 mm
  • 4.20 mm
  • 60 g
  • Au 3 u”
  • 1.0 A

2D

3D

6.85mm, 1 Pin, 5.75mm Working Height, NC5078-01PA

  • Part Number
  • Length
  • Working Height
  • Spring Force
  • Plated
  • Rated Current
  • NC5078-01PA
  • 6.85 mm
  • 5.75 mm
  • 100 gf
  • Au 5 u”
  • 2.0 A

2D

3D

PS: Please swipe left and right to turn the page to view

If you do not find the desired model, please contact us. We have professional engineers to solve your problems.
